    【已解决】iOS自动处理WiFi代理：配置代理页中从手动切换到关闭且保留之前代理配置信息

    代理 crifan 1018浏览 0评论
    折腾：
    【未解决】iOS自动化安装app：给当前WiFi去掉代理以及自动安装app后再恢复之前代理
    期间，已经可以进入配置代理页面了：
    接着去调试：
    xml
    <XCUIElementTypeTable type="XCUIElementTypeTable" enabled="true" visible="true" x="0" y="0" width="414" height="736">
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="false" x="0" y="99" width="414" height="1"/>
        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="374" height="45"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
    </XCUIElementTypeCell>
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="350" height="45"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
        <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="161" width="14" height="11"/>
    </XCUIElementTypeCell>
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="374" height="45"/>
    </XCUIElementTypeCell>
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="269" width="414" height="46">
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="269" width="414" height="1"/>
        <XCUIElementTypeTextField type="XCUIElementTypeTextField" value="192.168.31.46" name="服务器" label="服务器" enabled="true" visible="true" x="92" y="281" width="294" height="21"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="15" y="313" width="305" height="1"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="313" width="394" height="2"/>
    </XCUIElementTypeCell>
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="314" width="414" height="46">
        <XCUIElementTypeTextField type="XCUIElementTypeTextField" value="8081" name="端口" label="端口" enabled="true" visible="true" x="74" y="326" width="312" height="22"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="15" y="358" width="305" height="2"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="359" width="394" height="1"/>
    </XCUIElementTypeCell>
    <XCUIElementTypeCell type="XCUIElementTypeCell" value="0" enabled="true" visible="true" x="0" y="359" width="414" height="46">
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="404" width="414" height="1"/>
        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="鉴定" name="鉴定" label="鉴定" enabled="true" visible="true" x="20" y="359" width="323" height="46"/>
        <XCUIElementTypeSwitch type="XCUIElementTypeSwitch" value="0" name="鉴定" label="鉴定" enabled="true" visible="true" x="343" y="366" width="51" height="32"/>
    </XCUIElementTypeCell>
</XCUIElementTypeTable>
    3个列表的cell：
    • 关闭
    • 手动
    • 自动
    以及下面的：
    • 服务器
      • value=”192.168.31.46″
        • type=”XCUIElementTypeTextField”
    • 端口
      • value=”8081″
        • type=”XCUIElementTypeTextField”
    • 鉴定
      • value=”0″
        • type=”XCUIElementTypeSwitch”
    但是当前选了哪个，貌似没有明显的标识
    只能看到是：
    手动 有额外的：
    name=”更多信息” 的 XCUIElementTypeButton

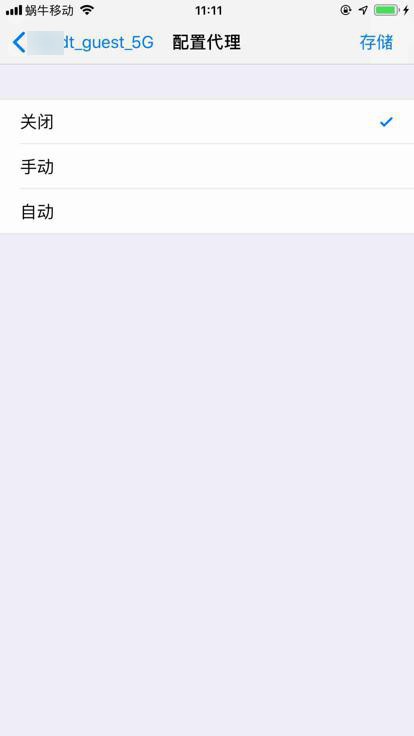

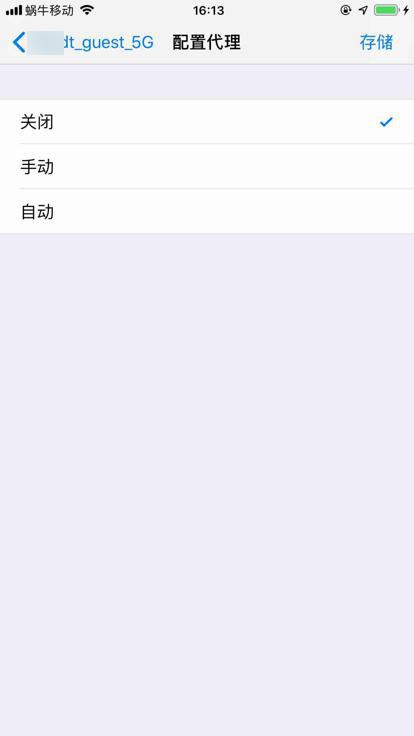

    算了， 去手动点击切换成 关闭，看看情况：
    xml
    <XCUIElementTypeTable type="XCUIElementTypeTable" enabled="true" visible="true" x="0" y="0" width="414" height="736">
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="99" width="414" height="1"/>
        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="350" height="45"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
        <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="116" width="14" height="11"/>
    </XCUIElementTypeCell>
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="374" height="45"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
    </XCUIElementTypeCell>
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="374" height="45"/>
    </XCUIElementTypeCell>
</XCUIElementTypeTable>
    看起来像是：
    当前选择了哪个，哪个有额外的：
    name=”更多信息”的XCUIElementTypeButton

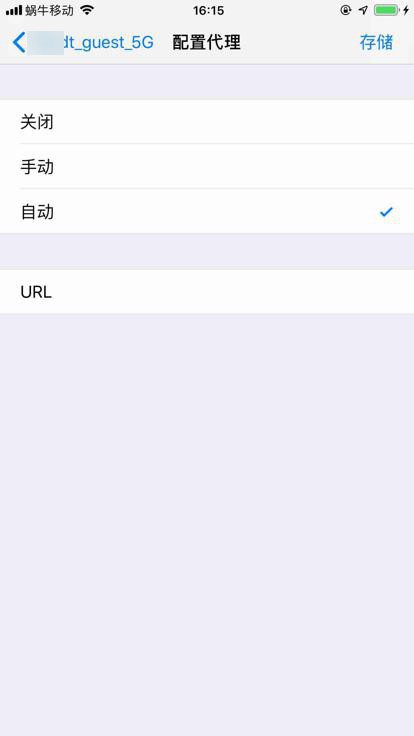

    再去切换到自动：
    xml
    <XCUIElementTypeTable type="XCUIElementTypeTable" enabled="true" visible="true" x="0" y="0" width="414" height="736">
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="false" x="0" y="99" width="414" height="1"/>
        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="374" height="45"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
    </XCUIElementTypeCell>
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="374" height="45"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
    </XCUIElementTypeCell>
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="350" height="45"/>
        <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="206" width="14" height="11"/>
    </XCUIElementTypeCell>
    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="269" width="414" height="46">
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="269" width="414" height="1"/>
        <XCUIElementTypeTextField type="XCUIElementTypeTextField" name="URL" label="URL" enabled="true" visible="true" x="72" y="281" width="314" height="21"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="313" width="414" height="2"/>
        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="15" y="313" width="305" height="1"/>
    </XCUIElementTypeCell>
</XCUIElementTypeTable>
    的确是：
    此处选择了：
    自动
    其中就多出一个：
    name=”更多信息”的XCUIElementTypeButton
    然后去写代码：
    期间，再去优化，把 从 parent的cell，获取 子节点中 proxy的type的name，去优化成独立函数，供2处调用：

    def iOSFindChildProxyTypeName(self, parentCellSoup):
        """from parent cell soup, find child proxy type node's name


        Args:
            parentCellSoup (soup): Beautifulsoup soup of parent XCUIElementTypeCell
        Returns:
            str/None:
                str: 手动/自动/关闭
                None: not found
        Raises:
        """
        proxyTypeName = None
        # some cases:
        """
            设置 无线局域网 详情页 代理 关闭：
                <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="695" width="414" height="46">
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="695" width="414" height="1"/>
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="false" x="0" y="740" width="414" height="1"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="配置代理" name="配置代理" label="配置代理" enabled="true" visible="true" x="20" y="708" width="70" height="21"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="341" y="708" width="35" height="21"/>
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="386" y="711" width="8" height="14"/>
                </XCUIElementTypeCell>


            设置 无线局域网 详情页 代理 手动：
                <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="695" width="414" height="46">
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="695" width="414" height="1"/>
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="false" x="0" y="740" width="414" height="1"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="配置代理" name="配置代理" label="配置代理" enabled="true" visible="true" x="20" y="708" width="70" height="21"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="341" y="708" width="35" height="21"/>
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="386" y="711" width="8" height="14"/>
                </XCUIElementTypeCell>


            设置 无线局域网 配置代理 手动：
                <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="350" height="45"/>
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="161" width="14" height="11"/>
                </XCUIElementTypeCell>


            设置 无线局域网 配置代理 关闭：
                <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="99" width="414" height="1"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="350" height="45"/>
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="116" width="14" height="11"/>
                </XCUIElementTypeCell>


            设置 无线局域网 配置代理 自动：
                <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="350" height="45"/>
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="206" width="14" height="11"/>
                </XCUIElementTypeCell>
        """
        proxyTypeP = re.compile("(手动)|(自动)|(关闭)")
        proxyTypeSoup = parentCellSoup.find(
            'XCUIElementTypeStaticText',
            attrs={"type": "XCUIElementTypeStaticText", "value": proxyTypeP, "enabled":"true", "visible":"true"},
        )
        proxySoupAttrDict = proxyTypeSoup.attrs
        proxyTypeName = proxySoupAttrDict.get("value")
        return proxyTypeName
    调用：
                parentCellSoup = morenInfoSoup.parent
            # proxyTypeP = re.compile("(手动)|(自动)|(关闭)")
            # proxyTypeSoup = parentCellSoup.find(
            #     'XCUIElementTypeStaticText',
            #     attrs={"type": "XCUIElementTypeStaticText", "value": proxyTypeP, "enabled":"true", "visible":"true"},
            # )
            proxyTypeName = self.iOSFindChildProxyTypeName(parentCellSoup)
    和：
                # proxyTypeP = re.compile("(手动)|(自动)|(关闭)")
            # proxyTypeSoup = parentCellSoup.find(
            #     'XCUIElementTypeStaticText',
            #     attrs={"type": "XCUIElementTypeStaticText", "value": proxyTypeP, "enabled":"true", "visible":"true"},
            # )
            proxyTypeName = self.iOSFindChildProxyTypeName(parentCellSoup)

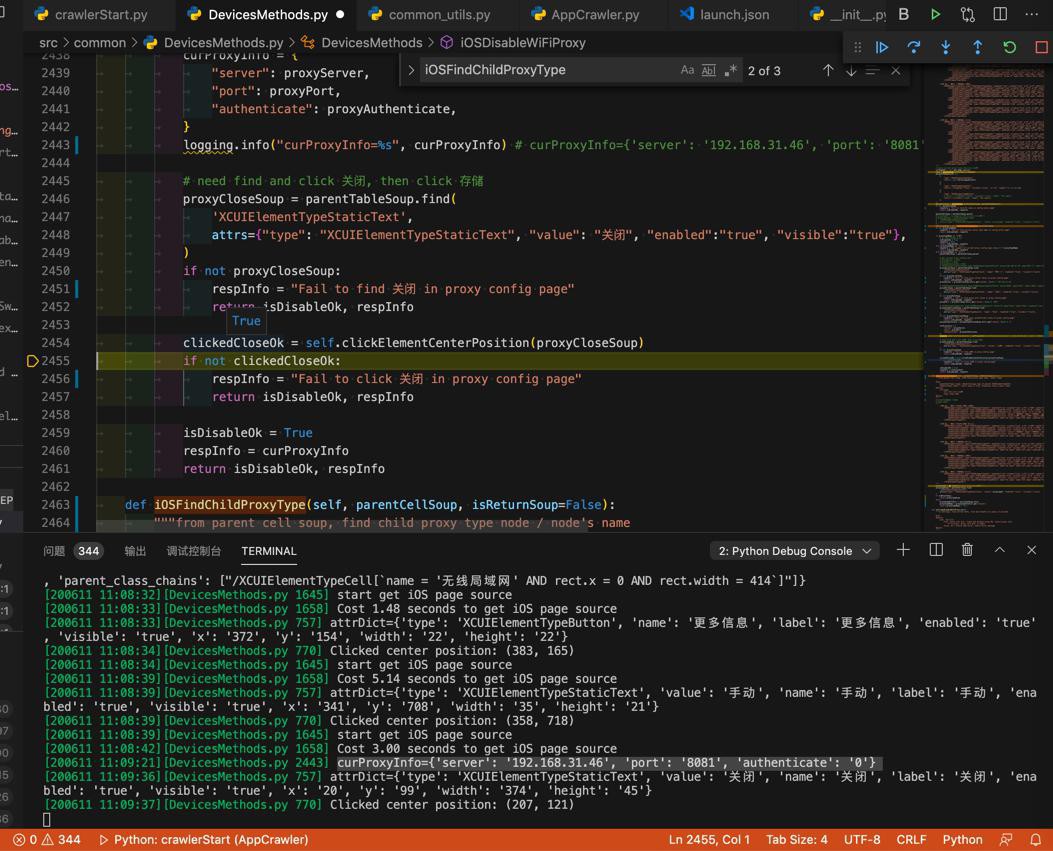

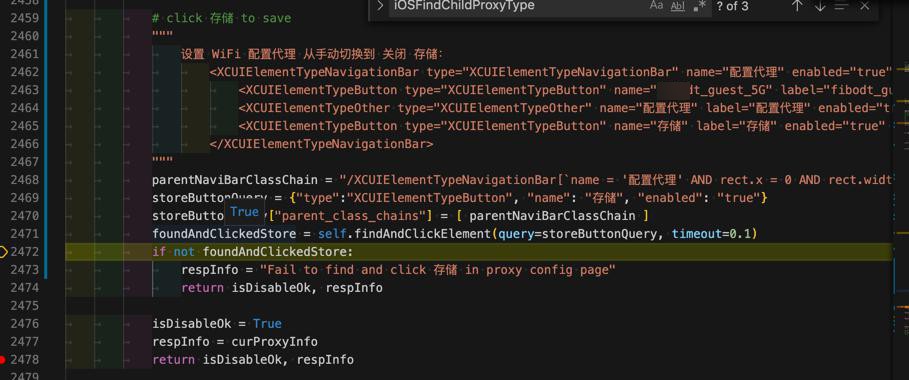

    然后去写代码：
        def iOSDisableWiFiProxy(self):
        """in 代理配置 page, change from 手动 to 关闭, while get previous proxy config info"""
        isDisableOk = False
        respInfo = None
        """
            设置 无线局域网 配置代理 手动：
                <XCUIElementTypeTable type="XCUIElementTypeTable" enabled="true" visible="true" x="0" y="0" width="414" height="736">
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="false" x="0" y="99" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="374" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="350" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
                        <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="161" width="14" height="11"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="374" height="45"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="269" width="414" height="46">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="269" width="414" height="1"/>
                        <XCUIElementTypeTextField type="XCUIElementTypeTextField" value="192.168.31.46" name="服务器" label="服务器" enabled="true" visible="true" x="92" y="281" width="294" height="21"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="15" y="313" width="305" height="1"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="313" width="394" height="2"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="314" width="414" height="46">
                        <XCUIElementTypeTextField type="XCUIElementTypeTextField" value="8081" name="端口" label="端口" enabled="true" visible="true" x="74" y="326" width="312" height="22"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="15" y="358" width="305" height="2"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="359" width="394" height="1"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" value="0" enabled="true" visible="true" x="0" y="359" width="414" height="46">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="404" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="鉴定" name="鉴定" label="鉴定" enabled="true" visible="true" x="20" y="359" width="323" height="46"/>
                        <XCUIElementTypeSwitch type="XCUIElementTypeSwitch" value="0" name="鉴定" label="鉴定" enabled="true" visible="true" x="343" y="366" width="51" height="32"/>
                    </XCUIElementTypeCell>
                </XCUIElementTypeTable>


            设置 无线局域网 配置代理 关闭：
                <XCUIElementTypeTable type="XCUIElementTypeTable" enabled="true" visible="true" x="0" y="0" width="414" height="736">
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="99" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="350" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
                        <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="116" width="14" height="11"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="374" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="374" height="45"/>
                    </XCUIElementTypeCell>
                </XCUIElementTypeTable>


            设置 无线局域网 配置代理 自动：
                <XCUIElementTypeTable type="XCUIElementTypeTable" enabled="true" visible="true" x="0" y="0" width="414" height="736">
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="false" x="0" y="99" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="374" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="374" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="350" height="45"/>
                        <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="206" width="14" height="11"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="269" width="414" height="46">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="269" width="414" height="1"/>
                        <XCUIElementTypeTextField type="XCUIElementTypeTextField" name="URL" label="URL" enabled="true" visible="true" x="72" y="281" width="314" height="21"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="313" width="414" height="2"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="15" y="313" width="305" height="1"/>
                    </XCUIElementTypeCell>
                </XCUIElementTypeTable>
        """
        # check current proxy type: 手动/自动/关闭
        curPageXml = self.get_page_source()
        soup = CommonUtils.xmlToSoup(curPageXml)
        morenInfoChainList = [
            {
                "tag": "XCUIElementTypeTable",
                "attrs": self.FullScreenAttrDict
            },
            {
                "tag": "XCUIElementTypeCell",
                "attrs": {"enabled":"true", "visible":"true", "x":"0", "width":"%s" % self.X}
            },
            {
                "tag": "XCUIElementTypeButton",
                # "attrs": {"enabled":"false", "visible":"true", "name": "更多信息"}
                "attrs": {"visible":"true", "name": "更多信息"}
            },
        ]
        morenInfoSoup = CommonUtils.bsChainFind(soup, morenInfoChainList)
        if not morenInfoSoup:
            respInfo = errMsg = "Fail to find 更多信息 in config proxy page"
            return isDisableOk, respInfo


        parentCellSoup = morenInfoSoup.parent
        # proxyTypeP = re.compile("(手动)|(自动)|(关闭)")
        # proxyTypeSoup = parentCellSoup.find(
        #     'XCUIElementTypeStaticText',
        #     attrs={"type": "XCUIElementTypeStaticText", "value": proxyTypeP, "enabled":"true", "visible":"true"},
        # )
        proxyTypeName = self.iOSFindChildProxyTypeName(parentCellSoup)
        if not proxyTypeName:
            respInfo = errMsg = "Fail to find current proxy type name in config proxy page"
            return isDisableOk, respInfo


        if proxyTypeName == "关闭":
            # no need change proxy
            isDisableOk = True
            respInfo = None
            return isDisableOk, respInfo
        elif proxyTypeName == "自动":
            respInfo = errMsg = "Not support of current proxy config type value %s" % proxyTypeName
            return isDisableOk, respInfo
        elif proxyTypeName == "手动":
            parentTableSoup = parentCellSoup.parent


            # get current proxy config info
            # proxyServer = None
            # proxyPort = None
            # proxyAuthenticate = None
            # <XCUIElementTypeTextField type="XCUIElementTypeTextField" value="192.168.31.46" name="服务器" label="服务器" enabled="true" visible="true" x="92" y="281" width="294" height="21"/>
            proxyServerSoup = parentTableSoup.find(
                'XCUIElementTypeTextField',
                attrs={"type": "XCUIElementTypeTextField", "name": "服务器", "enabled":"true", "visible":"true"},
            )
            if not proxyServerSoup:
                respInfo = errMsg = "Fail to find proxy server value in proxy config page"
                return isDisableOk, respInfo
            proxyServer = proxyServerSoup.attr.get("value", None)


            # <XCUIElementTypeTextField type="XCUIElementTypeTextField" value="8081" name="端口" label="端口" enabled="true" visible="true" x="74" y="326" width="312" height="22"/>
            proxyPortSoup = parentTableSoup.find(
                'XCUIElementTypeTextField',
                attrs={"type": "XCUIElementTypeTextField", "name": "端口", "enabled":"true", "visible":"true"},
            )
            if not proxyPortSoup:
                respInfo = errMsg = "Fail to find proxy port value in proxy config page"
                return isDisableOk, respInfo
            proxyPort = proxyPortSoup.attr.get("value", None)


            # <XCUIElementTypeSwitch type="XCUIElementTypeSwitch" value="0" name="鉴定" label="鉴定" enabled="true" visible="true" x="343" y="366" width="51" height="32"/>
            proxyAuthenticateSoup = arentTableSoup.find(
                'XCUIElementTypeSwitch',
                attrs={"type": "XCUIElementTypeSwitch", "name": "鉴定", "enabled":"true", "visible":"true"},
            )
            if not proxyAuthenticateSoup:
                respInfo = errMsg = "Fail to find proxy authenticate value in proxy config page"
                return isDisableOk, respInfo
            proxyAuthenticate = proxyAuthenticateSoup.attr.get("value", None)


            curProxyInfo = {
                "server": proxyServer,
                "port": proxyPort,
                "authenticate": proxyAuthenticate,
            }
            logging.info("curProxyInfo=%s", curProxyInfo)


            # need find and click 关闭, then click 存储
            proxyCloseSoup = parentTableSoup.find(
                'XCUIElementTypeStaticText',
                attrs={"type": "XCUIElementTypeStaticText", "value": "关闭", "enabled":"true", "visible":"true"},
            )
            if not proxyCloseSoup:
                respInfo = errMsg = "Fail to find 关闭 in proxy config page"
                return isDisableOk, respInfo


            clickedCloseOk = self.clickElementCenterPosition(proxyCloseSoup)
            if not clickedCloseOk:
                respInfo = errMsg = "Fail to click 关闭 in proxy config page"
                return isDisableOk, respInfo


            isDisableOk = True
            respInfo = curProxyInfo
            return isDisableOk, respInfo
    调用：

        # proxyTypeSoup = self.iOSGetCurrentWiFiProxyType()
        proxyTypeName = self.iOSGetCurrentWiFiProxyTypeName()
        # if not proxyTypeSoup:
        if not proxyTypeName:
            respInfo = "Not find current WiFi proxy config type"
            return isProcessdOk, respInfo


        if proxyTypeName == "关闭":
            # no need change proxy
            isProcessdOk = True
            respInfo = None # means no proxy
            return isProcessdOk, respInfo
        elif proxyTypeName == "手动":
            # need into config page, to get it value, then reconfig to 关闭
            clickedOk = self.clickElementCenterPosition(proxyTypeSoup)
            if not clickedOk:
                respInfo = "Fail to click 配置代理 当前值：%s" % proxyTypeName
                return isProcessdOk, respInfo

            isChangeToDisableOk, respInfo = self.iOSDisableWiFiProxy()
            if not isChangeToDisableOk:
                errMsg = respInfo
                respInfo = "Fail to change proxy config from 手动 to 关闭, reason: %s" % errMsg
                return isProcessdOk, respInfo
            else:
                logging.info("Successfully change proxy config from 手动 to 关闭, previous proxy info: %s", prevProxyInfo)
                isProcessdOk = True
                proxyInfo = respInfo
                respInfo = proxyInfo
                return isProcessdOk, respInfo
        else:
            # proxyTypeName == "自动"
            respInfo = "Not support of current  proxy config type value %s" % proxyTypeName
            return isProcessdOk, respInfo
    去调试
    可以解析出 proxy信息
    curProxyInfo={'server': '192.168.31.46', 'port': '8081', 'authenticate': '0'}
    也可以找到并点击 关闭：
    然后此处，右上角出现 存储 变成蓝色 ，希望去点击到
    继续去调试：
    xml
    <XCUIElementTypeNavigationBar type="XCUIElementTypeNavigationBar" name="配置代理" enabled="true" visible="true" x="0" y="20" width="414" height="44">
    <XCUIElementTypeButton type="XCUIElementTypeButton" name="xxx_guest_5G" label="xxx_guest_5G" enabled="true" visible="true" x="0" y="20" width="155" height="44"/>
    <XCUIElementTypeOther type="XCUIElementTypeOther" name="配置代理" label="配置代理" enabled="true" visible="true" x="172" y="31" width="70" height="21"/>
    <XCUIElementTypeButton type="XCUIElementTypeButton" name="存储" label="存储" enabled="true" visible="true" x="359" y="20" width="43" height="44"/>
</XCUIElementTypeNavigationBar>
    很规整，去写代码
                # click 存储 to save
            """
                设置 WiFi 配置代理 从手动切换到 关闭 存储：
                    <XCUIElementTypeNavigationBar type="XCUIElementTypeNavigationBar" name="配置代理" enabled="true" visible="true" x="0" y="20" width="414" height="44">
                        <XCUIElementTypeButton type="XCUIElementTypeButton" name="xxx_guest_5G" label="xxx_guest_5G" enabled="true" visible="true" x="0" y="20" width="155" height="44"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" name="配置代理" label="配置代理" enabled="true" visible="true" x="172" y="31" width="70" height="21"/>
                        <XCUIElementTypeButton type="XCUIElementTypeButton" name="存储" label="存储" enabled="true" visible="true" x="359" y="20" width="43" height="44"/>
                    </XCUIElementTypeNavigationBar>
            """
            parentNaviBarClassChain = "/XCUIElementTypeNavigationBar[`name = '配置代理' AND rect.x = 0 AND rect.width = %d`]" % self.X
            storeButtonQuery = {"type":"XCUIElementTypeButton", "name": "存储", "enabled": "true"}
            storeButtonQuery["parent_class_chains"] = [ parentNaviBarClassChain ]
            foundAndClickedStore = self.findAndClickElement(query=storeButtonQuery, timeout=0.1)
            if not foundAndClickedStore:
                respInfo = "Fail to find and click 存储 in proxy config page"
                return isDisableOk, respInfo
    调试
    可以找到并点击 存储 去保存
    页面返回 WiFi详情页
    【总结】
    此处目前代码是：
                isDisableOk, respInfo = self.iOSDisableWiFiProxy()
            if not isDisableOk:
                errMsg = respInfo
                respInfo = "Fail to disable proxy, reason: %s" % errMsg
                return isProcessdOk, respInfo
            else:
                proxyInfo = respInfo
                logging.info("Successfully disable proxy, existed proxy info: %s", proxyInfo)
                isProcessdOk = True
                respInfo = proxyInfo
                return isProcessdOk, respInfo
。。。
    def iOSDisableWiFiProxy(self):
        """in 代理配置 page, change from 手动 to 关闭, while get previous proxy config info"""
        isDisableOk = False
        respInfo = None
        """
            设置 无线局域网 配置代理 手动：
                <XCUIElementTypeTable type="XCUIElementTypeTable" enabled="true" visible="true" x="0" y="0" width="414" height="736">
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="false" x="0" y="99" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="374" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="350" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
                        <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="161" width="14" height="11"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="374" height="45"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="269" width="414" height="46">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="269" width="414" height="1"/>
                        <XCUIElementTypeTextField type="XCUIElementTypeTextField" value="192.168.31.46" name="服务器" label="服务器" enabled="true" visible="true" x="92" y="281" width="294" height="21"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="15" y="313" width="305" height="1"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="313" width="394" height="2"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="314" width="414" height="46">
                        <XCUIElementTypeTextField type="XCUIElementTypeTextField" value="8081" name="端口" label="端口" enabled="true" visible="true" x="74" y="326" width="312" height="22"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="15" y="358" width="305" height="2"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="359" width="394" height="1"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" value="0" enabled="true" visible="true" x="0" y="359" width="414" height="46">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="404" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="鉴定" name="鉴定" label="鉴定" enabled="true" visible="true" x="20" y="359" width="323" height="46"/>
                        <XCUIElementTypeSwitch type="XCUIElementTypeSwitch" value="0" name="鉴定" label="鉴定" enabled="true" visible="true" x="343" y="366" width="51" height="32"/>
                    </XCUIElementTypeCell>
                </XCUIElementTypeTable>


            设置 无线局域网 配置代理 关闭：
                <XCUIElementTypeTable type="XCUIElementTypeTable" enabled="true" visible="true" x="0" y="0" width="414" height="736">
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="99" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="350" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
                        <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="116" width="14" height="11"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="374" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="374" height="45"/>
                    </XCUIElementTypeCell>
                </XCUIElementTypeTable>


            设置 无线局域网 配置代理 自动：
                <XCUIElementTypeTable type="XCUIElementTypeTable" enabled="true" visible="true" x="0" y="0" width="414" height="736">
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="false" x="0" y="99" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="374" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="374" height="45"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
                        <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="350" height="45"/>
                        <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="206" width="14" height="11"/>
                    </XCUIElementTypeCell>
                    <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="269" width="414" height="46">
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="269" width="414" height="1"/>
                        <XCUIElementTypeTextField type="XCUIElementTypeTextField" name="URL" label="URL" enabled="true" visible="true" x="72" y="281" width="314" height="21"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="313" width="414" height="2"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="15" y="313" width="305" height="1"/>
                    </XCUIElementTypeCell>
                </XCUIElementTypeTable>
        """
        # check current proxy type: 手动/自动/关闭
        curPageXml = self.get_page_source()
        soup = CommonUtils.xmlToSoup(curPageXml)
        morenInfoChainList = [
            {
                "tag": "XCUIElementTypeTable",
                "attrs": self.FullScreenAttrDict
            },
            {
                "tag": "XCUIElementTypeCell",
                "attrs": {"enabled":"true", "visible":"true", "x":"0", "width":"%s" % self.X}
            },
            {
                "tag": "XCUIElementTypeButton",
                # "attrs": {"enabled":"false", "visible":"true", "name": "更多信息"}
                "attrs": {"visible":"true", "name": "更多信息"}
            },
        ]
        morenInfoSoup = CommonUtils.bsChainFind(soup, morenInfoChainList)
        if not morenInfoSoup:
            respInfo = "Fail to find 更多信息 in config proxy page"
            return isDisableOk, respInfo


        parentCellSoup = morenInfoSoup.parent
        # proxyTypeP = re.compile("(手动)|(自动)|(关闭)")
        # proxyTypeSoup = parentCellSoup.find(
        #     'XCUIElementTypeStaticText',
        #     attrs={"type": "XCUIElementTypeStaticText", "value": proxyTypeP, "enabled":"true", "visible":"true"},
        # )
        proxyTypeName = self.iOSFindChildProxyType(parentCellSoup)
        if not proxyTypeName:
            respInfo = "Fail to find current proxy type name in config proxy page"
            return isDisableOk, respInfo


        if proxyTypeName == "关闭":
            # no need change proxy
            isDisableOk = True
            respInfo = None
            return isDisableOk, respInfo
        elif proxyTypeName == "自动":
            respInfo = "Not support of current proxy config type value %s" % proxyTypeName
            return isDisableOk, respInfo
        elif proxyTypeName == "手动":
            parentTableSoup = parentCellSoup.parent


            # get current proxy config info
            # proxyServer = None
            # proxyPort = None
            # proxyAuthenticate = None
            # <XCUIElementTypeTextField type="XCUIElementTypeTextField" value="192.168.31.46" name="服务器" label="服务器" enabled="true" visible="true" x="92" y="281" width="294" height="21"/>
            proxyServerSoup = parentTableSoup.find(
                'XCUIElementTypeTextField',
                attrs={"type": "XCUIElementTypeTextField", "name": "服务器", "enabled":"true", "visible":"true"},
            )
            if not proxyServerSoup:
                respInfo = "Fail to find proxy server value in proxy config page"
                return isDisableOk, respInfo
            proxyServer = proxyServerSoup.attrs.get("value", None) # '192.168.31.46'


            # <XCUIElementTypeTextField type="XCUIElementTypeTextField" value="8081" name="端口" label="端口" enabled="true" visible="true" x="74" y="326" width="312" height="22"/>
            proxyPortSoup = parentTableSoup.find(
                'XCUIElementTypeTextField',
                attrs={"type": "XCUIElementTypeTextField", "name": "端口", "enabled":"true", "visible":"true"},
            )
            if not proxyPortSoup:
                respInfo = "Fail to find proxy port value in proxy config page"
                return isDisableOk, respInfo
            proxyPort = proxyPortSoup.attrs.get("value", None) # '8081'


            # <XCUIElementTypeSwitch type="XCUIElementTypeSwitch" value="0" name="鉴定" label="鉴定" enabled="true" visible="true" x="343" y="366" width="51" height="32"/>
            proxyAuthenticateSoup = parentTableSoup.find(
                'XCUIElementTypeSwitch',
                attrs={"type": "XCUIElementTypeSwitch", "name": "鉴定", "enabled":"true", "visible":"true"},
            )
            if not proxyAuthenticateSoup:
                respInfo = "Fail to find proxy authenticate value in proxy config page"
                return isDisableOk, respInfo
            proxyAuthenticate = proxyAuthenticateSoup.attrs.get("value", None) # '0'


            curProxyInfo = {
                "server": proxyServer,
                "port": proxyPort,
                "authenticate": proxyAuthenticate,
            }
            logging.info("curProxyInfo=%s", curProxyInfo) # curProxyInfo={'server': '192.168.31.46', 'port': '8081', 'authenticate': '0'}


            # need find and click 关闭, then click 存储
            proxyCloseSoup = parentTableSoup.find(
                'XCUIElementTypeStaticText',
                attrs={"type": "XCUIElementTypeStaticText", "value": "关闭", "enabled":"true", "visible":"true"},
            )
            if not proxyCloseSoup:
                respInfo = "Fail to find 关闭 in proxy config page"
                return isDisableOk, respInfo


            clickedCloseOk = self.clickElementCenterPosition(proxyCloseSoup)
            if not clickedCloseOk:
                respInfo = "Fail to click 关闭 in proxy config page"
                return isDisableOk, respInfo


            # click 存储 to save
            """
                设置 WiFi 配置代理 从手动切换到 关闭 存储：
                    <XCUIElementTypeNavigationBar type="XCUIElementTypeNavigationBar" name="配置代理" enabled="true" visible="true" x="0" y="20" width="414" height="44">
                        <XCUIElementTypeButton type="XCUIElementTypeButton" name="xxx_guest_5G" label="xxx_guest_5G" enabled="true" visible="true" x="0" y="20" width="155" height="44"/>
                        <XCUIElementTypeOther type="XCUIElementTypeOther" name="配置代理" label="配置代理" enabled="true" visible="true" x="172" y="31" width="70" height="21"/>
                        <XCUIElementTypeButton type="XCUIElementTypeButton" name="存储" label="存储" enabled="true" visible="true" x="359" y="20" width="43" height="44"/>
                    </XCUIElementTypeNavigationBar>
            """
            parentNaviBarClassChain = "/XCUIElementTypeNavigationBar[`name = '配置代理' AND rect.x = 0 AND rect.width = %d`]" % self.X
            storeButtonQuery = {"type":"XCUIElementTypeButton", "name": "存储", "enabled": "true"}
            storeButtonQuery["parent_class_chains"] = [ parentNaviBarClassChain ]
            foundAndClickedStore = self.findAndClickElement(query=storeButtonQuery, timeout=0.1)
            if not foundAndClickedStore:
                respInfo = "Fail to find and click 存储 in proxy config page"
                return isDisableOk, respInfo


            isDisableOk = True
            respInfo = curProxyInfo
            return isDisableOk, respInfo

    def iOSFindChildProxyType(self, parentCellSoup, isReturnSoup=False):
        """from parent cell soup, find child proxy type node / node's name


        Args:
            parentCellSoup (soup): Beautifulsoup soup of parent XCUIElementTypeCell
            isReturnSoup (bool): return soup if true, otherwise return soup's name
        Returns:
            str/soup:
                str: 手动/自动/关闭
                soup: soup node
        Raises:
        """
        # proxyTypeName = None
        # some cases:
        """
            设置 无线局域网 详情页 代理 关闭：
                <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="695" width="414" height="46">
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="695" width="414" height="1"/>
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="false" x="0" y="740" width="414" height="1"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="配置代理" name="配置代理" label="配置代理" enabled="true" visible="true" x="20" y="708" width="70" height="21"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="341" y="708" width="35" height="21"/>
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="386" y="711" width="8" height="14"/>
                </XCUIElementTypeCell>


            设置 无线局域网 详情页 代理 手动：
                <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="695" width="414" height="46">
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="695" width="414" height="1"/>
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="false" x="0" y="740" width="414" height="1"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="配置代理" name="配置代理" label="配置代理" enabled="true" visible="true" x="20" y="708" width="70" height="21"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="341" y="708" width="35" height="21"/>
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="386" y="711" width="8" height="14"/>
                </XCUIElementTypeCell>


            设置 无线局域网 配置代理 手动：
                <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="144" width="414" height="45">
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="手动" name="手动" label="手动" enabled="true" visible="true" x="20" y="144" width="350" height="45"/>
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="188" width="394" height="1"/>
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="161" width="14" height="11"/>
                </XCUIElementTypeCell>


            设置 无线局域网 配置代理 关闭：
                <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="99" width="414" height="45">
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="99" width="414" height="1"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="关闭" name="关闭" label="关闭" enabled="true" visible="true" x="20" y="99" width="350" height="45"/>
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="20" y="143" width="394" height="1"/>
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="116" width="14" height="11"/>
                </XCUIElementTypeCell>


            设置 无线局域网 配置代理 自动：
                <XCUIElementTypeCell type="XCUIElementTypeCell" enabled="true" visible="true" x="0" y="189" width="414" height="45">
                    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="233" width="414" height="1"/>
                    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="自动" name="自动" label="自动" enabled="true" visible="true" x="20" y="189" width="350" height="45"/>
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="更多信息" label="更多信息" enabled="false" visible="true" x="380" y="206" width="14" height="11"/>
                </XCUIElementTypeCell>
        """
        proxyTypeP = re.compile("(手动)|(自动)|(关闭)")
        proxyTypeSoup = parentCellSoup.find(
            'XCUIElementTypeStaticText',
            attrs={"type": "XCUIElementTypeStaticText", "value": proxyTypeP, "enabled":"true", "visible":"true"},
        )
        if isReturnSoup:
            return proxyTypeSoup
        else:
            proxySoupAttrDict = proxyTypeSoup.attrs
            proxyTypeName = proxySoupAttrDict.get("value")
            return proxyTypeName # '手动'
    即可实现：
    在WiFi的 配置代理 页面，从之前的手动 ，切换到 关闭
    且记录保留下之前手动时的wifi的代理信息
    供后续使用。

    转载请注明：在路上 » 【已解决】iOS自动处理WiFi代理：配置代理页中从手动切换到关闭且保留之前代理配置信息

    与本文相关的文章

    发表我的评论
    取消评论

    表情

    Hi，您需要填写昵称和邮箱！

    • 昵称 (必填)
    • 邮箱 (必填)
    • 网址
    84 queries in 0.189 seconds, using 20.99MB memory
