想要画一个报表的原型，大概类似于这种：
想要基于AdminLTE去画
adminlte
Free Bootstrap Admin Template | AdminLTE.IO
Releases · almasaeed2010/AdminLTE
https://github.com/almasaeed2010/AdminLTE/archive/v2.4.0-rc.zip
AdminLTE-2.4.0-rc.zip
然后解压后，找到了：

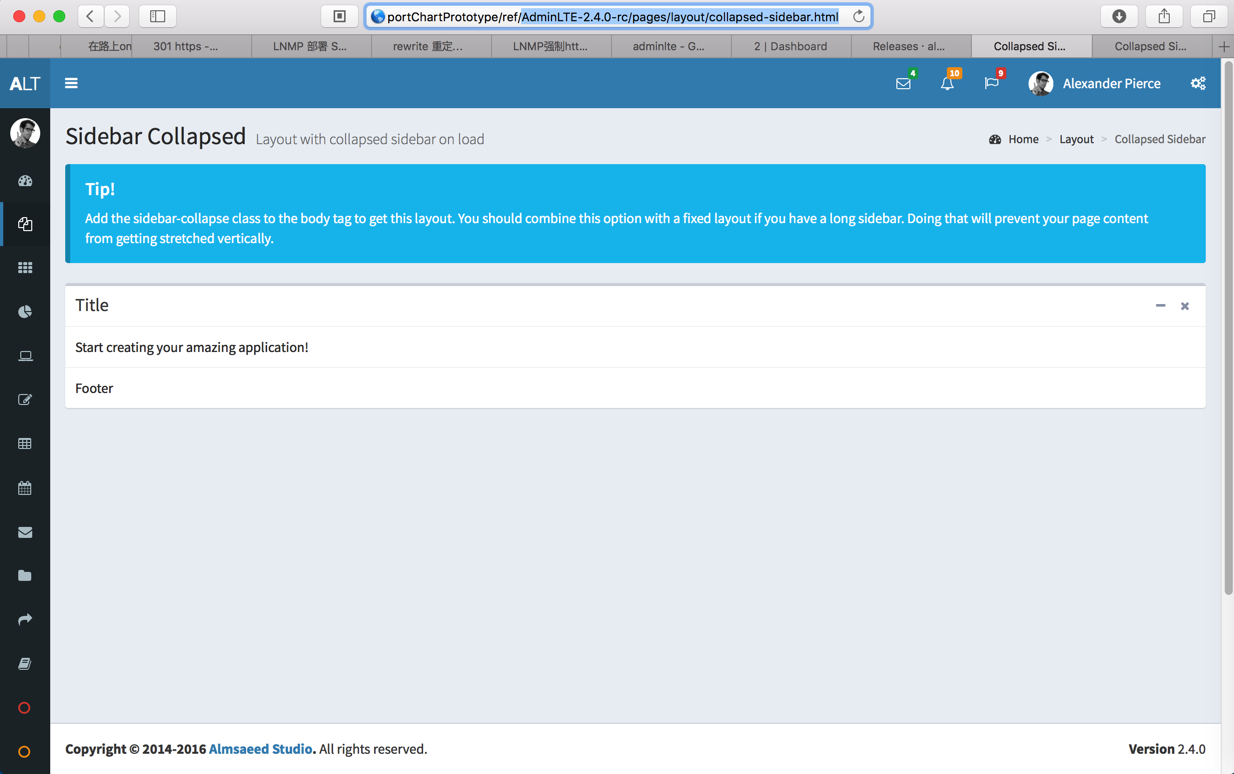

AdminLTE-2.4.0-rc/pages/layout/collapsed-sidebar.html
比较适合作为开始：

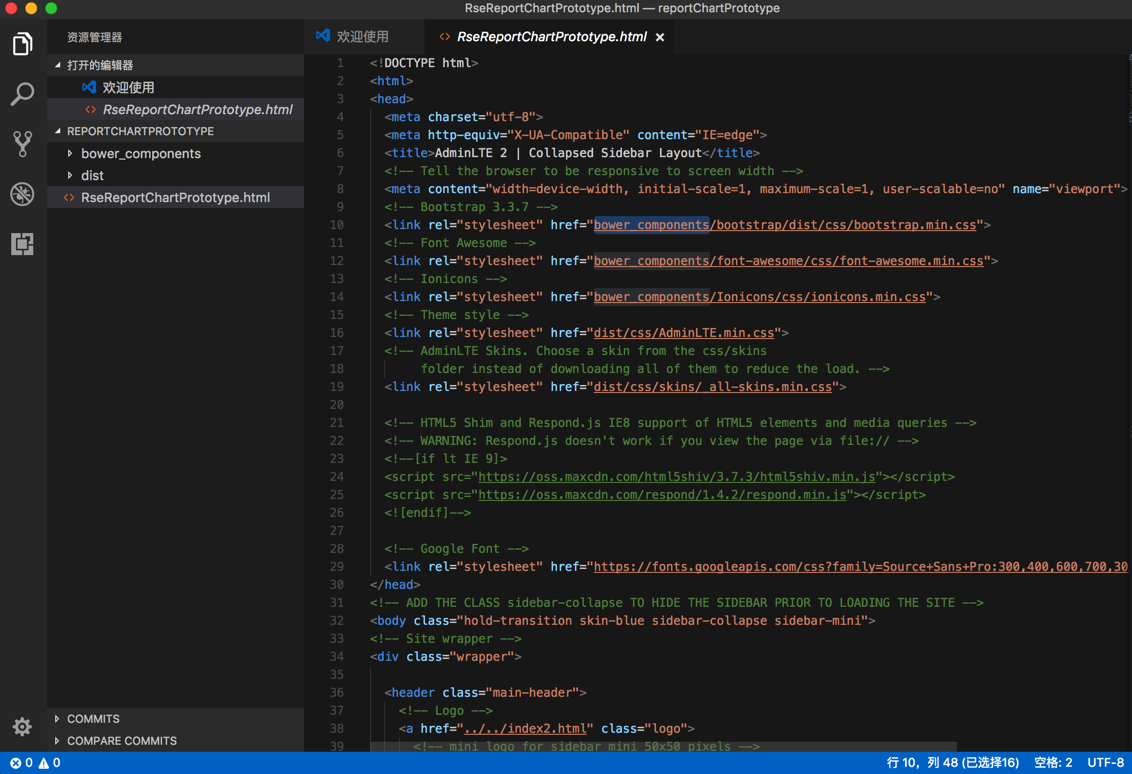

然后把html拷贝过去，然后把对应的依赖的资源都放到该目录下，再去更新引用的目录：

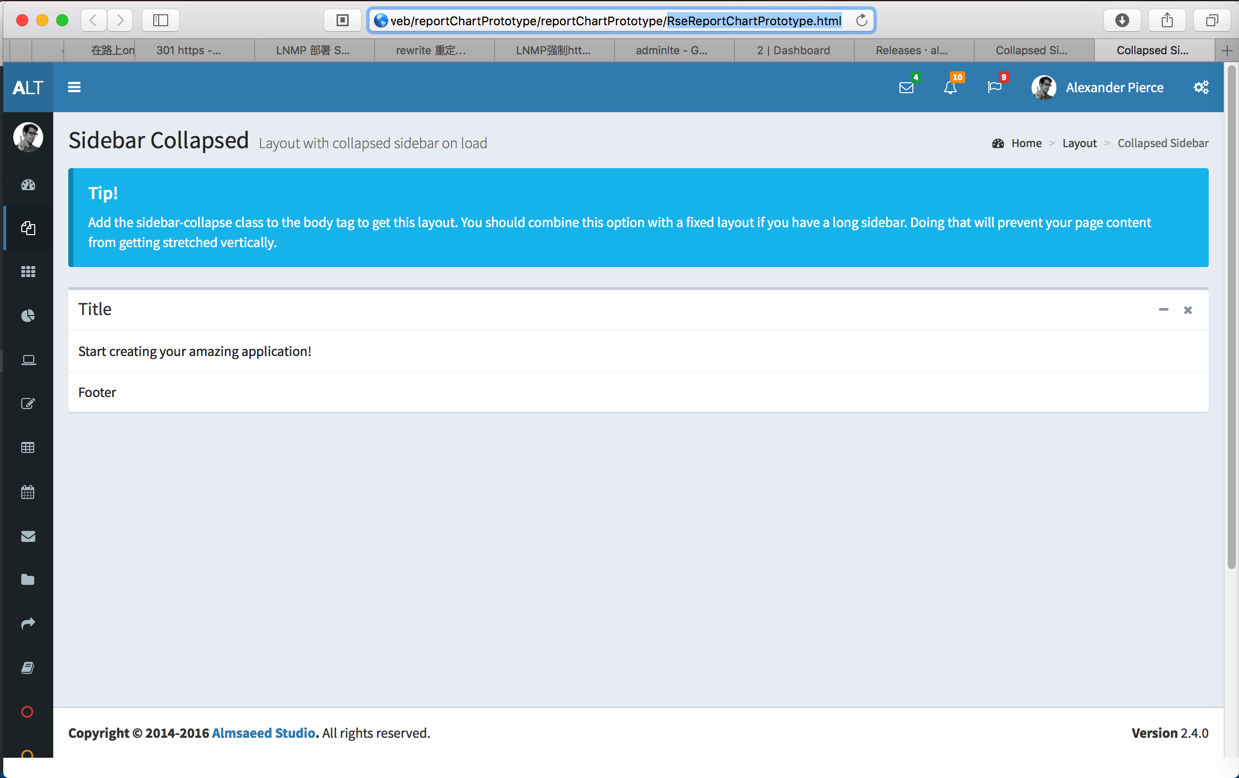

然后就可以正常显示了：
然后就可以去修改页面了。
先去找：
【已解决】AdminLTE中如何实现可以点击关掉的tag标签
再去把ECharts中的地图集成进来：
接着再去，给第一行的右边添加上tab选项：
但是期间遇到个布局问题：
继续去添加：
继续添加渠道部分。
接着继续添加漏斗图：
然后再去：

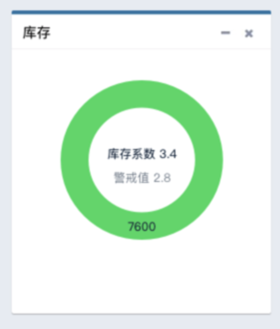

然后再去实现另外一个饼图：

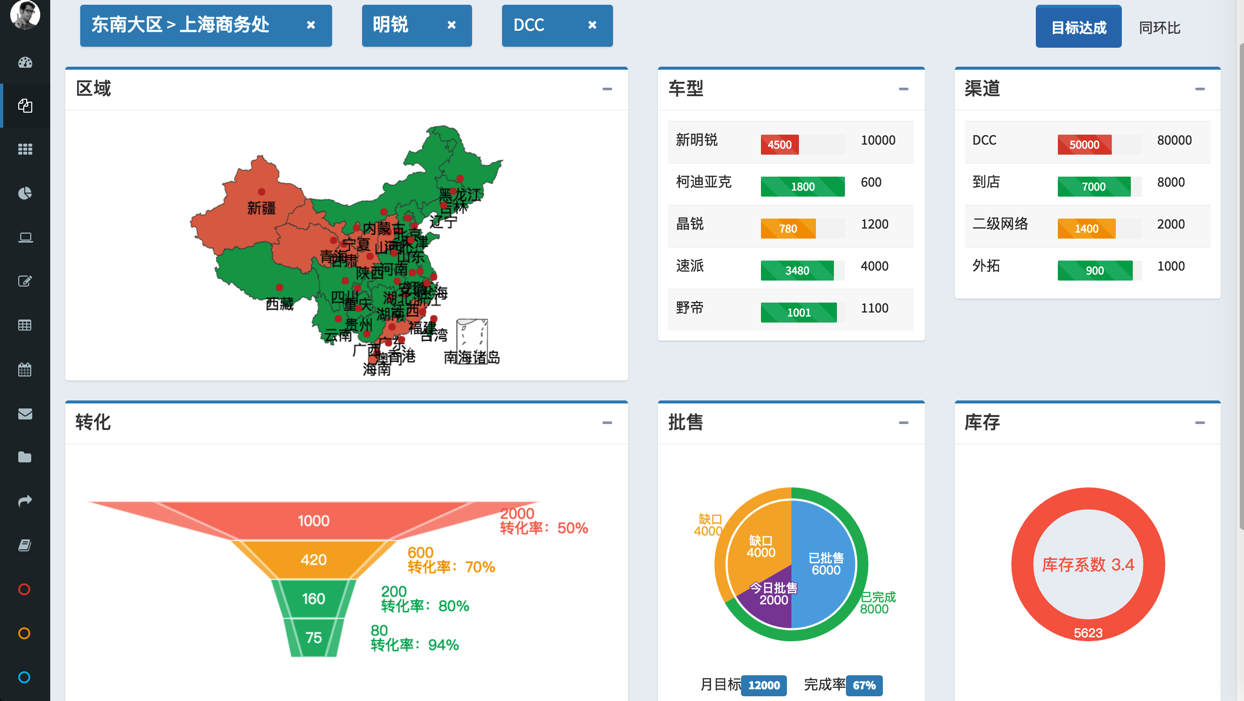

【总结】
目前代码是：
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<title>xxx报表</title>
<!– Tell the browser to be responsive to screen width –>
<meta content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no" name="viewport">
<!– Bootstrap 3.3.7 –>
<link rel="stylesheet" href="bower_components/bootstrap/dist/css/bootstrap.min.css">
<!– Font Awesome –>
<link rel="stylesheet" href="bower_components/font-awesome/css/font-awesome.min.css">
<!– Ionicons –>
<link rel="stylesheet" href="bower_components/Ionicons/css/ionicons.min.css">
<!– Theme style –>
<link rel="stylesheet" href="dist/css/AdminLTE.min.css">
<!– AdminLTE Skins. Choose a skin from the css/skins folder instead of downloading all of them
to reduce the load. –>
<link rel="stylesheet" href="dist/css/skins/_all-skins.min.css">
<!– HTML5 Shim and Respond.js IE8 support of HTML5 elements and media queries –>
<!– WARNING: Respond.js doesn't work if you view the page via file:// –>
<!–[if lt IE 9]>
<script src="https://oss.maxcdn.com/html5shiv/3.7.3/html5shiv.min.js"></script>;
<script src="https://oss.maxcdn.com/respond/1.4.2/respond.min.js"></script>;
<![endif]–>
<!– Google Font –>
<link rel="stylesheet" href="https://fonts.googleapis.com/css?family=Source+Sans+Pro:300,400,600,700,300italic,400italic,600italic">;
<style type="text/css">
.nav-pills > li > a {
border-radius: 4px 4px 4px 4px;
}
</style>
</head>
<!– ADD THE CLASS sidebar-collapse TO HIDE THE SIDEBAR PRIOR TO LOADING THE SITE –>
<body class="hold-transition skin-blue sidebar-collapse sidebar-mini">
<!– Site wrapper –>
<div class="wrapper">
。。。
<!– Content Wrapper. Contains page content –>
<div class="content-wrapper">
<!– Content Header (Page header) –>
<!– <section class="content-header">
<h1>
xxx报表
</h1>
</section> –>
<!– Main content –>
<section class="content">
<div class="row">
<div class="col-md-6">
<!– <div class="col-md-4 col-sm-4 col-xs-4" style="width: 260px;"> –>
<div class="col-md-6">
<div class="box box-solid box-primary">
<div class="box-header">
<h5 class="box-title">东南大区 > 上海商务处</h5>
<div class="box-tools pull-right">
<button type="button" class="btn btn-box-tool" data-widget="remove" data-toggle="tooltip" title="Remove">
<i class="fa fa-times"></i></button>
</div>
</div>
</div>
</div>
<!– <div class="col-md-4 col-sm-4 col-xs-4" style="width: 120px;"> –>
<div class="col-md-3">
<div class="box box-solid box-primary">
<div class="box-header">
<h5 class="box-title">明锐</h5>
<div class="box-tools pull-right">
<button type="button" class="btn btn-box-tool" data-widget="remove" data-toggle="tooltip" title="Remove">
<i class="fa fa-times"></i></button>
</div>
</div>
</div>
</div>
<!– <div class="col-md-4 col-sm-4 col-xs-4" style="width: 120px;"> –>
<div class="col-md-3">
<div class="box box-solid box-primary">
<div class="box-header">
<h5 class="box-title">DCC</h5>
<div class="box-tools pull-right">
<button type="button" class="btn btn-box-tool" data-widget="remove" data-toggle="tooltip" title="Remove">
<i class="fa fa-times"></i></button>
</div>
</div>
</div>
</div>
</div>
<div class="col-md-3">
<div>
</div>
</div>
<!– <div class="col-md-4">
<div class="col-md-6">
<button type="button" class="btn btn-block btn-info">目标达成</button>
</div>
<div class="col-md-6">
<button type="button" class="btn btn-block btn-info">同环比</button>
</div>
</div> –>
<div class="col-md-3">
<div class="col-md-3">
<div>
</div>
</div>
<div class="col-md-9">
<!– <div class="nav-tabs-custom">
<ul class="nav nav-tabs">
<li class="active"><a href="#tab_1" data-toggle="tab" aria-expanded="true">目标达成</a></li>
<li class=""><a href="#tab_2" data-toggle="tab" aria-expanded="true">同环比</a></li>
</ul>
</div> –>
<ul class="nav nav-pills">
<li class="active">
<a href="#target_complete" data-toggle="tab">目标达成</a>
</li>
<li>
<a href="#yoy" data-toggle="tab">同环比</a>
</li>
</ul>
</div>
</div>
</div>
<div class="row">
<div class="col-md-6">
<div class="box box-primary">
<div class="box-header with-border">
<h3 class="box-title">区域</h3>
<div class="box-tools pull-right">
<button type="button" class="btn btn-box-tool" data-widget="collapse" data-toggle="tooltip" title="Collapse">
<i class="fa fa-minus"></i></button>
</div>
</div>
<div class="box-body">
<div id="echart_map" style="width: 100%; height:250px;transform: scale(1.2, 1.2);" >
</div>
</div>
</div>
</div>
<div class="col-md-3">
<div class="box box-primary">
<div class="box-header with-border">
<h3 class="box-title">车型</h3>
<div class="box-tools pull-right">
<button type="button" class="btn btn-box-tool" data-widget="collapse" data-toggle="tooltip" title="Collapse">
<i class="fa fa-minus"></i></button>
</div>
</div>
<div class="box-body">
<div class="box-body no-padding">
<table class="table table-striped">
<tr>
<td>新明锐</td>
<td style="width: 100px">
<div class="progress progress-striped active">
<div class="progress-bar progress-bar-danger" style="width: 45%;">4500</div>
</div>
</td>
<td>10000</td>
</tr>
<tr>
<td>柯迪亚克</td>
<td>
<div class="progress progress-striped active">
<div class="progress-bar progress-bar-success" style="width: 100%;">1800</div>
</div>
</td>
<td>600</td>
</tr>
<tr>
<td>晶锐</td>
<td>
<div class="progress progress-striped active">
<div class="progress-bar progress-bar-yellow" style="width: 65%">780</div>
</div>
</td>
<td>1200</td>
</tr>
<tr>
<td>速派</td>
<td>
<div class="progress progress-striped active">
<div class="progress-bar progress-bar-success" style="width: 87%">3480</div>
</div>
</td>
<td>4000</td>
</tr>
<tr>
<td>野帝</td>
<td>
<div class="progress progress-striped active">
<div class="progress-bar progress-bar-success" style="width: 91%">1001</div>
</div>
</td>
<td>1100</td>
</tr>
</table>
</div>
</div>
</div>
</div>
<div class="col-md-3">
<div class="box box-primary">
<div class="box-header with-border">
<h3 class="box-title">渠道</h3>
<div class="box-tools pull-right">
<button type="button" class="btn btn-box-tool" data-widget="collapse" data-toggle="tooltip" title="Collapse">
<i class="fa fa-minus"></i></button>
</div>
</div>
<div class="box-body">
<div class="box-body no-padding">
<table class="table table-striped">
<tr>
<td>DCC</td>
<td style="width: 100px">
<div class="progress progress-striped active">
<div class="progress-bar progress-bar-danger" style="width: 65%;">50000</div>
</div>
</td>
<!– <td><span class="badge bg-red">80000</span></td> –>
<td>80000</td>
</tr>
<tr>
<td>到店</td>
<td>
<div class="progress progress-striped active">
<div class="progress-bar progress-bar-success" style="width: 87%;">7000</div>
</div>
</td>
<!– <td><span class="badge bg-green">8000</span></td> –>
<td>8000</td>
</tr>
<tr>
<td>二级网络</td>
<td>
<div class="progress progress-striped active">
<div class="progress-bar progress-bar-yellow" style="width: 70%">1400</div>
</div>
</td>
<!– <td><span class="badge bg-yellow">2000</span></td> –>
<td>2000</td>
</tr>
<tr>
<td>外拓</td>
<td>
<div class="progress progress-striped active">
<div class="progress-bar progress-bar-success" style="width: 90%">900</div>
</div>
</td>
<!– <td><span class="badge bg-green">1000</span></td> –>
<td>1000</td>
</tr>
</table>
</div>
</div>
</div>
</div>
</div>
<div class="row">
<div class="col-md-6">
<div class="box box-primary">
<div class="box-header with-border">
<h3 class="box-title">转化</h3>
<div class="box-tools pull-right">
<button type="button" class="btn btn-box-tool" data-widget="collapse" data-toggle="tooltip" title="Collapse">
<i class="fa fa-minus"></i></button>
</div>
</div>
<div class="box-body">
<!– <div id="echart_convertion" style="width: 100%; height:250px; transform: rotate(270deg) scale(0.6, 1.6);" > –>
<div id="echart_convertion" style="width: 100%; height:250px; transform: scale(1.2, 1.2);" >
<!– <div id="echart_convertion" style="width: 100%; height:250px;" > –>
</div>
</div>
</div>
</div>
<div class="col-md-3">
<div class="box box-primary">
<div class="box-header with-border">
<h3 class="box-title">批售</h3>
<div class="box-tools pull-right">
<button type="button" class="btn btn-box-tool" data-widget="collapse" data-toggle="tooltip" title="Collapse">
<i class="fa fa-minus"></i></button>
</div>
</div>
<div class="box-body">
<div id="echart_wholesales" style="height:220px;" ></div>
<div style="text-align:center;">
<p>
月目标<span class="label label-primary">12000</span>
完成率<span class="label label-primary">67%</span>
</p>
</div>
</div>
</div>
</div>
<div class="col-md-3">
<div class="box box-primary">
<div class="box-header with-border">
<h3 class="box-title">库存</h3>
<div class="box-tools pull-right">
<button type="button" class="btn btn-box-tool" data-widget="collapse" data-toggle="tooltip" title="Collapse">
<i class="fa fa-minus"></i></button>
</div>
</div>
<div class="box-body">
<div id="echart_inventory" style="height:220px;" ></div>
<div style="text-align:center;">
<p> </p>
</div>
</div>
</div>
</div>
</div>
</section>
<!– /.content –>
</div>
<!– /.content-wrapper –>
<!– Add the sidebar's background. This div must be placed
immediately after the control sidebar –>
<div class="control-sidebar-bg"></div>
</div>
<!– ./wrapper –>
<!– ECharts –>
<script src="dist/lib/echarts/echarts.js"></script>
<script src="dist/lib/echarts/map/china.js"></script>
<!– <script src="dist/lib/echarts/china.js"></script> –>
<!– jQuery 3 –>
<script src="bower_components/jquery/dist/jquery.min.js"></script>
<!– Bootstrap 3.3.7 –>
<script src="bower_components/bootstrap/dist/js/bootstrap.min.js"></script>
<!– SlimScroll –>
<script src="bower_components/jquery-slimscroll/jquery.slimscroll.min.js"></script>
<!– FastClick –>
<script src="bower_components/fastclick/lib/fastclick.js"></script>
<!– AdminLTE App –>
<script src="dist/js/adminlte.min.js"></script>
<!– AdminLTE for demo purposes –>
<script src="dist/js/demo.js"></script>
<script type="text/javascript">
const ValueColor = {
RED: '#F56954′, //rgb(245, 105, 84)',
GRAY: '#D2D654′, //rgb(210, 214, 222)',
GREEN: '#00A65A', //rgb(0, 166, 90)',
YELLOW: '#F39C12′, //rgb(243, 156, 18)',
LIGHT_BLUE: '#00C0EF', //'rgb(0, 192, 239)',
DARK_BLUE: '#3C8DBC', //'rgb(60, 141, 188)',
WHITE: '#FFFFFF', //'rgb(255, 255, 255)',
};
</script>
<script type="text/javascript">
var mapEcharts = echarts.init(document.getElementById('echart_map'));
option = {
title: {
text: ",
subtext: ",
left: 'center'
},
tooltip: {
trigger: 'item'
},
legend: {
orient: 'vertical',
left: 'left',
// data:['2017年']
},
visualMap: {
show: false,
min: 0,
max: 500,
// splitNumber: 250,
// splitNumber: 100,
// max: 450,
left: 'left',
top: 'bottom',
text: ['高', '低'], // 文本，默认为数值文本
calculable: false,
// calculable: true,
inRange: {
//color: [ '#e0f3f8', '#ffffbf', '#fee090', '#fdae61', '#f46d43', '#d73027', '#a50026']
// color: [ '#FF0033', '#22BF2E']
//AdminLTE: red, green
// color: [ '#DD4B39', '#00A65A']
color: [ValueColor.RED, ValueColor.GREEN],
//other: red, green
// color: [ '#FF4500', '#7FFF00'],
// opacity: 1.0
}
},
// toolbox: {
// show: true,
// orient: 'vertical',
// left: 'right',
// top: 'center',
// feature: {
// dataView: {readOnly: false},
// restore: {},
// saveAsImage: {}
// }
// },
// geo: {
// show: true,
// map: 'china',
// regions: [{
// name: '广东',
// itemStyle: {
// normal: {
// areaColor: ValueColor.YELLOW,
// // color: ValueColor.YELLOW
// }
// }
// }],
// itemStyle: {
// normal: {
// areaColor: ValueColor.DARK_BLUE,
// // borderColor: '#111'
// },
// emphasis: {
// areaColor: ValueColor.DARK_BLUE,
// }
// }
// },
series: [
{
name: '2016年',
type: 'map',
// type: 'scatter',
// coordinateSystem: 'geo',
// mapType: 'china',
map: 'china',
roam: false,
label: {
normal: {
show: true
},
emphasis: {
show: true
}
},
data: [
// data: convertData([
//大西北区
{
name: '甘肃',
value: 50,
},
{ name: '青海', value: 50 },
{
name: '新疆',
value: 50,
// itemStyle: {
// normal: {
// areaColor: ValueColor.YELLOW,
// color: ValueColor.YELLOW,
// }
// }
},
{ name: '宁夏', value: 50 },
{ name: '陕西', value: 50 },
{ name: '山西', value: 50 },
//大中南区
{ name: '湖南', value: 450 },
{ name: '江西', value: 450 },
{ name: '湖北', value: 450 },
//大华东区
{ name: '江苏', value: 450 },
{ name: '安徽', value: 450 },
//大华南区
{ name: '广东', value: 50 },
{ name: '海南', value: 50 },
{ name: '福建', value: 50 },
//大华北区
{ name: '黑龙江', value: 450 },
{ name: '吉林', value: 450 },
{ name: '辽宁', value: 450 },
{ name: '河北', value: 450 },
{ name: '天津', value: 450 },
{ name: '北京', value: 450 },
{ name: '内蒙古', value: 450 },
//大华中区
{ name: '河南', value: 450 },
{ name: '山东', value: 450 },
//大东南区
{ name: '浙江', value: 450 },
{ name: '上海', value: 450 },
//大西南区
{ name: '重庆', value: 450 },
{ name: '四川', value: 450 },
{ name: '西藏', value: 450 },
{ name: '云南', value: 450 },
{ name: '广西', value: 450 },
{ name: '贵州', value: 450 },
{ name: '台湾', value: 450 },
{ name: '香港', value: 450 },
{ name: '澳门', value: 450 }
]
// ])
},
]
};
mapEcharts.setOption(option);
</script>
<script type="text/javascript">
var convertionEcharts = echarts.init(document.getElementById('echart_convertion'));
option = {
title: {
text: ",
subtext: "
},
tooltip: {
trigger: 'item',
// formatter: "{a} <br/>{b} : {c}%"
formatter: "{a} <br/>{b} : {c}"
},
// toolbox: {
// feature: {
// dataView: {readOnly: false},
// restore: {},
// saveAsImage: {}
// }
// },
// legend: {
// data: ['线索','有望','订单','成交']
// },
series: [
{
name: '目标',
type: 'funnel',
// left: '10%',
// width: '80%',
left: '10%',
width: '70%',
minSize: '10%',
maxSize: '100%',
label: {
normal: {
formatter: '{c}'
},
emphasis: {
position: 'inside',
// formatter: '{b}预期: {c}%'
formatter: '{b}目标: {c}'
}
},
labelLine: {
normal: {
show: false
}
},
itemStyle: {
normal: {
opacity: 0.7
}
},
data: [
{
value: 80,
name: '成交',
itemStyle: {
normal: {
color: ValueColor.GREEN
}
},
label: {
normal: {
formatter: '{c}\n转化率：94%',
textStyle: {
color: ValueColor.GREEN
}
}
},
},
{
value: 200,
name: '订单',
itemStyle: {
normal: {
color: ValueColor.GREEN
}
},
label: {
normal: {
formatter: '{c}\n转化率：80%',
textStyle: {
color: ValueColor.GREEN
}
}
},
},
{
value: 600,
name: '有望',
itemStyle: {
normal: {
color: ValueColor.YELLOW
}
},
label: {
normal: {
formatter: '{c}\n转化率：70%',
textStyle: {
color: ValueColor.YELLOW
}
}
},
},
{
value: 2000,
name: '线索',
itemStyle: {
normal: {
color: ValueColor.RED
}
},
label: {
normal: {
formatter: '{c}\n转化率：50%',
textStyle: {
color: ValueColor.RED
}
}
},
}
]
},
{
name: '实际',
type: 'funnel',
// left: '10%',
// width: '80%',
// maxSize: '80%',
left: '10%',
width: '70%',
minSize: '5%',
maxSize: '70%',
label: {
normal: {
position: 'inside',
// position: 'outside',
// formatter: '{c}%',
formatter: '{c}',
textStyle: {
color: '#fff'
}
},
emphasis: {
position: 'inside',
// formatter: '{b}实际: {c}%'
formatter: '{b}实际: {c}'
}
},
itemStyle: {
normal: {
opacity: 0.5,
borderColor: '#fff',
borderWidth: 2
}
},
data: [
{
value: 75,
name: '成交',
itemStyle: {
normal: {
color: ValueColor.GREEN
}
},
// label: {
// normal: {
// position: 'outside'
// }
// }
},
{
value: 160,
name: '订单',
itemStyle: {
normal: {
color: ValueColor.GREEN
}
}
},
{
value: 420,
name: '有望',
itemStyle: {
normal: {
color: ValueColor.YELLOW
}
}
},
{
value: 1000,
name: '线索',
itemStyle: {
normal: {
color: ValueColor.RED
}
}
}
]
}
]
};
convertionEcharts.setOption(option);
</script>
<script type="text/javascript">
var wholesalesEcharts = echarts.init(document.getElementById('echart_wholesales'));
option = {
title: {
text: "",
subtext: "",
left: "center",
textStyle: {
color: "#fff",
fontSize: 18
},
},
backgroundColor: '#ffffff',
tooltip: {
trigger: 'item',
formatter: "{a} <br/>{b}:({d}%)"
},
series: [{
name: '批售详细数据',
type: 'pie',
// radius: ['0%', '60%'],
radius: ['0%', '58%'],
// color: ['#ec5d51', '#59abe1', '#f4cf42', '#3dc6a8'],
color: ['#5DADE2', '#884EA0', '#F5B041',],
// color: ['#FDFEFE', '#28B463'],
// color: ['#a0dca0', '#60bbb6', '#f78db3'],
label: {
normal: {
position: 'inner',
formatter: '{b}\n{c}'
}
},
data: [
{
value: 6000,
name: '已批售'
},
{
value: 2000,
name: '今日批售'
},
{
value: 4000,
name: '缺口'
},
]
}, {
name: '批售总体数据',
type: 'pie',
radius: ['60%', '70%'],
labelLine: {
normal: {
length: 1,
length2: 1
}
},
//color: ['#a0dca0', '#60bbb6', '#f78db3', '#feadac', '#fae395′,'#91d4e5′,'#8eb3e8'],
color: ['#28B463', '#FDFEFE'],
label: {
normal: {
formatter: '{b}\n{c}'
}
},
data: [
{
value: 8000,
name: '已完成'
},
{
value: 4000,
name: '缺口'
}
]
}]
};
wholesalesEcharts.setOption(option);
</script>
<script type="text/javascript">
var inventoryEcharts = echarts.init(document.getElementById('echart_inventory'));
option = {
title: {
text: "",
subtext: "",
left: "center",
textStyle: {
color: "#fff",
fontSize: 18
},
},
backgroundColor: '#ffffff',
tooltip: {
trigger: 'item',
formatter: "{a} <br/>{b}:({d}%)"
},
series: [
// {
// name: '总部库存',
// type: 'pie',
// // radius: ['20%', '40%'],
// radius: ['20%', '45%'],
// // color: [ ValueColor.RED ],
// label: {
// normal: {
// position: 'inner',
// formatter: '{b}: {c}\n库存当量: 0.34'
// }
// },
// data: [
// {
// value: 1438,
// name: '总部',
// normal: {
// color: ValueColor.RED
// }
// }
// ]
// },
// {
// name: '经销商库存',
// type: 'pie',
// // radius: ['40%', '60%'],
// radius: ['45%', '70%'],
// labelLine : {
// normal : {
// length : 1,
// length2 : 1
// }
// },
// color: [ ValueColor.GREEN ],
// label: {
// normal: {
// formatter: '{b}: {c}\n库存当量: 2.31'
// }
// },
// data: [
// {
// value: 563,
// name: '经销商',
// // normal: {
// // color: ValueColor.GREEN
// // }
// }
// ]
// }
{
name: '库存系数',
type: 'pie',
selectedMode: 'single',
radius: ['0%', '50%'],
label: {
normal: {
position: 'center',
formatter: '{a} {c}',
textStyle: {
// color: '#000000',
color: ValueColor.RED,
fontSize: 16
}
},
emphasis: {
position: 'center',
formatter: '{a} {c}',
textStyle: {
// color: '#000000',
color: ValueColor.RED,
fontSize: 16
}
}
},
itemStyle: {
normal: {
color: '#ECF0F5'
}
},
data: [
{
value: '3.4',
name: '总部',
tooltip: {
trigger: 'item',
formatter: '{a} <br/>{c} ({d}%)'
},
}
]
},
{
name: '库存数量',
type: 'pie',
radius: ['50%', '70%'],
labelLine: {
normal: {
length: 1,
length2: 1
}
},
color: [ValueColor.RED],
label: {
normal: {
position: 'inner',
formatter: '{c}'
}
},
data: [
{
value: 5623,
name: '经销商',
// normal: {
// color: ValueColor.GREEN
// }
}
]
}
]
};
inventoryEcharts.setOption(option);
</script>
</body>
</html>效果：
总体上的效果还是可以的。
转载请注明：在路上 » 【记录】用AdminLTE实现报表的原型
