【已解决】IEC 104协议中的Type Identifier的定义

协议 crifan 1253浏览 0评论
折腾:
【未解决】java解析104数据出错异常:未知类型标识符 at com.iec.analysis.common.TypeIdentifier.getDescribe TypeIdentifier.java
期间,需要去搞懂:
类属性标识符 TypeIdentifier Type Identifier
类属性标识符 104
iec 104 Type Identifier
Beckhoff Information System – English
IEC60870-5-101_104_Slave_Technical_Reference.pdf
Terminology
The IEC 60870-5 protocols use a number of acronyms in describing data types and addressing.
The configuration of IEC 60870-5 features in the SCADAPack E RTU uses the following protocol terms:
  • ASDU
    • Application Service Data Unit
      • A data item at the application layer of a IEC 60870-5 protocol
  • ASDU Type
    • ASDU type Identifier
      • IEC 60870-5 protocol numeric identifier for the ASDU type ID
      • ASDU Type IDs are referred to by a Type ID number, being the protocol value of the ASDU Type ID (e.g. 1) or sometimes by an alpha-numeric mnemonic (e.g. M_SP_NA_1). The ASDU values and mnemonics are defined by the IEC international standard. See the SCADAPack E IEC60870-5-101 Slave Interoperability Profile Document and SCADAPack E IEC60870-5-104 Slave Interoperability Profile Document for more information.
  • IOA
    • Information Object Address
      • The IEC index (address) of a data item
Description and analysis of IEC 104 Protocol Technical Report
之前就下载过。
【总结】
IEC 104 全称IEC 60870-5-104
其中的ASDU type Identifier,完整定义如下:
(1)表格
Type
Dec
Hex
Description
ASDU_TYPEUNDEF
0
0x00
Not used
M_SP_NA_1
1
0x01
Single-point information
M_SP_TA_1
2
0x02
Single-point information with time tag
M_DP_NA_1
3
0x03
Double-point information
M_DP_TA_1
4
0x04
Double-point information with time tag
M_ST_NA_1
5
0x05
Step position information
M_ST_TA_1
6
0x06
Step position information with time tag
M_BO_NA_1
7
0x07
Bitstring of 32 bit
M_BO_TA_1
8
0x08
Bitstring of 32 bit with time tag
M_ME_NA_1
9
0x09
Measured value, normalised value
M_ME_TA_1
10
0x0A
Measured value, normalized value with time tag
M_ME_NB_1
11
0x0B
Measured value, scaled value
M_ME_TB_1
12
0x0C
Measured value, scaled value wit time tag
M_ME_NC_1
13
0x0D
Measured value, short floating point number
M_ME_TC_1
14
0x0E
Measured value, short floating point number with time tag
M_IT_NA_1
15
0x0F
Integrated totals
M_IT_TA_1
16
0x10
Integrated totals with time tag
M_EP_TA_1
17
0x11
Event of protection equipment with time tag
M_EP_TB_1
18
0x12
Packed start events of protection equipment with time tag
M_EP_TC_1
19
0x13
Packed output circuit information of protection equipment with time tag
M_PS_NA_1
20
0x14
Packed single point information with status change detection
M_ME_ND_1
21
0x15
Measured value, normalized value without quality descriptor
ASDU_TYPE_22..29
22..29
0x16..0x1D
Reserved (standard area)
M_SP_TB_1
30
0x1E
Single-point information with time tag CP56Time2a
M_DP_TB_1
31
0x1F
Double-point information with time tag CP56Time2a
M_ST_TB_1
32
0x20
Step position information with time tag CP56Time2a
M_BO_TB_1
33
0x21
Bitstring of 32 bit with time tag CP56Time2a
M_ME_TD_1
34
0x22
Measured value, normalised value with time tag CP56Time2a
M_ME_TE_1
35
0x23
Measured value, scaled value with time tag CP56Time2a
M_ME_TF_1
36
0x24
Measured value, short floating point number with time tag CP56Time2a
M_IT_TB_1
37
0x25
Integrated totals with time tag CP56Time2a
M_EP_TD_1
38
0x26
Event of protection equipment with time tag CP56Time2a
M_EP_TE_1
39
0x27
Packed start events of protection equipment with time tag CP56Time2a
M_EP_TF_1
40
0x28
Packed output circuit information of protection equipment with time tag CP56Time2a
ASDU_TYPE_41..44
41..44
0x29..0x2C
Reserved (standard area)
C_SC_NA_1
45
0x2D
Single command
C_DC_NA_1
46
0x2E
Double command
C_RC_NA_1
47
0x2F
Regulating step command
C_SE_NA_1
48
0x30
Set-point Command, normalised value
C_SE_NB_1
49
0x31
Set-point Command, scaled value
C_SE_NC_1
50
0x32
Set-point Command, short floating point number
C_BO_NA_1
51
0x33
Bitstring 32 bit command
ASDU_TYPE_52..57
52..57
0x34..0x39
Reserved (standard area)
C_SC_TA_1
58
0x3A
Single command with time tag CP56Time2a
C_DC_TA_1
59
0x3B
Double command with time tag CP56Time2a
C_RC_TA_1
60
0x3C
Regulating step command with time tag CP56Time2a
C_SE_TA_1
61
0x3D
Measured value, normalised value command with time tag CP56Time2a
C_SE_TB_1
62
0x3E
Measured value, scaled value command with time tag CP56Time2a
C_SE_TC_1
63
0x3F
Measured value, short floating point number command with time tag CP56Time2a
C_BO_TA_1
64
0x40
Bitstring of 32 bit command with time tag CP56Time2a
ASDU_TYPE_65..69
65..69
0x41..0x45
Reserved (standard area)
M_EI_NA_1
70
0x46
End of Initialisation
ASDU_TYPE_71..99
71..99
0x47..0x63
Reserved (standard area)
C_IC_NA_1
100
0x64
Interrogation command
C_CI_NA_1
101
0x65
Counter interrogation command
C_RD_NA_1
102
0x66
Read command
C_CS_NA_1
103
0x67
Clock synchronisation command
C_TS_NA_1
104
0x68
Test command
C_RP_NA_1
105
0x69
Reset process command
C_CD_NA_1
106
0x6A
Delay acquisition command
C_TS_TA_1
107
0x6B
Test command with time tag CP56Time2a
ASDU_TYPE_108..109
108..109
0x6C..0x6D
Reserved (standard area)
P_ME_NA_1
110
0x6E
Parameter of measured values, normalized value
P_ME_NB_1
111
0x6F
Parameter of measured values, scaled value
P_ME_NC_1
112
0x70
Parameter of measured values, short floating point number
P_AC_NA_1
113
0x71
Parameter activation
ASDU_TYPE_114..119
114..119
0x72..0x77
Reserved (standard area)
F_FR_NA_1
120
0x78
File ready
F_SR_NA_1
121
0x79
Section ready
F_SC_NA_1
122
0x7A
Call directory, select file, call file, call section
F_LS_NA_1
123
0x7B
Last section, last segment
F_FA_NA_1
124
0x7C
ACK file, ACK section
F_SG_NA_1
125
0x7D
Segment
F_DR_TA_1
126
0x7E
Directory
ASDU_TYPE_127..255
127..255
0x7F..0xFF
Reserved (user area)
详见:

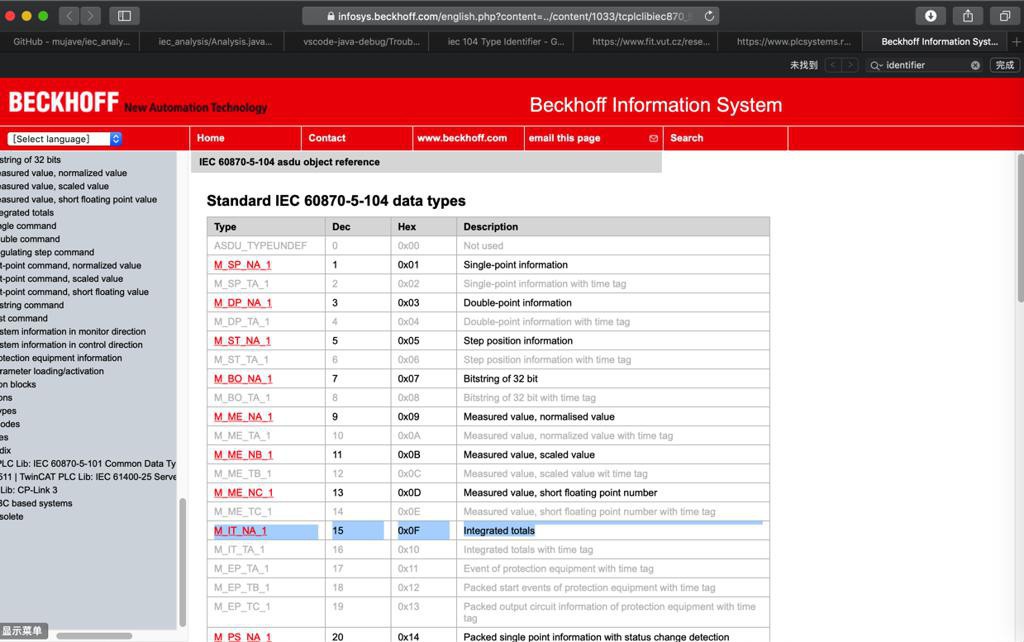

Beckhoff Information System – English
(2)截图

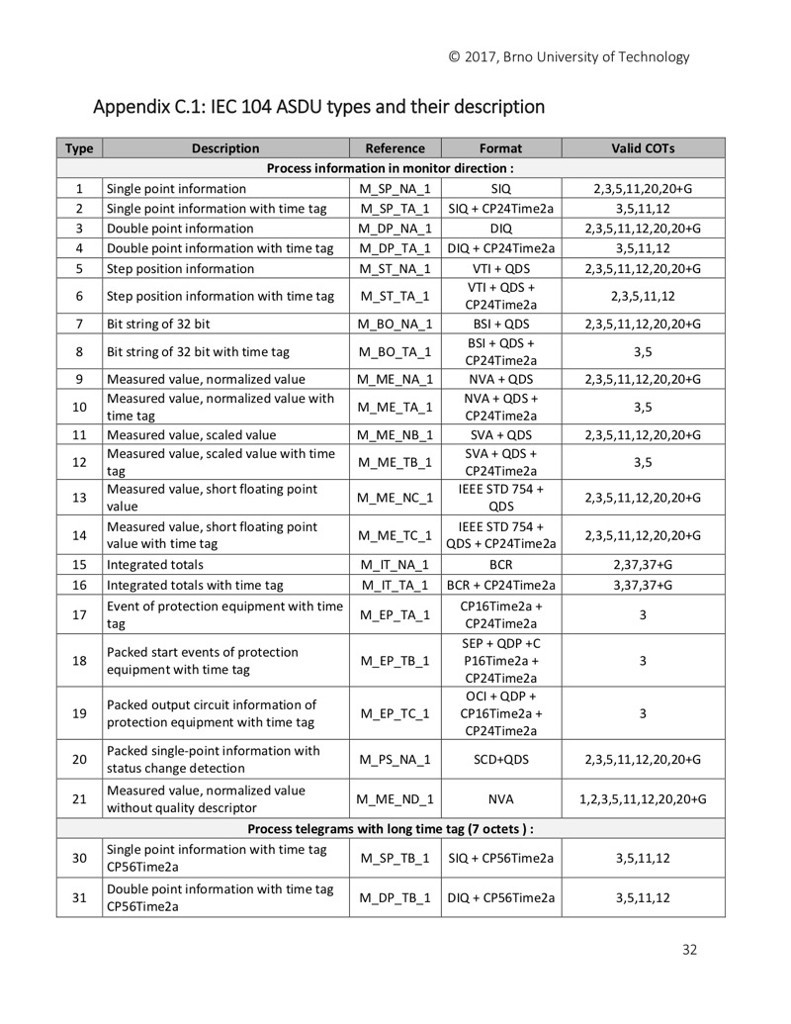

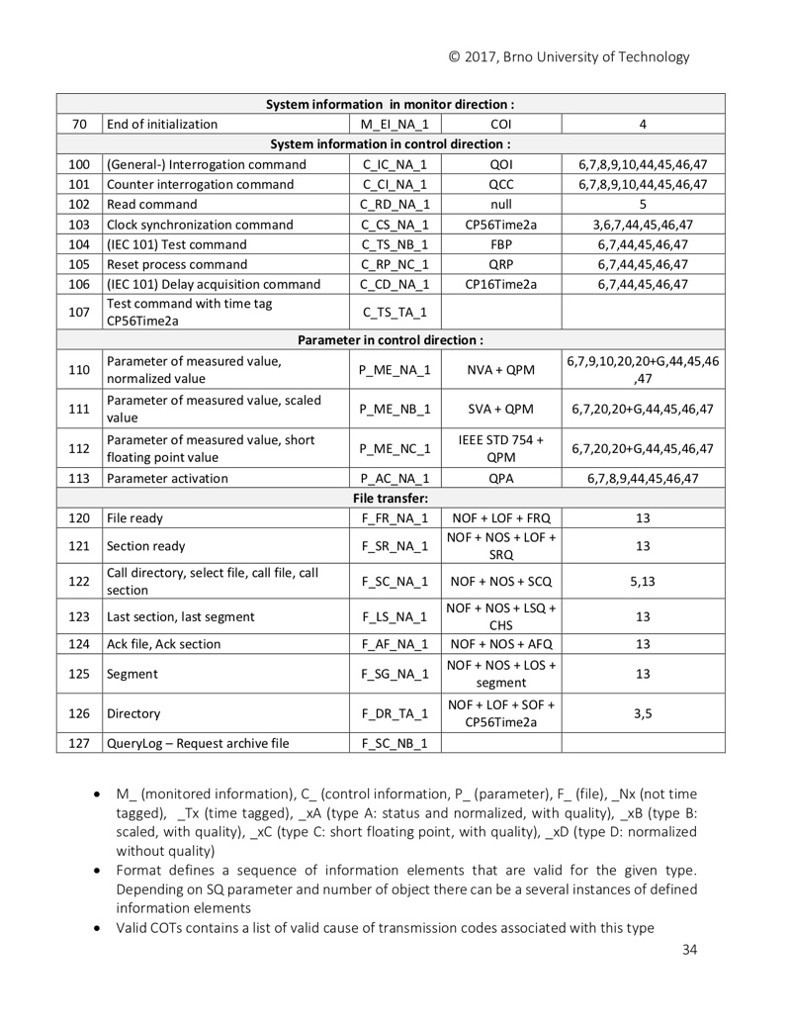

Appendix C.1: IEC 104 ASDU types and their description
详见:
Description and analysis of IEC 104 Protocol Technical Report
