【整理】Rexroth IndraWorks详解

PLC crifan 10798浏览 0评论

Rexroth IndraWorks详解

IndraWorks是Rexroth旗下,针对于自己家的Rexroth的PLC的整套完整的开发环境。

IndraWorks的全称是IndraWorks Logic,一般都简称为IndraWorks。



IndraWorks包含以下几个功能模块:

  • IndraWorks:用于项目计划和配置
  • IndraLogic:用于PLC编程支持
  • IndraWorks HMI:用于支持HMI图形界面,以及用户接口部分和诊断功能(ProVi)
  • IndraWorks WinStudio:用于创建用户界面的工具
  • IndraLogic L40 TSP:用于创建目标文件(Target files),TSP==Target Support Package
  • Target Manager: 用于管理目标文件(TSP files),比如在更新控制功能的时候

上述组件在安装IndraWorks会自动全部安装。

其中IndraWorks WinStudio默认安装的是试用版。



IndraWorks截图

列出一些IndraWorks的截图:

IndraWorks IndraMotion MLD M CCD Settings MLD_M_Final

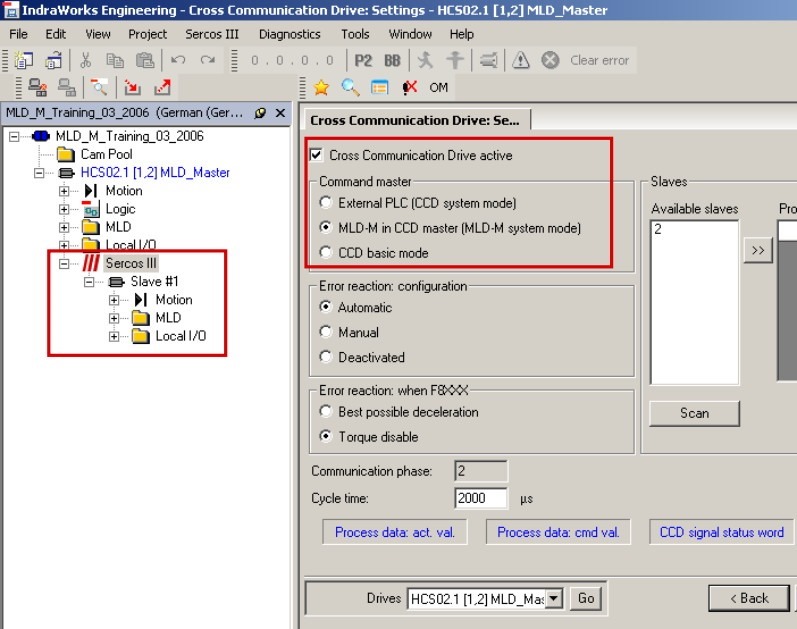

IndraWorks Engineering Cross Communication Drive Settings HCS02 MLC Master

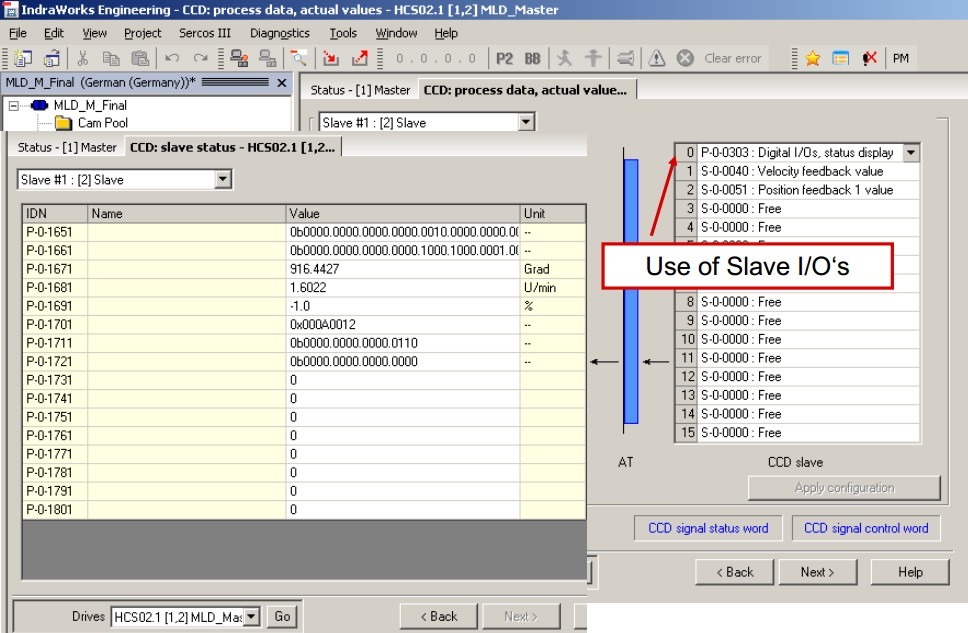

IndraWorks Engineering CCD Process data actual values

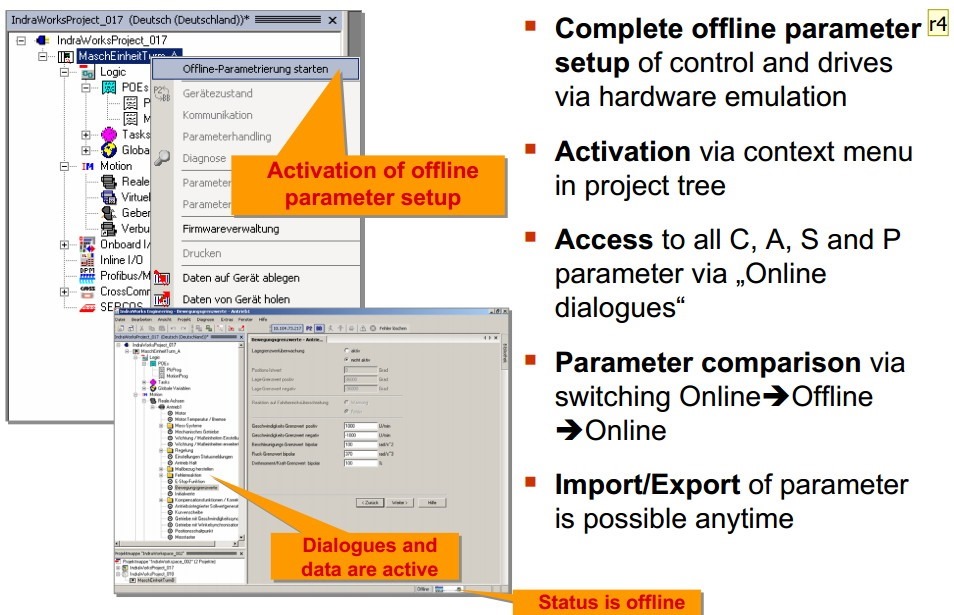

IndraWokrsProject_017 Deutsch Deutschland

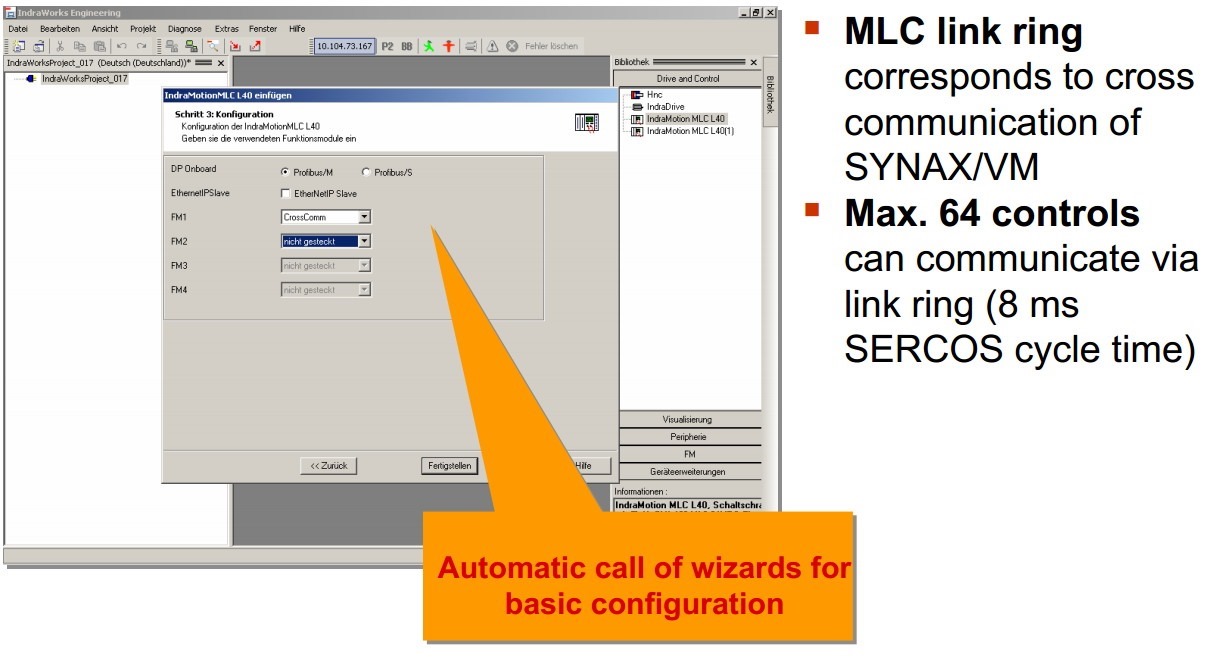

IndraWokrs Engineering MLC link ring

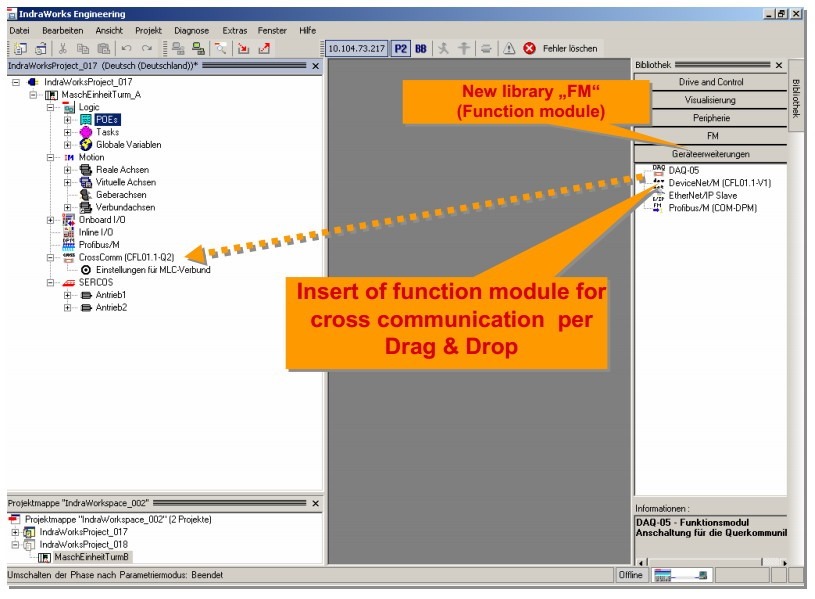

IndraWorks Engineering Insert of function module

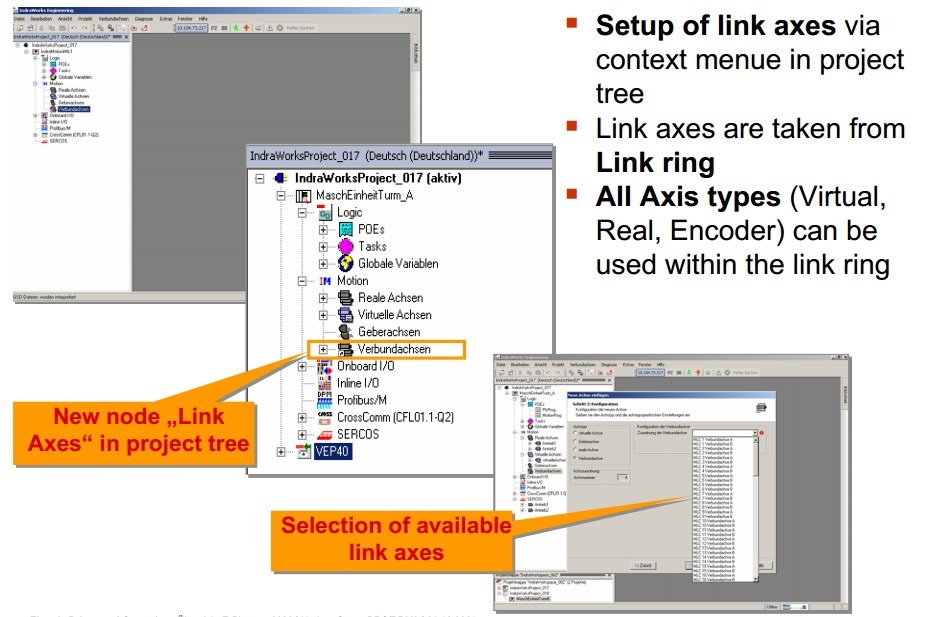

IndraWorks Setup of link axes

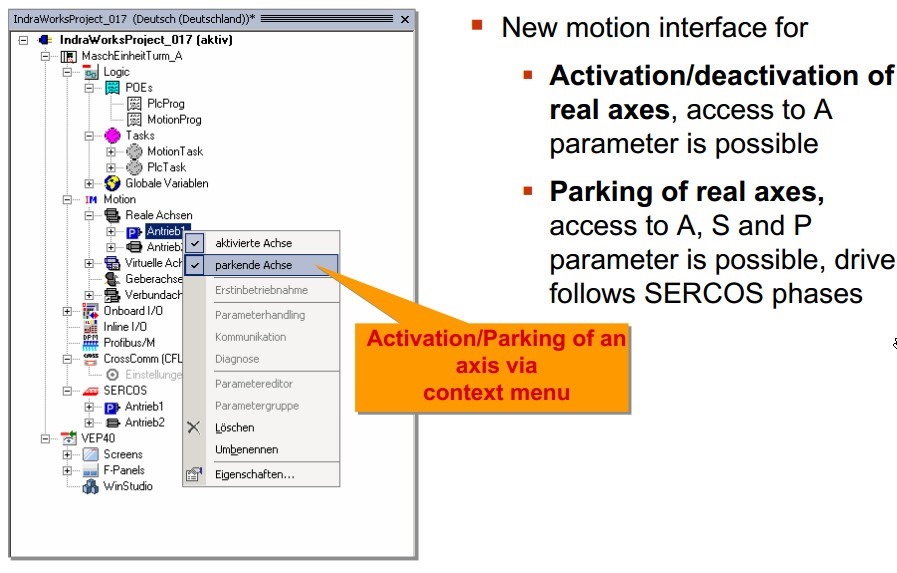

IndraWorks activation parking of an axis





IndraWorks对于RCL的支持

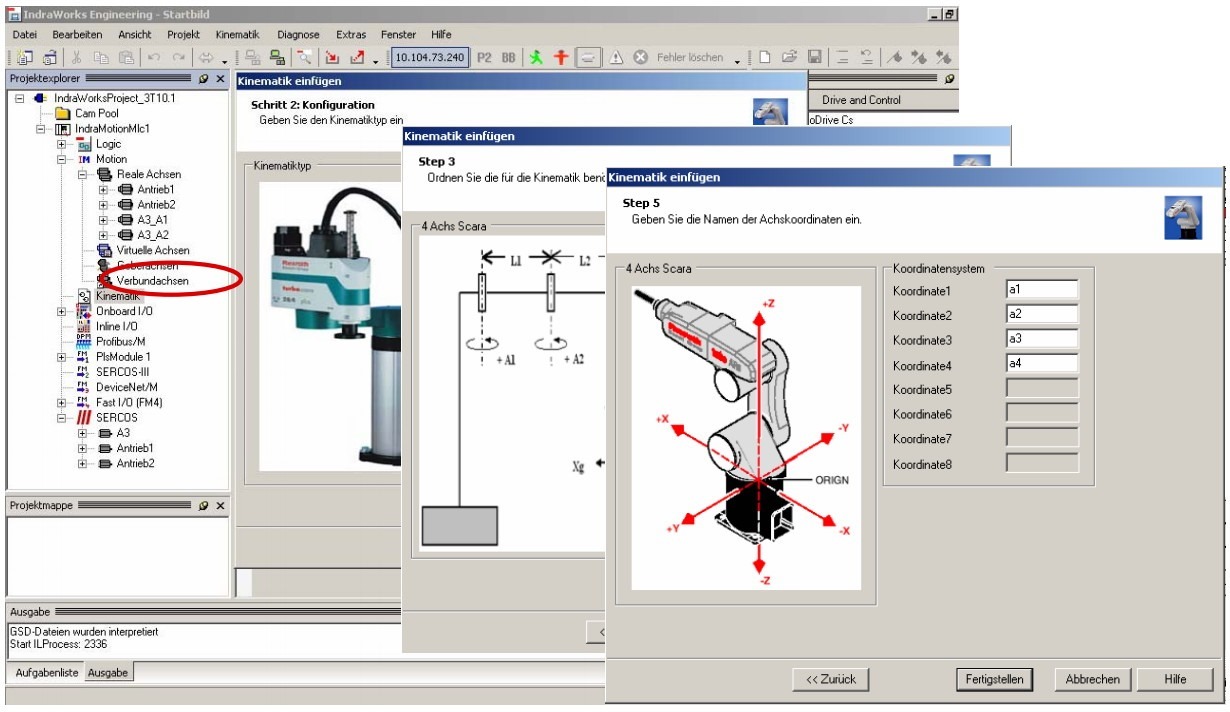

IndraWorks Engineering Startbild for robot

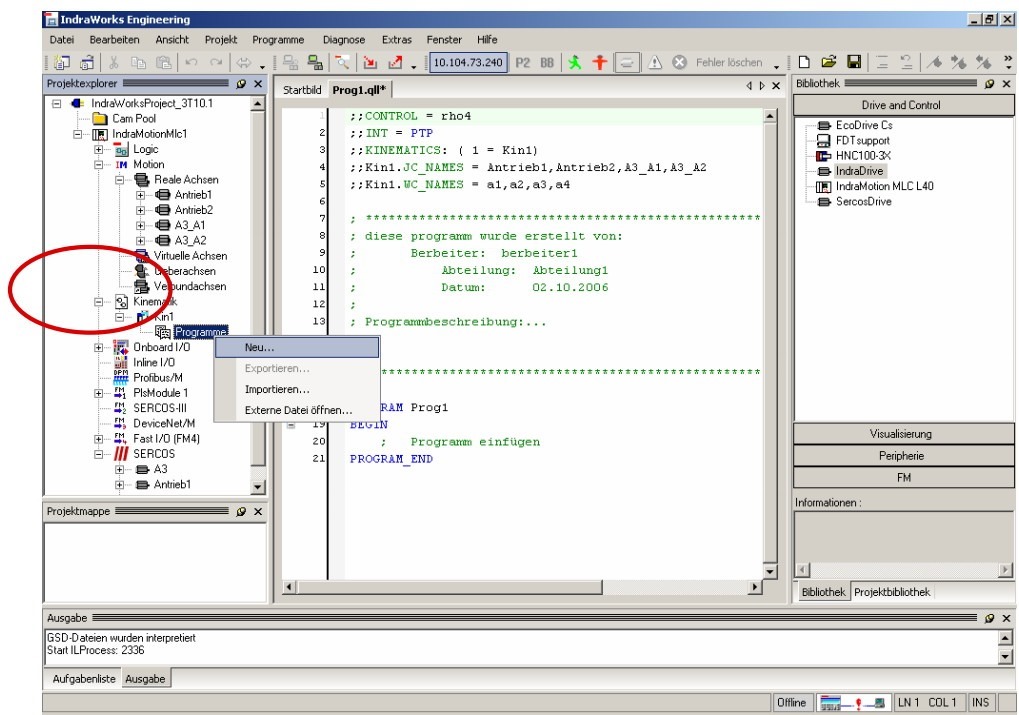

IndraWorks for robot rcl example

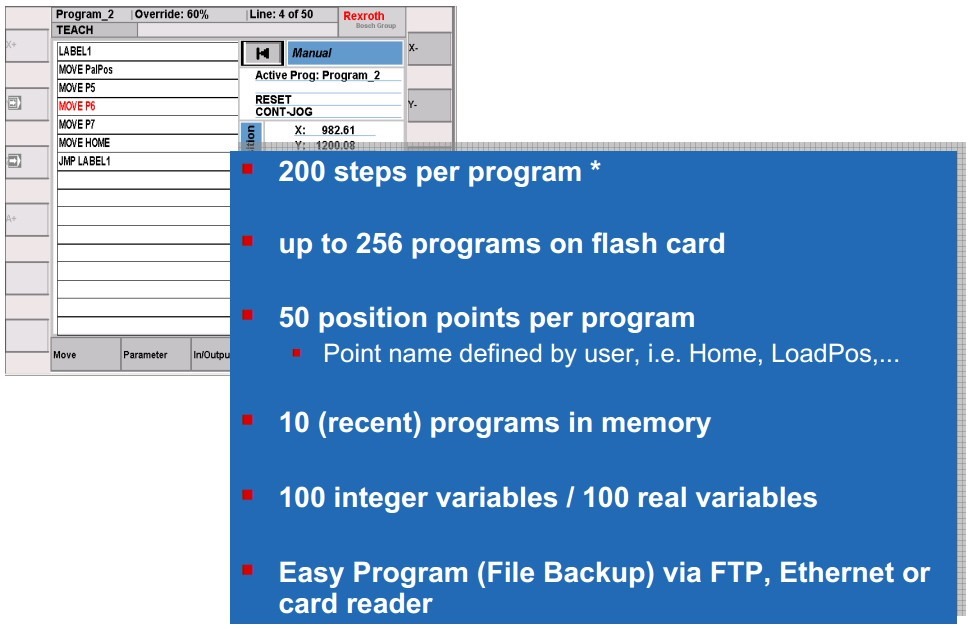

IndraWorks IndraMotion for Handing motion programs



相关帖子

【整理】Rexroth IndraLogic详解

【整理】Rexroth IndraControl详解



参考资料

BoschRexroth-IndraLogicL40SystemDescription.pdf

【PDF】PLC Programming with Rexroth IndraLogic 1.0
