【已解决】Mac中安装uiautomator2的UI界面工具:weditor

uiautomator2 crifan 680浏览 0评论
折腾:
【未解决】给安卓手机小米9中欢乐大作战的游戏实现自动挂机
期间,为了方便后续调试,还是去安装那个weditor吧:
openatx/uiautomator2: Android Uiautomator2 Python Wrapper
openatx/weditor: web editor for atx
pip install --upgrade weditor
浅谈自动化测试工具 python-uiautomator2 · TesterHome
pip install --pre weditor
去试试
➜  autoTestAndroidGameHappyBigBattle pipenv install -U weditor
Courtesy Notice: Pipenv found itself running within a virtual environment, so it will automatically use that environment, instead of creating its own for any project. You can set PIPENV_IGNORE_VIRTUALENVS=1 to force pipenv to ignore that environment and create its own instead. You can set PIPENV_VERBOSITY=-1 to suppress this warning.
Installing -U…
WARNING: Invalid requirement, parse error at "'-U'"
✘ Installation Failed
➜  autoTestAndroidGameHappyBigBattle pipenv install --upgrade weditor
Courtesy Notice: Pipenv found itself running within a virtual environment, so it will automatically use that environment, instead of creating its own for any project. You can set PIPENV_IGNORE_VIRTUALENVS=1 to force pipenv to ignore that environment and create its own instead. You can set PIPENV_VERBOSITY=-1 to suppress this warning.
Installing --upgrade…
WARNING: Invalid requirement, parse error at "'--upgrad'"
✘ Installation Failed
➜  autoTestAndroidGameHappyBigBattle pipenv install weditor
Installing weditor…
Adding weditor to Pipfile's [packages]…
✔ Installation Succeeded
Pipfile.lock (ae4f88) out of date, updating to (78903d)…
Locking [dev-packages] dependencies…
Locking [packages] dependencies…
✔ Success!
Updated Pipfile.lock (ae4f88)!
Installing dependencies from Pipfile.lock (ae4f88)…
  🐍   ▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉▉ 25/25 — 00:00:05
安装后,去看看:
➜  autoTestAndroidGameHappyBigBattle pipenv graph
weditor==0.3.1
  - facebook-wda [required: >=0.3, installed: 0.4.1]
    - Pillow [required: Any, installed: 6.2.1]
    - requests [required: >=2.9.1, installed: 2.22.0]
      - certifi [required: >=2017.4.17, installed: 2019.9.11]
      - chardet [required: >=3.0.2,<3.1.0, installed: 3.0.4]
      - idna [required: >=2.5,<2.9, installed: 2.8]
      - urllib3 [required: >=1.21.1,<1.26,!=1.25.1,!=1.25.0, installed: 1.25.7]
    - retry [required: Any, installed: 0.9.2]
      - decorator [required: >=3.4.2, installed: 4.4.1]
      - py [required: >=1.4.26,<2.0.0, installed: 1.8.0]
    - six [required: Any, installed: 1.13.0]
  - logzero [required: Any, installed: 1.5.0]
  - pillow [required: Any, installed: 6.2.1]
  - six [required: Any, installed: 1.13.0]
  - tornado [required: >=4.3, installed: 6.0.3]
  - uiautomator2 [required: >=1.0, installed: 2.0.0]
    - adbutils [required: >=0.5.2,<1.0, installed: 0.6.2]
      - deprecation [required: >=2.0.6,<3.0, installed: 2.0.7]
        - packaging [required: Any, installed: 19.2]
          - pyparsing [required: >=2.0.2, installed: 2.4.5]
          - six [required: Any, installed: 1.13.0]
      - requests [required: Any, installed: 2.22.0]
        - certifi [required: >=2017.4.17, installed: 2019.9.11]
        - chardet [required: >=3.0.2,<3.1.0, installed: 3.0.4]
        - idna [required: >=2.5,<2.9, installed: 2.8]
        - urllib3 [required: >=1.21.1,<1.26,!=1.25.1,!=1.25.0, installed: 1.25.7]
      - retry [required: >=0.9, installed: 0.9.2]
        - decorator [required: >=3.4.2, installed: 4.4.1]
        - py [required: >=1.4.26,<2.0.0, installed: 1.8.0]
      - six [required: Any, installed: 1.13.0]
      - whichcraft [required: Any, installed: 0.6.1]
    - Deprecated [required: ~=1.2.6, installed: 1.2.7]
      - wrapt [required: >=1.10,<2, installed: 1.11.2]
    - humanize [required: Any, installed: 0.5.1]
    - logzero [required: ~=1.5, installed: 1.5.0]
    - lxml [required: >=4.3, installed: 4.4.1]
    - Pillow [required: Any, installed: 6.2.1]
    - progress [required: ~=1.3, installed: 1.5]
    - requests [required: Any, installed: 2.22.0]
      - certifi [required: >=2017.4.17, installed: 2019.9.11]
      - chardet [required: >=3.0.2,<3.1.0, installed: 3.0.4]
      - idna [required: >=2.5,<2.9, installed: 2.8]
      - urllib3 [required: >=1.21.1,<1.26,!=1.25.1,!=1.25.0, installed: 1.25.7]
    - retry [required: ~=0.9, installed: 0.9.2]
      - decorator [required: >=3.4.2, installed: 4.4.1]
      - py [required: >=1.4.26,<2.0.0, installed: 1.8.0]
    - six [required: Any, installed: 1.13.0]
    - whichcraft [required: Any, installed: 0.6.1]
然后去启动:
➜  autoTestAndroidGameHappyBigBattle python -m weditor
listening on http://192.168.31.12:17310
[I 191122 20:38:19 web:2246] 200 GET / (::1) 18.05ms
[I 191122 20:38:19 web:2246] 200 GET /static/libs/css/buttons.css (::1) 18.39ms
[I 191122 20:38:19 web:2246] 200 GET /static/libs/fontawesome/css/font-awesome.min.css (::1) 5.45ms
[I 191122 20:38:19 web:2246] 200 GET /static/loading.svg (::1) 243.51ms
[I 191122 20:38:19 web:2246] 200 GET /static/running.svg (::1) 257.34ms
[I 191122 20:38:19 web:2246] 200 GET /static/style.css?v=4000e274c1eeda53ea9ec4e51f124faa (::1) 262.57ms
[I 191122 20:38:20 web:2246] 200 GET /static/ace/ace.js (::1) 22.74ms
[I 191122 20:38:20 web:2246] 200 GET /static/ace/mode-python.js (::1) 24.57ms
[I 191122 20:38:20 web:2246] 200 GET /static/libs/vue-2.5.16/vue.js?v=cbe2b9b2fb6955decf033515d079e44b (::1) 14.18ms
[I 191122 20:38:20 web:2246] 200 GET /static/js/common.js?v=f1c2d6b24d012c4fc2e22595bd549793 (::1) 11.82ms
[I 191122 20:38:20 web:2246] 200 GET /static/js/index.js?v=66bde55ac3879acf69a8ef548473df6b (::1) 4.07ms
[I 191122 20:38:20 web:2246] 200 GET /cdn.jsdelivr.net/bootstrap.select/1.12.2/js/bootstrap-select.min.js (::1) 646.20ms
[I 191122 20:38:20 web:2246] 200 GET /cdn.jsdelivr.net/bootstrap/3.3.7/js/bootstrap.min.js (::1) 659.83ms
[I 191122 20:38:20 web:2246] 200 GET /cdn.jsdelivr.net/npm/jstree@3.3.8/dist/jstree.min.js (::1) 316.84ms
[I 191122 20:38:20 web:2246] 200 GET /cdn.jsdelivr.net/npm/jquery@3.3.1/dist/jquery.min.js (::1) 754.59ms
[I 191122 20:38:21 web:2246] 200 GET /static/libs/fontawesome/fonts/fontawesome-webfont.woff2?v=4.7.0 (::1) 6.31ms
[I 191122 20:38:22 web:2246] 200 GET /api/v1/version (::1) 1.13ms
[I 191122 20:38:23 web:2246] 200 GET /favicon.ico (::1) 1.55ms
[I 191122 20:38:30 web:2246] 200 GET / (::1) 5.30ms
[I 191122 20:38:30 web:2246] 200 GET /static/libs/css/buttons.css (::1) 2.49ms
[I 191122 20:38:30 web:2246] 200 GET /static/style.css?v=4000e274c1eeda53ea9ec4e51f124faa (::1) 2.14ms
[I 191122 20:38:30 web:2246] 200 GET /static/libs/fontawesome/css/font-awesome.min.css (::1) 3.91ms
[I 191122 20:38:30 web:2246] 200 GET /cdn.jsdelivr.net/npm/jquery@3.3.1/dist/jquery.min.js (::1) 1.87ms
[I 191122 20:38:30 web:2246] 200 GET /cdn.jsdelivr.net/bootstrap/3.3.7/js/bootstrap.min.js (::1) 1.34ms
[I 191122 20:38:30 web:2246] 200 GET /cdn.jsdelivr.net/bootstrap.select/1.12.2/js/bootstrap-select.min.js (::1) 1.45ms
[I 191122 20:38:30 web:2246] 200 GET /static/ace/ace.js (::1) 4.96ms
[I 191122 20:38:30 web:2246] 200 GET /static/ace/mode-python.js (::1) 1.89ms
[I 191122 20:38:30 web:2246] 200 GET /cdn.jsdelivr.net/npm/jstree@3.3.8/dist/jstree.min.js (::1) 3.17ms
[I 191122 20:38:30 web:2246] 200 GET /static/libs/vue-2.5.16/vue.js?v=cbe2b9b2fb6955decf033515d079e44b (::1) 3.33ms
[I 191122 20:38:30 web:2246] 200 GET /static/js/common.js?v=f1c2d6b24d012c4fc2e22595bd549793 (::1) 1.48ms
[I 191122 20:38:30 web:2246] 200 GET /static/js/index.js?v=66bde55ac3879acf69a8ef548473df6b (::1) 2.98ms
[I 191122 20:38:30 web:2246] 200 GET /static/loading.svg (::1) 1.35ms
[I 191122 20:38:30 web:2246] 200 GET /static/running.svg (::1) 1.32ms
[I 191122 20:38:32 web:2246] 200 GET /static/libs/fontawesome/fonts/fontawesome-webfont.woff2?v=4.7.0 (::1) 4.30ms
[I 191122 20:38:32 web:2246] 200 GET /api/v1/version (::1) 0.69ms
[I 191122 20:38:34 web:2246] 200 GET /favicon.ico (::1) 1.72ms

...
http://localhost:17310/

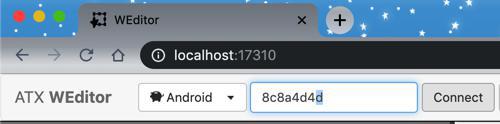

然后输入设备id
➜  autoTestAndroidGameHappyBigBattle adb devices
List of devices attached
8c8a4d4d        device
8c8a4d4d

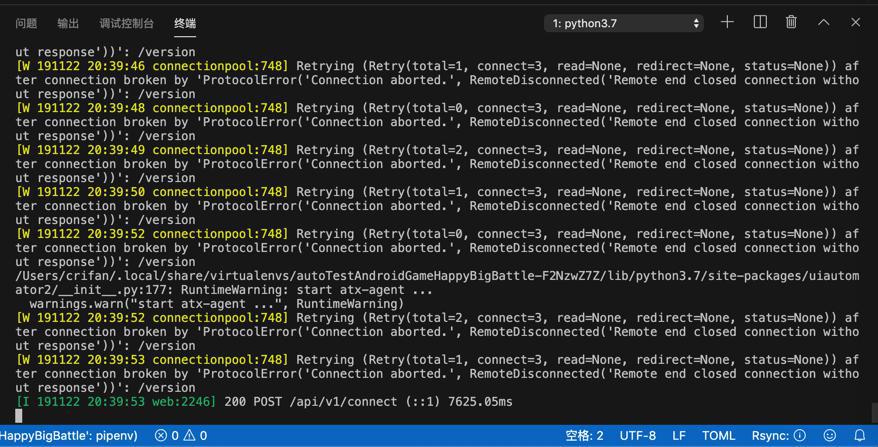

weditor的log中出现很多警告:
[W 191122 20:39:45 connectionpool:748] Retrying (Retry(total=2, connect=3, read=None, redirect=None, status=None)) after connection broken by 'ProtocolError('Connection aborted.', RemoteDisconnected('Remote end closed connection without response'))': /version
[W 191122 20:39:46 connectionpool:748] Retrying (Retry(total=1, connect=3, read=None, redirect=None, status=None)) after connection broken by 'ProtocolError('Connection aborted.', RemoteDisconnected('Remote end closed connection without response'))': /version
[W 191122 20:39:48 connectionpool:748] Retrying (Retry(total=0, connect=3, read=None, redirect=None, status=None)) after connection broken by 'ProtocolError('Connection aborted.', RemoteDisconnected('Remote end closed connection without response'))': /version
[W 191122 20:39:49 connectionpool:748] Retrying (Retry(total=2, connect=3, read=None, redirect=None, status=None)) after connection broken by 'ProtocolError('Connection aborted.', RemoteDisconnected('Remote end closed connection without response'))': /version
[W 191122 20:39:50 connectionpool:748] Retrying (Retry(total=1, connect=3, read=None, redirect=None, status=None)) after connection broken by 'ProtocolError('Connection aborted.', RemoteDisconnected('Remote end closed connection without response'))': /version
[W 191122 20:39:52 connectionpool:748] Retrying (Retry(total=0, connect=3, read=None, redirect=None, status=None)) after connection broken by 'ProtocolError('Connection aborted.', RemoteDisconnected('Remote end closed connection without response'))': /version
/Users/crifan/.local/share/virtualenvs/autoTestAndroidGameHappyBigBattle-F2NzwZ7Z/lib/python3.7/site-packages/uiautomator2/__init__.py:177: RuntimeWarning: start atx-agent ...
  warnings.warn("start atx-agent ...", RuntimeWarning)
[W 191122 20:39:52 connectionpool:748] Retrying (Retry(total=2, connect=3, read=None, redirect=None, status=None)) after connection broken by 'ProtocolError('Connection aborted.', RemoteDisconnected('Remote end closed connection without response'))': /version
[W 191122 20:39:53 connectionpool:748] Retrying (Retry(total=1, connect=3, read=None, redirect=None, status=None)) after connection broken by 'ProtocolError('Connection aborted.', RemoteDisconnected('Remote end closed connection without response'))': /version
[I 191122 20:39:53 web:2246] 200 POST /api/v1/connect (::1) 7625.05ms

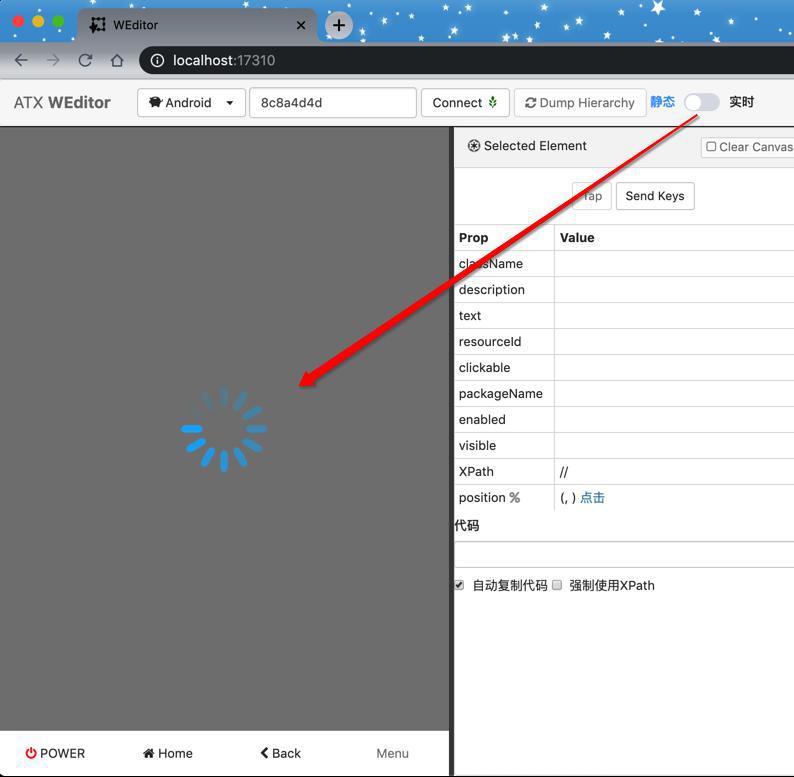

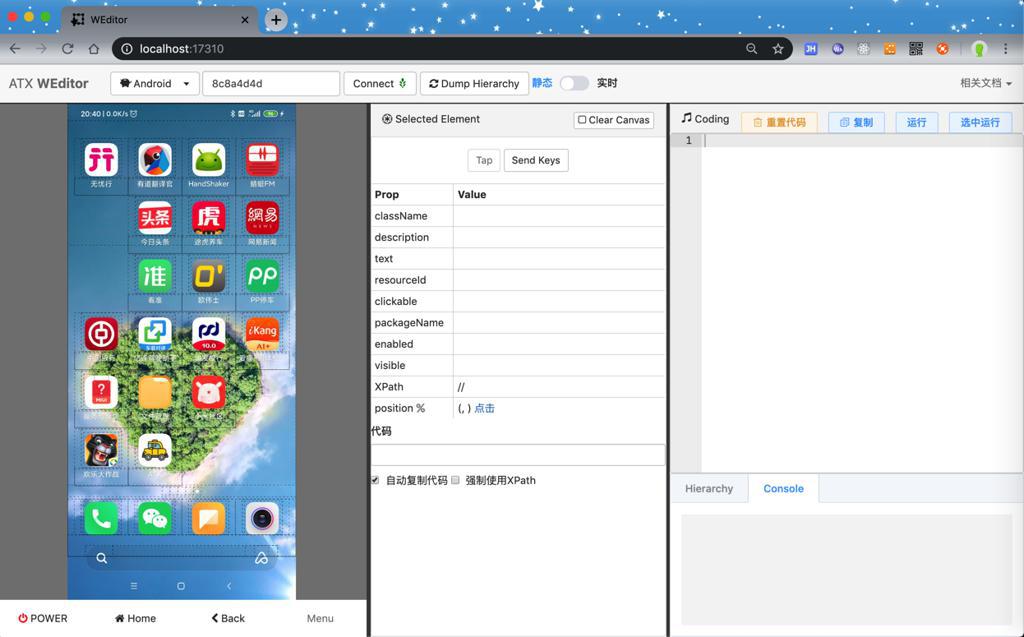

点击 静态 实时 的按钮 多点击几次 就可以界面了。

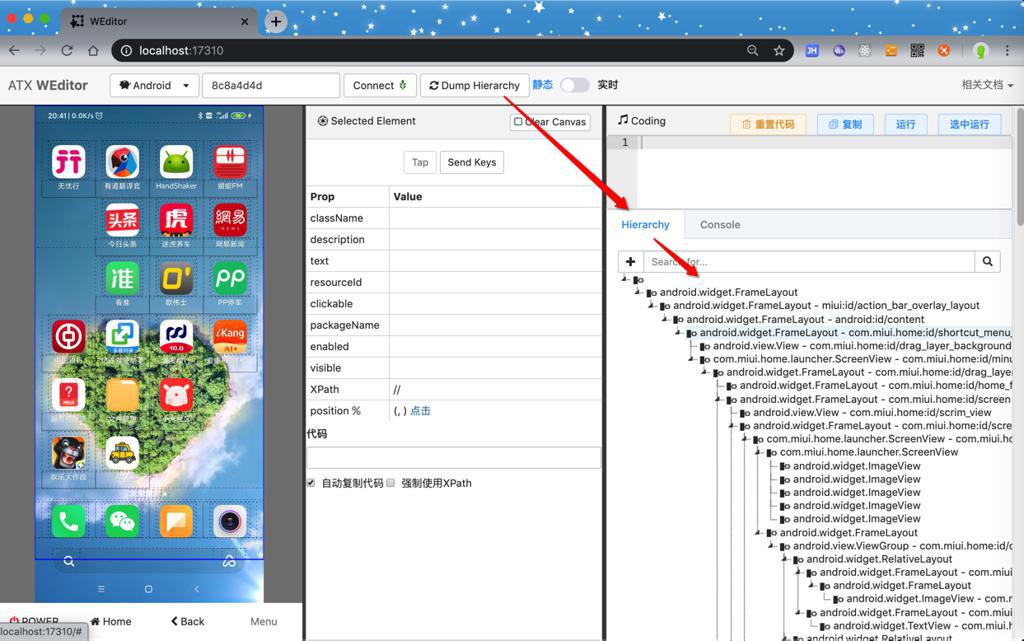

点击 Dump Hierarchy可以看到节点:

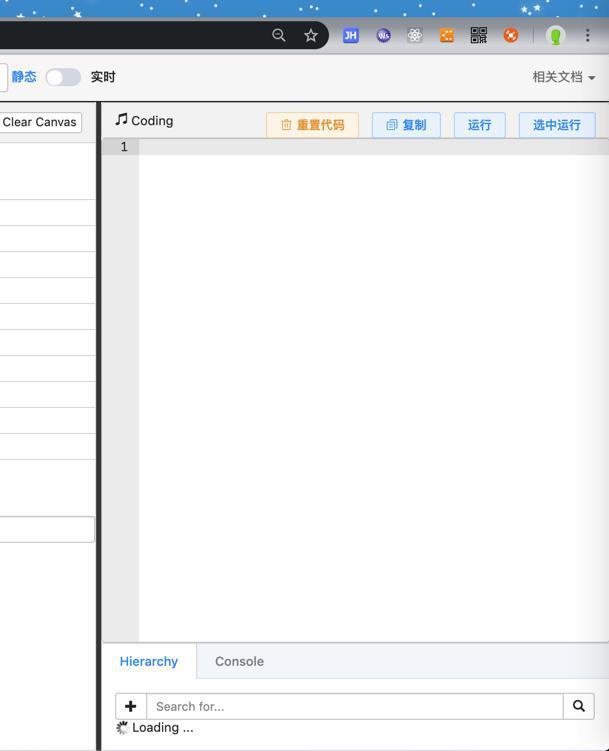

此处感觉有bug,会闪烁:
重新点击了 connect后才正常

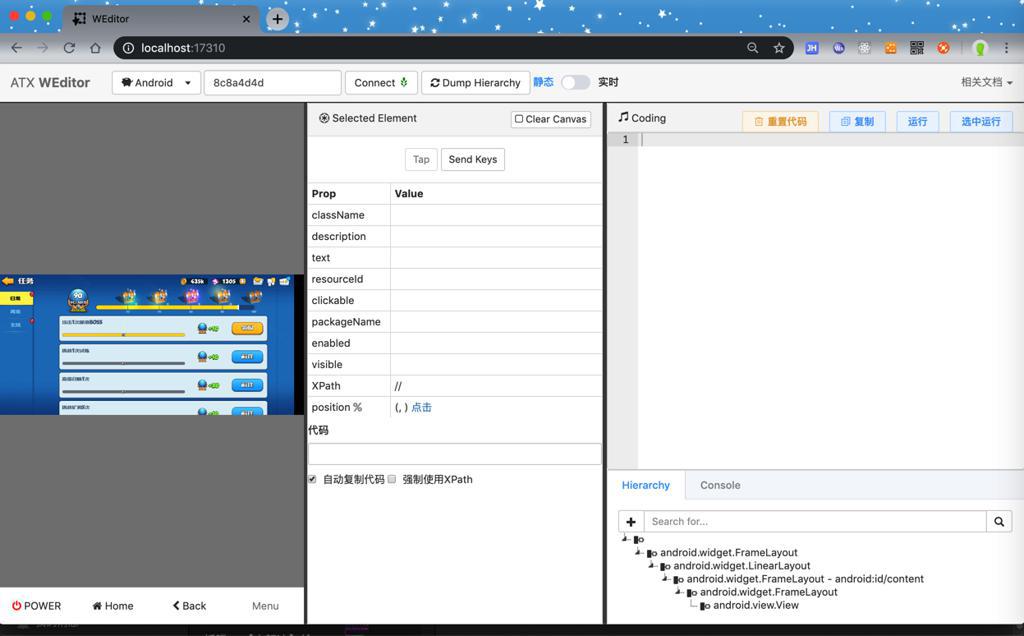

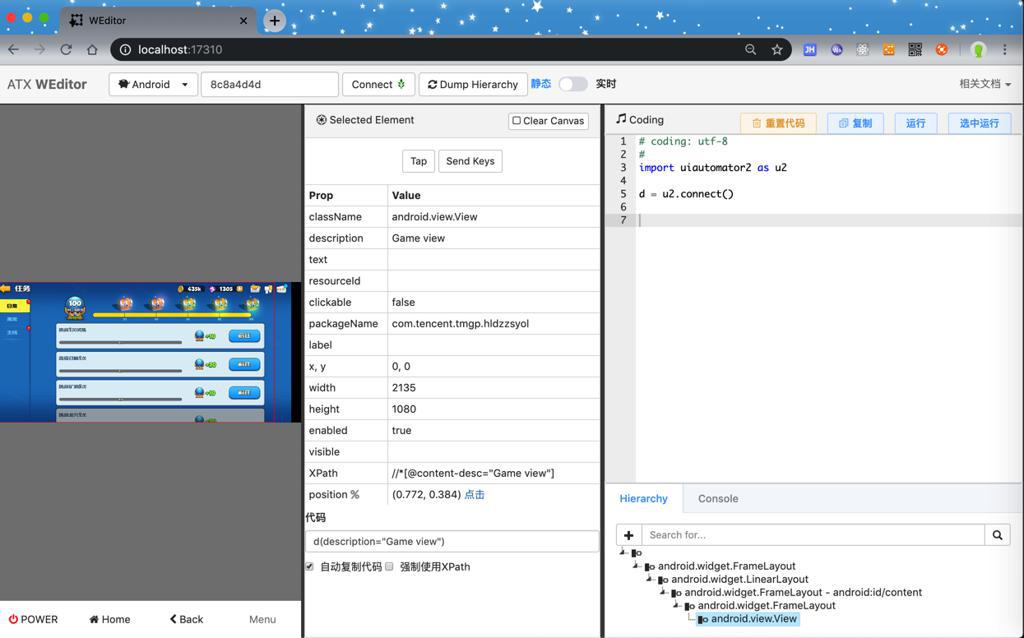

点开游戏,可以看到游戏界面了:

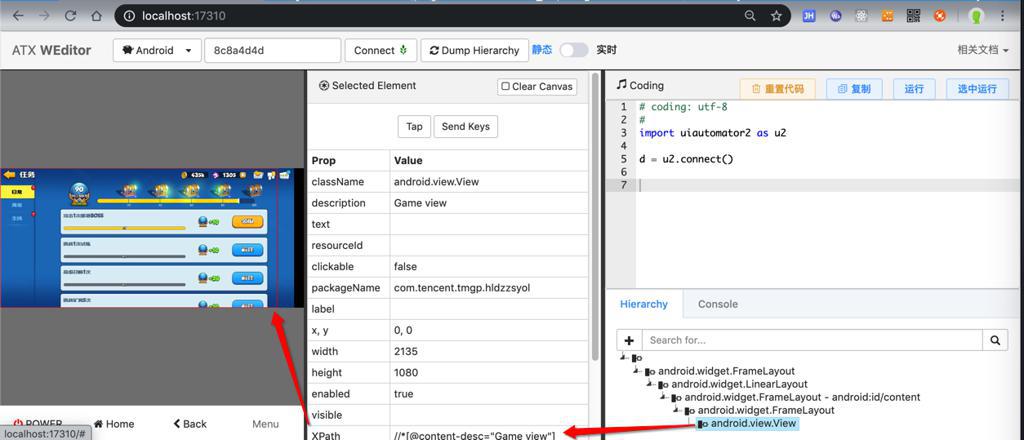

去调试看看,貌似页面内元素和按钮,都很难抓到啊
只有大区域的元素
刷新了下页面:
还是不行。
