折腾:
【整理】搞清楚RCS和IMS的架构逻辑关系
期间,看到各种关于:
IBCF CBGF SBC
去搞清楚什么含义
后来发现之前有查过
- interconnection相关
- II-NNI=Inter-IMS-NNI
- IBCF=Interconnection Border Control Function
和:
- I-CSCF=Interrogating-CSCF=询问-CSCF
- 概述
- 是另一个位于管理域边缘的功能组
- 它的IP地址通过DNS发布,所以远程服务器可以查找到它,并把它作为向它所在的域传递SIP包的跳点
- 功能
- 它查询HSS,获取S-CSCF的地址并且分派给用户以完成SIP注册。
- 它也为S-CSCF传递SIP请求和回应
- 直到IMS第6版,它是可以用来把内网隐藏起来,使外部网络无法获取内部网络的信息(加密部分SIP信息)。这里称之为THIG
- THIG=Topology Hiding Inter-network Gateway=隐藏内部网络拓扑网关
- 从第7版开始,这个功能从I-CSCF移走,作为IBCF的一部分。IBCF被用作外部网络的网关,提供NAT和防火墙功能。IBCF实际上是NNI的会谈边界控制器的裁剪版本。
- IBCF=Interconnection Border Control Function=互联边界控制功能组
IBCF CBGF
(PDF) Solving cluster ensemble problems by bipartite graph partitioning | Carla Brodley – Academia.edu
CBGF control border
ITU-T / ATIS Workshop “Next Generation Technology and Standardization” Las Vegas, 19-20 March 2006 Signaling Architecture
【总结】
- 名词
- IR=Information Retrieval
- CF=Collaborative Filtering
- CBF=Content-Based Filtering
- RAVEL=Roaming Architecture for Voice over LTE with Local Breakout
- LBO=Local Brakeout
- TRF=Transit and Roaming Function
- IBCF=Interconnection Border Control Function
- SBG=Session Border Gateway
- SCTP=Stream Control Transport Protocol
- SGC=Session Gateway Controller
- SME=Small Medium Enterprise
- BGF=Border Gateway Function

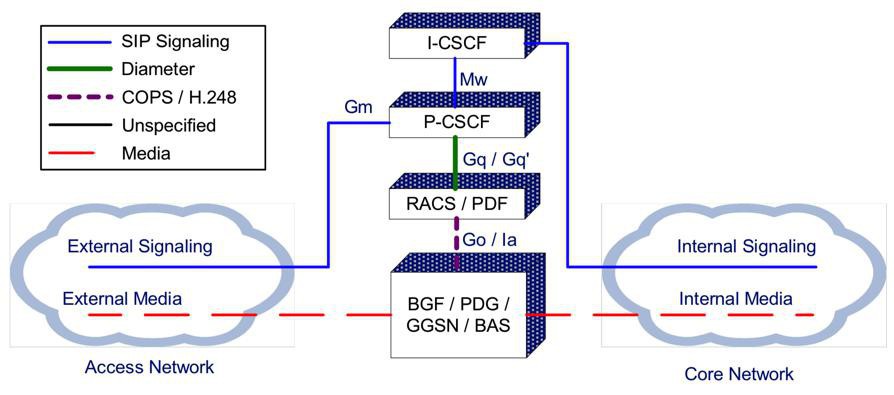

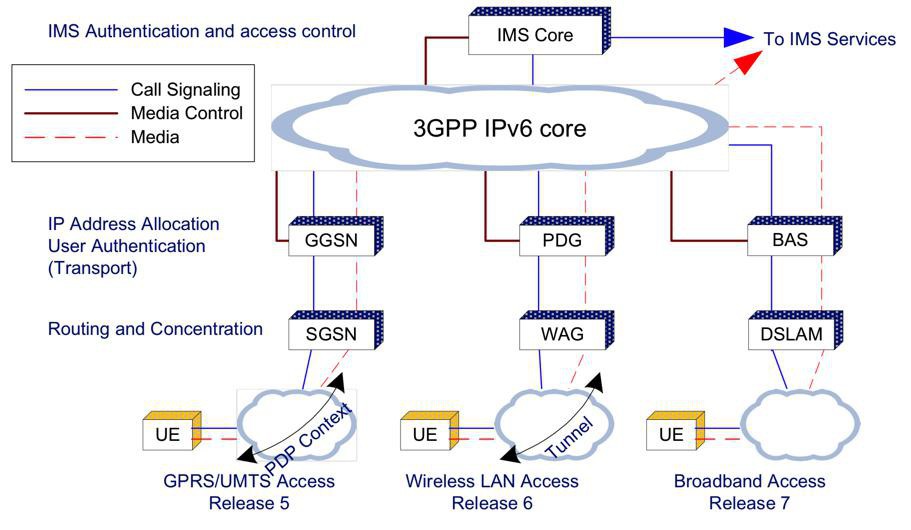

- C-BGF=CBGF=Core – Border Gateway Function
- 是什么:一种访问网关access gateway
- 位置:介于某种访问网络access network和IMS核心网络(core network)之间
- I-BGF=IBGF=Interconnection Border Gateway Function
- 是什么:NNI的其中一种
- 位置:介于core(可信的)和 外部网络
- SBC=Session Border Controller=会话边界控制器
- 是什么:一个 控制器=网络节点=网络元素
- 位置:
- 位于IMS系统中
- 介于2个网络之间的
- 作用:控制所有的数据传输
- 包括
- 信号signalling
- (媒体)数据media
- 协议
- 用于解决各种问题
- 多种(访问 接入)网络multiple access networks
- IPv4/IPv6
- SIP normalization
- VPNs
- 安全问题security issues
- DOS attacks
- topology hiding
- 加密
- 信号:TLS和IPSec
- 媒体数据:SRTP
- legislative issues=Regulatory=管制
- emergency calls
- legal intercept
- interworking
- 媒体相关问题media related problems
- QoS
- transcoding
- media security
- 实际作用
- 最早:作为NAT
- SBC as a NAT
- 具体例子

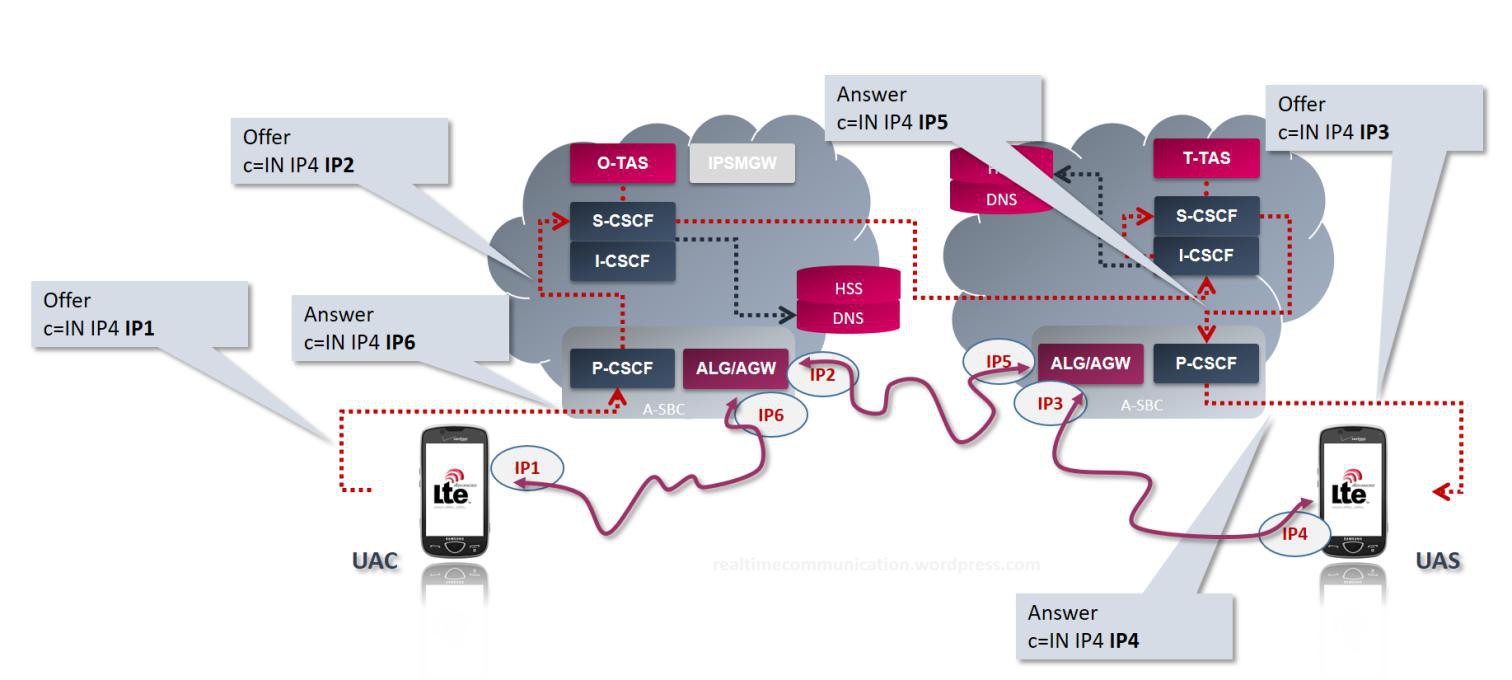

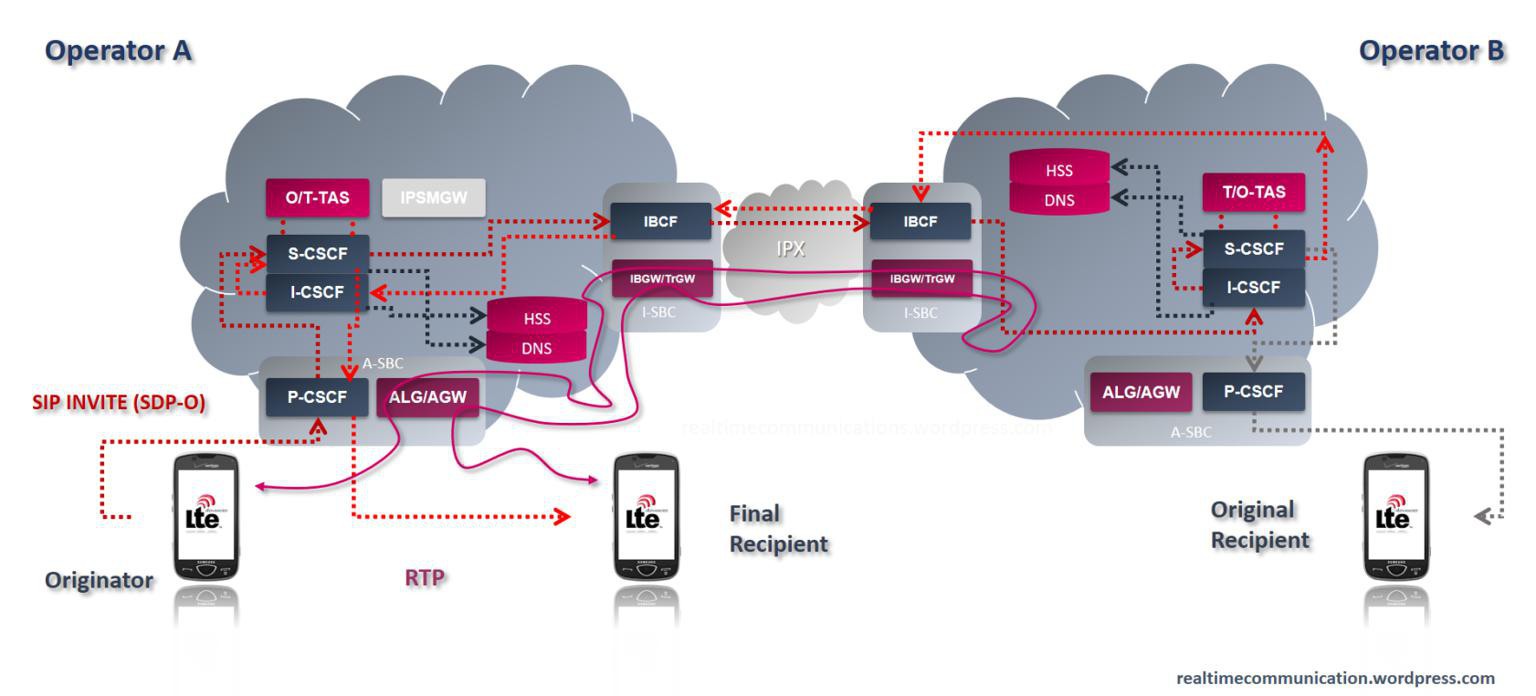

- VoLTE Call – Data Path
- 现状
- 各种类型SBC
- A-SBC
- I-SBC
- ICS-SBC
- Enterprise SBC
- Trunking SBC
- WebRTC GW
- 功能重叠或独立
- 某些功能可以独立出其他模块
- 比如
- P-CSCF
- E-CSCF
- 最新:把SBC理解为负责 安全 和 连接 方面的功能
- 其他一些也可以被视为SBC的
- CBGF
- E-CSCF
- ATCF
- ATGW
- EATF
- WebRTC GW
- ICE
- 从IMS角度
- 2种类型SBC
- 包含

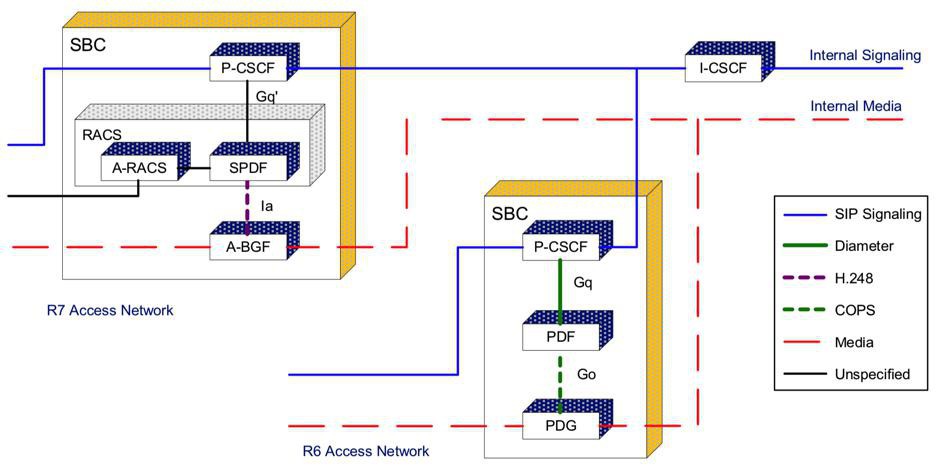

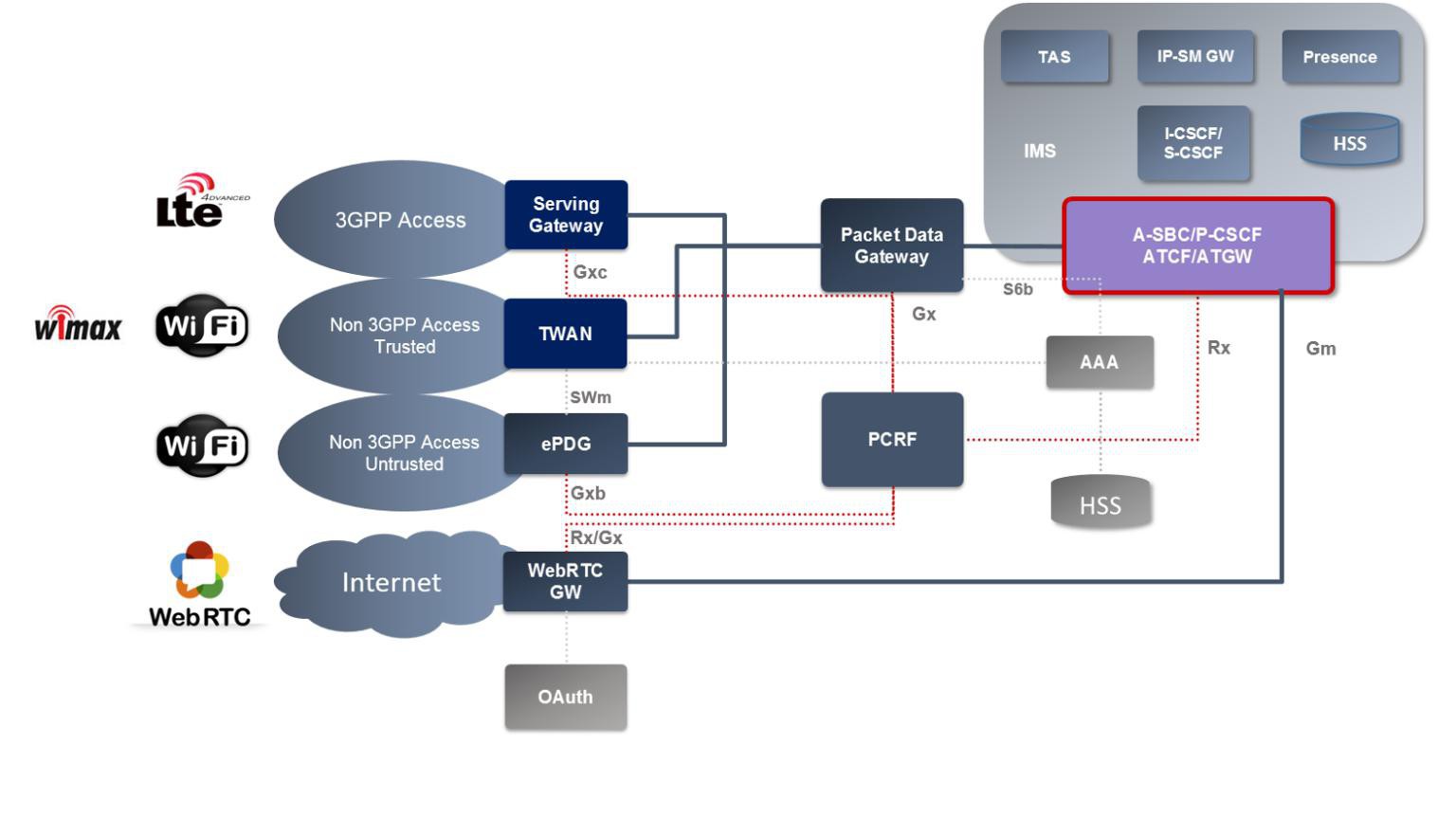

- A-SBC=Access-SBC
- 架构
- 相关内容=对应功能
- P-CSCF=Proxy Call Session Control Function
- IMS-ALG=IMS Application Level Gateway
- IMS-AGW=IMS Access Gateway

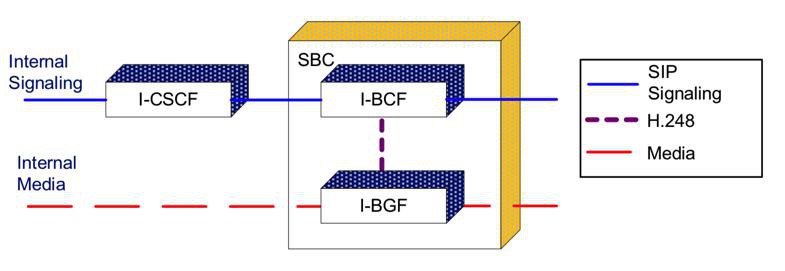

- I-SBC=Interconnecting-SBC
- 相关内容=对应功能
- IBCF=Interconnection Border Control Function
- TrGW=Translation Gateway
- THIG=Topology Hiding Interwork Gateway
- IWF
- 对比

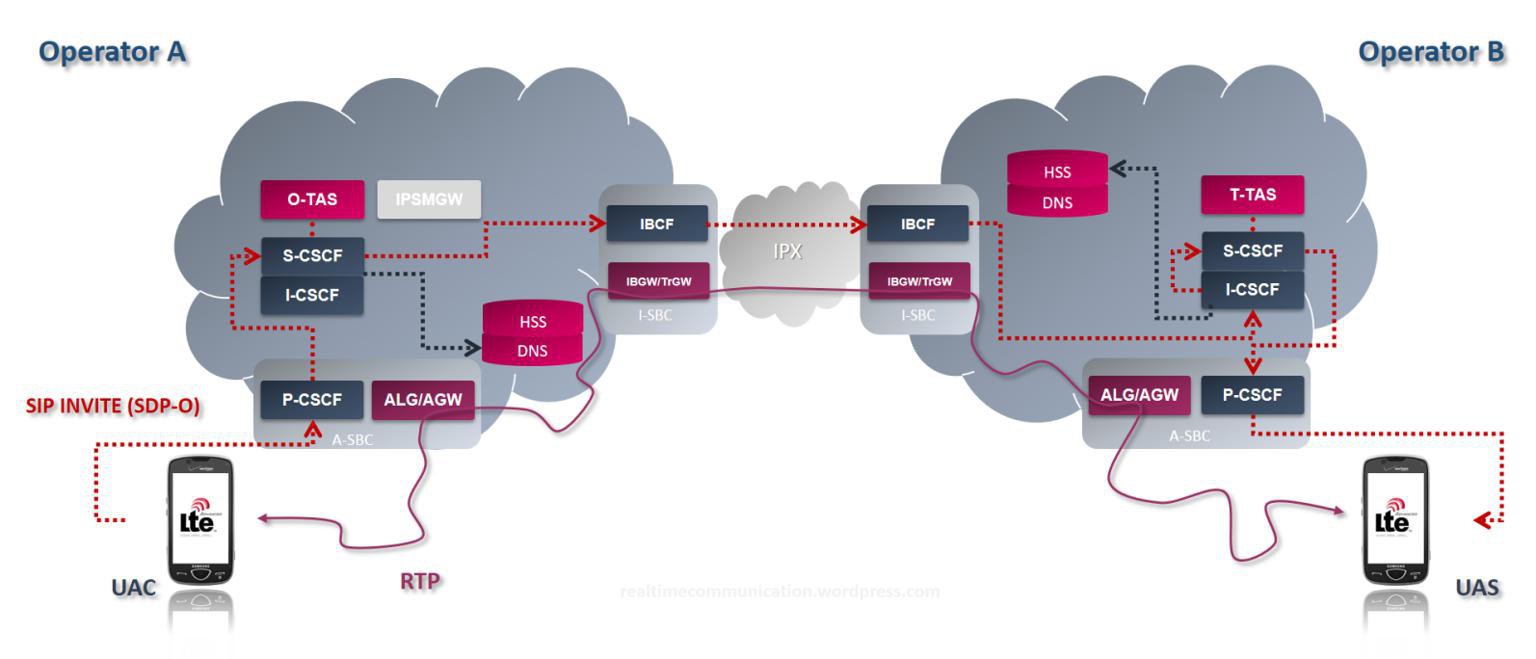

- A-SBC and I-SBC
- 稍微复杂点的情况
- Call Forwarding and LI and Interconnect

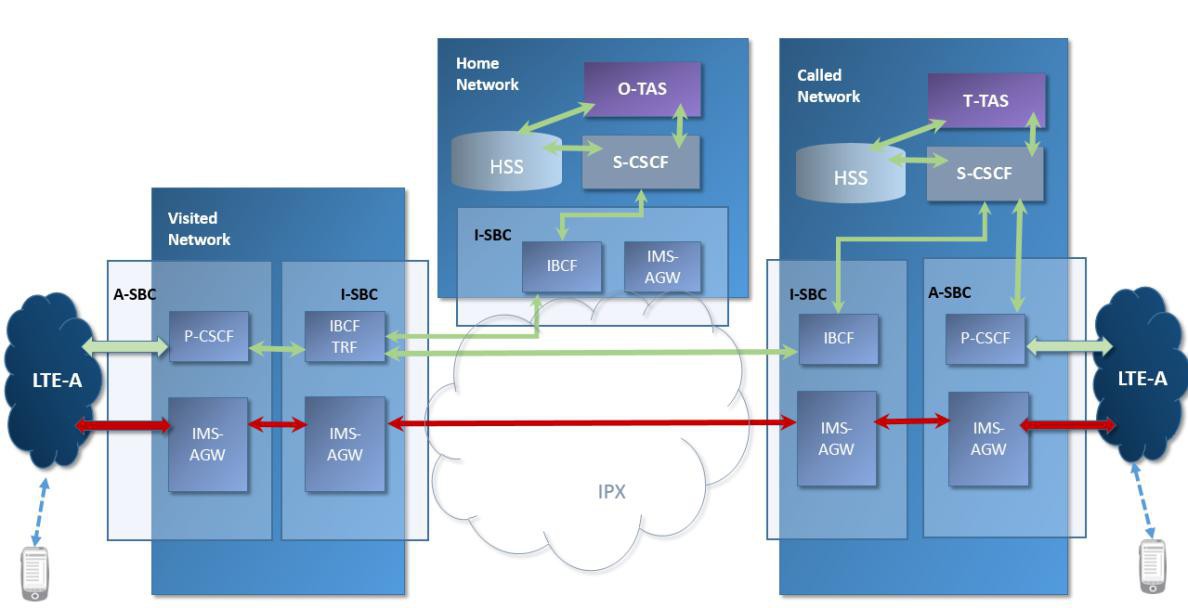

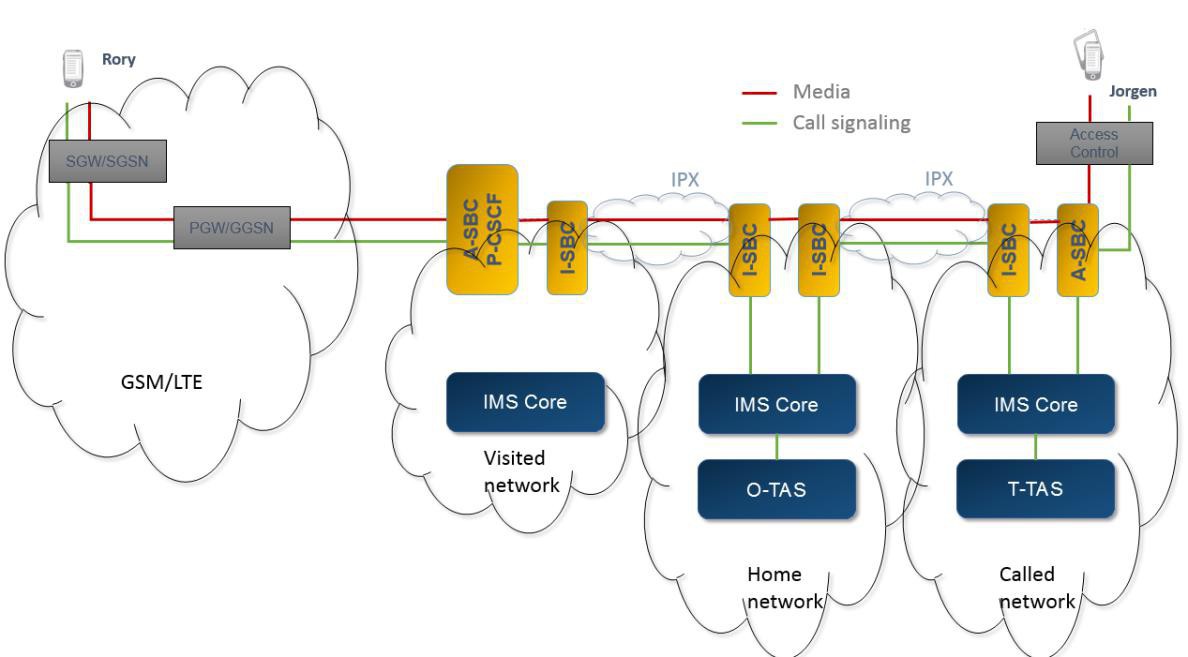

- 漫游往往涉及到SBC

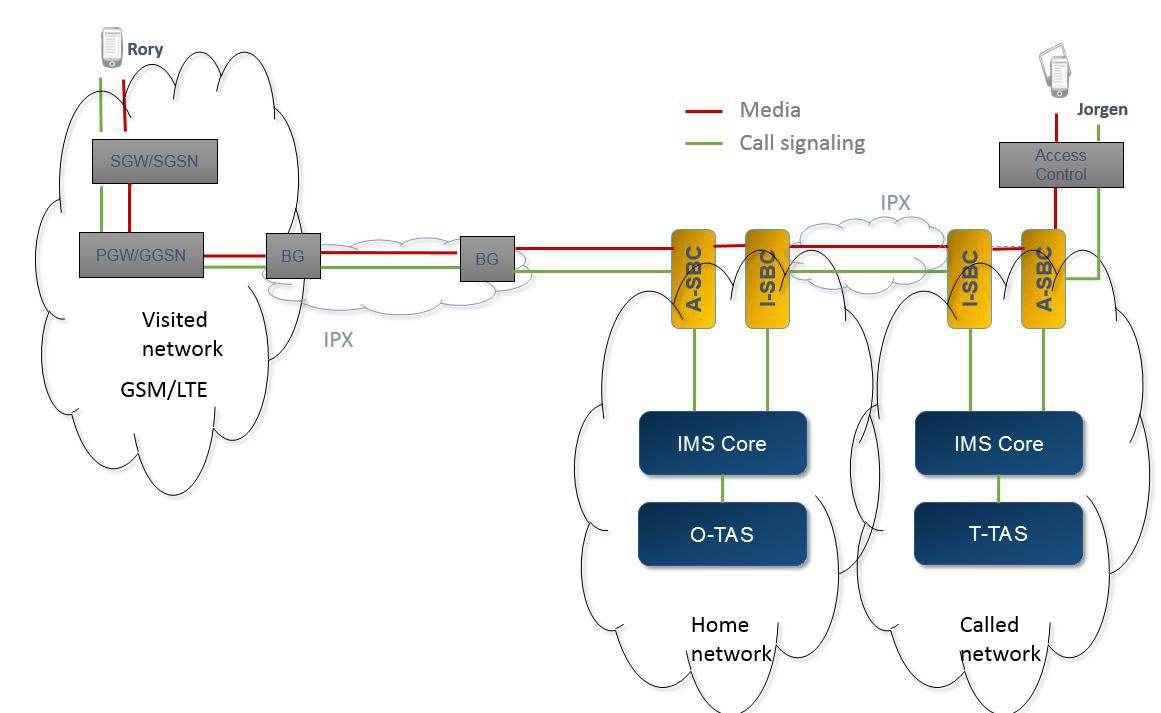

- 可能方案1

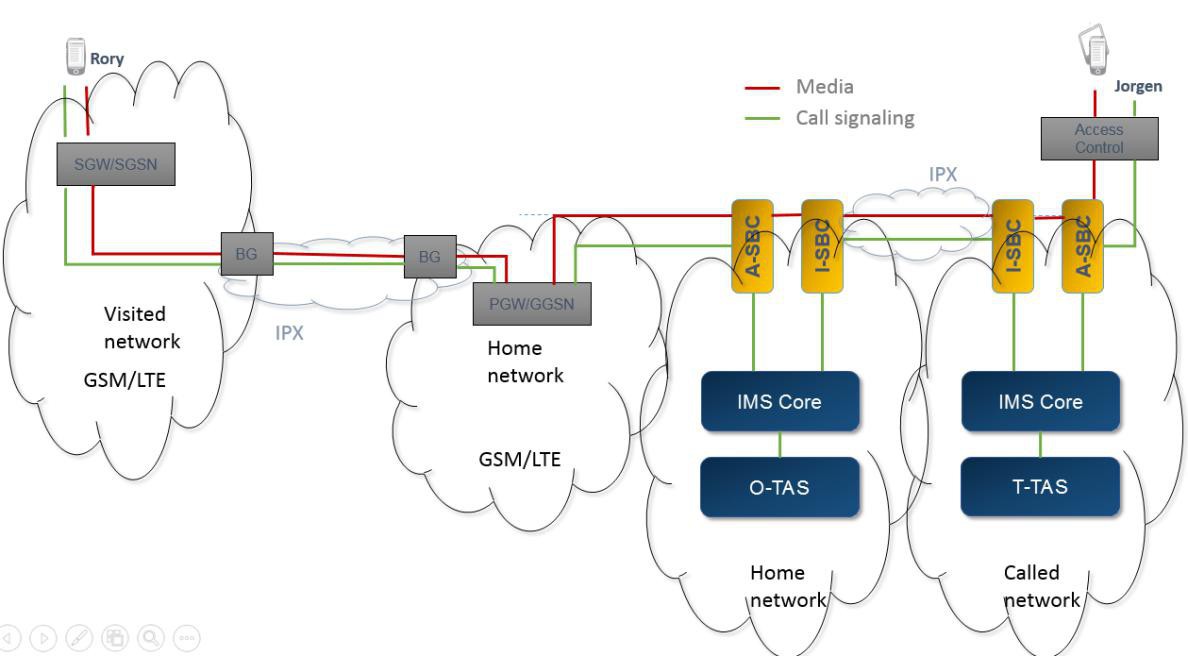

- 可能方案2
- 可能方案3

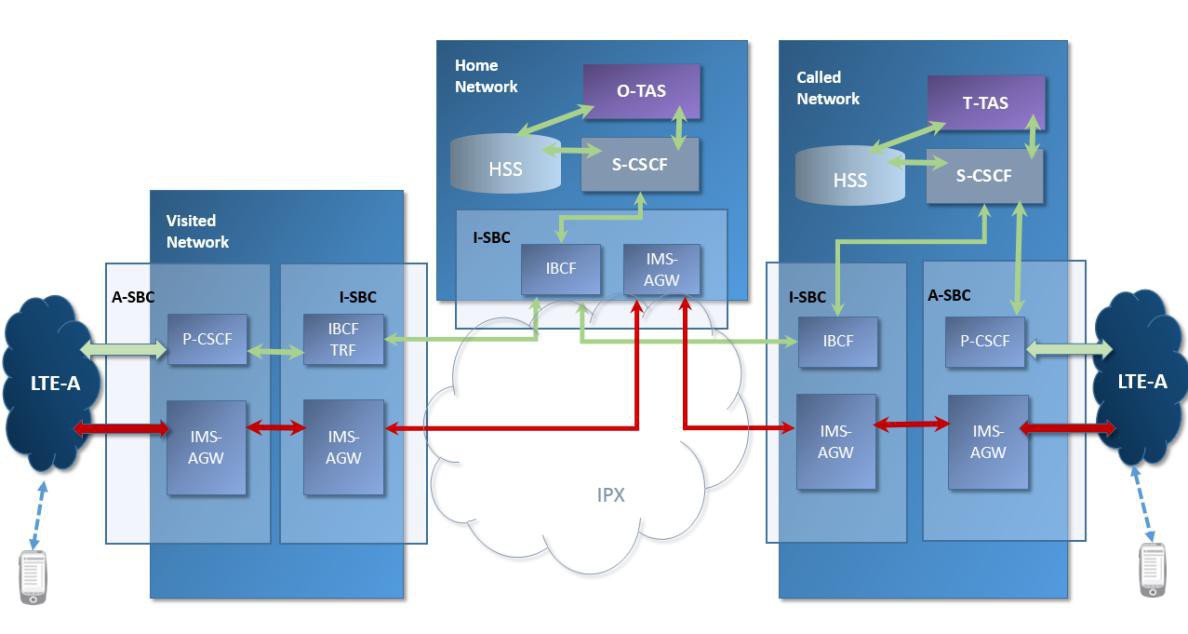

- LBO-VR with OMR
- LBO-HR
- 其他相关架构

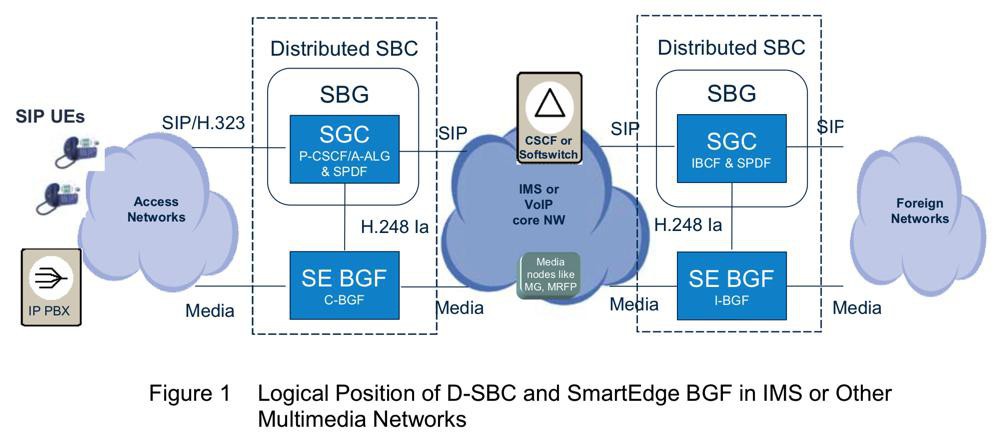

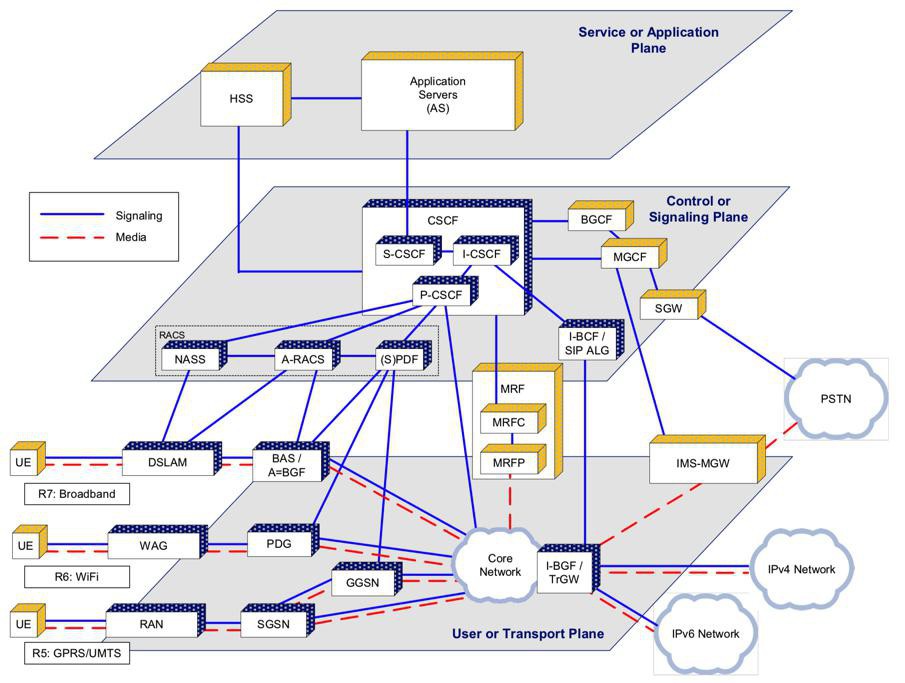

- Logical Position of D-SBC and SmartEdge BGF in IMS or Other Multimedia Networks

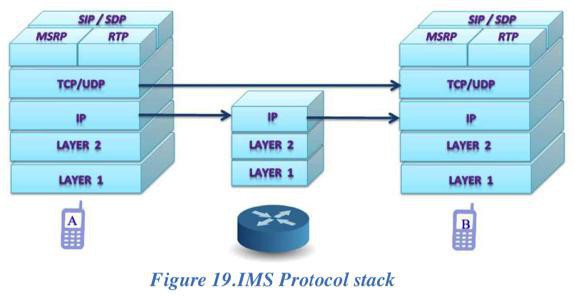

- IMS Protocol Stack协议栈

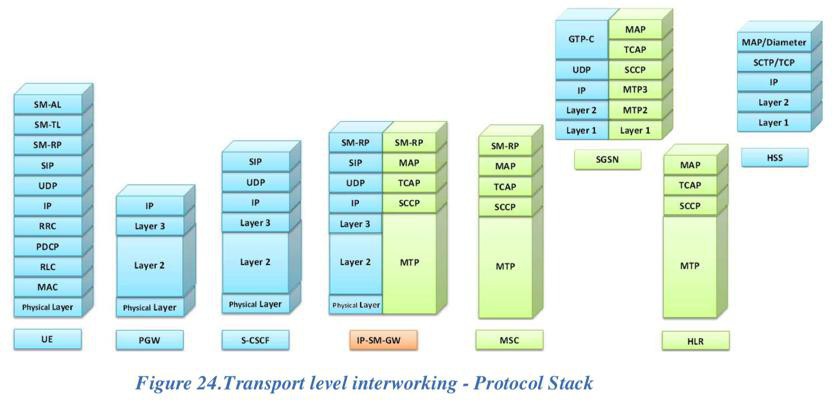

- Transport level interworking – Protocol Stack

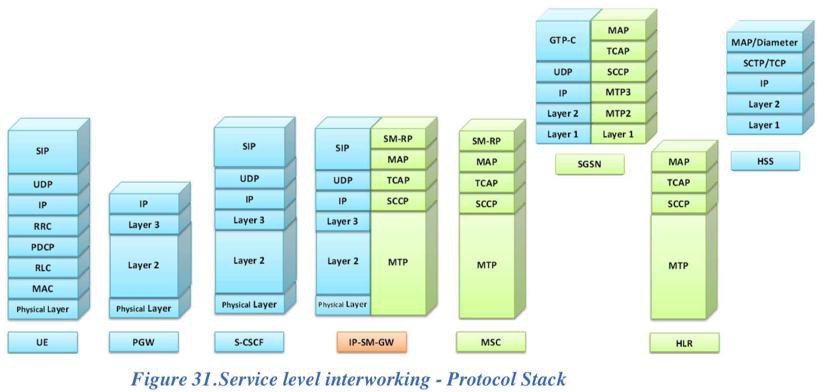

- Service level interworking – Protocol Stack
- IMS架构

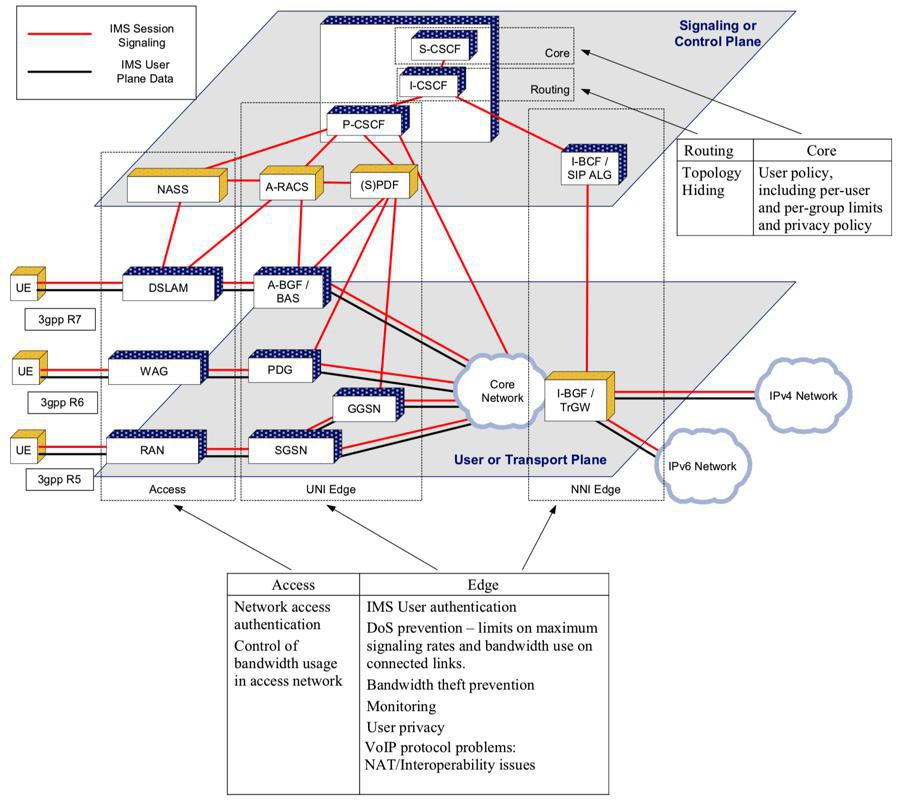

- IMS architecture for SBC
- UNI
- NNI
- Reference Points

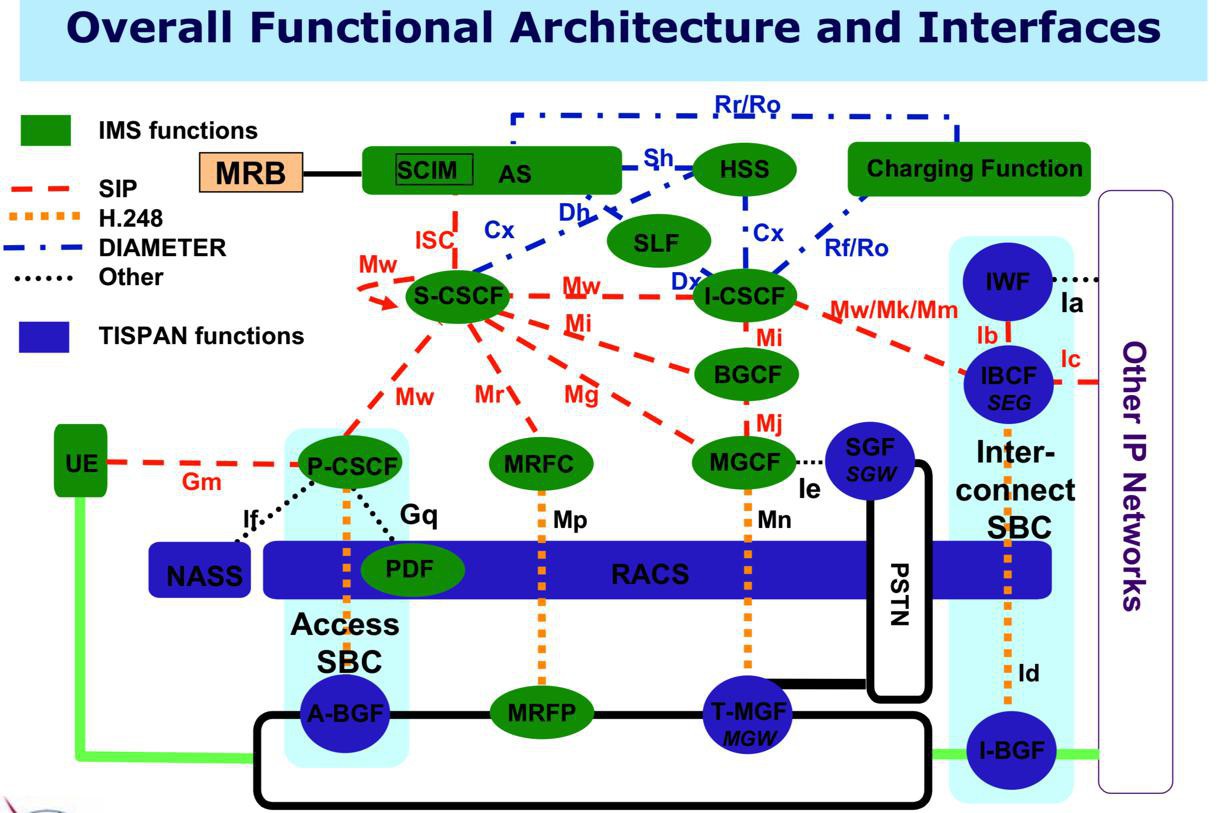

- IMS架构
- 架构图
- 核心元素和简介
- AS=Application Server
- Executes service logic associated with value-added services
- Provides enhanced and intelligent services to subscribers
- CSCF=Call Session Control Function
- P-CSCF=Proxy CSCF
- is the first point of contact and the control point for the User Equipment (UE) within the Service Provider network. It forwards session requests from the UE to the S-CSCF
- S-CSCF=Serving CSCF
- has access to the user subscription data and actually handles the session request
- I-CSCF=Interrogating CSCF
- is the first contact point within a Service Provider network for all incoming session requests from another Service Provider
- BGCF=Breakout Gateway Control Function
- Identifies the network that will be used for connecting IP sessions to the PSTN
- HSS=Home Subscriber Server
- Stores all the static and dynamic information for a subscriber
- Maintains a list of features and services associated with a user, and also the location and means of access to the user
- Provides user profile information
- SLF=Subscription Locator Function
- Queried during Registration and Session Setup to get the name of the HSS containing the required subscriber specific data
- MGCF=Media Gateway Control Function
- Controls the parts of the call state that pertain to connection control for media channels in a T-MGF MGW
- Selects the CSCF depending on the routing number for incoming calls from legacy networks
- Performs protocol conversion between ISUP and call control protocols (e.g., SIP) and maintains call states
- MRFC=Multimedia Resource Function Controller
- Controls the media stream resources in the MRFP under direction from an S-CSCF or Application Server
- Interprets information coming from an AS or S-CSCF (e.g., session identifier) and controls MRFP accordingly
- MRFP=Multimedia Resource Function Processor
- Provides media resources under the direction of MRFC
- May generate media streams (e.g., multimedia announcements), mix incoming media streams for multiple parties, or process media streams (e.g., audio trans-coding, media analysis)
- PDF=Policy Decision Function
- 简介:Provides management of network QoS resources, authorization of resource allocations, and makes policy decisions with regard to use of network QoS resources
- SPDF=Service Policy Decision Function
- T-MGF=Trunk Media Gateway Function
- Terminates bearer channels from a switched circuit network and media streams from a packet network (e.g., RTP streams in an IP network)
- Establishes and releases connections between these channels under control of the MGCF in support of calls between PSTN and IP network
- SGF=Signaling Gateway Function
- Acts as a gateway between the IP call/session control signaling and the SS7-based PSTN signaling
- May provide signaling translation, for example between SIP and SS7 or simply signaling transport conversion e.g., SS7 over IP to SS7 over TDM
- A-BGF=AccessBorderGatewayFunction
- Packet gateway between an access network and a core network used to mask a service provider’s network from access networks, through which UE accessing packet-based services (e.g., IMS, Internet)
- Functions may include Opening and closing gate, Traffic classification and marking, Traffic policing and shaping, Network address and port translation, and Usage information
- Under control of the PDF
- I-BGF=Interconnection Border Gateway Function
- Packet gateway used to interconnect a service provider’s core network with another service provider’s core network supporting the packet-based services
- Functions may be the same as that of the A-BGF
- I-BCF=Interconnection Border Control Function
- Controls I-BGF to interwork with other packet-based networks
- May support the following functions (not limited to)
- Inter-domain protocol normalization and/or repair
- Inter-domain protocol interworking
- Interaction with PDF for resource reservation, resource allocation, and/or other resource related information
- MRB=Media Resource Broker
- Assigns specific media server resources to incoming calls at the request of service applications (i.e., an AS)
- Acquires knowledge of media server resources utilization and reservation requests that it can use to help decide which media server resources to assign to resource requests from applications
- Employs methods/algorithms to determine media server resource assignment
