【整理】Android中的gravity和layout_gravity区别

Android crifan 3126浏览 0评论

【背景】

在Android中,想要设置个按钮的水平对齐,都累死了:

【已解决】ADT中已设置TableLayout布局的情况下如何设置按钮居中对齐
所以现在有必要搞清楚,到底gravity和layout_gravity到底有啥区别。


1.参考:

Android – gravity and layout_gravity

Android中gravity与layout_gravity的区别

中的解释,可以总结为:

  • android:gravity : 表示当前View,即控件,内部的东西的,对齐方式
    • TableRow内部的Button
      • 右对齐:
        • 代码:
          • <TableRow
                android:layout_width="fill_parent"
                android:layout_height="fill_parent"
                android:gravity="right">

                <Button
                    android:layout_width="fill_parent"
                    android:layout_height="fill_parent"
                    android:gravity="center"
                    android:layout_gravity="center"
                    android:onClick="preformDownload"
                    android:text="@string/btn_download" />
            </TableRow>
        • 效果:

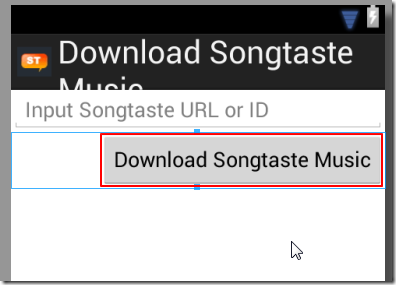

        • tablerow inside button right
      • 居中对齐:
        • 代码:
          •  	<TableRow
            	    android:layout_width="fill_parent"
            	    android:layout_height="fill_parent"
            	    android:gravity="center">

             	    <Button
             	        android:layout_width="fill_parent"
             	        android:layout_height="fill_parent"
             	        android:gravity="center"
             	        android:layout_gravity="center"
             	        android:onClick="preformDownload"
             	        android:text="@string/btn_download" />
             	</TableRow>
      • 效果:

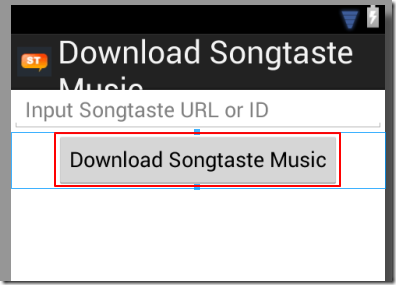

        • tablerow inside button center
    • Button内部的文字(Text):
      • 垂直方向:顶端Top
        • 代码:
          •  	    <Button
             	        android:layout_width="fill_parent"
             	        android:layout_height="fill_parent"
             	        android:layout_gravity="bottom"
             	        android:gravity="top"
             	        android:onClick="preformDownload"
             	        android:text="@string/btn_download" />
        • 效果:

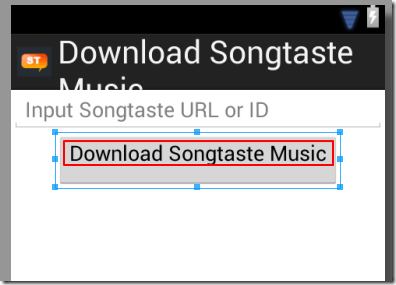

          • button inside text top
      • 垂直方向:居中对齐:
        • 代码:
          •  	    <Button
             	        android:layout_width="fill_parent"
             	        android:layout_height="fill_parent"
             	        android:layout_gravity="bottom"
             	        android:gravity="center_vertical"
             	        android:onClick="preformDownload"
             	        android:text="@string/btn_download" />
        • 效果:

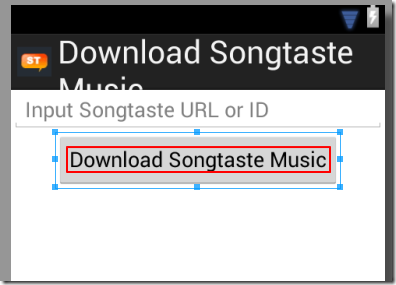

          • button inside text center vertical
  • android:layout_gravity: 表示,当前View,即控件,本身,(在父一级的控件所分配的显示范围内)的对齐方式
    • EditText(在父一级的LinearLayout内)
      • EditText居中对齐:
        • 代码:
          •  	<LinearLayout
            	    xmlns:android="http://schemas.android.com/apk/res/android"
            	    android:orientation="vertical"
            	    android:layout_width="fill_parent"
            	    android:layout_height="fill_parent">

            	    <EditText
            	        android:layout_width="wrap_content"
            	        android:layout_height="wrap_content"
            	        android:layout_gravity="center"
            	        android:gravity="center"
            	        android:text="one" />

            	</LinearLayout>
        • 效果:

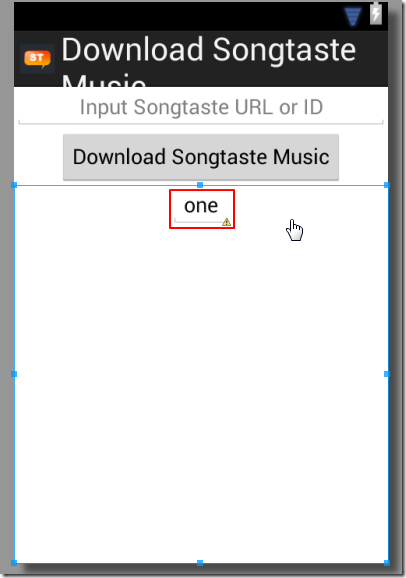

          • edittext center inside linelayout
      • EditText右对齐:
        • 代码:
          •  	<LinearLayout
            	    xmlns:android="http://schemas.android.com/apk/res/android"
            	    android:orientation="vertical"
            	    android:layout_width="fill_parent"
            	    android:layout_height="fill_parent">

            	    <EditText
            	        android:layout_width="wrap_content"
            	        android:layout_height="wrap_content"
            	        android:layout_gravity="right"
            	        android:gravity="center"
            	        android:text="one" />

            	</LinearLayout>
        • 效果:

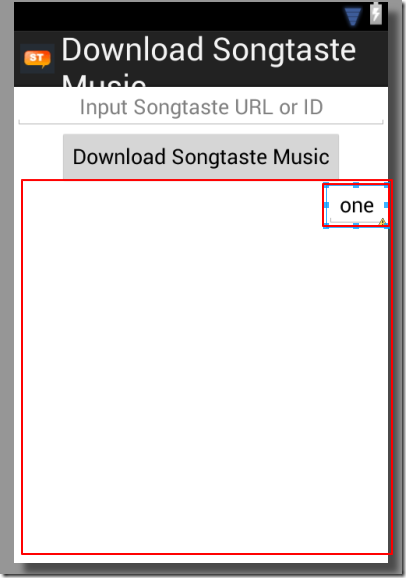

          • edittext right inside linelayout



【总结】

  • android:gravity : 表示当前View,即控件,内部的东西的,对齐方式
    • 常见的是:
      • TableRow中的Button
      • EditText(内部)的文字
      • Button(内部)的文字
  • android:layout_gravity: 表示当前View,即控件本身在父一级内的(即父一级控件所给当前子控件所分配的显示范围内)的对齐方式
    • 常见的是:
      • 当前EditText(在父一级LineLayout所分配给其的显示范围内)的对齐方式
      • 当前的Button(在父一级TableRow所分配给其的显示范围内)的对齐方式 ->此处需要注意的是,很多时候,改变Button内的layout_gravity,常看不到改动的效果,是因为其显示范围和位置,已经由父一级的TableRow的gravity决定了。

总之,拿着代码,多试试,就容易理解了。

转载请注明:在路上 » 【整理】Android中的gravity和layout_gravity区别
