【整理】芯片:ADC 3101 TI 808 A3CX TI的ADC TLV320ADC3101

Embedded crifan 3530浏览 0评论

折腾:

【整理】天猫精灵方糖拆解报告和芯片详解

期间,对于拆解出来的芯片:

能看到的是:

ADC

3101

TI 818

A3CX

现在去研究一下到底是什么芯片。

通过搜:

TI 818 ADC

以为是:

http://www.ti.com/lit/ds/snas483f/snas483f.pdf

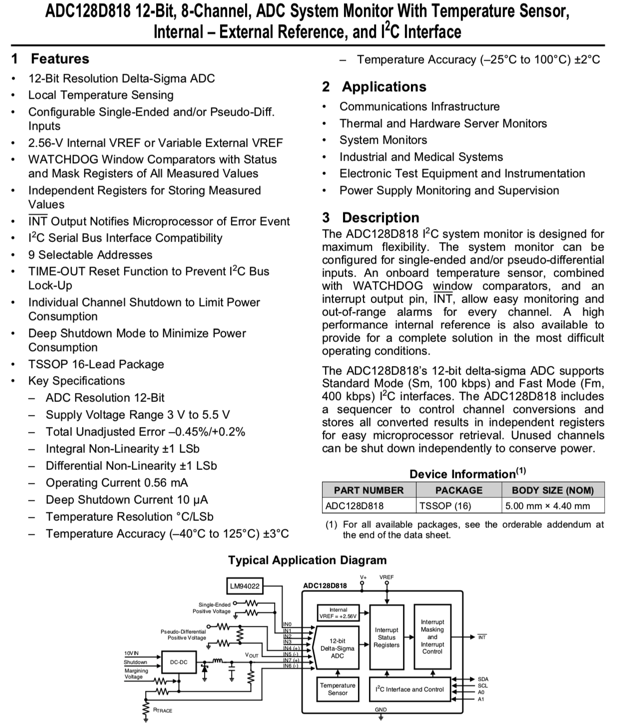

ADC128D818 12-Bit, 8-Channel, ADC System Monitor With Temperature Sensor, Internal –External Reference, and I2C Interface

ADC128D818 12-Bit, 82SPS, 8-Ch Delta-Sigma ADC with Temp Sensor, INT / EXT Voltage Reference & I2C Interface | TI.com

ADC128D818 具有温度传感器、内部/外部参考和 I2C 接口的 12 位、8 通道、ADC 系统监控器 | 德州仪器 TI.com.cn

ADC128D818

具有温度传感器、内部/外部参考和 I2C 接口的 12 位、8 通道、ADC 系统监控器

“The ADC128D818 I2C system monitor is designed for maximum flexibility. The system monitor can be configured for single-ended and/or pseudo-differential inputs. An onboard temperature sensor, combined with WATCHDOG window comparators, and an interrupt output pin, INT, allow easy monitoring and out-of-range alarms for every channel. A high performance internal reference is also available to provide for a complete solution in the most difficult operating conditions.

The ADC128D818’s 12-bit delta-sigma ADC supports Standard Mode (Sm, 100 kbps) and Fast Mode (Fm, 400 kbps) I2C interfaces. The ADC128D818 includes a sequencer to control channel conversions and stores all converted results in independent registers for easy microprocessor retrieval. Unused channels can be shut down independently to conserve power.

The ADC can use either an internal 2.56-V reference or a variable external reference. An analog filter is included on the I2C digital control lines to provide improved noise immunity. The device also includes a TIME-OUT reset function on SDA and SCL to prevent I2C bus lock-up.

The ADC128D818 operates from 3-V to 5.5-V power supply voltage range, –40°C to 125°C temperature range, and the device is available in a 16-pin TSSOP package.

* 12-Bit Resolution Delta-Sigma ADC

* Local Temperature Sensing

* Configurable Single-Ended and/or Pseudo-Diff.

Inputs

* 2.56-V Internal VREF or Variable External VREF

* WATCHDOG Window Comparators with Status

and Mask Registers of All Measured Values

* Independent Registers for Storing Measured

Values

* INT Output Notifies Microprocessor of Error Event

* I2C Serial Bus Interface Compatibility

* 9 Selectable Addresses

* TIME-OUT Reset Function to Prevent I2C Bus

Lock-Up

* Individual Channel Shutdown to Limit Power

Consumption

* Deep Shutdown Mode to Minimize Power

Consumption

* TSSOP 16-Lead Package

* Key Specifications

    * ADC Resolution 12-Bit

    * Supply Voltage Range 3 V to 5.5 V

    * Total Unadjusted Error –0.45%/+0.2%

    * Integral Non-Linearity ±1 LSb

    * Differential Non-Linearity ±1 LSb

    * Operating Current 0.56 mA

    * Deep Shutdown Current 10 ±A

    * Temperature Resolution °C/LSb

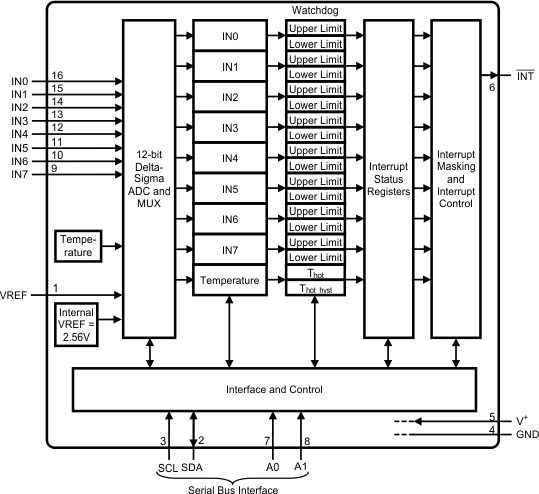

Functional Block Diagram for ADC128D818

ADC128D818 – 功能方框图

后来去搜:

TI 818 ADC 音箱

发现是:

畅销的智能音箱都在用!TI德州仪器音频芯片应用大揭晓 – 我爱音频网

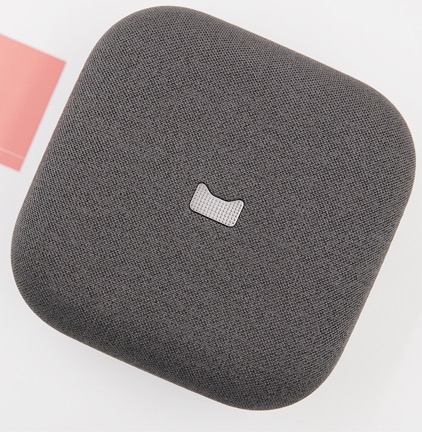

天猫精灵魔盒

天猫精灵魔盒是一款跨界的产品,这是一款将电视盒子和智能音箱合二为一的产品,同时具有电视盒子和智能音箱的功能。它融合了这两种产品于一体,让用户第一次有了这样的选择。

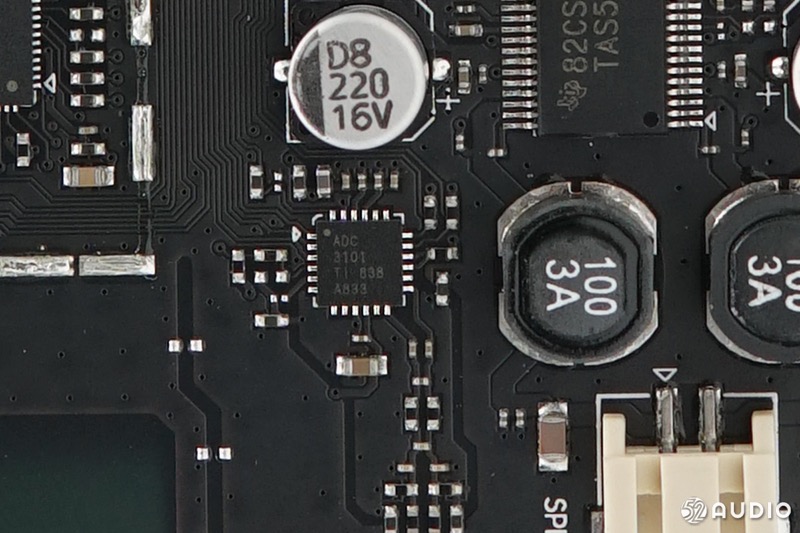

TI德州仪器 ADC3101模数转换器,用于处理麦克风收集到的音频信号,支持立体声输入。”

所以芯片其实叫做:

TI的ADC 3101

所以去搜:

TI 3101 ADC

TLV320ADC3101 92dB SNR Low-Power Stereo ADC With Digital Mic Support and miniDSP | TI.com

http://www.ti.com/lit/ds/symlink/tlv320adc3101.pdf

http://www.ti.com.cn/cn/lit/ds/symlink/tlv320adc3101.pdf

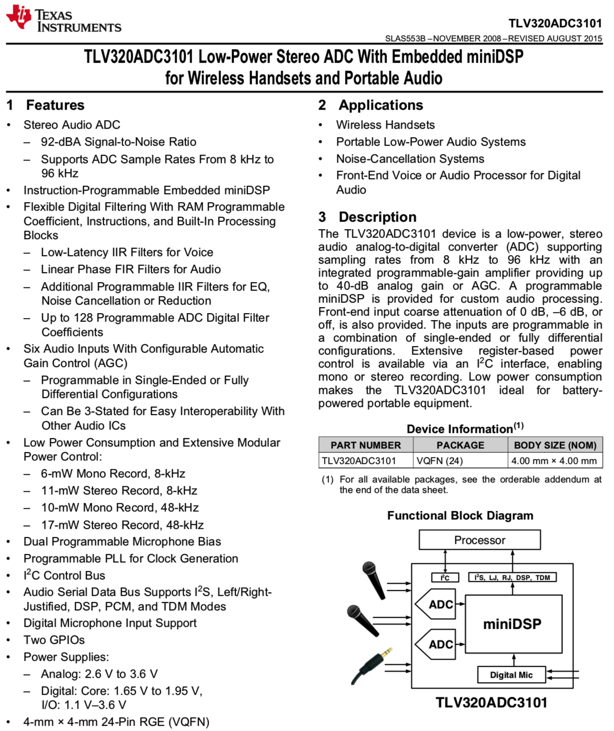

TLV320ADC3101 Low-Power Stereo ADC With Embedded miniDSP for Wireless Handsets and Portable Audio

The TLV320ADC3101 device is a low-power, stereo audio analog-to-digital converter (ADC) supporting sampling rates from 8 kHz to 96 kHz with an integrated programmable-gain amplifier providing up to 40-dB analog gain or AGC. A programmable miniDSP is provided for custom audio processing. Front-end input coarse attenuation of 0 dB, –6 dB, or off, is also provided. The inputs are programmable in a combination of single-ended or fully differential configurations. Extensive register-based power control is available via an I2C interface, enabling mono or stereo recording. Low power consumption makes the TLV320ADC3101 ideal for battery- powered portable equipment.

http://www.ti.com/lit/ds/slas553/slas553.pdf

TLV320ADC3101 92dB SNR Low-Power Stereo ADC With Digital Mic Support and miniDSP | TI.com

TLV320ADC3101 支持数字麦克风和 miniDSP 的 92dB SNR 低功耗立体声 ADC | 德州仪器 TI.com.cn

The TLV320ADC3101 device is a low-power, stereo audio analog-to-digital converter (ADC) supporting sampling rates from 8 kHz to 96 kHz with an integrated programmable-gain amplifier providing up to 40-dB analog gain or AGC. A programmable miniDSP is provided for custom audio processing. Front-end input coarse attenuation of 0 dB, –6 dB, or off, is also provided. The inputs are programmable in a combination of single-ended or fully differential configurations. Extensive register-based power control is available via an I2C interface, enabling mono or stereo recording. Low power consumption makes the TLV320ADC3101 ideal for battery-powered portable equipment.

-》

“Automotive AEC-Q100 Grade 2 qualified version available, see TLV320ADC3101-Q1.”

TLV320ADC3101-Q1 用于无线手持终端和便携式 A 的低功耗立体声 ADC(具有嵌入式微型 DSP) | 德州仪器 TI.com.cn

“用于无线电话听筒和便携式音频设备并装有嵌入式小型数字信号处理器 (miniDSP) 的低功耗立体声数模转换器 (ADC) 数据表 (Rev. B)”

TLV320ADC3101-Q1 是一款低功耗、立体声音频模数转换器 (ADC),此器件支持 8kHz 至 96kHz 的采样率并有一个可提供高达 40dB 模拟增益或者自动增益控制 (AGC) 的集成可编程增益放大器。 提供一个用于定制音频处理的可编程 miniDSP。 还提供粗糙衰减为 0dB,-6dB,或者关闭的前端输入。 此输入在一个单端组合或者完全差分配置中可编程。 通过 I2C 接口可提供广泛的基于寄存器的功率控制,从而启用单声道或者立体声录音。 低功耗使得 TLV320ADC3101-Q1 成为电池供电便携式设备的理想选择。

* 符合汽车应用要求

* 具有下列结果的 AEC-Q100 测试指南:

    * 器件温度 2 级:-40℃ 至 +105℃ 的环境运行温度范围

    * 器件人体模型 (HBM) 静电放电 (ESD) 分类等级 H1C

    * 器件充电器件模型 (CDM) ESD 分类等级 C3B

* 立体声音频数模转换器 (ADC)

    * 92dBA 信噪比

    * 支持从 8 kHz 到 96 kHz 的 ADC 采样率

* 指令可编程嵌入式 miniDSP

* 具有 RAM 可编程系数、指令、和内置处理块的灵活数字滤波

    * 针对语音的低延迟无限脉冲响应 (IIR) 滤波器

    * 针对音频的线性相位有限脉冲响应 (FIR) 滤波器

    * 用于均衡 (EQ)、噪声消除或降低的附加可编程 IIR 滤波器

    * 高达 128 个可编程 ADC 数字滤波器系数

* 六个带有可配置自动增益控制 (AGC) 的音频输入

    * 在单端或者完全差分配置中可编程

    * 可配置为 3 态以轻松实现与其它音频集成电路 (IC) 的互用性

* 低功耗并具有广泛模块功率控制:

    * 6mW 单声道录制,8kHz

    * 11mW 立体声录制,8kHz

    * 10mW 单声道录制,48kHz

    * 17mW 立体声录制,48kHz

* 双可编程麦克风偏置

* 用于时钟生成的可编程锁相环路 (PLL)

* I2C 控制总线

* 音频串行数据总线支持 I2S、左对齐/右对齐、DSP、脉冲编码调制 (PCM)、和时分复用 (TDM) 模式

* 支持数字麦克风输入

* 两个通用输入输出接口 (GPIO)

* 电源:

    * 模拟:2.6V-3.6V

    * 数字:内核:1.65V–1.95V,

I/O:1.1V–3.6V

搜索结果

http://www.ti.com.cn/sitesearch/cn/docs/universalsearch.tsp?searchTerm=TLV320ADC3101#q=TLV320ADC3101&t=everything&linkId=1

TLV320ADC3101 支持数字麦克风和 miniDSP 的 92dB SNR 低功耗立体声 ADC | 德州仪器 TI.com.cn

TLV320ADC3101 数据表 | 德州仪器 TI.com.cn

玩转智能音箱设计:手握TI系统方案,展望未来无限可能! – 音频 – 音频 – TI E2E™ 中文社区

【总结】

此处拆解图中看到的:

<code>ADC
3101
TI 818
A3CX
</code>

是TI的芯片

  • spec

  • 完整型号:TI的TLV320ADC3101

    • TI=Texas Instruments=德州仪器

  • 一句话综述:

    • 92dB SNR Low-Power Stereo ADC With Digital Mic Support and miniDSP

    • 用于无线手持终端和便携式 A 的低功耗立体声 ADC(具有嵌入式微型 DSP)

    • 用于无线电话听筒和便携式音频设备并装有嵌入式小型数字信号处理器 (miniDSP) 的低功耗立体声数模转换器 (ADC)

  • 更详细的解释是:

    • The TLV320ADC3101 device is a low-power, stereo audio analog-to-digital converter (ADC) supporting sampling rates from 8 kHz to 96 kHz with an integrated programmable-gain amplifier providing up to 40-dB analog gain or AGC. A programmable miniDSP is provided for custom audio processing. Front-end input coarse attenuation of 0 dB, –6 dB, or off, is also provided. The inputs are programmable in a combination of single-ended or fully differential configurations. Extensive register-based power control is available via an I2C interface, enabling mono or stereo recording. Low power consumption makes the TLV320ADC3101 ideal for battery-powered portable equipment.

  • 芯片用途:

    • 用于实现 Analog模拟信号 转换为 数字Digital信号

      • ADC=Analog Digital Convertor=模拟数字转换器

    • -》此处指的是,将

      • (从麦克风输入的)语音模拟音频信号

      • 转换为

      • 数字的音频信号(供后续音频设备处理和播放)

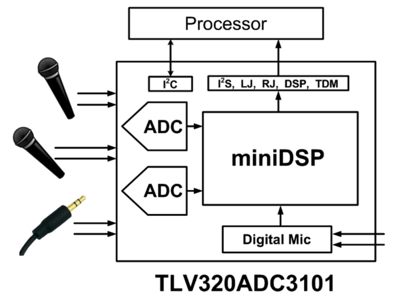

  • 典型的功能框架图

  • 典型的用途/使用场景:

    • Wireless Handsets

    • Portable Low-Power Audio Systems

    • Noise-Cancellation Systems

    • Front-End Voice or Audio Processor for Digital Audio

备注和说明:

1.此芯片,不是

(从 TI 818 ADC 搜出来的,另外一款芯片)

  • ADC128D818

    • http://www.ti.com/lit/ds/snas483f/snas483f.pdf

    • ADC128D818 12-Bit, 8-Channel, ADC System Monitor With Temperature Sensor, Internal –External Reference, and I2C Interface

    • ADC128D818 具有温度传感器、内部/外部参考和 I2C 接口的 12 位、8 通道、ADC 系统监控器

2.还有另外一款和TLV320ADC3101类似的芯片:TLV320ADC3101-Q1

用于无线手持终端和便携式 A 的低功耗立体声 ADC(具有嵌入式微型 DSP) | 德州仪器 TI.com.cn

其主要是用于汽车automotive领域

  • 汽车领域的要求就比较高:

    • Automotive – Q100 devices qualified for high-reliability automotive applications targeting zero defects

    • 要求了:

      • 高可用性high-reliability

      • zero defects 0缺失效率-》不能有任何失效

  • 所以适用于电池供电便携式设备中

->对应着TLV320ADC3101适用于无线手持终端

-》甚至还推出了,供开发使用的,评估板:

TLV320ADC3101EVM-K TLV320ADC3101 评估模块和 USB 母板 | 德州仪器 TI.com.cn

3.包括TLV320ADC3101,TI家的同品类的,即 具有出色音质的高性能音频 ADC,还有:

详见:

音频 ADC | 概述 | 音频转换器 | 德州仪器 TI.com.cn

4.TI家的还有其他更多种类的音频类芯片:

  • 音频放大器 (279)

    • 扬声器放大器 (204)

    • 音频 运算放大器 (50)

    • 耳机放大器 (26)

  • 音频转换器 (157)

    • 音频 ADC (28)

    • 音频 DAC (59)

    • 音频编解码器 (58)

    • 音频 USB 转换器 (12)

  • 音频接口 (33)

    • 音频线路驱动器 (9)

    • 音频线路接收器 (8)

    • SPDIF 收发器 (8)

    • 采样速率转换器 (8)

  • 媒体和音频处理器 (40)

  • 专用音频 (40)

    • 麦克风前置放大器 (8)

    • 音量控制 IC (6)

    • 音频开关 (11)

    • 唇型同步延迟 IC (3)

    • PWM 调制器 (3)

    • 压电式扬声器驱动器/接收器 (4)

    • 音频时钟 (5)

详见:

音频 ADC | 概述 | 音频转换器 | 德州仪器 TI.com.cn

【关于智能音箱中的音频芯片】

1.芯片设计难点

  • 成本更低

    • 音质与成本间的平衡

  • 电池寿命、热量

  • 回声消除

  • 体积更小

    • 音质更好

2.其他很多智能音箱用的很多ADC等芯片,也是TI的,详见:

【整理】常见智能音箱中音频相关芯片
