【未解决】用Android Studio连接安卓真机小米9去安装调试apk

Android crifan 768浏览 0评论
折腾:
【未解决】Mac中用Android Studio打开rctjsa项目并编译apk和实时调试安卓手机小米9
期间,已用Android Studio编译好core RI settings的3个apk了。
现在希望连接到真机上去调试和运行,找出RCS服务没运行的原因。
看看如何Android Studio连接安卓小米9去安装和调试
android studio 连接真机
android studio connect real phone
在硬件设备上运行应用  |  Android 开发者  |  Android Developers
运行应用  |  Android 开发者  |  Android Developers

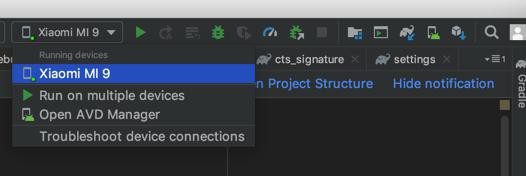

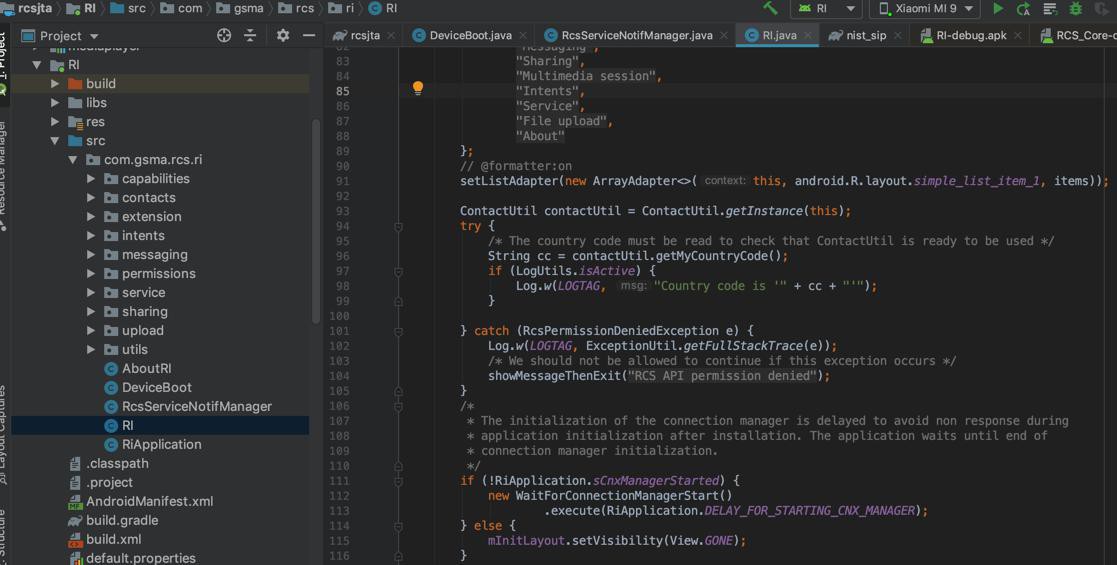

注意到此处,右上角工具栏中的确已经显示此处的安卓真机 小米9 了
然后想要点击运行,发现此时不是我们要的子模块

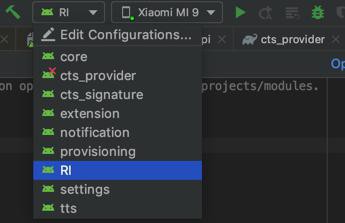

切换到RI
点击debug

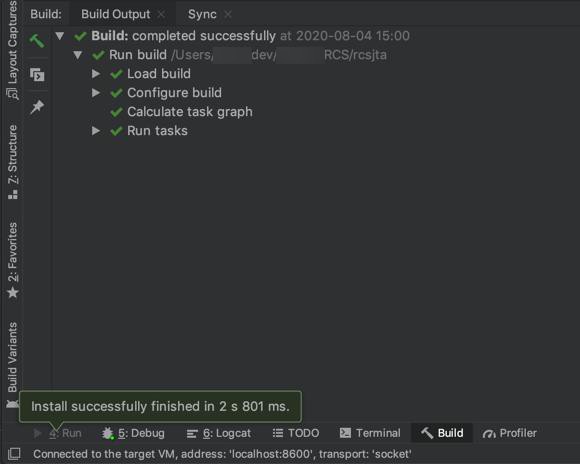

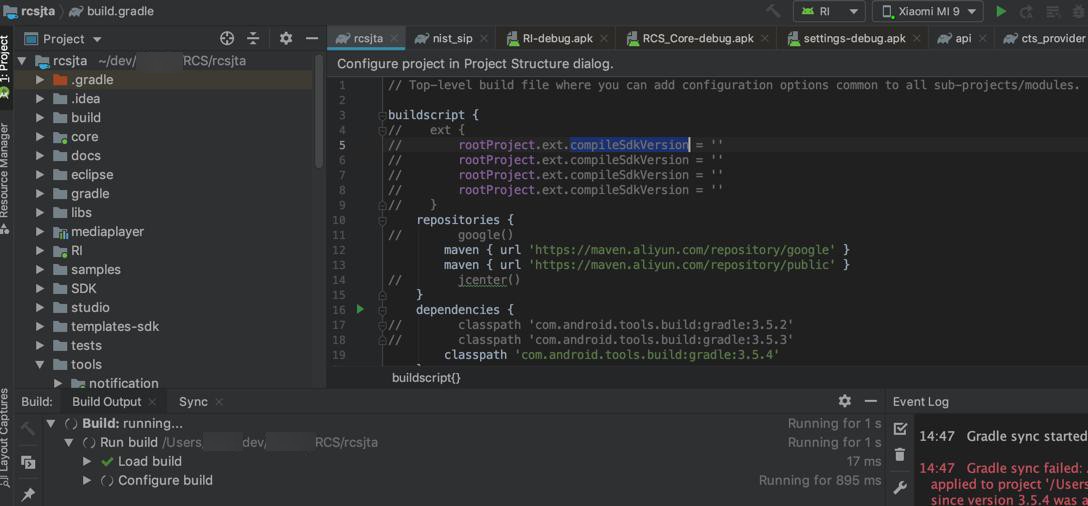

会触发编译

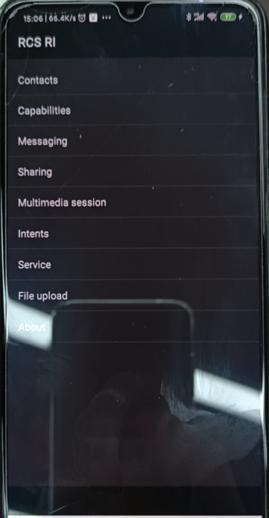

然后小米9中就可以显示apk的界面了:
然后想要看 logcat的log

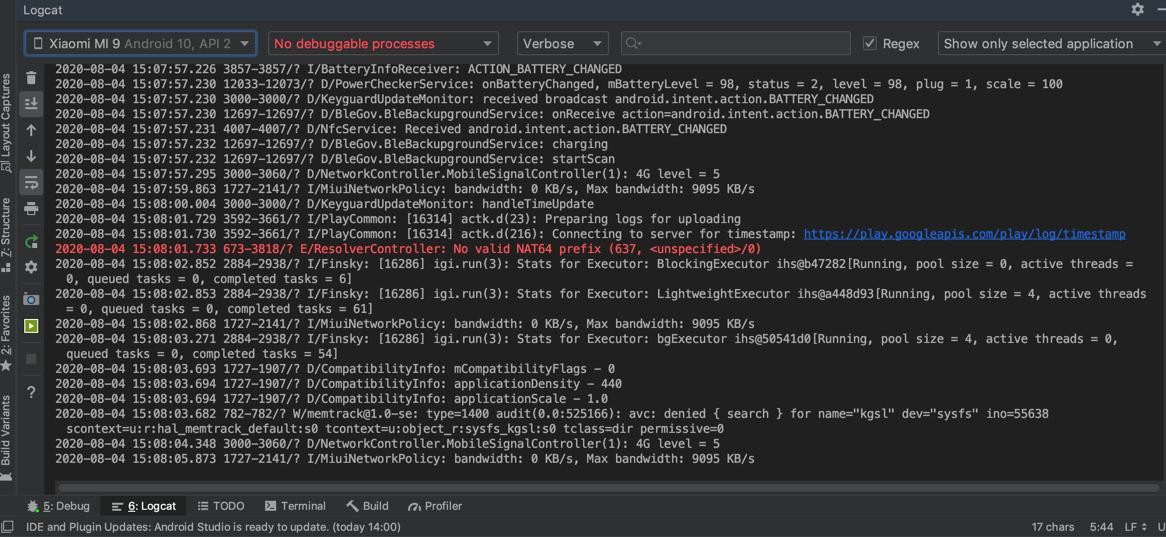

点击底部左下角的 logcat:
即可看到log

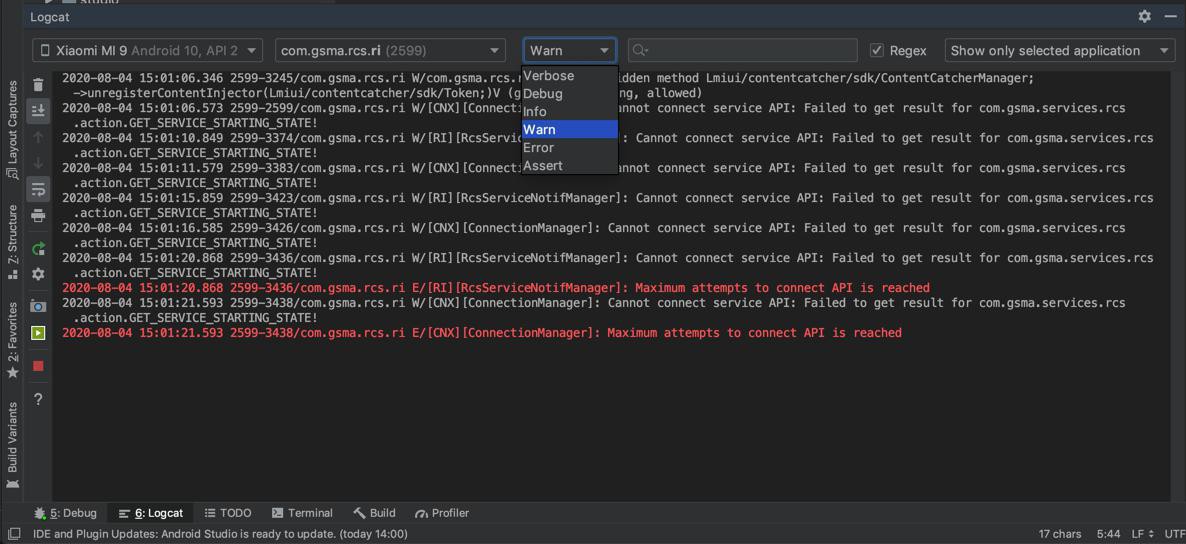

再去设置过滤 只看当前进程的:
com.gsma.rcs.ri
且level是 Warn:
信息是:
2020-08-04 15:01:06.346 2599-3245/com.gsma.rcs.ri W/com.gsma.rcs.r: Accessing hidden method Lmiui/contentcatcher/sdk/ContentCatcherManager;->unregisterContentInjector(Lmiui/contentcatcher/sdk/Token;)V (greylist, linking, allowed)
2020-08-04 15:01:06.573 2599-2599/com.gsma.rcs.ri W/[CNX][ConnectionManager]: Cannot connect service API: Failed to get result for com.gsma.services.rcs.action.GET_SERVICE_STARTING_STATE!
2020-08-04 15:01:10.849 2599-3374/com.gsma.rcs.ri W/[RI][RcsServiceNotifManager]: Cannot connect service API: Failed to get result for com.gsma.services.rcs.action.GET_SERVICE_STARTING_STATE!
2020-08-04 15:01:11.579 2599-3383/com.gsma.rcs.ri W/[CNX][ConnectionManager]: Cannot connect service API: Failed to get result for com.gsma.services.rcs.action.GET_SERVICE_STARTING_STATE!
2020-08-04 15:01:15.859 2599-3423/com.gsma.rcs.ri W/[RI][RcsServiceNotifManager]: Cannot connect service API: Failed to get result for com.gsma.services.rcs.action.GET_SERVICE_STARTING_STATE!
2020-08-04 15:01:16.585 2599-3426/com.gsma.rcs.ri W/[CNX][ConnectionManager]: Cannot connect service API: Failed to get result for com.gsma.services.rcs.action.GET_SERVICE_STARTING_STATE!
2020-08-04 15:01:20.868 2599-3436/com.gsma.rcs.ri W/[RI][RcsServiceNotifManager]: Cannot connect service API: Failed to get result for com.gsma.services.rcs.action.GET_SERVICE_STARTING_STATE!
2020-08-04 15:01:20.868 2599-3436/com.gsma.rcs.ri E/[RI][RcsServiceNotifManager]: Maximum attempts to connect API is reached
2020-08-04 15:01:21.593 2599-3438/com.gsma.rcs.ri W/[CNX][ConnectionManager]: Cannot connect service API: Failed to get result for com.gsma.services.rcs.action.GET_SERVICE_STARTING_STATE!
2020-08-04 15:01:21.593 2599-3438/com.gsma.rcs.ri E/[CNX][ConnectionManager]: Maximum attempts to connect API is reached
然后就可以去研究输出错误日志
然后找找代码中的原因了。
然后尝试试试调试,先去打断点
找到了:
【未解决】rcsjta中RCS的RI中各种功能都提示:The service is not available Please retry later
提到的代码:

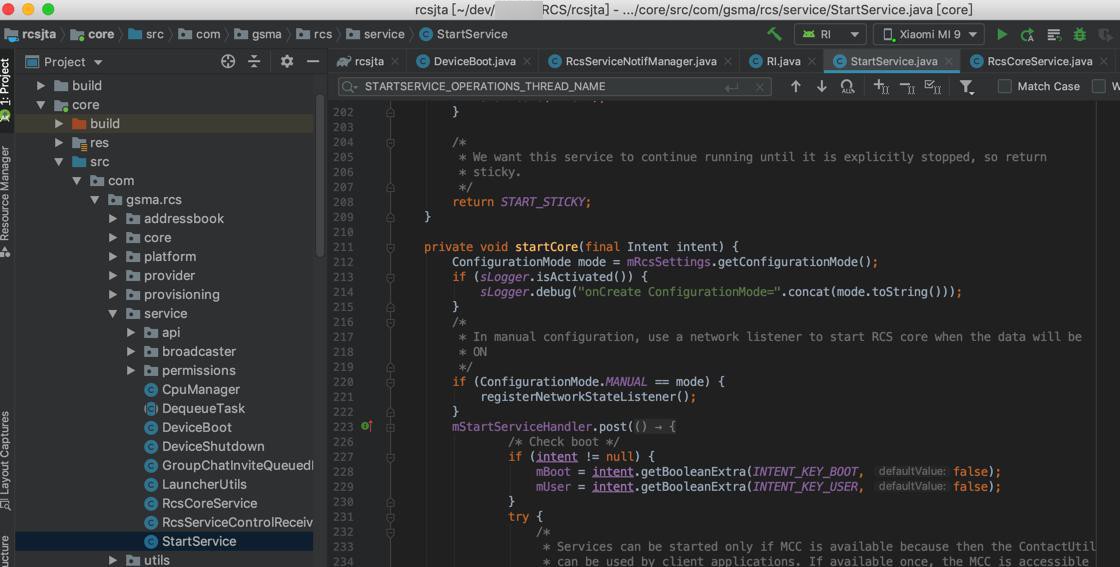

再去看看:
tools/settings/src/com/gsma/rcs/core/control/CoreControlApplication.java
中的代码
但是突然发现,感觉是不是应该去看
core目录下的代码?
有个startCore
感觉

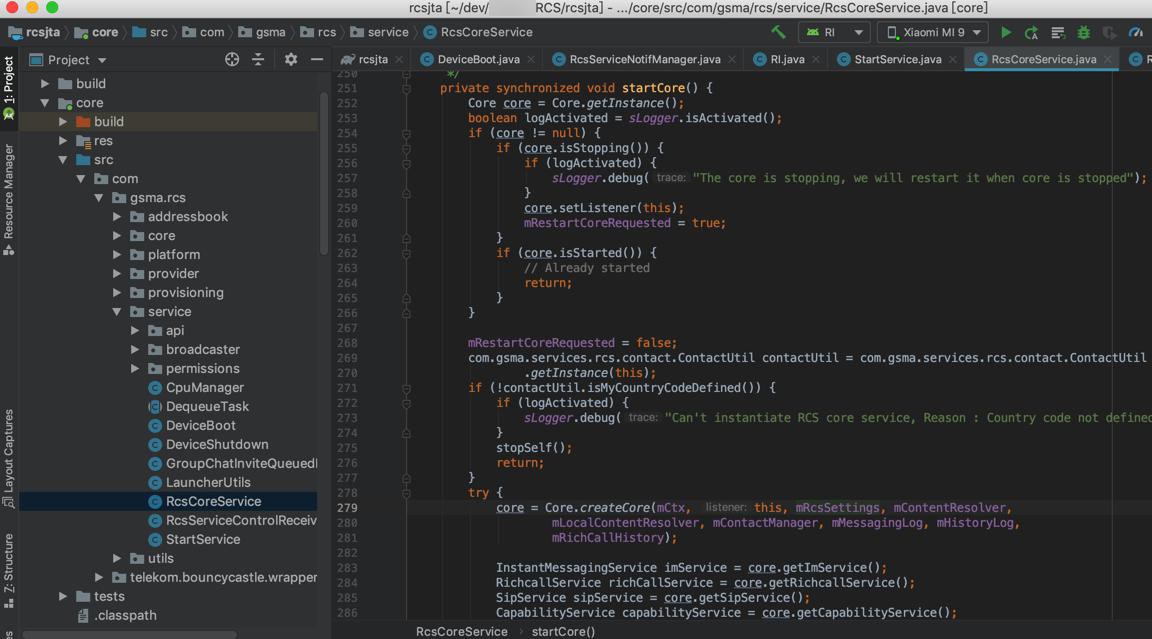

com/gsma/rcs/service/RcsCoreService.java
更像是启动服务的?
com/gsma/rcs/service/RcsCoreService.java
/**
 * Start core
 */
private synchronized void startCore() {
    Core core = Core.getInstance();
    boolean logActivated = sLogger.isActivated();
    if (core != null) {
        if (core.isStopping()) {
            if (logActivated) {
                sLogger.debug("The core is stopping, we will restart it when core is stopped");
            }
            core.setListener(this);
            mRestartCoreRequested = true;
        }
        if (core.isStarted()) {
            // Already started
            return;
        }
    }


    mRestartCoreRequested = false;
    com.gsma.services.rcs.contact.ContactUtil contactUtil = com.gsma.services.rcs.contact.ContactUtil
            .getInstance(this);
    if (!contactUtil.isMyCountryCodeDefined()) {
        if (logActivated) {
            sLogger.debug("Can't instantiate RCS core service, Reason : Country code not defined!");
        }
        stopSelf();
        return;
    }
    try {
        core = Core.createCore(mCtx, this, mRcsSettings, mContentResolver,
                mLocalContentResolver, mContactManager, mMessagingLog, mHistoryLog,
                mRichCallHistory);


        InstantMessagingService imService = core.getImService();
        RichcallService richCallService = core.getRichcallService();
        SipService sipService = core.getSipService();
        CapabilityService capabilityService = core.getCapabilityService();


        mContactApi = new ContactServiceImpl(mContactManager, mRcsSettings);
        mCapabilityApi = new CapabilityServiceImpl(capabilityService, mContactManager,
                mRcsSettings);
        mChatApi = new ChatServiceImpl(imService, mMessagingLog, mHistoryLog, mRcsSettings,
                mContactManager);
        mFtApi = new FileTransferServiceImpl(imService, mChatApi, mMessagingLog, mRcsSettings,
                mContactManager, mCtx);
        mVshApi = new VideoSharingServiceImpl(richCallService, mRichCallHistory, mRcsSettings);
        mIshApi = new ImageSharingServiceImpl(richCallService, mRichCallHistory, mRcsSettings);
        mGshApi = new GeolocSharingServiceImpl(richCallService, mRichCallHistory, mRcsSettings);
        mHistoryApi = new HistoryServiceImpl(mCtx);
        mMmSessionApi = new MultimediaSessionServiceImpl(sipService, mRcsSettings);
        mUploadApi = new FileUploadServiceImpl(imService, mRcsSettings);


        Logger.sActivationFlag = mRcsSettings.isTraceActivated();
        Logger.traceLevel = mRcsSettings.getTraceLevel();


        if (logActivated) {
            sLogger.info("RCS stack release is ".concat(TerminalInfo.getProductVersion(mCtx)));
        }


        core.initialize();


        core.startCore();


        // Create multimedia directory on sdcard
        FileFactory.createDirectory(mRcsSettings.getPhotoRootDirectory());
        FileFactory.createDirectory(mRcsSettings.getVideoRootDirectory());
        FileFactory.createDirectory(mRcsSettings.getAudioRootDirectory());
        FileFactory.createDirectory(mRcsSettings.getFileRootDirectory());
        String fileIconDirectory = mRcsSettings.getFileIconRootDirectory();
        FileFactory.createDirectory(fileIconDirectory);
        FileFactory.setNoMedia(fileIconDirectory);
        String sentPhotoDirectory = ContentManager.getSentPhotoRootDirectory(mRcsSettings);
        FileFactory.createDirectory(sentPhotoDirectory);
        FileFactory.setNoMedia(sentPhotoDirectory);
        String sentVideoDirectory = ContentManager.getSentVideoRootDirectory(mRcsSettings);
        FileFactory.createDirectory(sentVideoDirectory);
        FileFactory.setNoMedia(sentVideoDirectory);
        String sentAudioDirectory = ContentManager.getSentAudioRootDirectory(mRcsSettings);
        FileFactory.createDirectory(sentAudioDirectory);
        FileFactory.setNoMedia(sentAudioDirectory);
        String sentFileDirectory = ContentManager.getSentFileRootDirectory(mRcsSettings);
        FileFactory.createDirectory(sentFileDirectory);
        FileFactory.setNoMedia(sentFileDirectory);


        // Init CPU manager
        mCpuManager = new CpuManager(mRcsSettings);
        mCpuManager.init();


        // Register account changed event receiver
        if (mAccountChangedReceiver == null) {
            mAccountChangedReceiver = new AccountChangedReceiver();


            // Register account changed broadcast receiver after a timeout of 2s (This is not
            // done immediately, as we do not want to catch
            // the removal of the account (creating and removing accounts is done
            // asynchronously). We can reasonably assume that no
            // RCS account deletion will be done by user during this amount of time, as he just
            // started his service.
            Handler handler = new Handler();
            handler.postDelayed(new Runnable() {
                public void run() {
                    registerReceiver(mAccountChangedReceiver, new IntentFilter(
                            "android.accounts.LOGIN_ACCOUNTS_CHANGED"));
                }
            }, 2000);
        }


        if (logActivated) {
            sLogger.info("RCS core service started with success");
        }
    } catch (IOException e) {
        if (sLogger.isActivated()) {
            sLogger.debug(e.getMessage());
        }
    } catch (KeyStoreException e) {
        sLogger.error("Can't instanciate the RCS core service", e);
        stopSelf();
    }
}
感觉这部分才是核心代码。
需要去抽空调试看看。
至于该从哪入手去调试,还是回去看看
【基本解决】研究rcsjta中源码中和启动RCS的服务的相关代码和逻辑
找到RCS service真正启动的地方
目前先去:
【未解决】Android Studio真机小米9中调试rcsjta的RI的apk
期间发现需要先去启动core的apk,所以就再去
【未解决】Android Studio真机小米9中调试rcsjta的core的apk
