【已解决】iOS自动化设置WiFi:如何启动设置并判断进入WiFi列表页

设置 crifan 389浏览 0评论
折腾:
【已解决】iOS自动化操作设置出错:启动设置后找不到无线局域网
期间,最终感觉是,虽然逻辑上不够顺,但最稳妥做法是:
对于启动设置后,不论进入设置主页还是WiFi列表页,都支持
期间需要判断,如何算是处于
无线局域网 列表页
研究了页面发现
顶部导航栏是 无线局域网
xml
<XCUIElementTypeNavigationBar type="XCUIElementTypeNavigationBar" name="无线局域网" enabled="true" visible="true" x="0" y="20" width="414" height="44">
    <XCUIElementTypeButton type="XCUIElementTypeButton" name="设置" label="设置" enabled="true" visible="true" x="0" y="20" width="66" height="44"/>
    <XCUIElementTypeOther type="XCUIElementTypeOther" name="无线局域网" label="无线局域网" enabled="true" visible="true" x="163" y="31" width="88" height="21"/>
</XCUIElementTypeNavigationBar>

<XCUIElementTypeCell type="XCUIElementTypeCell" value="1" enabled="true" visible="true" x="0" y="99" width="414" height="45">
    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="99" width="414" height="1"/>
    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="无线局域网" name="无线局域网" label="无线局域网" enabled="true" visible="true" x="40" y="99" width="303" height="45"/>
    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="40" y="143" width="374" height="1"/>
    <XCUIElementTypeSwitch type="XCUIElementTypeSwitch" value="1" name="无线局域网" label="无线局域网" enabled="true" visible="true" x="343" y="106" width="51" height="31"/>
</XCUIElementTypeCell>

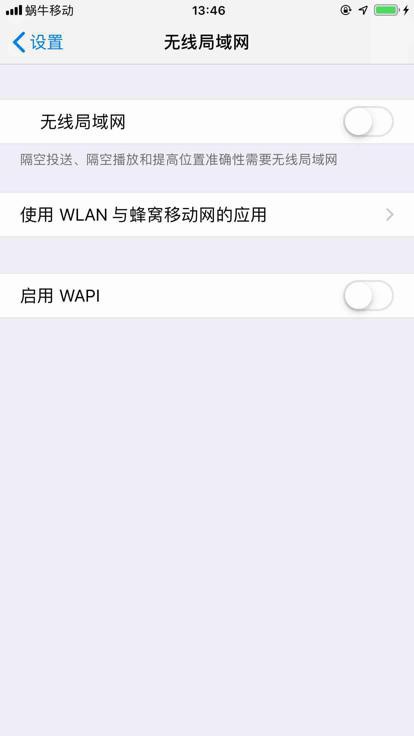

以及附带的 无线局域网 开启或关闭 有个switch
供参考:
<XCUIElementTypeNavigationBar type="XCUIElementTypeNavigationBar" name="无线局域网" enabled="true" visible="true" x="0" y="20" width="414" height="44">
    <XCUIElementTypeButton type="XCUIElementTypeButton" name="设置" label="设置" enabled="true" visible="true" x="0" y="20" width="66" height="44"/>
    <XCUIElementTypeOther type="XCUIElementTypeOther" name="无线局域网" label="无线局域网" enabled="true" visible="true" x="163" y="31" width="88" height="21"/>
</XCUIElementTypeNavigationBar>


<XCUIElementTypeCell type="XCUIElementTypeCell" value="0" enabled="true" visible="true" x="0" y="99" width="414" height="45">
    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="99" width="414" height="1"/>
    <XCUIElementTypeOther type="XCUIElementTypeOther" enabled="true" visible="true" x="0" y="143" width="414" height="1"/>
    <XCUIElementTypeStaticText type="XCUIElementTypeStaticText" value="无线局域网" name="无线局域网" label="无线局域网" enabled="true" visible="true" x="40" y="99" width="303" height="45"/>
    <XCUIElementTypeSwitch type="XCUIElementTypeSwitch" value="0" name="无线局域网" label="无线局域网" enabled="true" visible="true" x="343" y="106" width="51" height="31"/>
</XCUIElementTypeCell>
不过目前看来,无需额外判断,只需要判断顶部导航栏,即可。
去写代码:
    def iOSLaunchSettings(self, isTerminateFirst=True):
        """iOS terminal and re-launch Settings=Preferences app


        Args:
            isTerminateFirst (bool): force terminal Settings before launch
        Returns:
            bool
        Raises:
        """


        iOS_AppId_Settings = "com.apple.Preferences"


        if isTerminateFirst:
            isGetOk, curState = self.iOSGetAppState(iOS_AppId_Settings)
            logging.debug("before terminal: curState=%s", curState)
            # stop before start to avoid current page is not homepage of 设置
            isTerminalOk, respInfo = self.iOSTerminateApp(iOS_AppId_Settings)
            logging.info("isTerminalOk=%s, respInfo=%s", isTerminalOk, respInfo)
            isGetOk, curState = self.iOSGetAppState(iOS_AppId_Settings)
            logging.debug("after terminal: curState=%s", curState)


        # settingsSession = self.wdaClient.session(iOS_AppId_Settings)
        # logging.debug("settingsSession=%s" % settingsSession)
        # launchResult = self.wdaClient.app_launch(iOS_AppId_Settings)
        # logging.debug("launchResult=%s", launchResult)
        isLaunchOk, respInfo = self.iOSLaunchApp(iOS_AppId_Settings)
        logging.debug("isLaunchOk=%s, respInfo=%s", isLaunchOk, respInfo)
        # logging.info("launchResult: value=%s, status=%s, sessionId=%s", launchResult.value, launchResult.status, launchResult.sessionId)
        # launchResult: value=None, status=0, sessionId=79A39B72-F5F9-4A01-8E58-DD380452350A
        # logging.info("launchResult=%s", str(launchResult))
        # launchResult=GenericDict(value=None, sessionId='79A39B72-F5F9-4A01-8E58-DD380452350A', status=0)


        return isLaunchOk, respInfo


    def iOSIsInWiFiList(self):
        """Check whether is in WiFi list page or not


        Args:
        Returns:
            bool
        Raises:
        """
        isFoundWifi = False
        """
            设置 WiFi列表页:
                <XCUIElementTypeNavigationBar type="XCUIElementTypeNavigationBar" name="无线局域网" enabled="true" visible="true" x="0" y="20" width="414" height="44">
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="设置" label="设置" enabled="true" visible="true" x="0" y="20" width="66" height="44"/>
                    <XCUIElementTypeOther type="XCUIElementTypeOther" name="无线局域网" label="无线局域网" enabled="true" visible="true" x="163" y="31" width="88" height="21"/>
                </XCUIElementTypeNavigationBar>
        """
        wifiName = "无线局域网"
        parentNaviBarClassChain = "/XCUIElementTypeNavigationBar[`name = '%s' AND rect.x = 0 AND rect.width = %d`]" % (wifiName, self.X)
        wifiQuery = {"type":"XCUIElementTypeOther", "name": wifiName, "enabled": "true"}
        wifiQuery["parent_class_chains"] = [ parentNaviBarClassChain ]
        isFoundWifi, respInfo = self.findElement(query=wifiQuery, timeout=0.1)
        return isFoundWifi


    def iOSLaunchSettingsAndIntoWiFiList(self):
        """
            iOS launch Settings, then into WiFi list page


        Args:
        Returns:
            bool, None/str
                True, None
                False, error message str
        Raises:
        """
        isIntoWiFiListOk = False
        respInfo = None


        isLaunchOk, respInfo = self.iOSLaunchSettings()
        if not isLaunchOk:
            respInfo = "Fail to launch 设置"
            return isIntoWiFiListOk, respInfo


        # Special: sometime alreay being in WiFi list page, so need first check it
        isInWifiList = self.iOSIsInWiFiList()
        if isInWifiList:
            isIntoWiFiListOk = True
            respInfo = None
            return isIntoWiFiListOk, respInfo
        else:
            # foundAndClickedWifi = self.iOSFromSettingsIntoWifiList()
            foundAndClickedWifi = CommonUtils.multipleRetry({"functionCallback": self.iOSFromSettingsIntoWifiList})
            if not foundAndClickedWifi:
                respInfo = "Not find 无线局域网 in 设置"
                return isIntoWiFiListOk, respInfo


            isInWifiList = self.iOSIsInWiFiList()
            if isInWifiList:
                isIntoWiFiListOk = True
                respInfo = None
                return isIntoWiFiListOk, respInfo
            else:
                isIntoWiFiListOk = False
                respInfo = "Unknown Error"
                return isIntoWiFiListOk, respInfo
调用:
        isIntoWiFiListOk, respInfo = self.iOSLaunchSettingsAndIntoWiFiList()
        if not isIntoWiFiListOk:
            errMsg = respInfo
            respInfo = "Fail into WiFi list page for %s" % errMsg
            return isGetTypeOk, respInfo
调试:
    def iOSLaunchSettings(self, isTerminateFirst=True):
        """iOS terminal and re-launch Settings=Preferences app


        Args:
            isTerminateFirst (bool): force terminal Settings before launch
        Returns:
            bool
        Raises:
        """
        isEnableDebugState = True


        iOS_AppId_Settings = "com.apple.Preferences"


        if isTerminateFirst:
            if isEnableDebugState:
                isGetOk, curState = self.iOSGetAppState(iOS_AppId_Settings)
                logging.info("before terminal: curState=%s", curState)
            # stop before start to avoid current page is not homepage of 设置
            isTerminalOk, respInfo = self.iOSTerminateApp(iOS_AppId_Settings)
            logging.info("isTerminalOk=%s, respInfo=%s", isTerminalOk, respInfo)
            if isEnableDebugState:
                isGetOk, curState = self.iOSGetAppState(iOS_AppId_Settings)
                logging.info("after terminal: curState=%s", curState)


        # settingsSession = self.wdaClient.session(iOS_AppId_Settings)
        # logging.debug("settingsSession=%s" % settingsSession)
        # launchResult = self.wdaClient.app_launch(iOS_AppId_Settings)
        # logging.debug("launchResult=%s", launchResult)
        isLaunchOk, respInfo = self.iOSLaunchApp(iOS_AppId_Settings)
        logging.debug("isLaunchOk=%s, respInfo=%s", isLaunchOk, respInfo)
        # logging.info("launchResult: value=%s, status=%s, sessionId=%s", launchResult.value, launchResult.status, launchResult.sessionId)
        # launchResult: value=None, status=0, sessionId=79A39B72-F5F9-4A01-8E58-DD380452350A
        # logging.info("launchResult=%s", str(launchResult))
        # launchResult=GenericDict(value=None, sessionId='79A39B72-F5F9-4A01-8E58-DD380452350A', status=0)
        if isEnableDebugState:
            isGetOk, curState = self.iOSGetAppState(iOS_AppId_Settings)
            logging.info("after launch: curState=%s", curState)
        return isLaunchOk, respInfo
添加设置,是否调试 app的状态
    def iOSLaunchSettings(self, isTerminateFirst=True, isDebugState=True):
        """iOS terminal and re-launch Settings=Preferences app


        Args:
            isTerminateFirst (bool): force terminal Settings before launch
            isDebugState (bool): enable debug for app state
        Returns:
            bool
        Raises:
        """

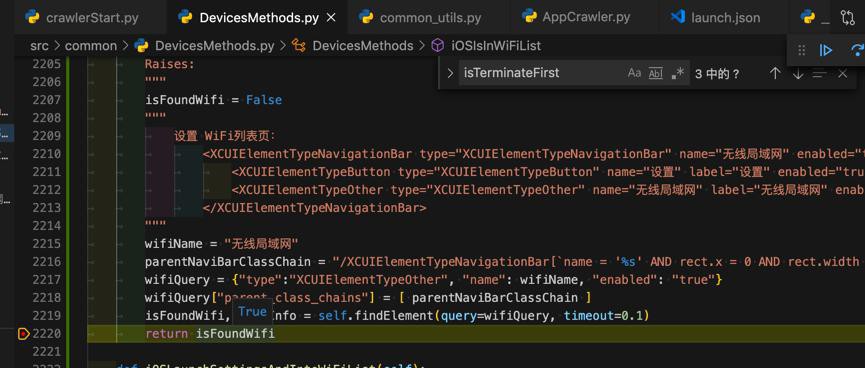

调试
即可找到
处于当前WiFi列表页了。
【总结】
最终此处代码是:
    def iOSIsInWiFiList(self):
        """Check whether is in WiFi list page or not


        Args:
        Returns:
            bool
        Raises:
        """
        isFoundWifi = False
        """
            设置 WiFi列表页:
                <XCUIElementTypeNavigationBar type="XCUIElementTypeNavigationBar" name="无线局域网" enabled="true" visible="true" x="0" y="20" width="414" height="44">
                    <XCUIElementTypeButton type="XCUIElementTypeButton" name="设置" label="设置" enabled="true" visible="true" x="0" y="20" width="66" height="44"/>
                    <XCUIElementTypeOther type="XCUIElementTypeOther" name="无线局域网" label="无线局域网" enabled="true" visible="true" x="163" y="31" width="88" height="21"/>
                </XCUIElementTypeNavigationBar>
        """
        wifiName = "无线局域网"
        parentNaviBarClassChain = "/XCUIElementTypeNavigationBar[`name = '%s' AND rect.x = 0 AND rect.width = %d`]" % (wifiName, self.X)
        wifiQuery = {"type":"XCUIElementTypeOther", "name": wifiName, "enabled": "true"}
        wifiQuery["parent_class_chains"] = [ parentNaviBarClassChain ]
        isFoundWifi, respInfo = self.findElement(query=wifiQuery, timeout=0.1)
        return isFoundWifi
即可判断是否处于 WiFi列表页
而启动 设置,再去判断,完整代码是:
    def iOSLaunchSettingsAndIntoWiFiList(self):
        """
            iOS launch Settings, then into WiFi list page


        Args:
        Returns:
            bool, None/str
                True, None
                False, error message str
        Raises:
        """
        isIntoWiFiListOk = False
        respInfo = None


        isLaunchOk, respInfo = self.iOSLaunchSettings()
        if not isLaunchOk:
            respInfo = "Fail to launch 设置"
            return isIntoWiFiListOk, respInfo


        # Special: sometime alreay being in WiFi list page, so need first check it
        isInWifiList = self.iOSIsInWiFiList()
        if isInWifiList:
            isIntoWiFiListOk = True
            respInfo = None
            return isIntoWiFiListOk, respInfo
        else:
            # foundAndClickedWifi = self.iOSFromSettingsIntoWifiList()
            foundAndClickedWifi = CommonUtils.multipleRetry({"functionCallback": self.iOSFromSettingsIntoWifiList})
            if not foundAndClickedWifi:
                respInfo = "Not find 无线局域网 in 设置"
                return isIntoWiFiListOk, respInfo


            isInWifiList = self.iOSIsInWiFiList()
            if isInWifiList:
                isIntoWiFiListOk = True
                respInfo = None
                return isIntoWiFiListOk, respInfo
            else:
                isIntoWiFiListOk = False
                respInfo = "Unknown Error"
                return isIntoWiFiListOk, respInfo

    def iOSLaunchSettings(self, isTerminateFirst=True, isDebugState=True):
        """iOS terminal and re-launch Settings=Preferences app


        Args:
            isTerminateFirst (bool): force terminal Settings before launch
            isDebugState (bool): enable debug for app state
        Returns:
            bool
        Raises:
        """


        iOS_AppId_Settings = "com.apple.Preferences"


        if isTerminateFirst:
            if isDebugState:
                isGetOk, curState = self.iOSGetAppState(iOS_AppId_Settings)
                logging.info("before terminal: curState=%s", curState)
            # stop before start to avoid current page is not homepage of 设置
            isTerminalOk, respInfo = self.iOSTerminateApp(iOS_AppId_Settings)
            logging.info("%s: isTerminalOk=%s, respInfo=%s", iOS_AppId_Settings, isTerminalOk, respInfo)
            if isDebugState:
                isGetOk, curState = self.iOSGetAppState(iOS_AppId_Settings)
                logging.info("after terminal: curState=%s", curState)


        # settingsSession = self.wdaClient.session(iOS_AppId_Settings)
        # logging.debug("settingsSession=%s" % settingsSession)
        # launchResult = self.wdaClient.app_launch(iOS_AppId_Settings)
        # logging.debug("launchResult=%s", launchResult)
        isLaunchOk, respInfo = self.iOSLaunchApp(iOS_AppId_Settings)
        logging.info("isLaunchOk=%s, respInfo=%s", isLaunchOk, respInfo)
        # logging.info("launchResult: value=%s, status=%s, sessionId=%s", launchResult.value, launchResult.status, launchResult.sessionId)
        # launchResult: value=None, status=0, sessionId=79A39B72-F5F9-4A01-8E58-DD380452350A
        # logging.info("launchResult=%s", str(launchResult))
        # launchResult=GenericDict(value=None, sessionId='79A39B72-F5F9-4A01-8E58-DD380452350A', status=0)
        if isDebugState:
            isGetOk, curState = self.iOSGetAppState(iOS_AppId_Settings)
            logging.info("after launch: curState=%s", curState)
        return isLaunchOk, respInfo
即可。
