【已解决】Html的Canvas设置全局背景色

设置 crifan 1105浏览 0评论
折腾:
【未解决】HTML中用Canvas画文字
期间,希望设置全局的背景色是黑色
html canvas set global background color
javascript – How to fill the whole canvas with specific color – Stack Overflow
ctx.fillStyle = "blue";
ctx.fillRect(0, 0, canvas.width, canvas.height);
此处用:
      ctx.fillStyle = 'black'
      ctx.fillRect(0, 0, canvas.width, canvas.height)

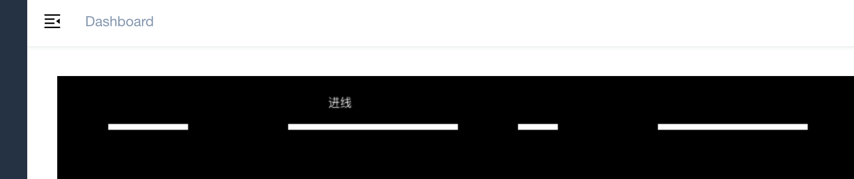

虽然是:黑色背景了:但是后面的画的线段,都看不到了。
只能看到文字
      ctx.fillStyle = 'black'
      ctx.fillRect(0, 0, canvas.width, canvas.height)

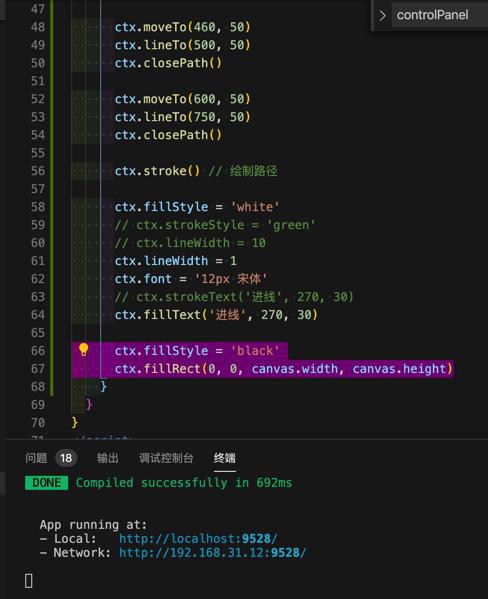

放到最后:

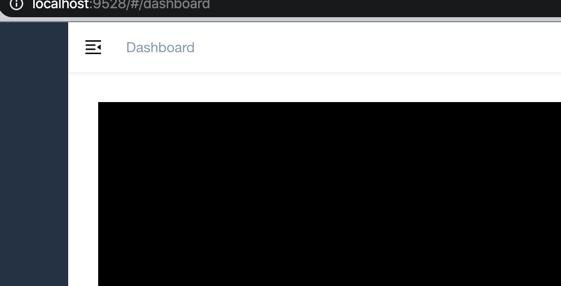

结果会导致:
前面的全部内容都被覆盖了。看不到了。
去试试:
      ctx.globalCompositeOperation = 'destination-over'


      ctx.fillStyle = 'black'
      ctx.fillRect(0, 0, canvas.width, canvas.height)
结果:
问题依旧。
javascript – Q: HTML5 Canvas change background color – Stack Overflow

      ctx.fillStyle = 'black'
      ctx.fillRect(0, 0, canvas.width, canvas.height)


      // Add behind elements.
      // ctx.globalCompositeOperation = 'destination-over'
      ctx.globalCompositeOperation = 'destination-out'


      // ctx.fillStyle = 'green'
      ctx.fillStyle = 'red'
      // ctx.strokeStyle = 'green'
      // ctx.strokeStyle = 'red'
      ctx.lineWidth = 6


      ctx.beginPath() // 新建一条path


      ctx.moveTo(50, 50) // 把画笔移动到指定的坐标
      ctx.lineTo(130, 50) // 绘制一条从当前位置到指定坐标(200, 50)的直线
      ctx.closePath() // 闭合路径。会拉一条从当前点到path起始点的直线。如果当前点与起始点重合,则什么都不做


      ctx.moveTo(230, 50)
      ctx.lineTo(400, 50)
      ctx.closePath()


      ctx.moveTo(460, 50)
      ctx.lineTo(500, 50)
      ctx.closePath()


      ctx.moveTo(600, 50)
      ctx.lineTo(750, 50)
      ctx.closePath()


      ctx.stroke() // 绘制路径


      ctx.fillStyle = 'white'
      // ctx.strokeStyle = 'green'
      // ctx.lineWidth = 10
      ctx.lineWidth = 1
      ctx.font = '12px 宋体'
      // ctx.strokeText('进线', 270, 30)
      ctx.fillText('进线', 270, 30)
结果是:
有内容了,但是不是红色,而是白色
javascript – Set background fill, stroke, and opacity of HTML5 Canvas – Stack Overflow
jquery – Change <canvas> color using CSS? – Stack Overflow
javascript – Change canvas background color to transparent – Stack Overflow
算了,暂时去用css设置吧
canvas {
  border: 1px solid black;
  background: black;
}
和:
const canvas = document.getElementById('controlPanel')
    if (canvas.getContext) {
      // 获得 2d 上下文对象
      const ctx = canvas.getContext('2d')


      // ctx.fillStyle = 'rgb(200,0,0)'
      // // 绘制矩形
      // ctx.fillRect(10, 10, 55, 50)
      // ctx.fillStyle = 'rgba(0, 0, 200, 0.5)'


      // ctx.fillStyle = 'black'
      // ctx.fillRect(0, 0, canvas.width, canvas.height)


      // // Add behind elements.
      // // ctx.globalCompositeOperation = 'destination-over'
      // ctx.globalCompositeOperation = 'destination-out'


      // ctx.fillStyle = 'green'
      ctx.fillStyle = 'red'
      // ctx.strokeStyle = 'green'
      ctx.strokeStyle = 'red'
      ctx.lineWidth = 6


      ctx.beginPath() // 新建一条path


      ctx.moveTo(50, 50) // 把画笔移动到指定的坐标
      ctx.lineTo(130, 50) // 绘制一条从当前位置到指定坐标(200, 50)的直线
      ctx.closePath() // 闭合路径。会拉一条从当前点到path起始点的直线。如果当前点与起始点重合,则什么都不做


      ctx.moveTo(230, 50)
      ctx.lineTo(400, 50)
      ctx.closePath()


      ctx.moveTo(460, 50)
      ctx.lineTo(500, 50)
      ctx.closePath()


      ctx.moveTo(600, 50)
      ctx.lineTo(750, 50)
      ctx.closePath()


      ctx.stroke() // 绘制路径


      ctx.fillStyle = 'white'
      // ctx.strokeStyle = 'green'
      // ctx.lineWidth = 10
      ctx.lineWidth = 1
      ctx.font = '12px 宋体'
      // ctx.strokeText('进线', 270, 30)
      ctx.fillText('进线', 270, 30)
    }

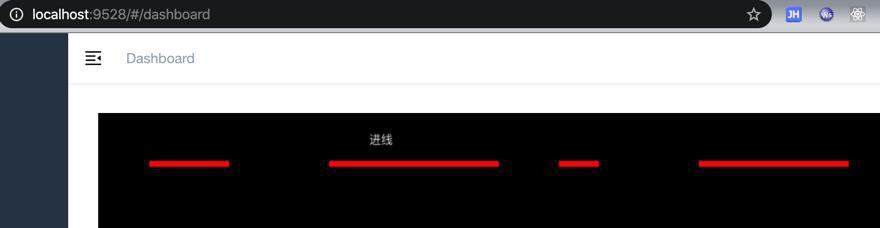

即可:
【总结】
暂时用了canvas设置背景色,结果会影响后续的线条和文字的前景色或背景色,所以最后改为css设置style
canvas {
  background: black;
}
即可设置canvas的背景色,而不影响canvas中画的内容。
