【整理】硬件电路图中缩写字母的含义

Hardware crifan 4226浏览 0评论

在之前涉及到硬件电路图的学习过程中,多次遇到:

对于一些常见的字母的缩写的含义,不是太清楚。

后来得知,原来对应的这些缩写,是有专门的协议规范的。

并且找到了对应的规范文档:

IEC61346-2.pdf

(注:该IEC61346规范中还包含了,除了电路图领域之外的其他领域,比如建筑行业内,常见的字母缩写的含义)

然后去整理如下:

电路图中字母缩写的含义:图示

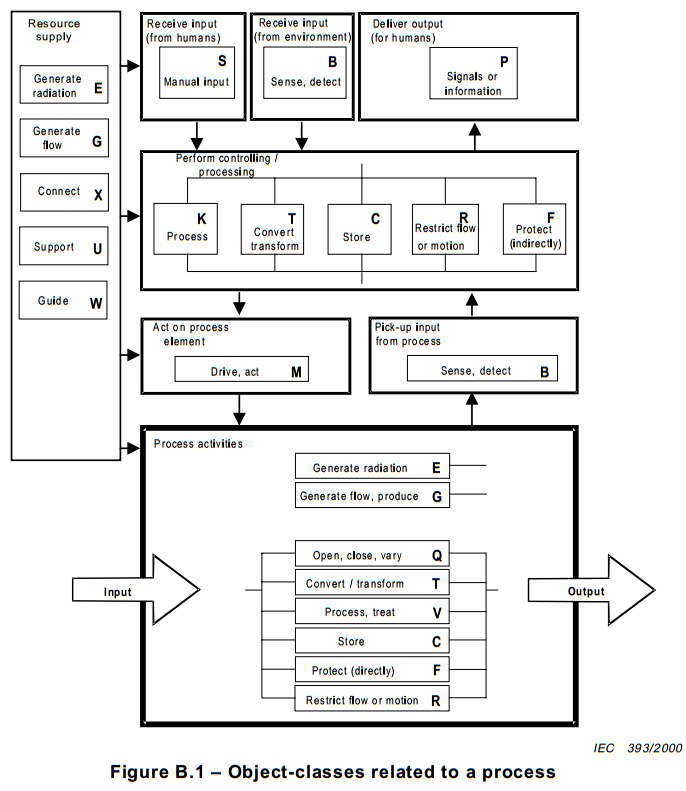

通用的过程处理中,不同的字母所表示的含义:

object class related to a process letter meaning

电路图中字母缩写的含义:表格

再整理为下表:

A-Z完整字母的所有含义英文版

Code

Purpose or task of
object

Examples of terms
describing purpose or
task of objects and
functions

Examples of typical
mechanical/fluid products

Examples of typical
electrical products

A

Two or more purposes
or tasks
NOTE  This class is only
for objects for which no
main purpose or task can
be identified.

Touch screen

B

Converting an input
variable (physical
property, condition or
event) into a signal for
further processing

Detecting
Measuring (picking-up
of values)
Monitoring
Sensing
Weighing (picking-up
of values)

Orifice plate
(for measuring)
Sensor

Buchholz relay
Detector
Fire detector
Gas detector
Measuring element
Measuring relay
Measuring shunt
Measuring transformer
Microphone
Movement detector
Photocell
Pilot switch
Position switch
Proximity switch
Proximity sensor
Protective relay
Sensor
Smoke sensor
Tachogenerator
Temperature sensor
Thermal overload relay
Video camera

C

Storing material, energy,
or information

Recording
Storing

Barrel
Buffer
Cistern
Container
Hot water accumulator
Paper reel stand
Pressure accumulator
Steam accumulator
Tank
Vessel

Buffer (store)
Buffer battery
Capacitor
Event recorder (mainly
storing)
Hard disk
Memory
RAM
Storage battery
Tape recorder (mainly
storing)
Video recorder (mainly
storing)
Voltage recorder (mainly
storing)

D

Reserved for future
standardization

E

Providing radiant or
thermal energy

Cooling
Heating
Lighting
Radiating

Boiler
Freezer
Heater
Gas lamp
Heat exchanger
Nuclear reactor
Paraffin lamp
Radiator
Refrigerator

Boiler
Fluorescent lamp
Heater
Lamp
Lamp bulb
Laser
Luminaire
Maser
Radiator

F

Direct protection (selfacting) of a flow of
energy, signals,
personnel or equipment
from dangerous or
unwanted conditions
Including systems and
equipment for protective
purposes

Absorbing
Guarding
Preventing
Protecting
Securing
Shielding

Air bag
Buffer
Fence
Guard
Pipe-break valve
Rupture disc
Safety belt
Safety valve
Shield
Vacuum valve

Cathodic protection Anode
Faraday cage
Fuse
Miniature circuit-breaker
Surge diverter
Thermal overload release

G

Initiating a flow of energy
or material
Generating signals used
as information carriers or
reference source
Producing a new kind of
energy, material or
product

Assembling
Crushing
Disassembling
Generating
Fractionating
Material removing
Milling
Mixing
Producing
Pulverizing

Blower
Component insertion
 mac hine
Conveyor, (driven)
Crusher
Fan
Mixer
Pump
Vacuum pump
Ventilator

Dry cell battery
Dynamo
Fuel cell
Generator
Power generator
Rotating generator
Signal generator
Solar cell
Wave generator

H

Reserved for future
standardization

INot to be applied

J

Reserved for future
standardization

K

Processing (receiving,
treating and providing)
signals or information
(excluding objects for
protective purposes, see
class F)

Closing(control circuits)
Continuous controlling
Delaying
Opening (control circuits)
Postponing
Switching (control
circuits)
Synchronizing

Fluid feedback
controller
Pilot valve
Valve positioner

All-or-nothing relay
Analogue integrated
circuit
Automatic paralleling
device
Binary integrated circuit
Contactor relay
CPU
Delay element
Delay line
Electronic valve
Electronic tube
Feedback controller
Filter
Induction stirrer
Microprocessor
Process computer
Programmable controller
Synchronizing device
Time relay
Transistor

L

Reserved for future
standardization

M

Providing mechanical
energy (rotational or
linear mechanical
motion) for driving
purposes

Actuating
Driving

Combustion engine
Fluid actuator
Fluid cylinder
Fluid motor
Heat engine
Mechanical actuator
Spring-loaded actuator
Turbine
Water turbine
Wind turbine

Actuator
Actuating coil
Electric motor
Linear motor

N

Reserved for future
standardization

ONot to be applied

PPresenting information

Alarming
Communicating
Displaying
Indicating
Informing
Measuring (presentation
of quantities)
Presenting
Printing
Warning

Acoustical signal device
Balance (for weighing)
Bell
Clock
Display unit
Flow meter
Gas meter
Glass gauge
Manometer
Mechanical indicator
Printer
Sight glass
Thermometer
Water meter

Acoustical signal device
Ammeter
Bell
Clock
Continuous line recorder
Display unit
Electromechanical
indicator
Event counter
Geiger counter
LED
Loudspeaker
Optical signal device
Printer
Recording voltmeter
Signal lamp
Signal vibrator
Synchronoscope
Voltmeter
Wattmeter
Watt-hour meter

Q

Controlled switching or
varying a flow of energy,
of signals or of material
(For signals in control
circuits, see classes K
and S)

Opening (energy, signals
and material flow)
Closing (energy, signals
and material flow)
Switching (energy,
signals and material
flow)
Clutching

Brake
Control valve
Clutch
Door
Flap
Gate
Shut-off valve
Shutter
Sluice-gate
Lock

Circuit-breaker
Contactor (for power)
Disconnector
Fuse switch
Fuse-switch-disconnector
Motor starter
Power transistor
Slip-ring short-circuiter
Switch (for power)
Thyristor
(If main purpose is
protection, see class F)

R

Restricting or stabilizing
motion or a flow of
energy, information or
material

Blocking
Damping
Restricting
Limiting
Stabilizing

Blocking device
Check (non-return) valve
Damping device
Detent
Interlocking device
Latching device
Orifice plate (restricting
a flow)
Pressure control valve
Restrictor
Shock absorber
Silencer
Trip-free mechanism

Diode
Inductor
Limiter
Resistor

S

Converting a manual
operation into a signal for
further processing

Influencing
Manually controlling
Selecting

Push-button valve
Selector switch

Control switch
Discrepancy switch
Keyboard
Light pen
Mouse
Push-button switch
Selector switch
Set-point adjuster

T

Conversion of energy
maintaining the kind of
energy
Conversion of an
established signal
maintaining the content
of information
Conversion of the form or
shape of a material

Amplifying
Modulating
Transforming
Casting
Compressing
Converting
Cutting
Material deforming
Expanding
Forging
Grinding
Rolling
Size enlargement
Size reduction
Turning

Fluid amplifier
Gear box
Measuring transducer
Measuring transmitter
Pressure intensifier
Torque converter
Casting machine
Drop forge
Grinder (size reduction)
Lathe
Saw

AC/DC converter
Amplifier
Antenna
Demodulator
Frequency changer
Measuring transducer
Measuring transmitter
Modulator
Power transformer
Rectifier
Rectifier station
Signal converter
Signal transformer
Telephone set
Transducer

U

Keeping objects in a
defined position

Bearing
Carrying
Holding
Supporting

Beam
Bearing
Block
Cable ladder
Cable tray
Console
Corbel
Fixture
Foundation
Hanger
Insulator
Mounting plate
Mounting rack
Pylon
Roller bearing

Insulator
V

Processing (treating) of
material or products
(including preparatory
and post-treatment)

Coating
Cleaning
Dehydrating
Derusting
Drying
Filtering
Heat treatment
Packing
Preconditioning
Recovering
Re-finishing
Sealing
Separating
Sorting
Stirring
Surface treatment
Wrapping

Centrifuge
Degreasing equipment
Dehydrating equipment
Filter
Grinder (surface
treatment)
Packing machine
Rake
Separator
Sieve
Varnishing automat
Vacuum cleaner
Washing machine
Wetting

Filter
W

Guiding or transporting
energy, signals, material
or products from one
place to another

Conducting
Distributing
Guiding
Leading
Positioning
Transporting

Conveyor (not driven)
Duct
Hose
Ladder
Link (mechanical)
Mirror
Roller table (not driven)
Pipe
Shaft
Shuttle

Busbar
Cable
Conductor
Information bus
Optical fibre
Through bushing
Waveguide

XConnecting objects

Connecting
Coupling
Joining

Flange
Hook
Hose fitting
Pipeline fitting
Quick-release coupling
Shaft coupling
Terminal block

Connector
Plug connector
Terminal
Terminal block
Terminal strip

Y

Reserved for future
standardization

Z

Reserved for future
standardization

常见字母含义中文版

字母/类别含义简介含义详解代表的对象举例注释
A多用途多功能的两个或更多的用途或任务的东西
  • Control Desk控制面板

    • 软件:系统

    • 硬件:键盘

  • Touch Screen触摸屏

B

环境输入Environment Input->

传感检测sense, detect

将输入变量(物理属性,条件,事件)转换为信号以待进一步处理

  • 传感器sensor

    • clinder传感器

    • limit switch传感器

  • 摄像头camera

与S对应的是,S是表示从人类human中获得的手动manual输入(比如人用手按按钮)
C存储Store存储材料,能量,信息
  • 存储卡

E产生放射提供热能,放射方面的
F提供防护直接提供(自适应)保护能量,信号,人员,设备,免于被破坏,于此相关的设备或系统
  • 保险丝

  • 电源分配?

G产生流flow能产生能量,物料,信号等方面的流的
  • 电池?

K过程Process处理

处理(接受,提供)信号或信息(不包括用于保护目的的对象==F类)

  • 气缸阀门

  • ASIC Slave

    • 现场总线?

    • (气路)气缸输出

    • 接触器

  • Valve positioner

  • 测量卡?

M驱动运动Motion提供机械能(旋转或线性机械运动)用于驱动的目的(让某个东西动起来?)
  • 电机

  • 机械件

  • 气缸

  • 风扇

PPresentation指示信息展示,指示的信息或信号
  • Lamp灯

  • LED灯

  • buzzer蜂鸣器

Qopen,close,vary控制/切换/变化/开关,能量/信号/物料的流
  • Brake刹车

    • brake switch

  • main switch总开关

  • Door

  • Gate

  • Lock

RRestricting or stabilizing限制限制或稳定运动/能量,信息,物料的流
  • Resistance电阻

S

人类手动输入Human/Manual Input

来自人类的,手动的输入,获得输入,用于后续处理
  • Push Button按钮

  • Plug插头

  • Switch开关

TTransform能量转换
  • 伺服电机

  • Amplifier电源放大器

  • 变频器

USupport保持对象在某个位置
VProcess,treat处理物料或产品
  • 过滤系统?

WGuide引导,transporting传输引导或传输
  • Cable线缆?

  • Conveyor传送带?

  • Rolling table转台?

XConnect连接连接对象
  • Sensor Box接线盒

    • 用于连接其他子模块?

  • Bus Bar?

如此,见多了,就会越来越熟悉字母所代表的含义的。
