【记录】研究rcsjta中的RcsCoreService的代码调用逻辑和顺序

折腾：

【记录】研究Android项目rcsjta中RCS的core的service启动的代码调用逻辑关系和顺序

期间，对于rcs的core的service，其调用逻辑，研究到后来，发现主要是和：RcsCoreService有关。

但是后续调用貌似也很复杂。所以专门去研究看看。

src/com/gsma/rcs/service/RcsCoreService.java

private synchronized void startCore() {

core = Core.createCore(mCtx, this, mRcsSettings, mContentResolver,
        mLocalContentResolver, mContactManager, mMessagingLog, mHistoryLog,
        mRichCallHistory);

src/com/gsma/rcs/service/RcsCoreService.java

public class RcsCoreService extends Service implements CoreListener {

    public void onCreate() {

        startCore();

src/com/gsma/rcs/service/LauncherUtils.java

public class LauncherUtils {

    public static void launchRcsCoreService(Context context, RcsSettings rcsSettings) {

        context.startService(new Intent(context, RcsCoreService.class));

有好几处都有调用

且都是：

LauncherUtils.launchRcsCoreService(mContext, mRcsSettings);

这种直接调用

然后分别去看看

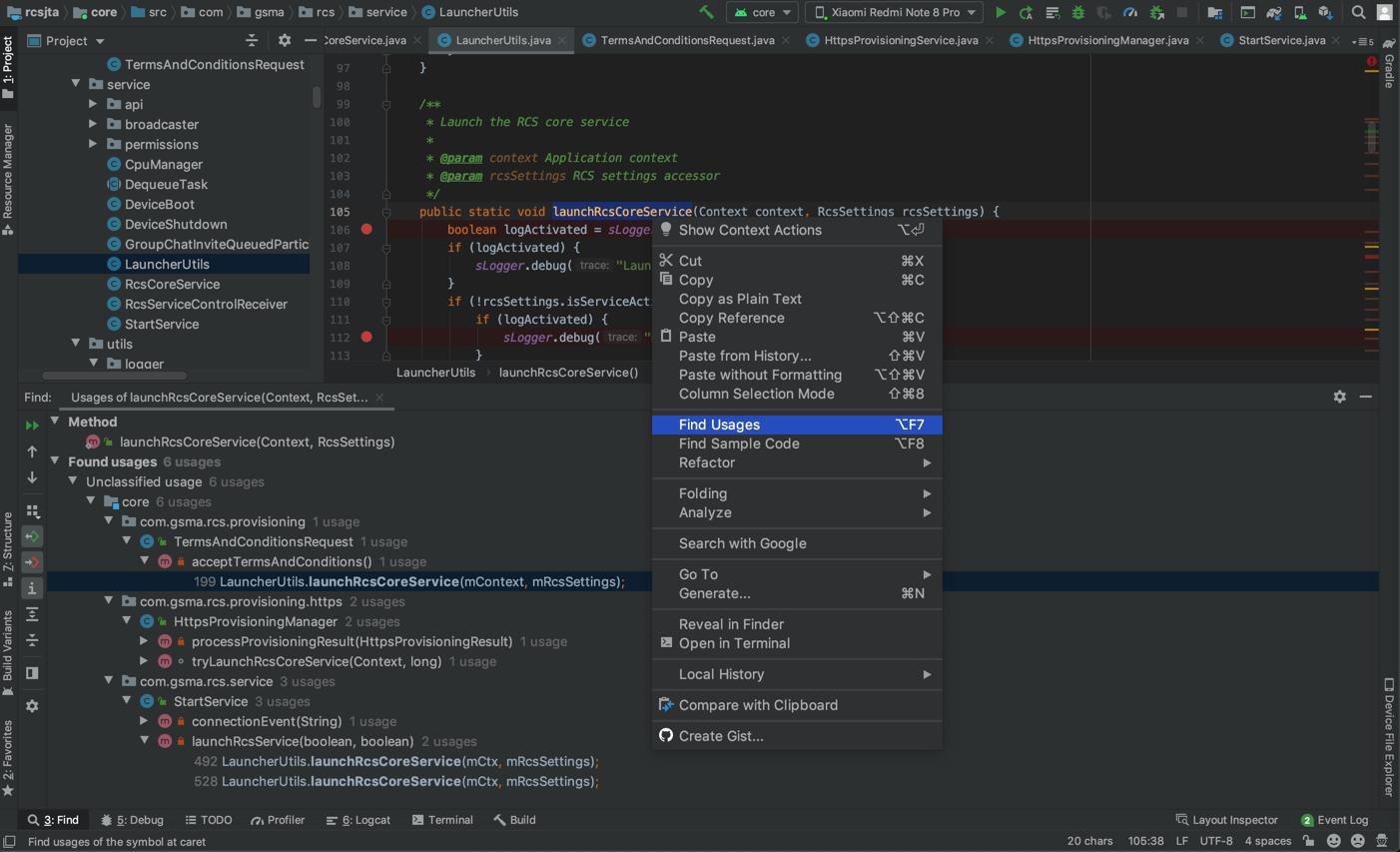

【LauncherUtils.launchRcsCoreService 调用情况】

（1）com.gsma.rcs.provisioning

src/com/gsma/rcs/provisioning/TermsAndConditionsRequest.java

public class TermsAndConditionsRequest extends Activity {

    private void acceptTermsAndConditions() {

        LauncherUtils.launchRcsCoreService(mContext, mRcsSettings);

（2）com.gsma.rcs.provisioning.htttps

src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

public class HttpsProvisioningManager {

    private void processProvisioningResult(HttpsProvisioningResult result)

        LauncherUtils.launchRcsCoreService(mCtx, mRcsSettings);

（3）com.gsma.rcs.service

src/com/gsma/rcs/service/StartService.java

public class StartService extends Service {

    private void connectionEvent(String action) {

        LauncherUtils.launchRcsCoreService(mCtx, mRcsSettings);

（4）

src/com/gsma/rcs/service/StartService.java

public class StartService extends Service {

    private void launchRcsService(boolean boot, boolean user) throws RcsAccountException {

        LauncherUtils.launchRcsCoreService(mCtx, mRcsSettings);

（5）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

public class HttpsProvisioningManager {

    /* package private */void tryLaunchRcsCoreService(Context context, long timerRetry) {

        LauncherUtils.launchRcsCoreService(context, mRcsSettings);

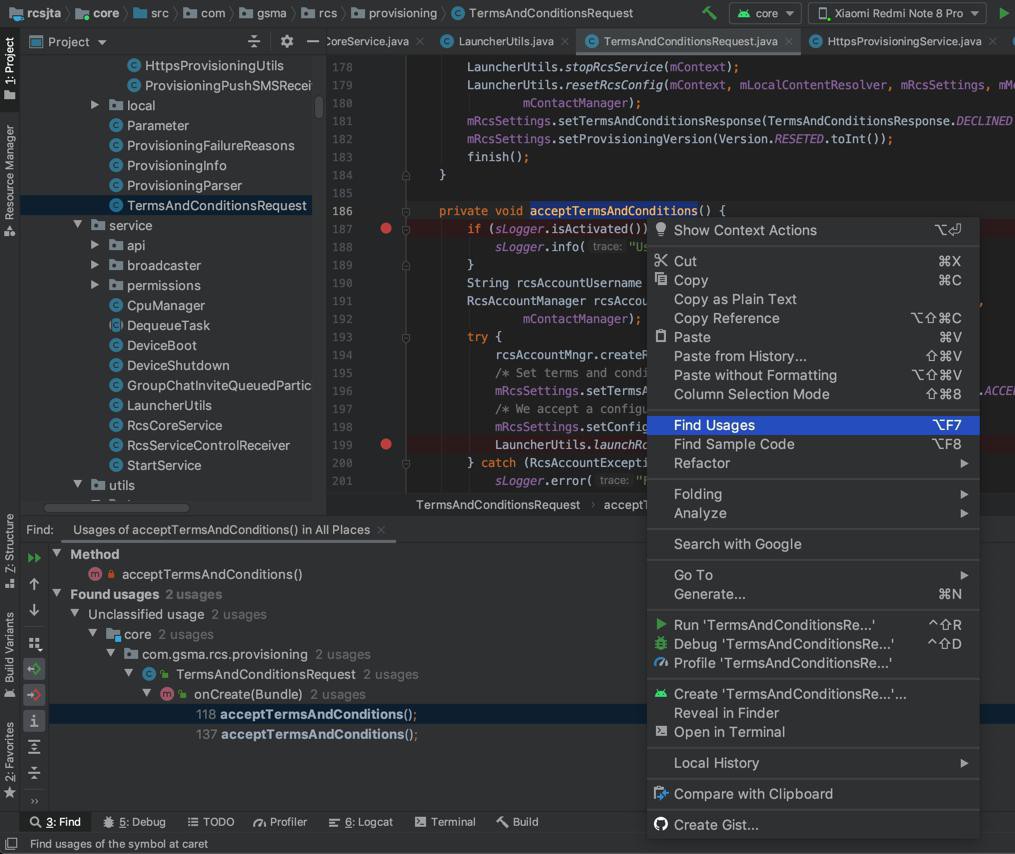

【acceptTermsAndConditions 调用情况】

src/com/gsma/rcs/provisioning/TermsAndConditionsRequest.java

public void onCreate(Bundle savedInstance) {

                acceptTermsAndConditions();

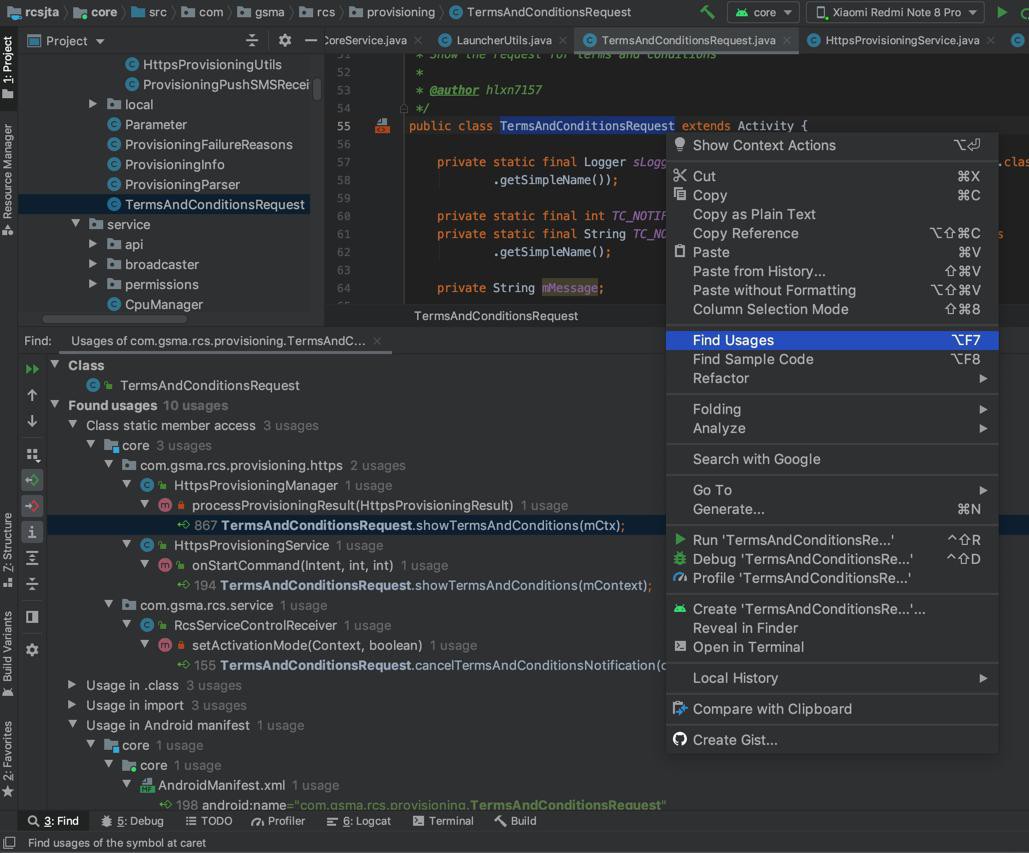

【TermsAndConditionsRequest 调用情况】

（1）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

private void processProvisioningResult(HttpsProvisioningResult result)

    TermsAndConditionsRequest.showTermsAndConditions(mCtx);

（2）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningService.java

public int onStartCommand(final Intent intent, int flags, int startId) {

    TermsAndConditionsRequest.showTermsAndConditions(mContext);

（3）

src/com/gsma/rcs/service/RcsServiceControlReceiver.java

public class RcsServiceControlReceiver extends BroadcastReceiver {

    private boolean setActivationMode(Context ctx, boolean active) {

        TermsAndConditionsRequest.cancelTermsAndConditionsNotification(ctx);

（4）

AndroidManifest.xml

<!-- Provisioning - Terms and conditions activity -->
<activity
    android:name="com.gsma.rcs.provisioning.TermsAndConditionsRequest"
    android:theme="@style/Theme.UserDialog"/>

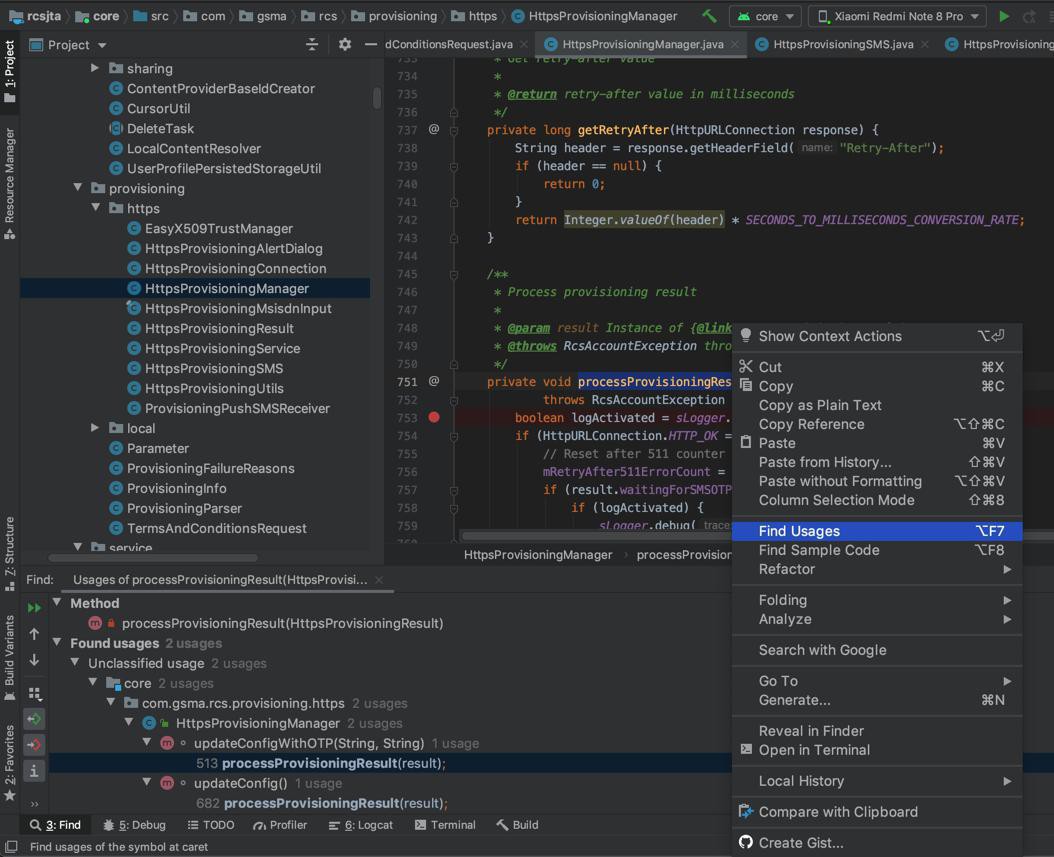

【processProvisioningResult 调用情况】

（1）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

/* package private */void updateConfigWithOTP(String otp, String requestUri)

    processProvisioningResult(result);

（2）src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

/* package private */void updateConfig() throws RcsAccountException, IOException {

        processProvisioningResult(result);

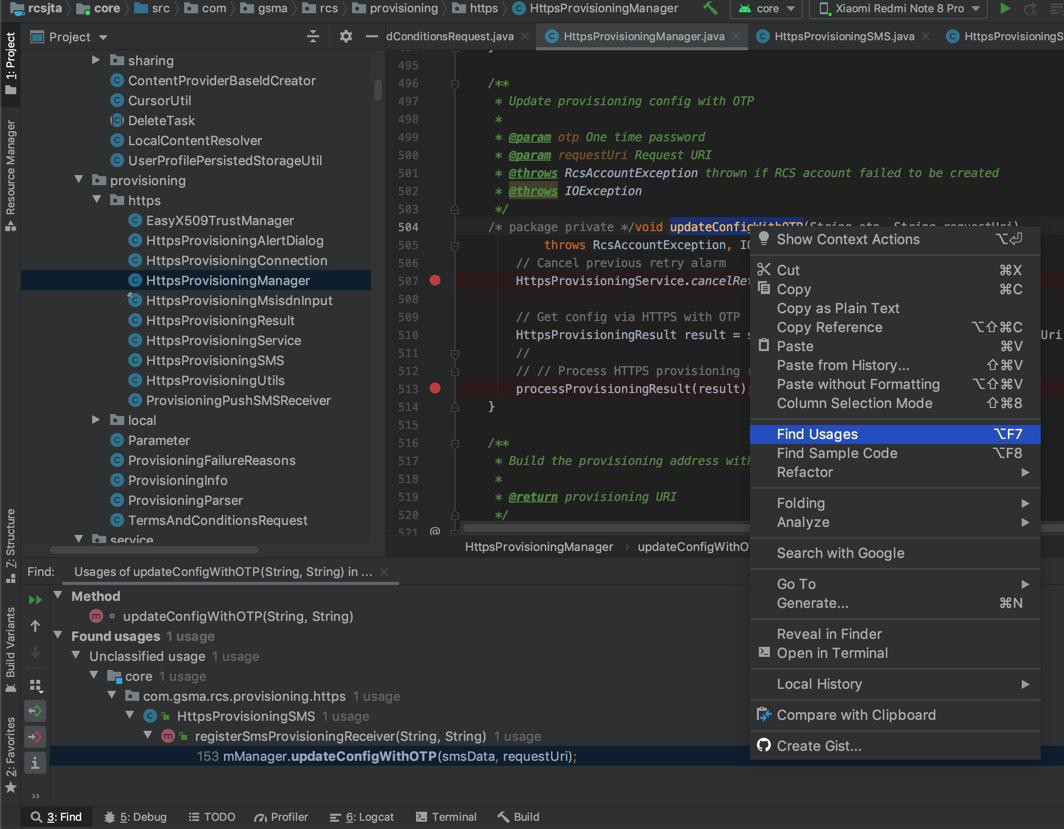

【updateConfigWithOTP】

（1）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningSMS.java

public void registerSmsProvisioningReceiver(final String smsPort, final String requestUri) {

    mManager.updateConfigWithOTP(smsData, requestUri);

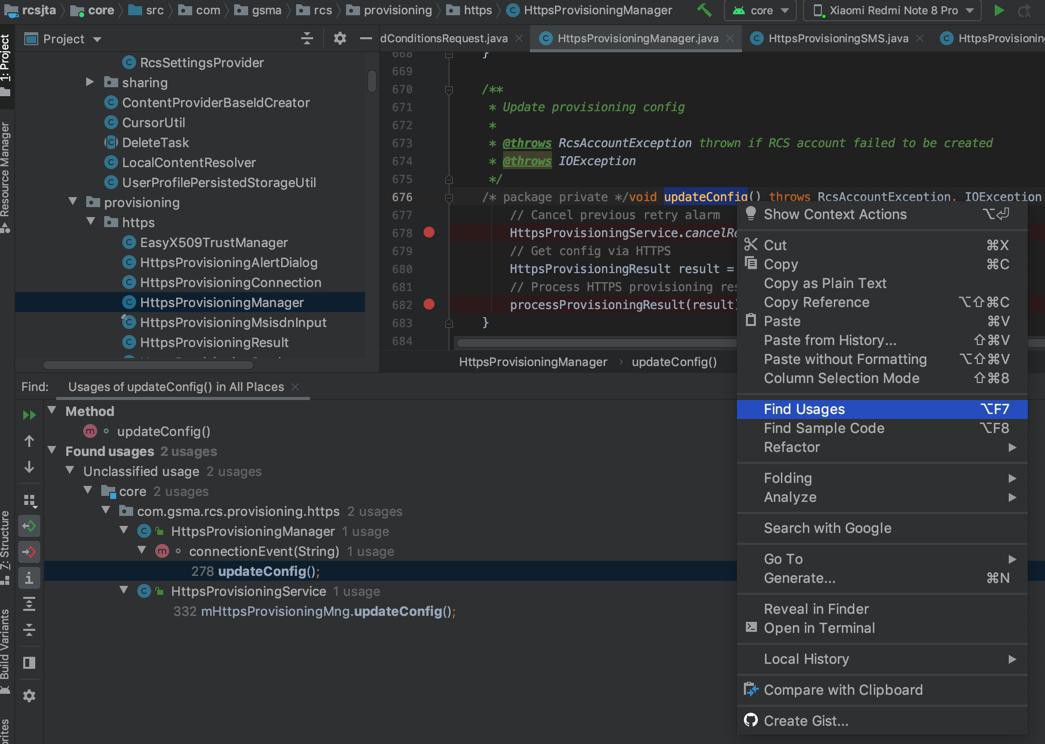

【updateConfig 调用情况】

（1）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

public class HttpsProvisioningManager {

    boolean connectionEvent(String action) throws RcsAccountException,

        updateConfig();

（2）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningService.java

public class HttpsProvisioningService extends Service {

private BroadcastReceiver retryReceiver = new BroadcastReceiver() {
    @Override
    public void onReceive(Context context, final Intent intent) {
        mHttpsProvisioningMng.scheduleProvisioningOperation(new Runnable() {
            public void run() {
                try {
                    mHttpsProvisioningMng.updateConfig();

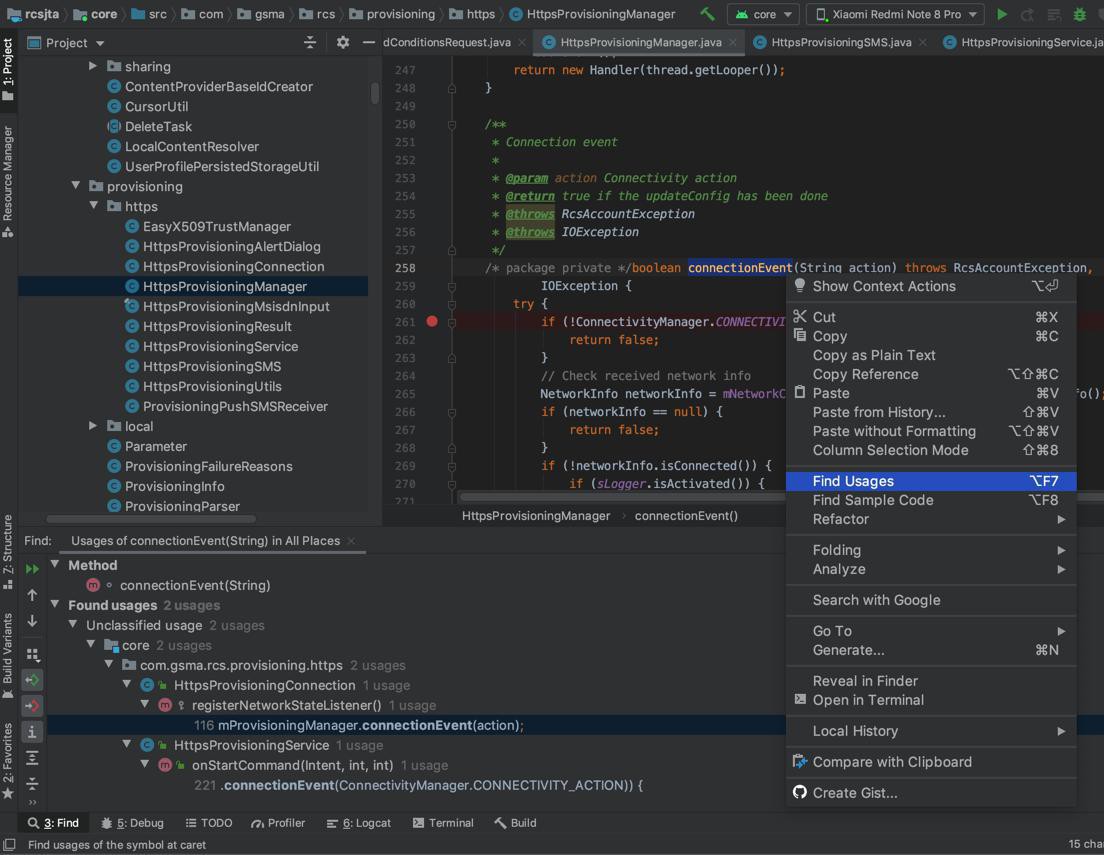

【connectionEvent 调用情况】

（1）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningConnection.java

public class HttpsProvisioningConnection {

    protected void registerNetworkStateListener() {

        mProvisioningManager.connectionEvent(action);

（2）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningService.java

public class HttpsProvisioningService extends Service {

    public int onStartCommand(final Intent intent, int flags, int startId) {

        if (!mHttpsProvisioningMng
                .connectionEvent(ConnectivityManager.CONNECTIVITY_ACTION)) {

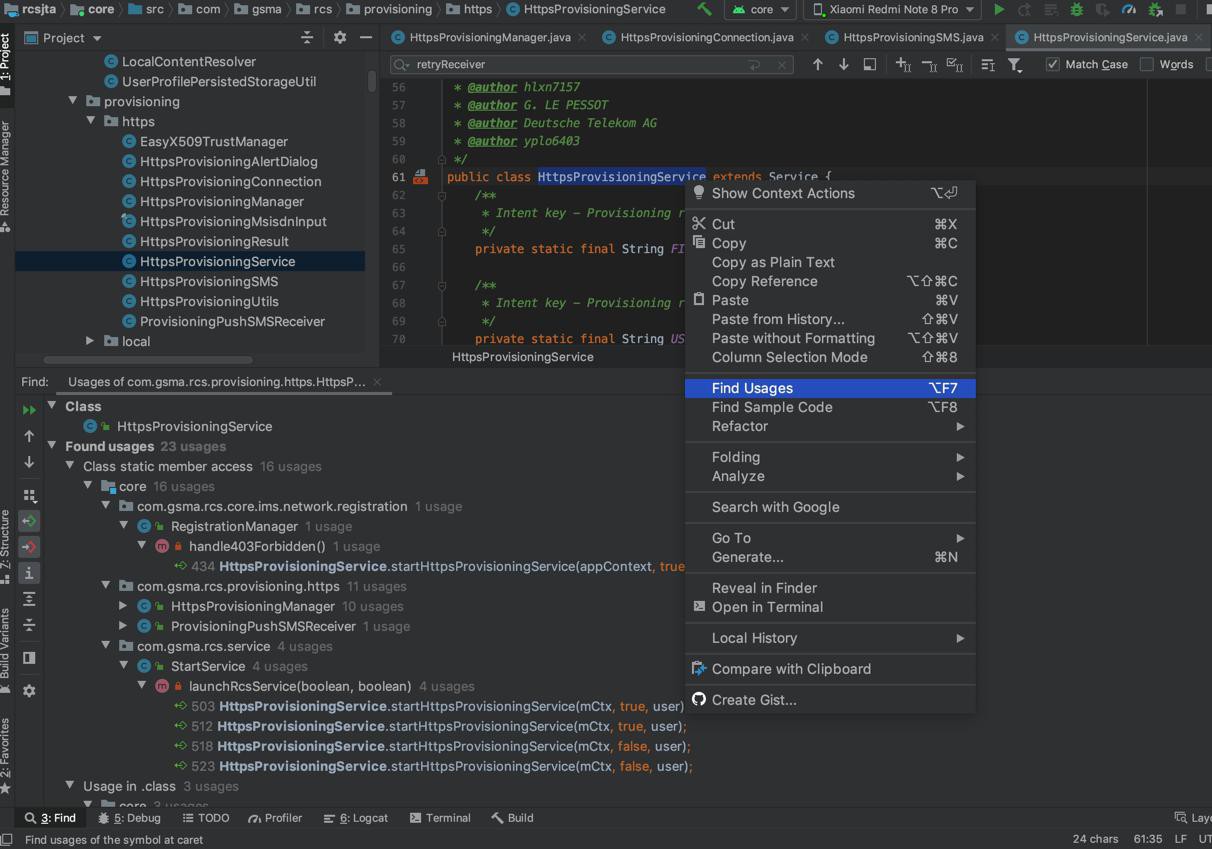

【HttpsProvisioningService 调用情况】

（1）

src/com/gsma/rcs/core/ims/network/registration/RegistrationManager.java

public class RegistrationManager extends PeriodicRefresher {

    private void handle403Forbidden() {

        HttpsProvisioningService.startHttpsProvisioningService(appContext, true, false);

（2）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

    private HttpsProvisioningResult sendFirstRequestsToRequireOTP(ContactId msisdn,
        String primaryUri, String secondaryUri) throws IOException {

        HttpsProvisioningService.startRetryAlarm(mCtx, mRetryIntent, OTP_TIME_OUT);

（3）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

/* package private */void updateConfigWithOTP(String otp, String requestUri)

    HttpsProvisioningService.cancelRetryAlarm(mCtx, mRetryIntent);

（4）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

/* package private */void updateConfig() throws RcsAccountException, IOException {

    HttpsProvisioningService.cancelRetryAlarm(mCtx, mRetryIntent);

（5）

src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

private void processProvisioningResult(HttpsProvisioningResult result)
        throws RcsAccountException {

    HttpsProvisioningService.startRetryAlarm(mCtx, mRetryIntent, validity);

    HttpsProvisioningService.startRetryAlarm(mCtx, mRetryIntent, validity);

    HttpsProvisioningService.startRetryAlarm(mCtx, mRetryIntent, result.retryAfter);

（6）src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

/* package private */void tryLaunchRcsCoreService(Context context, long timerRetry) {

    HttpsProvisioningService.startRetryAlarm(context, mRetryIntent, timerRetry);

    HttpsProvisioningService.startRetryAlarm(context, mRetryIntent, timerRetry);

（7）src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

private boolean retryAfter511Error() {

    HttpsProvisioningService.startRetryAlarm(mCtx, mRetryIntent, HttpsProvisioningUtils.RETRY_AFTER_511_ERROR_TIMEOUT);

（8）src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

/* package private */void retry() {

    HttpsProvisioningService.startRetryAlarm(mCtx, mRetryIntent, retryDelay);

（9）src/com/gsma/rcs/provisioning/https/ProvisioningPushSMSReceiver.java

public class ProvisioningPushSMSReceiver extends BroadcastReceiver {

    public void onReceive(Context ctx, Intent intent) {

        HttpsProvisioningService.reProvisioning(ctx);

（10）src/com/gsma/rcs/service/StartService.java

public class StartService extends Service {

    private void launchRcsService(boolean boot, boolean user) throws RcsAccountException {
        HttpsProvisioningService.startHttpsProvisioningService(mCtx, true, user);

        HttpsProvisioningService.startHttpsProvisioningService(mCtx, true, user);

        HttpsProvisioningService.startHttpsProvisioningService(mCtx, false, user);

        HttpsProvisioningService.startHttpsProvisioningService(mCtx, false, user);

（11）src/com/gsma/rcs/provisioning/https/HttpsProvisioningService.java

public class HttpsProvisioningService extends Service {

    public static void startHttpsProvisioningService(Context ctx, boolean firstLaunch,

        Intent provisioningIntent = new Intent(ctx, HttpsProvisioningService.class);

（12）src/com/gsma/rcs/service/LauncherUtils.java

public class LauncherUtils {

    public static void stopRcsService(Context context) {

        context.stopService(new Intent(context, HttpsProvisioningService.class));

（13）RCS/rcsjta/core/AndroidManifest.xml

<!-- HTTPS provisioning service -->
<service android:name="com.gsma.rcs.provisioning.https.HttpsProvisioningService"/>

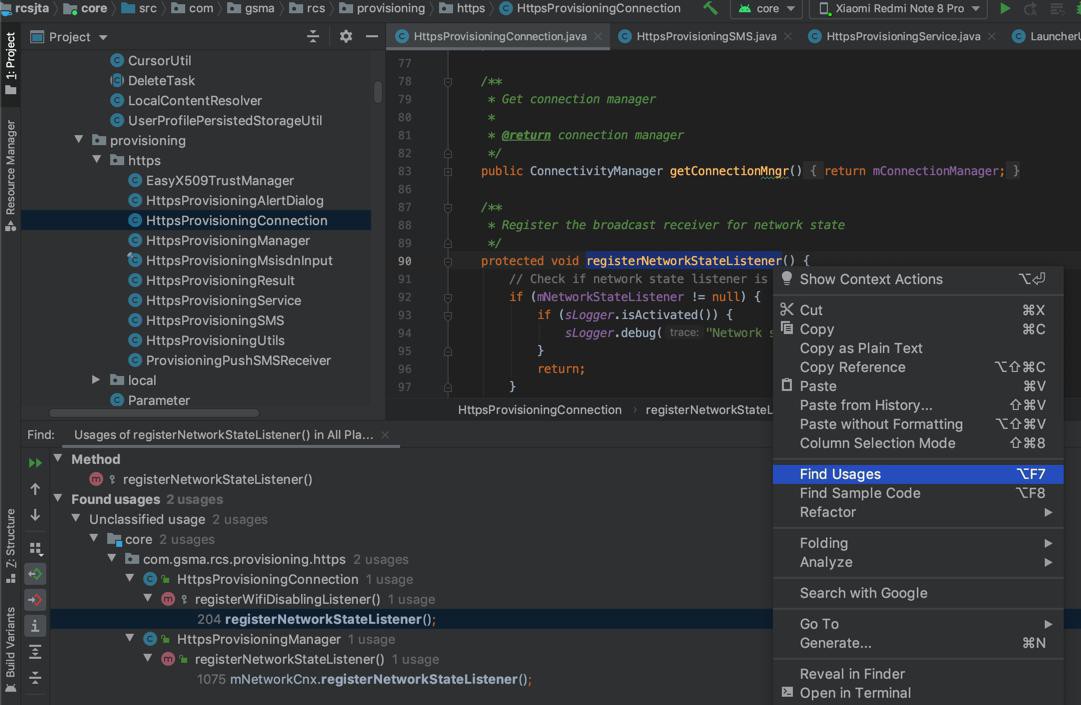

【registerNetworkStateListener 调用情况】

（1）src/com/gsma/rcs/provisioning/https/HttpsProvisioningConnection.java

public class HttpsProvisioningConnection {

    protected void registerWifiDisablingListener() {

        registerNetworkStateListener();

（2）src/com/gsma/rcs/provisioning/https/HttpsProvisioningManager.java

public class HttpsProvisioningManager {

    public void registerNetworkStateListener() {
        mNetworkCnx.registerNetworkStateListener();
    }

【registerNetworkStateListener 调用情况】

（1）src/com/gsma/rcs/provisioning/https/HttpsProvisioningService.java

public class HttpsProvisioningService extends Service {

    public int onStartCommand(final Intent intent, int flags, int startId) {

        mHttpsProvisioningMng.registerNetworkStateListener();

【launchRcsService 调用情况】

（1）src/com/gsma/rcs/service/StartService.java

public class StartService extends Service {

    private void startCore(final Intent intent) {

        launchRcsService(mBoot, mUser);

（2）src/com/gsma/rcs/service/StartService.java

public class StartService extends Service {

    private BroadcastReceiver getPollingTelephonyManagerReceiver() {

        launchRcsService(mBoot, mUser);

【startCore 调用情况】

（1）src/com/gsma/rcs/service/StartService.java

public class StartService extends Service {

    public int onStartCommand(final Intent intent, final int flags, final int startId) {

        startCore(intent);

也分别都去加上断点

包括给当前函数最开始加上，防止条件不满足，而没运行到，但是实际上函数运行到了，而不知道。

rcsjta rcs core service

此处先不记录上述继续的代码调用关系

先去直接找到调用者后，加断点，看看后续调试，能否运行到

结果依旧没调用到断点

继续看代码：

src/com/gsma/rcs/service/StartService.java

private boolean checkAccount() throws IOException, RcsAccountException {

等，感觉或许是：

是要现有 account账户

才能启动rcs的core的service？

而此处或许是，之前创建新建初始化账户账号失败了？

去都加上断点，再多调试看看

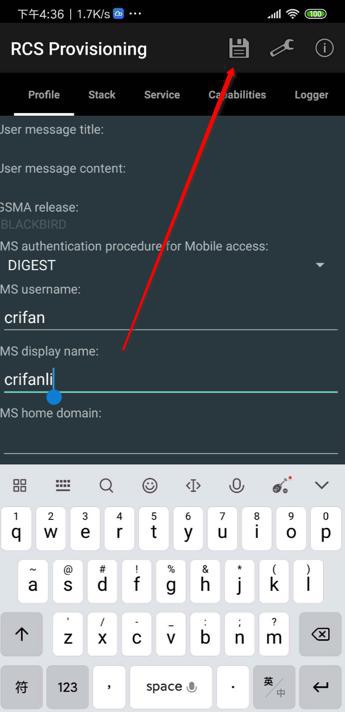

另外去尝试，给RCS的core，即RCS Provisioning中填写IMS的信息：

再去保存，看看能否触发，重启rcs的service

结果点击保存按钮后，apk崩溃直接退出了。。。

Android Studio中看不到任何log

另外，发现了关于 set activation mode的方面的代码调用关系：

从

src/com/gsma/rcs/service/RcsServiceControlReceiver.java

case Intents.Service.ACTION_GET_ACTIVATION_MODE_CHANGEABLE:

看到有被调用。

但是感觉是：

能触发启动服务的

ACTION_SET_ACTIVATION_MODE

好像没人调用。去看看

【ACTION_SET_ACTIVATION_MODE 调用】

（1）src/main/java/com/gsma/services/rcs/RcsServiceControl.java

private Intent generateSetActivationModeIntent(boolean active) {
    Intent intent = new Intent(Intents.Service.ACTION_SET_ACTIVATION_MODE);
    intent.putExtra(Intents.Service.EXTRA_SET_ACTIVATION_MODE, active);
    return intent;
}

（2）之前已知的

src/com/gsma/rcs/service/RcsServiceControlReceiver.java

case Intents.Service.ACTION_SET_ACTIVATION_MODE: {

【generateSetActivationModeIntent 调用】

（1）src/main/java/com/gsma/services/rcs/RcsServiceControl.java

public class RcsServiceControl {

    public void setActivationMode(boolean active) throws RcsPermissionDeniedException, RcsGenericException {
        Bundle result = queryRcsStackByIntent(generateSetActivationModeIntent(active));

【setActivationMode 调用】

（1）src/com/gsma/rcs/core/control/settings/SettingsDisplay.java

public class SettingsDisplay extends RcsPreferenceActivity implements
        Preference.OnPreferenceChangeListener {

    public boolean onPreferenceTreeClick(PreferenceScreen preferenceScreen, Preference preference) {
。。。
                    mRcsServiceControl.setActivationMode(true);

-》好像是设置页面中，点击了选项后，才会触发去设置激活模式

（2）src/com/gsma/rcs/core/control/settings/SettingsDisplay.java

public class SettingsDisplay extends RcsPreferenceActivity implements
        Preference.OnPreferenceChangeListener {

    protected Dialog onCreateDialog(int id) {

        mRcsServiceControl.setActivationMode(false);

对于onCreateDialog像是：当创建对话框时

对于上面的setActivationMode，去调试看看：

【无法解决】调试rcsjta的settings以触发setActivationMode设置激活模式以去找RCS服务启动逻辑

转载请注明：在路上 » 【记录】研究rcsjta中的RcsCoreService的代码调用逻辑和顺序

【记录】研究rcsjta中的RcsCoreService的代码调用逻辑和顺序

与本文相关的文章

Hi，您需要填写昵称和邮箱！
