【整理】RCS相关协议学习:RCC.14_v5.0.pdf Service Provider Device Configuration

Service crifan 262浏览 0评论
折腾:
【记录】继续研究rcsjta相关文档和RCS相关资料
期间,顺带也去看看相关的规范

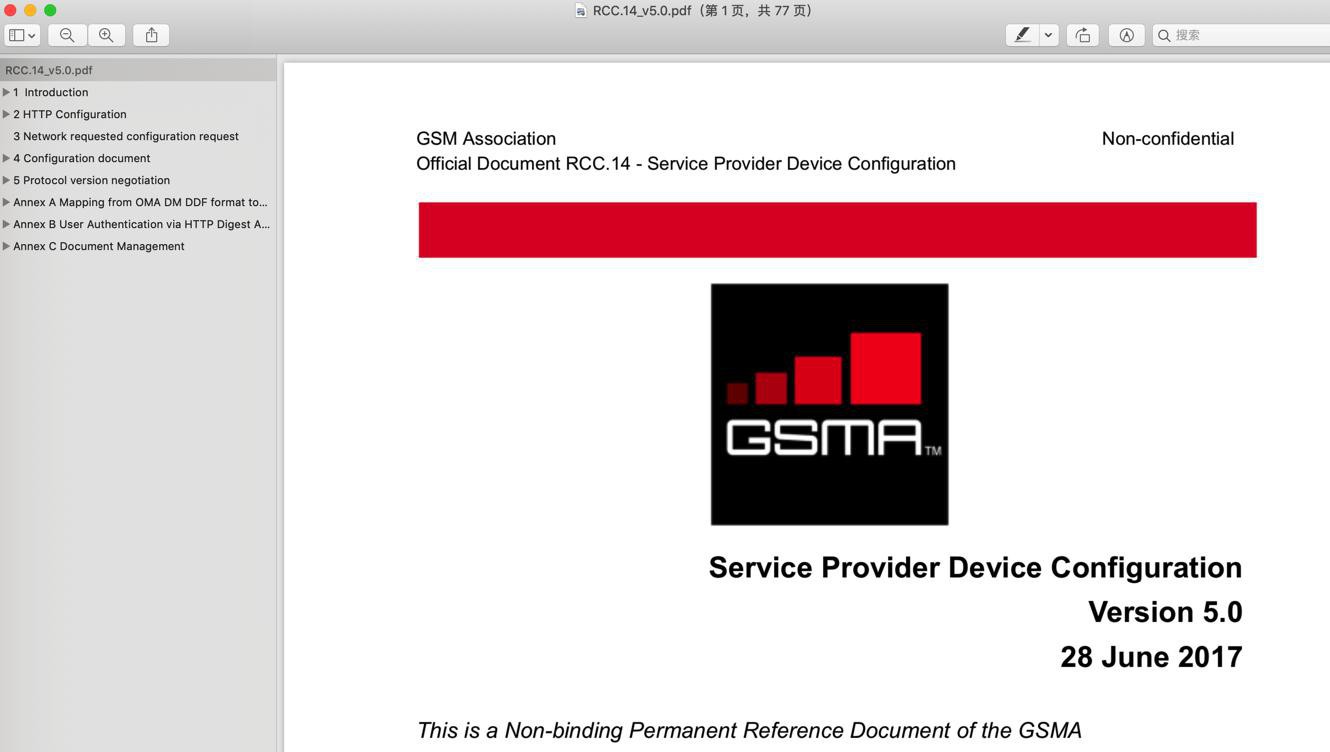

RCC.14_v5.0.pdf
Service Provider Device Configuration Version 5.0 28 June 2017
感觉好像是:
设备client使用之前,需要从Configuration Server中获取configuration配置的
以及一些相关的内容:

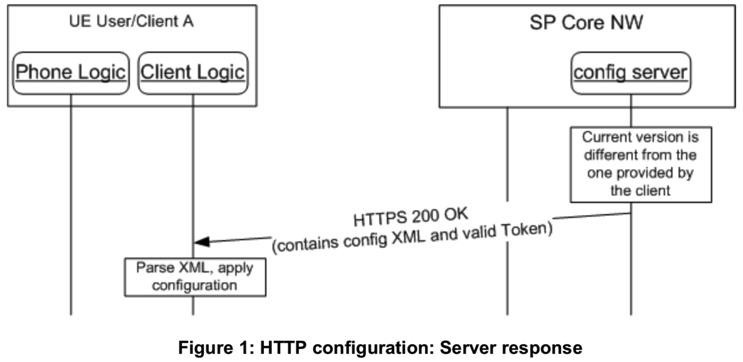

  • HTTP configuration: Server response

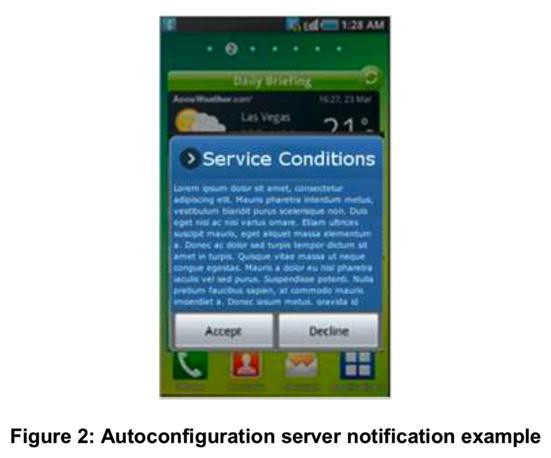

  • Autoconfiguration server notification example

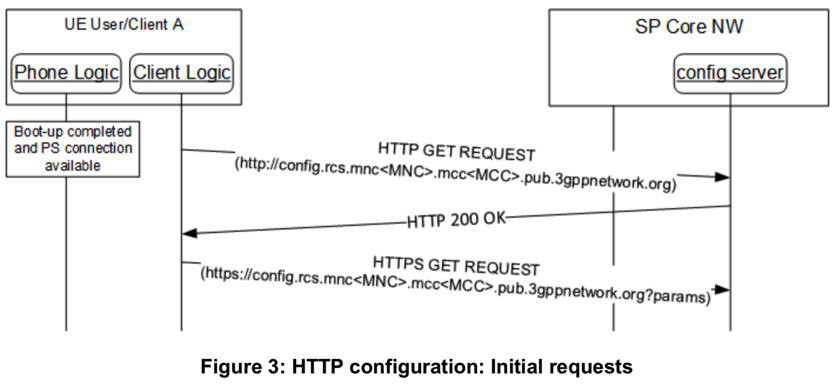

  • HTTP configuration: Initial requests

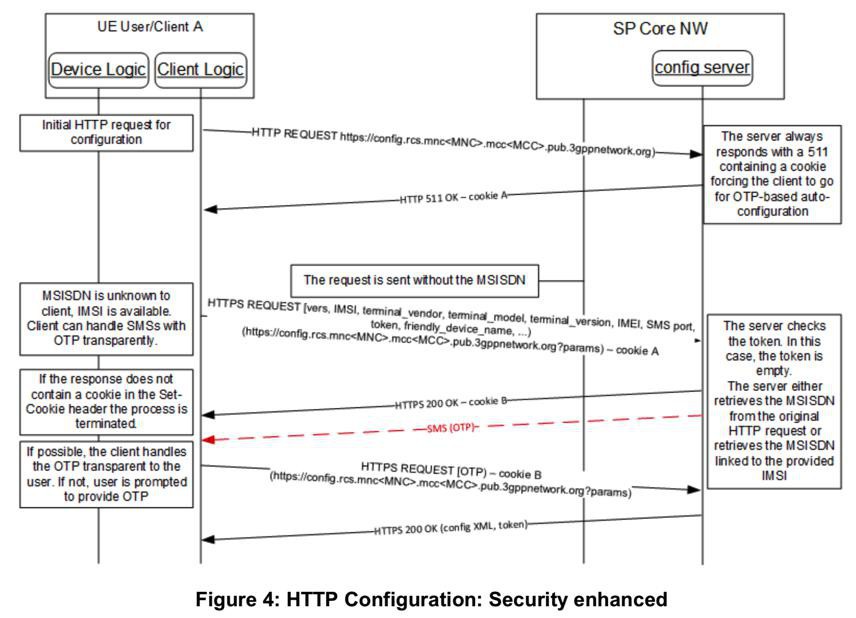

  • HTTP Configuration: Security enhanced
其中:
看起是:
  • 参数:msisdn
    • 含义:
      • MSISDN, in E.164 format, of the primary SIM that is used to derive the user’s main identity.
      • It shall be present if the request is sent in result of a user prompt to enter the MSISDN.
      • In all other cases it shall be present if the client is able to discover a value from the client configuration or if the client has stored the value of a previous user input which caused a successful configuration response.
    • 格式
      • E.164 (+4479000000 1) in international format
      • NOTE: In case that msisdn comes with a plus sign, the client shall provide the msisdn value with the plus sign encoded as per [RFC3986] section 2.1.
    • 举例
      • 好像是:+4479000000 1 ?
感觉是:
此处的MSISDN 就是 国际格式的 手机号码,符合E.164标准,表示 指代一个用户 身份?
不过此处内容是属于:

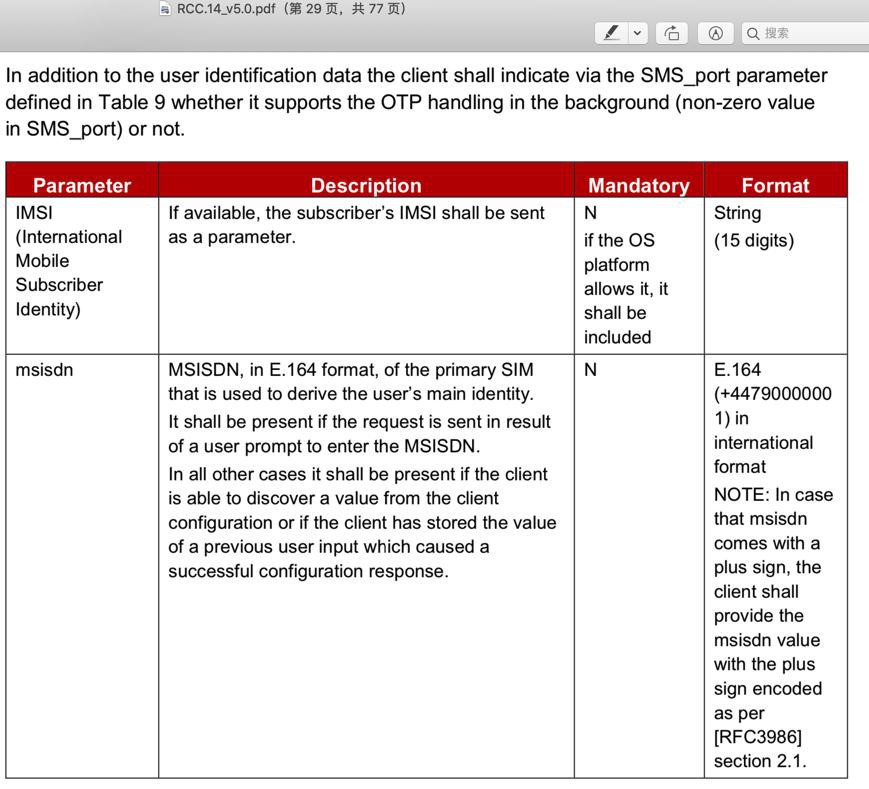

Table 9: Additional configuration request parameters for primary devices over non- 3GPP access
即:
非3GPP的访问 RCS的时候,需要配置的参数
不过MSISDN参数 mandatory=N,不是必须参数,是可选的

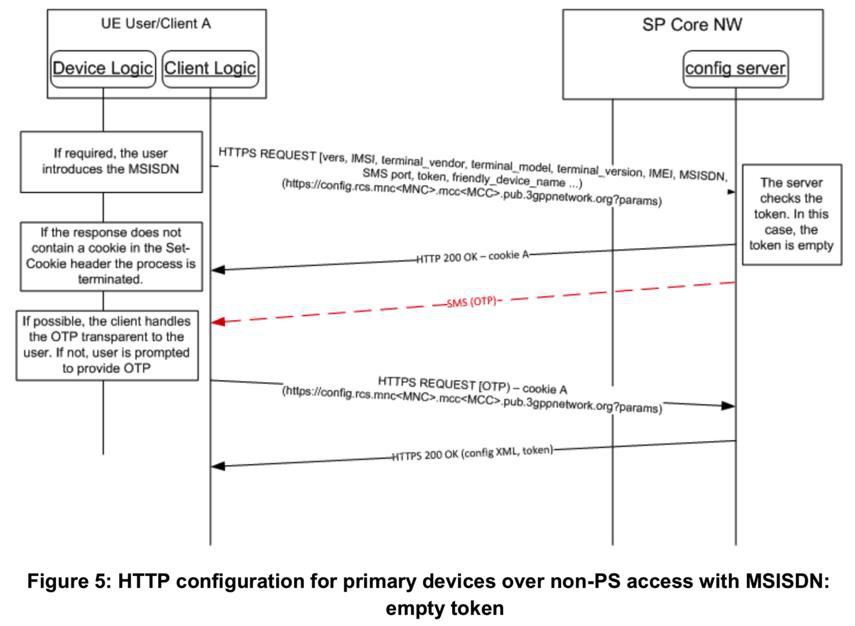

  • HTTP configuration for primary devices over non-PS access with MSISDN: empty token

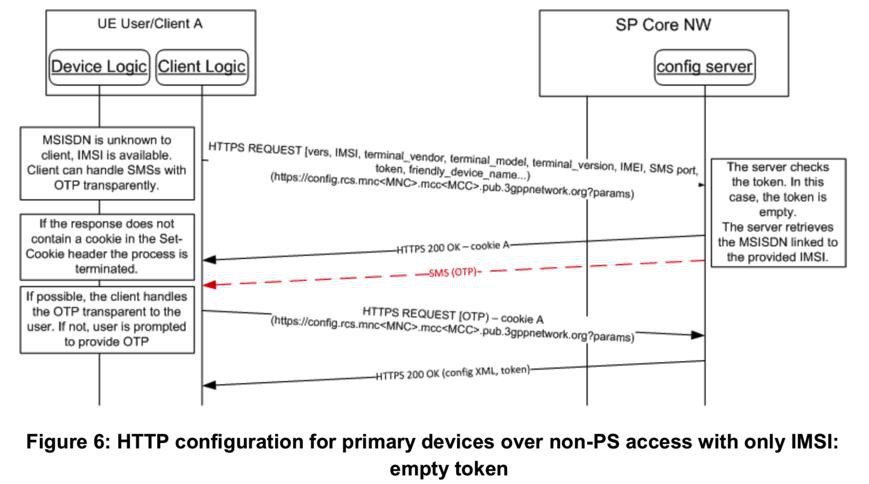

  • HTTP configuration for primary devices over non-PS access with only IMSI: empty token

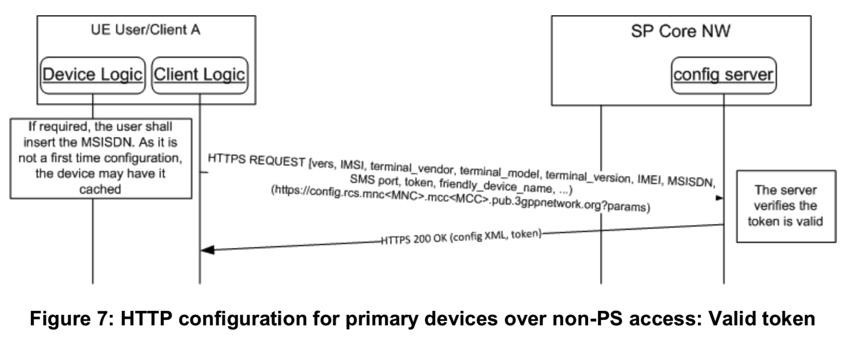

  • HTTP configuration for primary devices over non-PS access: Valid token

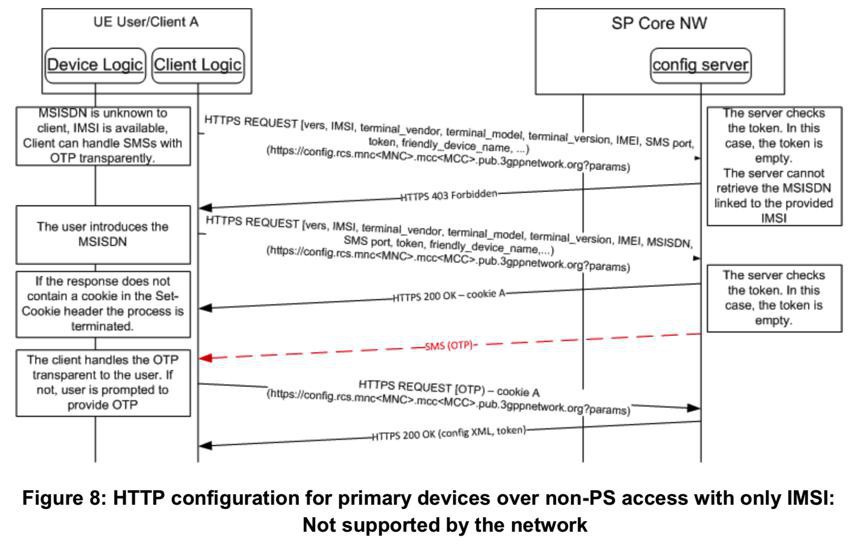

  • HTTP configuration for primary devices over non-PS access with only IMSI: Not supported by the network

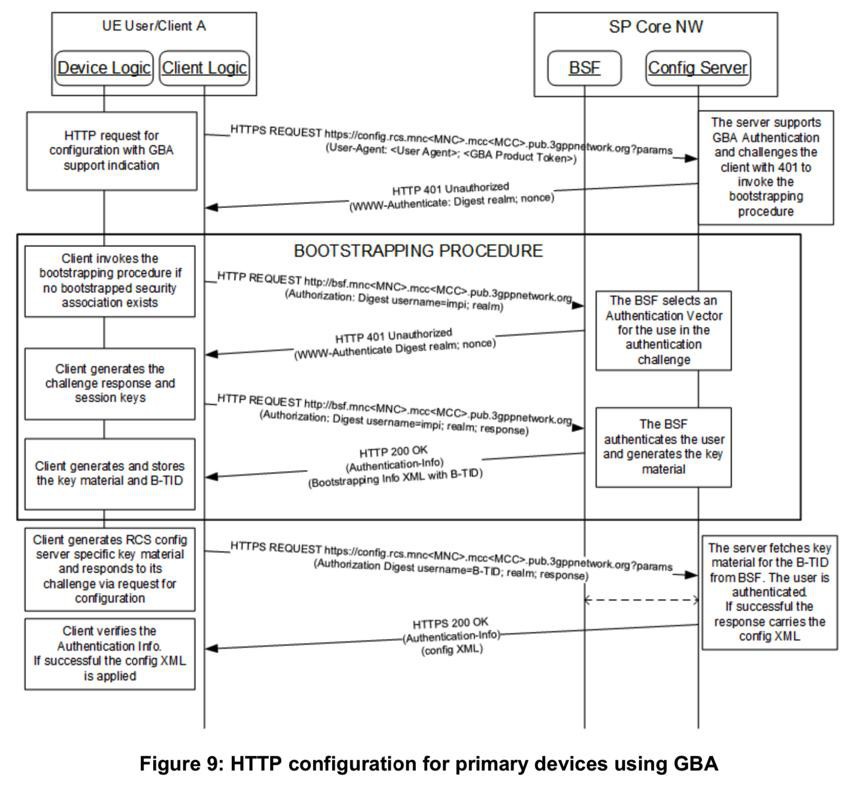

  • HTTP configuration for primary devices using GBA
后来看到:

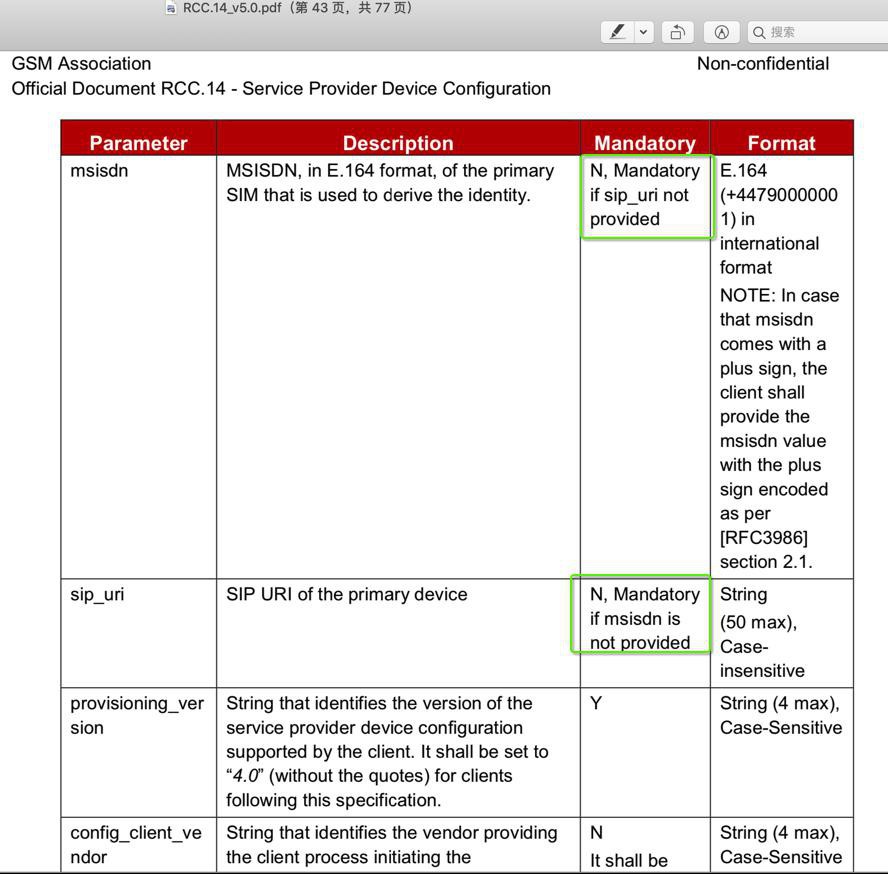

HTTP configuration for additional devices: Initial HTTPS request GET parameters
中有个:
  • msisdn
    • Mandatory:N, Mandatory if sip_uri not provided
  • sip_uri
    • Mandatory:N, Mandatory if msisdn is not provided
即:MSISDN和sip_uri 二选一,必须有一个值
这个和之前的rcsjta项目中调试发现的 IMS name,看起来好像是一致,或许就是指的是 IMS name之类的概念?
另外的:

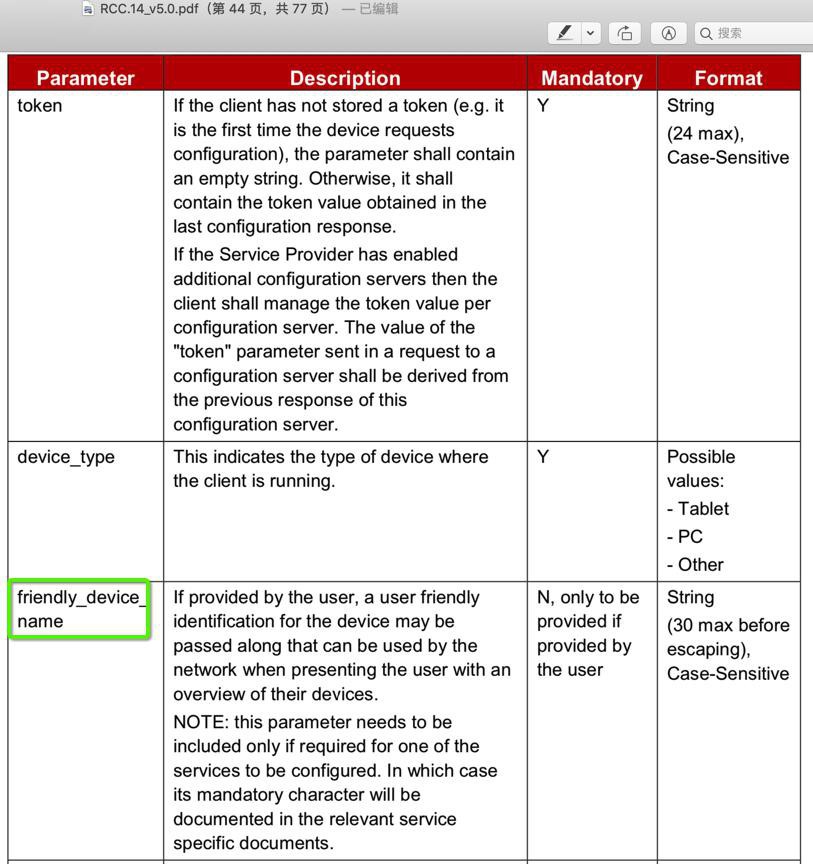

  • friendly_device_name
    • 含义:If provided by the user, a user friendly identification for the device may be passed along that can be used by the network when presenting the user with an overview of their devices.
      • NOTE: this parameter needs to be included only if required for one of the services to be configured. In which case its mandatory character will be documented in the relevant service specific documents.
    • Mandatory:N, only to be provided if provided by the user
这个friendly_device_name,看起来和之前调试rcsjta的Provisioning中IMS Display name,感觉意思很接近,可能就是同一个东西
  • additional devices

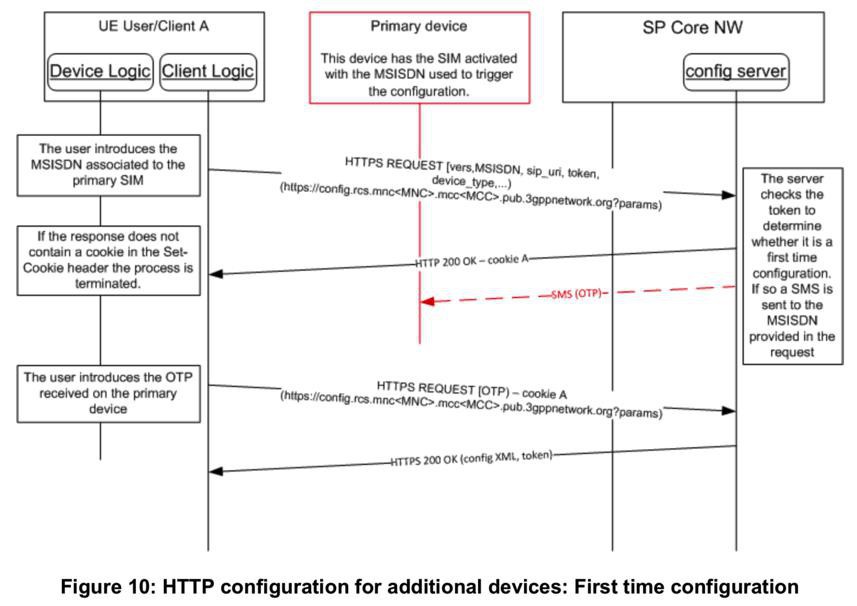

    • HTTP configuration for additional devices: First time configuration

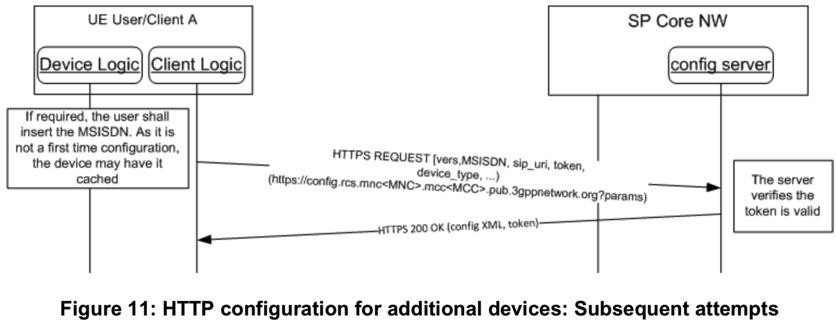

    • HTTP configuration for additional devices: Subsequent attempts
  • non-cellular devices

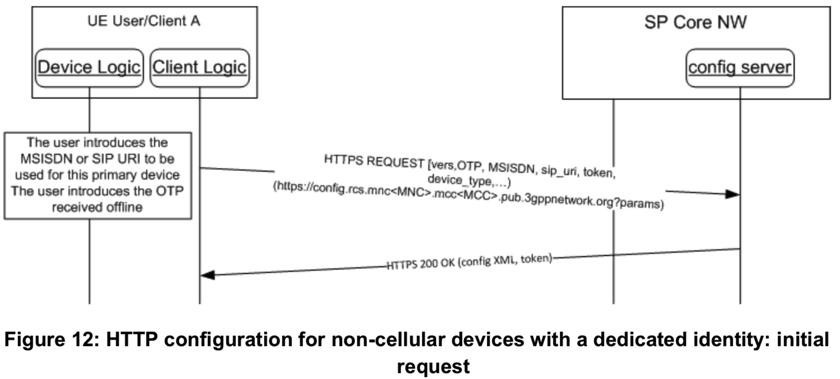

    • HTTP configuration for non-cellular devices with a dedicated identity: initial request

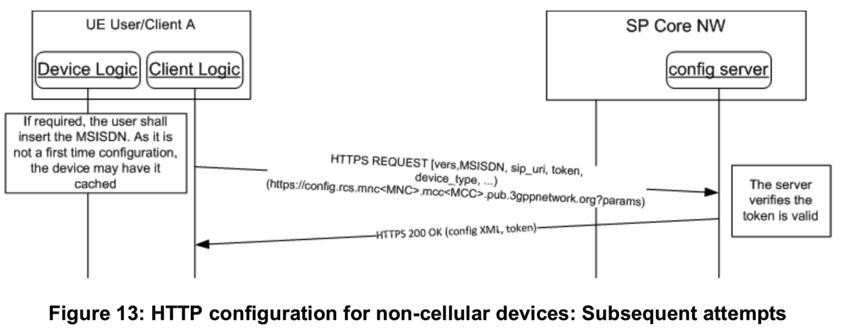

    • HTTP configuration for non-cellular devices: Subsequent attempts
目前已大概扫了一遍。
以后需要详细研究,再说。
