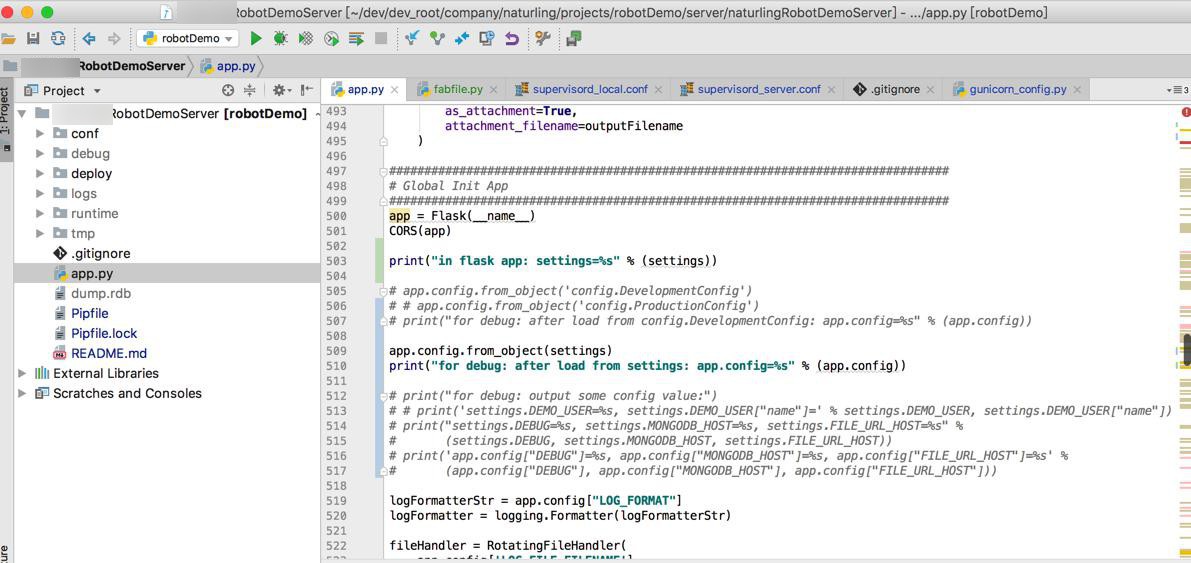

之前Flask的代码是都写到一个app.py中的：
整个扩展性不够好。
听说有个blueprint和factory mode？可以更好的组织代码的架构，所以去搞清楚如何实现蓝图和工厂模式。
flask 蓝图 工厂模式
flask blueprint factory
感觉意思是：factories是不同的模式，比如dev还是prod
如果是，那么我此处之前已经都实现了，就不需要了（之前经过通过doctenv，动态监测传入的FLASK_ENV去加载dev还是prod）
0.7版Flask后才加入的的Blueprint
Flask的功能的模块化，叫做蓝图Blueprint，
在一个app中，或跨多个app，去支持常见的模式
是组织和扩展Flask的应用的一种方式
一个蓝图，本身不是app，而Flask是app
蓝图是一对操作的集合，可以挂载到Flask的app中
-》感觉貌似暂时不需要去用到什么蓝图
而：
def create_app(config_filename): app = Flask(__name__) 。。。
看起来倒是需要的
“查看单个蓝图（如 users），它会封装所有组件以处理应用程序的用户管理方面（定义路由，处理表单，生成模板等）”
我此处暂时对于，单独的路由，表单，模板等，没需求。
但是对于模块化，有需求。
看起来还是感觉用不到
有点明白，但是不是很清楚
我此处还用到了：flask_restful
所以和普通的app的route()还不一样
所以要搞清楚flask_restful的蓝图和工厂模式
flask_restful factory
flask-restful factory
flask-restful factory
去折腾试试
期间遇到很多把flask的app的初始化，转换为factory的模式：
【未解决】Flask中如何用工厂模式初始化pymongo
然后再去解决：
【未解决】Flask中如何用工厂模式初始化flask-restful的api
其中对于代码的目录结构，本来是打开不同的业务逻辑，单独放在一个目录下，比如tts，asr，qa等，然后每个目录中包含views.py的：
➜ xxxRobotDemoServer git:(master) ✗ tree . ... ├── app.py ├── asr │ └── views.py ├── conf ├── factory.py ├── files │ └── views.py ├── qa │ └── views.py └── tts └── views.py
后来参考：
这个flask-restful的官网教程，发现最好是：
都放到resources目录下，变成：
├── app.py ├── factory.py ├── resources │ ├── __init__.py │ ├── ars.py │ ├── files.py │ ├── qa.py │ └── tts.py
接着再去：
【未解决】Flask中如何用工厂模式初始化Celery
另外，关于flask-restful的api的导入，后续可以参考：
放到resources中试试
期间遇到了循环导入的问题：
【已解决】Flask中循环导入app和create_app的问题：ImportError: cannot import name ‘create_app’

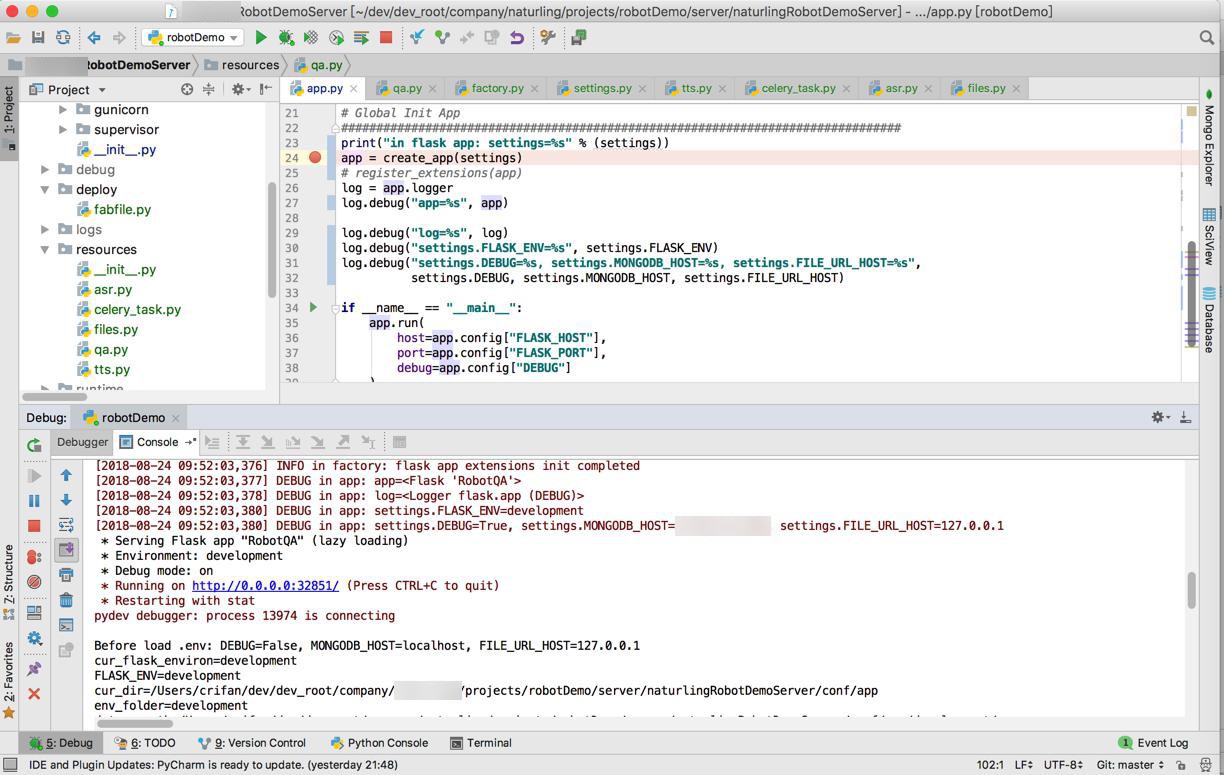

然后此处，终于，至少可以PyCharm中，能调试和跑起来Flask的app了：
不过感觉还是有点点小问题：
【已解决】Flask中换成工厂模式去初始化app实例后app被初始化两次
目前看来，好像是可以了。
再继续调试，确保本地可以正常运行起来产品demo的Flask的app，给前端提供可用的api
此处又出现问题了：
【已解决】Flask中如何用工厂模式初始化Celery
的
【已解决】Flask的Celery改为工厂模式后本地调试worker出错：RuntimeError: Working outside of application context
【总结】
最终实现了：
- 避免了循环导入
- 避免了两次初始化Flask的app
- Flask的调试模式去掉
- celery中不要create_app
代码结构：
➜ xxxRobotDemoServer git:(master) ✗ tree . ... ├── README.md ├── app.py ├── conf │ ├── __init__.py │ ├── app │ │ ├── __init__.py │ │ ├── development │ │ │ └── __init__.py │ │ ├── production │ │ │ └── __init__.py │ │ └── settings.py │ ├── gunicorn │ │ └── gunicorn_config.py │ └── supervisor │ ├── supervisord_local.conf │ └── supervisord_server.conf ├── factory.py ├── resources │ ├── __init__.py │ ├── asr.py │ ├── extensions_celery.py │ ├── files.py │ ├── qa.py │ ├── tasks.py │ └── tts.py ...
代码如下：
app.py
import os
from conf.app import settings
from factory import create_app
# from factory import log
# from factory import create_celery_app
################################################################################
# Global Definitions
################################################################################
################################################################################
# Global Variables
################################################################################
################################################################################
# Global Function
################################################################################
################################################################################
# Global Init App
################################################################################
print("in flask app: settings=%s" % (settings))
app = create_app(settings)
app.app_context().push()
# register_extensions(app)
log = app.logger
log.debug("app=%s", app)
log.debug("log=%s", log)
log.debug("settings.FLASK_ENV=%s", settings.FLASK_ENV)
log.debug("settings.DEBUG=%s, settings.MONGODB_HOST=%s, settings.FILE_URL_HOST=%s",
settings.DEBUG, settings.MONGODB_HOST, settings.FILE_URL_HOST)
# celery = None
# with app.app_context():
# celery = create_celery_app(app)
# print("celery=%s" % celery)
if __name__ == "__main__":
app.run(
host=settings.FLASK_HOST,
port=settings.FLASK_PORT,
debug=settings.DEBUG,
use_reloader=False
)factory.py
import os
from flask import Flask
import logging
from logging.handlers import RotatingFileHandler
# from flask_pymongo import PyMongo
from gridfs import GridFS
from pymongo import MongoClient
from flask_restful import Api
from flask_cors import CORS
from conf.app import settings
from celery import Celery
# from flask_celery import Celery
# from resources.extensions_celery import celery
from flask import g
################################################################################
# Global Variables
################################################################################
# # log = logging.getLogger() #<RootLogger root (WARNING)>
# log = None
# print("log=%s" % log)
#
# # mongo = MongoClient() # MongoClient(host=['localhost:27017'], document_class=dict, tz_aware=False, connect=True)
# mongo = None
# print("mongo=%s" % mongo)
# fsCollection = None #None
# print("fsCollection=%s" % fsCollection)
#
# celery = Celery() #<Celery __main__ at 0x1068d8b38>
# celery = None
# print("celery=%s" % celery)
################################################################################
# Global Function
################################################################################
def create_app(config_object, init_extensions=True):
# global log
# app = Flask(__name__) #<Flask 'factory'>
app = Flask(config_object.FLASK_APP_NAME) #<Flask 'RobotQA'>
CORS(app)
# app.config.from_object('config.DevelopmentConfig')
# # app.config.from_object('config.ProductionConfig')
app.config.from_object(config_object)
with app.app_context():
g.app = app
log = create_log(app)
g.log = log
log.debug("after load from object: app.config=%s", app.config)
log.debug('app.config["DEBUG"]=%s, app.config["MONGODB_HOST"]=%s, app.config["FILE_URL_HOST"]=%s',
app.config["DEBUG"], app.config["MONGODB_HOST"], app.config["FILE_URL_HOST"])
if init_extensions:
register_extensions(app)
log.info("flask app extensions init completed")
return app
def register_extensions(app):
# global log, mongo, fsCollection, api, celery
log = g.log
mongo = create_mongo(app)
g.mongo = mongo
log.info("mongo=%s", mongo)
mongoServerInfo = mongo.server_info()
log.debug("mongoServerInfo=%s", mongoServerInfo)
fsCollection = create_gridfs_fs_collection(mongo)
g.fsCollection = fsCollection
log.info("fsCollection=%s", fsCollection)
celery = create_celery_app(app)
g.celery = celery
log.info("celery=%s", celery)
# api = Api(app)
api = create_rest_api(app)
log.debug("api=%s", api)
g.api = api
return app
def create_rest_api(app):
from resources.qa import RobotQaAPI
from resources.asr import RobotAsrAPI
from resources.files import GridfsAPI, TmpAudioAPI
rest_api = Api()
rest_api.add_resource(RobotQaAPI, '/qa', endpoint='qa')
rest_api.add_resource(RobotAsrAPI, '/asr/language/<string:language>', endpoint='asr')
rest_api.add_resource(GridfsAPI, '/files/<fileId>', '/files/<fileId>/<fileName>', endpoint='gridfs')
rest_api.add_resource(TmpAudioAPI, '/tmp/audio/<filename>', endpoint='TmpAudio')
rest_api.init_app(app)
return rest_api
def create_log(app):
print("create_log: before init log: app.logger=%s" % app.logger)
logFormatterStr = app.config["LOG_FORMAT"]
logFormatter = logging.Formatter(logFormatterStr)
fileHandler = RotatingFileHandler(
app.config['LOG_FILE_FILENAME'],
maxBytes=app.config["LOG_FILE_MAX_BYTES"],
backupCount=app.config["LOG_FILE_BACKUP_COUNT"],
encoding="UTF-8")
fileHandler.setLevel(logging.DEBUG)
fileHandler.setFormatter(logFormatter)
app.logger.addHandler(fileHandler)
# Note: should NOT set StreamHandler here, otherwise will duplicate debug log
app.logger.setLevel(logging.DEBUG) # set root log level
log = app.logger
log.info("app=%s", app)
# log.debug("app.config=%s", app.config)
print("create_log: after init log: app.logger=%s" % app.logger)
return log
def create_mongo(app):
# mongo_client = MongoClient(
# host=app.config["MONGODB_HOST"],
# port=app.config["MONGODB_PORT"],
# username=app.config["MONGODB_USERNAME"],
# password=app.config["MONGODB_PASSWORD"],
# authSource=app.config["MONGODB_AUTH_SOURCE"]
# )
if settings.MONGODB_AUTH_SOURCE:
mongo_client = MongoClient(
host=settings.MONGODB_HOST,
port=int(settings.MONGODB_PORT),
username=settings.MONGODB_USERNAME,
password=settings.MONGODB_PASSWORD,
authSource=settings.MONGODB_AUTH_SOURCE
)
elif settings.MONGODB_USERNAME and settings.MONGODB_PASSWORD:
mongo_client = MongoClient(
host=settings.MONGODB_HOST,
port=int(settings.MONGODB_PORT),
username=settings.MONGODB_USERNAME,
password=settings.MONGODB_PASSWORD,
)
elif settings.MONGODB_PORT:
mongo_client = MongoClient(
host=settings.MONGODB_HOST,
port=int(settings.MONGODB_PORT),
)
elif settings.MONGODB_HOST:
mongo_client = MongoClient(
host=settings.MONGODB_HOST,
)
else:
mongo_client = MongoClient()
return mongo_client
def create_gridfs_fs_collection(mongo_db):
# Pure PyMongo
gridfs_db = mongo_db.gridfs # Database(MongoClient(host=['xxx:32018'], document_class=dict, tz_aware=False, connect=True, authsource='gridfs'), 'gridfs')
gridfs_fs_collection = GridFS(gridfs_db) # <gridfs.GridFS object at 0x1107b2390>
return gridfs_fs_collection
def create_celery_app(app=None):
print("create_celery_app: app=%s" % app)
app = app or create_app(settings, init_extensions=False)
app_import_name = app.import_name
# app_name = app.name
# celery_app_name = app_name
celery_app_name = app_import_name
celery = Celery(celery_app_name, broker=app.config['CELERY_BROKER_URL'])
celery.conf.update(app.config)
# celery.log = app.logger
TaskBase = celery.Task
class ContextTask(TaskBase):
abstract = True
def __call__(self, *args, **kwargs):
with app.app_context():
# g.log.info("in celery ContextTask __call__: args=%s, kwargs=%s", args, kwargs)
app.logger.info("in celery ContextTask __call__: args=%s, kwargs=%s", args, kwargs)
return TaskBase.__call__(self, *args, **kwargs)
celery.Task = ContextTask
# celery.init_app(app)
print("init celery ok")
return celery其他几个模块：
resources/files.py
import os
from flask_restful import Resource
from bson.objectid import ObjectId
from flask import request
from flask import jsonify
from common.util import sendFile
# from app import fsCollection
# from app import log
# from app import app
# from flask import current_app as app
# from factory import mongo, fsCollection
from flask import g
from resources.tts import gTempAudioFolder
log = g.log
mongo = g.mongo
fsCollection = g.fsCollection
# log.debug("mongo=%s, fsCollection=%s", mongo, fsCollection)
class GridfsAPI(Resource):
def get(self, fileId, fileName=None):
# log = app.logger
log.info("fileId=%s, file_name=%s", fileId, fileName)
...
return sendFile(fileBytes, fileObj.content_type, outputFilename)
class TmpAudioAPI(Resource):
def get(self, filename=None):
# log = app.logger
log.info("TmpAudioAPI: filename=%s", filename)
tmpAudioFullPath = os.path.join(gTempAudioFolder, filename)
log.info("tmpAudioFullPath=%s", tmpAudioFullPath)
...
return sendFile(fileBytes, contentType, outputFilename)resources/qa.py
import os import sys from urllib.parse import quote from flask_restful import Resource from flask_restful import reqparse from bson.objectid import ObjectId from conf.app import settings # from app import app, log # from flask import current_app as app # from app import fsCollection from flask import g app = g.app log = g.log fsCollection = g.fsCollection print(__file__) if settings.FLASK_ENV == "production": # production: online dev server ... else: # development: local debug ... sys.path.append(xxxRootPath) ... from resources.tts import processResponse ... class RobotQaAPI(Resource): def get(self): ... return processResponse(respDict, voiceName, voiceRate, voiceVolume)
resources/tts.py
import os
import requests
from urllib.parse import quote
from flask import jsonify
# from app import deleteTmpAudioFile
# from tasks import deleteTmpAudioFile
from resources.tasks import deleteTmpAudioFile
from resources.tasks import refreshAzureSpeechToken
from conf.app import settings
# import sys
# resouces_dir = os.path.dirname(__file__)
# project_root_dir = os.path.abspath(os.path.join(resouces_dir, ".."))
# if project_root_dir not in sys.path:
# sys.path.append(project_root_dir)
from common.util import generateUUID
from flask import g
app = g.app
log = g.log
################################################################################
# Global Definitions
################################################################################
################################################################################
# Global Variables
################################################################################
...
gCurBaiduRespDict = {} # get baidu token resp dict
gMsToken = ""
gTempAudioFolder = ""
################################################################################
# Global Function
################################################################################
#----------------------------------------
# Audio Synthesis / TTS（Text-To-Speech)
#----------------------------------------
def createAudioTempFolder():
"""create foler to save later temp audio files"""
global gTempAudioFolder
# log = app.logger
# init audio temp folder for later store temp audio file
audioTmpFolder = settings.AUDIO_TEMP_FOLDER
log.info("audioTmpFolder=%s", audioTmpFolder)
...
def saveAudioDataToTmpFile(audioBinData):
"""
save audio binary data into temp file
:param audioBinData: binary data of audio file
:return: audio tmp file name
"""
global gTempAudioFolder
# log = app.logger
audioBinDataLen = len(audioBinData)
log.info("saveAudioDataToTmpFile: audioBinDataLen=%s", audioBinDataLen)
...
return tempFilename
...
def getAzureSpeechToken():
"""get Microsoft Azure speech service token key"""
# log = app.logger
global gMsToken
gMsToken = refreshAzureSpeechToken()
def msTTS(unicodeText,
voiceName=settings.MS_TTS_VOICE_NAME,
voiceRate=settings.MS_TTS_VOICE_RATE,
voiceVolume=settings.MS_TTS_VOICE_VOLUME):
"""call ms azure tts to generate audio(mp3/wav/...) from text"""
global gMsToken
# log = app.logger
log.info("msTTS: unicodeText=%s", unicodeText)
...
return isOk, audioBinData, errNo, errMsg
...
################################################################################
# Global Init
################################################################################
# testAudioSynthesis()
initAudioService()
log.info("TTS init complete")和Celery相关的：
resources/extensions_celery.py
# from flask_celery import Celery
from conf.app import settings
from celery import Celery
from celery.utils.log import get_task_logger
# celery = Celery()
celery = Celery(settings.FLASK_APP_NAME, broker=settings.CELERY_BROKER_URL)
celery_logger = get_task_logger(__name__)
print("in extensions_celery: celery=%s" % celery)resources/tasks.py
import os
import requests
# from resources.extensions_celery import celery
# print("celery=%s" % celery)
# print("celery.app=%s" % celery.app)
# print("celery.app.log=%s" % celery.app.log)
# print("celery.log=%s" % celery.log)
from conf.app import settings
# try:
# from flask import g
# print("tasks: import flask g ok")
# print("g=%s" % g)
# log = g.log
# print("log=%s" % log)
# except RuntimeError as err:
# # except:
# print("tasks: failed to import flask g, err=%s" % err)
# from factory import create_app
# print("tasks: import create_app ok")
# app = create_app(settings)
# print("create_app ok, app=%s" % app)
# log = app.logger
# print("log=%s" % log)
# import logging
# log = logging.getLogger(settings.FLASK_APP_NAME)
# log.info("test logging getLogger from flask app, work?")
# print("-----before: from factory import create_celery_app")
# from factory import create_celery_app
# from factory import create_log, create_app
# print("from factory import create_celery_app ok")
# celery = create_celery_app()
# app = create_app(settings)
# celery = create_celery_app(app)
# log = app.logger
from resources.extensions_celery import celery, celery_logger as log
print("create_celery_app return: celery=%s, log=%s" % (celery, log))
#----------------------------------------
# Celery tasks
#----------------------------------------
# @celery.task()
@celery.task
# @celery.task(name=settings.CELERY_TASK_NAME + ".deleteTmpAudioFile")
def deleteTmpAudioFile(filename):
"""
delete tmp audio file from filename
eg: 98fc7c46-7aa0-4dd7-aa9d-89fdf516abd6.mp3
"""
# print("deleteTmpAudioFile: celery=%s, filename=%s" % (celery, filename))
# log = app.logger
# with celery.app.app_context():
# log = celery.app.logger
# app = celery.app
# log = celery.log
# print("celery.log=%s" % celery.log)
# print("log=%s" % log)
log.info("deleteTmpAudioFile: celery=%s, filename=%s", celery, filename)
audioTmpFolder = settings.AUDIO_TEMP_FOLDER
# audioTmpFolder = "tmp/audio"
log.info("audioTmpFolder=%s", audioTmpFolder)
...
@celery.task
# def celeryRefreshAzureSpeechToken():
def refreshAzureSpeechToken():
"""celery's task: refresh microsoft azure speech token key for later call tts/ASR api"""
log.info("celeryRefreshAzureSpeechToken: celery=%s" % celery)
# with celery.app.app_context():
# from resources.tts import refreshAzureSpeechToken
# refreshAzureSpeechToken()
# global gMsToken
# log = app.logger
# log.info("refreshAzureSpeechToken: gMsToken=%s", gMsToken)
# log.info("refreshAzureSpeechToken")
getMsTokenUrl = settings.MS_GET_TOKEN_URL
reqHeaders = {
"Ocp-Apim-Subscription-Key": settings.MS_TTS_SECRET_KEY
}
log.info("getMsTokenUrl=%s, reqHeaders=%s", getMsTokenUrl, reqHeaders)
resp = requests.post(getMsTokenUrl, headers=reqHeaders)
log.info("resp=%s", resp)
respTokenText = resp.text # eyxxxxiJ9.xxx.xxx
log.info("respTokenText=%s", respTokenText)
# gMsToken = respTokenText
updatedToken = respTokenText
return updatedToken
@celery.on_after_configure.connect
def celerySetupPeriodicTasks(sender, **kwargs):
log.info("celerySetupPeriodicTasks: celery=%s, sender=%s" % (celery, sender))
# with celery.app.app_context():
# log = app.logger
# log = celery.app.logger
# app = celery.app
# log = celery.log
# # print("celery.log=%s" % celery.log)
# # print("log=%s" % log)
# print("sender=%s" % sender)
# log.info("celerySetupPeriodicTasks: sender=%s", sender)
# print("celerySetupPeriodicTasks: log is usable")
sender.add_periodic_task(settings.CELERY_REFRESH_MS_TOKEN_INTERVAL,
# celeryRefreshAzureSpeechToken.s(),
refreshAzureSpeechToken.s(),
name="refresh ms Azure token every less than 10 minutes")转载请注明：在路上 » 【已解决】用蓝图和工厂模式去优化现有Flask项目代码结构
