【整理】RCC是什么及RCS有哪些相关协议和规范

RCS crifan 888浏览 0评论
折腾:
【整理】rcsjta项目中的RCS的版本和基础知识
期间发现有个:
http://www.gsma.com/network2020/wp-content/uploads/2015/06/RCC-55-v2-0.pdf
然后其中有个链接:
https://www.gsma.com/futurenetworks/wp-content/uploads/2015/03/RCS5.3_UNI.zip

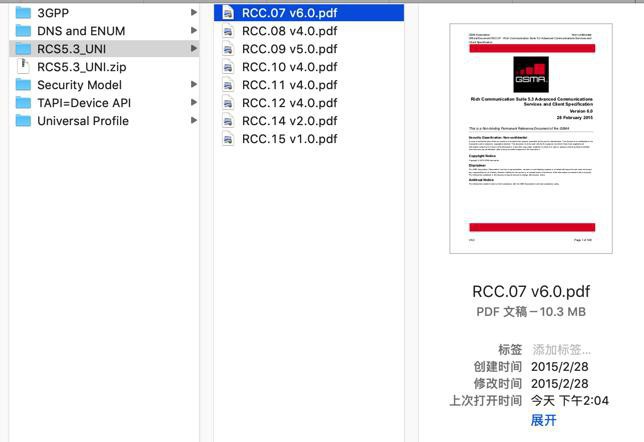

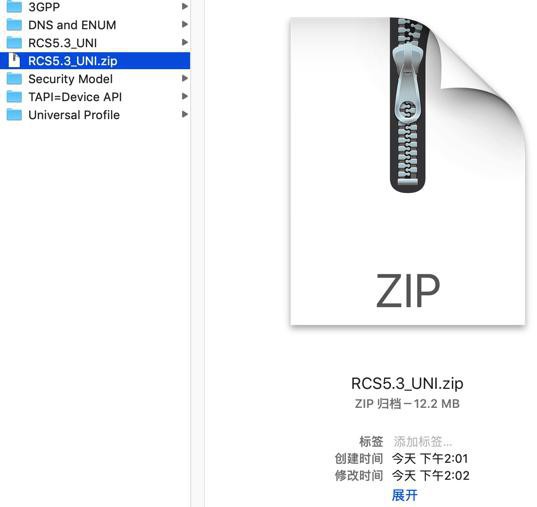

下载后打开,发现是多个RCC的文件:
解压后发现是多个RCC文件:
对于RCC 不是很清楚,但是至少看到了很多东西都和RCS相关
所以去打开了第一个:
RCC.07 v6.0.pdf
整理对应关系如下:
  • RCC.07 = RCS5.3
    • GSMA PRD RCC.07 – RCS 5.3 – Advanced Communications: Services and Client Specification, Version 6.0, 28 February 2015
  • RCC 08 = RCS5-3GPP- SMSIW- ENDORS
    • GSMA PRD RCC.08 RCS 5.3 Endorsement of 3GPP TS 29.311 Service level Interworking for Messaging Services, Version 4.0
    • 28 February 2015
  • RCC 09 = RCS5-CPM- MSGSTOR- ENDORS
    • GSMA PRD RCC.09 RCS 5.3 Endorsement of OMA CPM 2.0 Message Storage, Version 5.0
    • 28 February 2015
  • RCC 10 = RCS5-CPM- IW-ENDORS
    • GSMA PRD RCC.10 RCS 5.3 Endorsement of OMA CPM 2.0 Interworking, Version 4.0
    • 28 February 2015
  • RCC 11 = RCS5-CPM- CONVFUNC- ENDORS
    • GSMA PRD RCC.11 RCS 5.3 Endorsement of OMA CPM 2.0 Conversation Functions, Version 4.0
    • 28 February 2015
  • RCC 12 = RCS5- SIMPLEIM- ENDORS
    • GSMA PRD RCC.12 RCS 5.3 Endorsement of OMA SIP/SIMPLE IM 2.0, Version 4.0
    • 28 February 2015
  • RCC 14 = PRD-RCC.14
    • GSMA PRD RCC.14 HTTP-based Service Provider Device Configuration, Version 2.0
    • 28 February 2015
  • RCC 15 = PRD-RCC.15
    • GSMA PRD RCC.15 IMS Device Configuration and Supporting Services, Version 1.0
    • 02 February 2015
  • RCC 53 = PRD-RCC.53
    • RCS Device API 1.5 Specification Version 2.0
  • RCC 61 = PRD-RCC.61
    • GSMA PRD RCC.61 RCS Common Core Service Description Document, Version 1.1
    • 28 February 2015
不过还是没解释什么是RCC
RCC GSMA
GSMA what is RCC
Does Device Entitlement Software In Smartphones Signal New Growth For VoLTE? – Finance Digest
The solution could be VoLTE Device Entitlement, which is defined in the GSMA’s RCC 14 and RCC 15 specifications as part of the RCS Universal Profile (UP) standard
意思是:
GSMA中的有个一系列的 spec规范=standard标准 叫做RCC?
其中RCC 14和15,就是前面整理的对应的:GSMA PRD RCC.14 和 GSMA PRD RCC.15
GSMA | RCC 14 v5.0 – Service Provider Device Configuration – Newsroom
-》
RCC.14 – Service Provider Device Configuration
Version 5.0
28 June 2017
期间看到一个:eSIM
【整理】eSIM是什么
http://www.gsmworld.com/document/rcs5.0_advanced_communications_specification v1.0.pdf
找不到
搜:
rcs5.0_advanced_communications_specification
-》
也还是找不到,但是rcsapirequirementsv2_1.pdf 多了个保存的地址:
类似的
http://www.gsmworld.com/document/ RCS5.0 Endorsement of OMA SIP Simple IM_1.0.pdf
也找不到,但是搜了:
http://www.gsmworld.com/document/RCS5.0 Endorsement of OMA SIP Simple IM 1.0.pdf
最后找到:
Rich Communication Suite 5.0 Endorsement of OMA SIP/SIMPLE IM 1.0
Version 1.0 19 April 2012
Rich Communication Suite 5.1 Endorsement of OMA SIP SIMPLE IM 2.0
Version 2.0 25 September 2013
FFT Doc 16.004 v1.0 (December 2016)
French Federation of Telecoms Standards Committee IP Interconnection Working Group Architecture Sub-group
搜:
http://member.openmobilealliance.org/ftp/public_documents/COM/IM/P ermanent_documents/OMA-TS-SIMPLE_IM-V1_0-20130809-D.zip
也没找到
后来从:

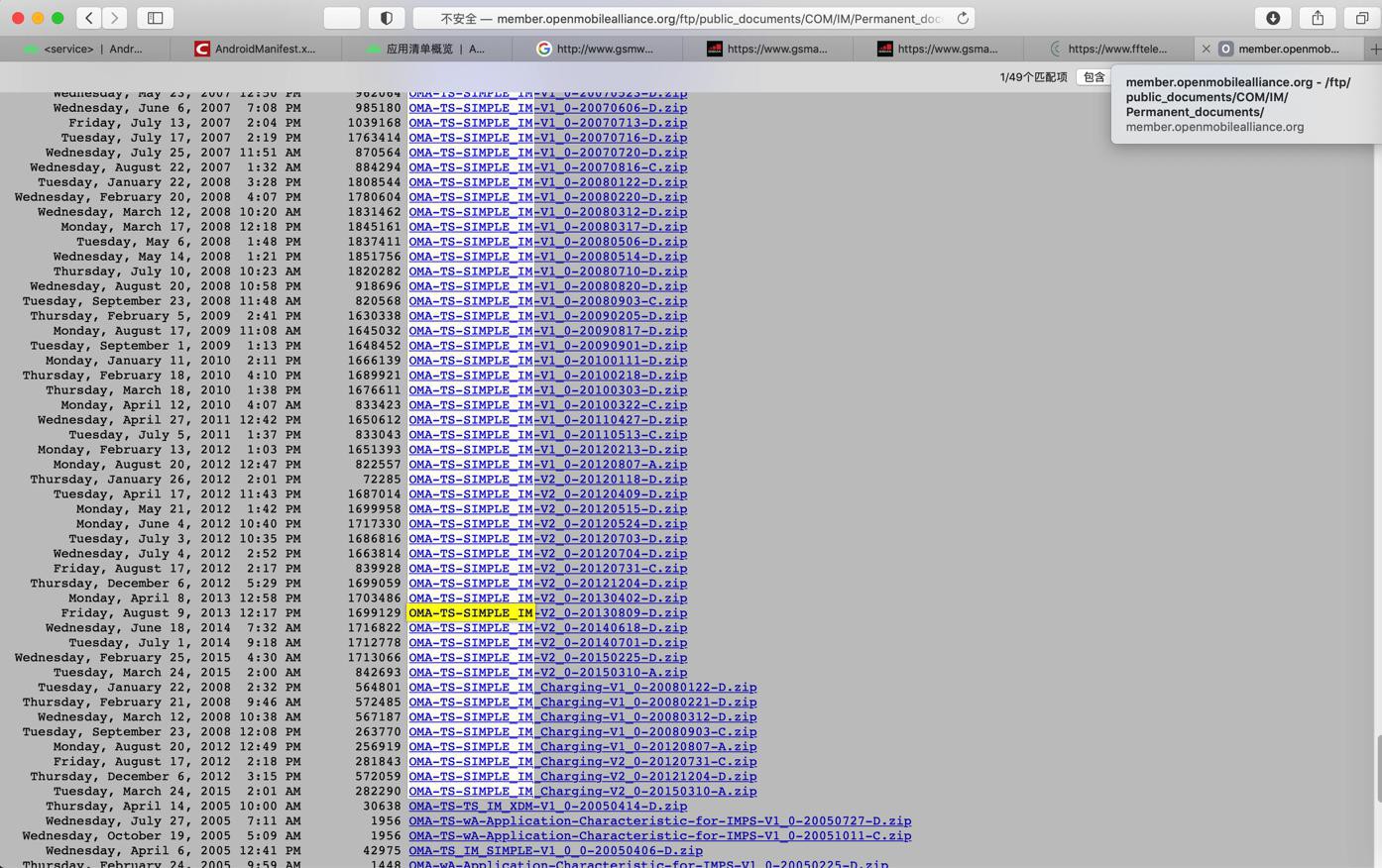

http://member.openmobilealliance.org/ftp/public_documents/COM/IM/Permanent_documents/
看到其实是:
http://member.openmobilealliance.org/ftp/public_documents/COM/IM/Permanent_documents/OMA-TS-SIMPLE_IM-V2_0-20130809-D.zip
即,改名了,从V1改为V2了
其他还有很多相关OMA的文档,就不下载了。
GSMA | RCC 14 v5.0 – Service Provider Device Configuration – Newsroom
GSMA | Resources – Newsroom
GSMA | RCC.07 Rich Communication Suite – Advanced Communications Services and Client Specification v11.0 – Newsroom
GSMA | RCC.13 Rich Communication Suite RCS API Detailed Requirements v5.0 – Newsroom
GSMA | RCC.15 IMS Device Configuration and Supporting Services v7.0 – Newsroom
GSMA | RCC.08 Rich Communications Suite Endorsement of 3GPP TS 29.311 Interworking for Messaging Services v9.0 – Newsroom
GSMA | RCC.14 Service Provider Device Configuration v7.0 – Newsroom
GSMA | RCC.20 Enriched Calling Technical Specification v6.0 – Newsroom
This document describes the functional architecture and technical realisation of Enriched Calling Services.
The enriched calling concept focuses in evolving the current call experience in several key aspects:
  • * Pre-call experience: A user can “compose” information (by including a subject, location, picture, etc.) prior to placing the call such that the other side is able to see the composed pre-call information while receiving the incoming call.
  • * In-call experience: A user can share content during a call: chat, files (or group of files like presentations), location, background audio, video.
  • * Post-call experience: Similar to pre-call experience, a user can “compose” additional information when a call is rejected or unanswered, for the other side to view.
  • * Enriched Call Logs: A user is able to see call log with enriched information e.g. information shared during pre-call, and post-call.
All these features are to be provided in conjunction with Telco telephony services, i.e. traditional circuit switched (CS) call and Multimedia Telephony.
GSMA | RCC.10 Rich Communication Suite Endorsement of OMA CPM 2.2 Interworking v9.0 – Newsroom
https://www.gsma.com/newsroom/resources/rcc-10-rich-communication-suite-endorsement-of-oma-cpm-2-2-interworking-v9-0/
This document provides the details of the interworking to SMS (Short Message Service) and MMS (Multimedia Messaging Service) used for the messaging technology in RCS
GSMA | RCC.11 Rich Communication Suite Endorsement of OMA CPM 2.2 Conversation Functions v9.0 – Newsroom
This document describes which sections of the Open Mobile Alliance Converged IP (Internet Protocol) Messaging (OMA CPM) 2.2 Conversation Functions specification (see [CPMCONVFUNC]) are supported by the current version of RCS (Rich Communications Suite).
GSMA | RCC.71 RCS Universal Profile Service Definition Document v2.4 – Newsroom
The document details how features are to be implemented from a functional requirements point of view and details specifics that may influence how certain functions behave, creating an overall guide for OEMs and application developers.
GSMA | RCC.07 Rich Communication Suite – Advanced Communications Services and Client Specification v11.0 – Newsroom
This document focuses mainly on the User Network Interface (UNI) which to a large extent also determines the Network-Network Interface (NNI).
GSMA | RCC 14 v5.0 – Service Provider Device Configuration – Newsroom
This document describes an Over The Air (OTA) mechanism that allows a Service Provider to provision mobile and non-mobile devices with the necessary configurations to use their services. It provides an alternative to the Open Mobile Alliance’s (OMA) Device Management (DM) approach. For transport, the mechanism mainly relies on the Hyper-Text Transfer Protocol (HTTP).
GSMA | RCC 15 v5.0 – IMS Device Configuration and Supporting Services – Newsroom
This document describes the configuration of Internet Protocol Multimedia Subsystem (IMS) based devices using the mechanism described in [PRD-RCC.14]. It also introduces some services to support this configuration that may be useful for other aspects of device management.
GSMA MaaP API (1.8.*)
->
GSMA | VoLTE – Documents – Future Networks
【总结】
RCC是GSMA的旗下的一系列的规范specification=standard标准 统称
其中每个子项目编号 对应着其中一个部分的内容
https://www.gsma.com/newsroom/wp-content/uploads//RCC.14_v5.0.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.07-v11.0-2.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.13-v5.0.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.15-v7.0.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.08-v9.0.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.14-v7.0-1.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.20-v6.0-3.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.20-v6.0-2.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.10-v9.0.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.11-v9.0.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.71-v2.4.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.07-v11.0-1.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.07-v11.0-2.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.15_v5.0.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.14_v5.0.pdf
https://www.gsma.com/newsroom/wp-content/uploads//RCC.15-v6.0.pdf
https://www.gsma.com/esim/wp-content/uploads/2013/02/RCC.13v1.0.pdf
http://www.gsma.com/esim/wp-content/uploads/2012/03/rcsapirequirementsv2_1.pdf
https://www.gsma.com/futurenetworks/wp-content/uploads/2012/03/rcs-e_advanced_comms_specification_v1_2_2_approved.pdf
https://www.gsma.com/futurenetworks/wp-content/uploads/2013/05/RCS-5.1-V2.0-UNI.pdf
https://www.gsma.com/futurenetworks/wp-content/uploads/2015/03/RCS5.3_UNI.zip
https://www.gsma.com/futurenetworks/wp-content/uploads/2017/07/RCC.71_v1.0.pdf
https://www.gsma.com/futurenetworks/wp-content/uploads/2017/07/RCC.71_v2.0.pdf
https://www.gsma.com/futurenetworks/wp-content/uploads/2019/09/rcsapirequirementsv2_1.pdf
https://www.gsma.com/futurenetworks/wp-content/uploads/2019/09/rcs5.0_endorsement_of_oma_sip_simple_im_version1.0.pdf
https://www.gsma.com/futurenetworks/wp-content/uploads/2019/09/RCC12_RCS5_1_endorsement_of_oma_sip_simple_im_v2.0.pdf
https://www.gsma.com/futurenetworks/wp-content/uploads/2012/03/rcs-e_advanced_comms_specification_v1_2_2_approved.pdf
https://www.fftelecoms.org/app/uploads/2017/08/interface_specification_for_rcs_interconnection_dec_2016-2.pdf
整理如下:
RCC相关:
  • 通用逻辑
    • RCC NN = RCC.NN = PRD-RCC.NN=GSMA PRD-RCC.NN
      • N:数字编号
      • PRD=Permanent Reference Document
        • 注:参考自 RCC.14-v7.0-1.pdf
    • 举例
      • 文件名
        • RCC.15-v7.0.pdf
      • 文件首页内容标题
        • IMS Device Configuration and Supporting Services Version 7.0 16 October 2019
          • 核心内容:IMS Device Configuration and Supporting Services
          • 版本:7.0
          • 发布日期:16 October 2019
      • 引用此文件时的:简写=别称
        • RCC 15
        • RCC.15
        • PRD-RCC.15
具体包含:
【RCC和RCS核心协议关系】
此处目前理解是,和RCS最相关的核心内容是:

属于RCS的core或stack的:
  • RCC.07 =  RCS Advanced Communications Services and Client Specification
    • v3.0
    • v6.0
    • v8.0
    • v11.0
以及后期出了UP标准:
  • RCC 71=RCS UP(Universal Profile) Service
    • v2.4
然后是RCS的API:
  • RCC 13 = RCS API
    • API v2.1
    • API v2.4
以及RCS的设备的API:
  • RCC 53=RCS Device API
    • v1.5
    • v1.5.1
    • v1.6.0
    • v1.6.1
和如何配置IMS的设备:
  • RCC 15 = IMS Device Configuration and Supporting Services
    • v1.0
    • v7.0
【RCS和其他组织的协议关系】
  • RCS 和 IR协议
    • 背景
      • VoLTE技术
        • Voice over LTE,基于LTE发送语音数据
        • 目的:增强传统的功能
        • 技术:基于IMS
        • 增强为:
          • 电话 -> 增强的(视频)电话
            • 通过ViLTE=Video over LTE技术
          • 短信 -> 增强的多媒体消息
            • 通过RCS技术
    • 技术关系总结
      • IMS
        • ->VoLTE
          • ->RCS
    • 而VoLTE相关协议 = IR协议
      • ->和RCS相关的IR协议
        • IR 92
          • IR.92 (VoLTE) – IMS Profile for Voice and SMS
            • 介绍
              • The IP Multimedia Subsystem (IMS) Profile for Voice and SMS, documented in this Permanent Reference Document (PRD), defines a profile that identifies a minimum mandatory set of features. These are defined in 3GPP specifications that a wireless device (the User Equipment [UE]) and network are required to implement in order to guarantee an interoperable, high quality IMS-based telephony service and IMS-based and SGs-based Short Message Service (SMS) over Long Term Evolution (LTE) radio access.
        • IR 94
          • IR.94 (Video) – IMS Profile for Conversational Video Service
            • 介绍
              • The IP Multimedia Subsystem (IMS) Profile for Conversational Video Service, documented in this Permanent Reference Document (PRD), defines a minimum mandatory set of features which are defined in 3GPP specifications that a wireless device and a network are required to implement to guarantee an interoperable, high quality IMS-based conversational video service over Long Term Evolution (LTE) radio access and/or High-Speed Packet Access (HSPA) radio access. The UE and the network may support the video service on either LTE or HSPA access or on both.
        • IR 34
          • IR.34 – Guidelines for IPX Provider networks (Previously Inter-Service Provider IP Backbone Guidelines)
            • 介绍
              • The Internet Protocol (IP) Packet eXchange (IPX) Network is an inter-service Provider IP backbone, which comprises the interconnected networks of IPX Providers and General Packet Radio Service (GPRS) Roaming eXchange (GRX) Providers. The purpose of this document is to provide guidelines and technical information on how these networks are set up and interconnect and how service providers will connect to the IPX Provider networks.
        • IR 39
          • IR.39 – IMS Profile for High Definition Video Conference (HDVC) Service
            • 介绍
              • The IP Multimedia Subsystem (IMS) Profile for High Definition Video Conference (HDVC) service, documented in this Permanent Reference Document (PRD), defines a minimum mandatory set of features that a video communication client and the network are required to implement to guarantee an interoperable, high quality IMS-based video communication service over fixed and mobile access.
        • IR 58
          • IR.58 – IMS Profile for Voice over HSPA
            • 介绍
              • The IP Multimedia Subsystem (IMS) Profile for Voice and SMS, documented in this Permanent Reference Document (PRD), defines a profile that identifies a minimum mandatory set of features which are defined in 3GPP specifications that a wireless device (the User Equipment [UE]) and network are required to implement in order to guarantee an interoperable, high quality IMS-based telephony service over High-Speed Packet Access (HSPA) radio access.
        • IR 64
          • IR.64 – IMS Service Centralisation and Continuity Guidelines
            • 介绍
              • The 3rd Generation Partnership Project (3GPP) has specified the solution for centralisation of services in the IP Multimedia Subsystem (IMS) and of IMS-based service continuity in Release 8 onwards. The user shall receive services in a consistent manner when the user accesses IMS either via the Circuit Switched (CS) or the Packet Switched (PS) domain. Service continuity is supported between CS and PS domains.
        • IR 65
          • IR.65 – IMS Roaming and Interworking Guidelines
            • 介绍
              • The 3rd Generation Partnership Project (3GPP) architecture has introduced a subsystem known as the IP Multimedia Subsystem (IMS) as an addition to the Packet-Switched (PS) domain. IMS supports new, IP-based multimedia services as well as interoperability with traditional telephony services. IMS is not a service per se, but a framework for enabling advanced IP services and apps on top of a packet bearer.
            • v30.0
        • IR 67
          • IR.67 – DNS/ENUM Guidelines for Service Providers and GRX/IPX Providers
            • 介绍
              • Inter Service Provider IP communications are starting to evolve to support services other than GPRS Roaming. Many, if not all, of these services rely upon DNS. Therefore, it is of utmost importance for the interworking and stability of such services that service providers have all the necessary information to hand to ease configuration of their DNS servers upon which such services rely.
        • IR 88
          • IR.88 – LTE Roaming Guidelines
            • 介绍
              • This document aims to provide a standardised view on how Long-Term Evolution (LTE) and Evolved Packet Core (EPC) networks can interwork in order to provide “Next Generation Mobile Network” capabilities when users roam onto a network different from their HPMN. Expectations of the “Next Generation Mobile Network” capabilities are described in the GSMA Project Document: Next Generation Roaming and Interoperability (NGRAI) Project Scope White Paper.
        • NG 102
          • NG.102 – IMS Profile for Converged IP Communications
            • 介绍
              • This document defines a profile that identifies a minimum mandatory set of common IMS functionalities that are defined in 3GPP specifications and other GSMA PRDs that a wireless device (the User Equipment [UE]) and network are required to support in order to guarantee interoperable, high quality IMS-based and Mobile Operator provided Converged IP Communications Services (VoLTE, ViLTE, VoWi-Fi and RCS).
        • IR 95
        • IR 90
另外从之前的
【未解决】搞懂rcsjta的项目的编译和测试的逻辑如何上手
看到,其实项目文档中提到了更多的相关协议
rcsjta/docs/SUPPORTED-STANDARDS.txt
其中很多相关协议:
  • IETF
    • 多个RFC相关协议
      • 很多都和SIP和SDP相关
        • SIP=Session Initiation Protocol
        • SDP=Session Description Protocol
      • 猜测:应该是 chat聊天等内部的会话session 会用到这些协议
  • 3GPP
    • TS 24.229 – IP multimedia call control protocol based on Session Initiation Protocol (SIP) and Session Description Protocol (SDP), Stage 3
    • TS 24.279 – Combining Circuit Switched (CS) and IP Multimedia Subsystem (IMS) services, Stage 3
  • OMA=Open Mobile Alliance
    • Instant Messaging using SIMPLE Architecture, v1.0
    • Instant Messaging Requirements, v1.0
    • Instant Messaging using SIMPLE, v1.0
    • Presence SIMPLE Architecture, v2.0
    • Resource List Server (RLS) XDM Specification, v2.0
  • GSMA
    • RCS Release 1 – Functional Description
    • RCS Release 1 – Technical Realization
    • RCS Release 2 – Functional Description
    • RCS Release 2 – Technical Realization
    • RCS Release 2 – Endorsement of OMA SIP/SIMPLE IM 1.0
    • RCS Release 2 – Management Objects
    • RCS-e Version 1.1 – Services and Client Specification
    • RCS-e Version 1.2.1 – Services and Client Specification
    • RCS-e GSMA RCS IOT RCS-e Implementation Guidelines 2.1
    • RCS-e GSMA RCS IOT RCS-e Implementation Guidelines 3.1
  • IR的
    • IR74 – Video Share Interoper ability Specification
    • IR79 – Image Share Interoperability Specification
供了解概况。
