【已解决】RCS和IMS相关机构组织及其协议之间的关系和逻辑

RCS crifan 432浏览 0评论
折腾:
【整理】IMS即IP多媒体子系统详解
期间,以及后续看了各种资料,去整理出
RCS
以及其所依赖的
RCS
以及相关的机构,组织,及其他们制定的各种协议,标准之间的逻辑和关系
【整理】5G RCS Rich Communication Services 富媒体通讯服务
IMS Identification and numbering
Network Framework of IMS YUAN ZHANG China Telecom Beijing Research Institute
https://www.itu.int/en/ITU-D/Regional-Presence/AsiaPacific/SiteAssets/Pages/Events/2016/Oct-CandI2016/CAICT2016/Session%203-2%20Framework%20of%20IMS张园.pdf
RFC 3588 – Diameter Base Protocol
RFC 6733 – Diameter Base Protocol
RFC 3261 – SIP: Session Initiation Protocol
RFC 3550 – RTP: A Transport Protocol for Real-Time Applications
https://www.etsi.org/deliver/etsi_ts/183000_183099/183033/01.01.03_60/ts_183033v010103p.pdf
The present document provides the ETSI TISPAN endorsement of the 3GPP TS 29.228 [1] ” Cx and Dx interfaces; Signalling flows and messages contents (Release 6)” and the 3GPP TS 29.229 [2] “IP Multimedia (IM) Subsystem Cx and Dx interfaces based on the DIAMETER protocol; Protocol details (Release 6)”.
The present document provides the necessary adaptations to the above specifications, in order comply with the requirements of NGN Release 1.
RFC 2617 – HTTP Authentication: Basic and Digest Access Authentication
Basic access authentication – Wikipedia
Digital cellular telecommunications system (Phase 2+);
Universal Mobile Telecommunications System (UMTS); LTE;
IP Multimedia (IM) Subsystem Cx and Dx Interfaces; Signalling flows and message contents
Technical Specification Group Services and System Aspects; IP Multimedia Subsystem (IMS); Stage 2 (Release 6)
RFC 3986 – Uniform Resource Identifier (URI): Generic Syntax
RFC 2396 – Uniform Resource Identifiers (URI): Generic Syntax
java.net Class URI
Uniform Resource Identifier – Wikipedia
ETSI 3GPP
ETSI – 3GPP Telecom Management
3GPP – Wikipedia
ETSI – THIRD GENERATION PARTNERSHIP PROJECT
3GPP – 维基百科,自由的百科全书
【整理】ETSI和TISPAN和NGN协议标准及相关内容
Network Framework of IMS YUAN ZHANG China Telecom Beijing Research Institute
https://www.itu.int/en/ITU-D/Regional-Presence/AsiaPacific/SiteAssets/Pages/Events/2016/Oct-CandI2016/CAICT2016/Session%203-2%20Framework%20of%20IMS张园.pdf
【总结】

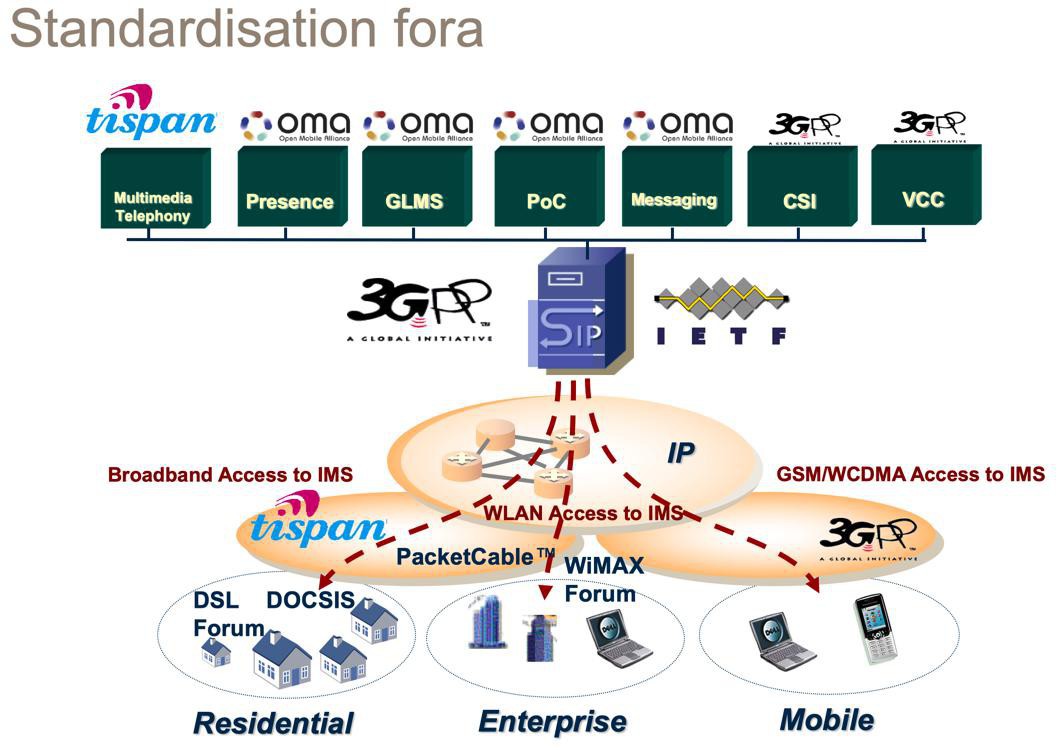

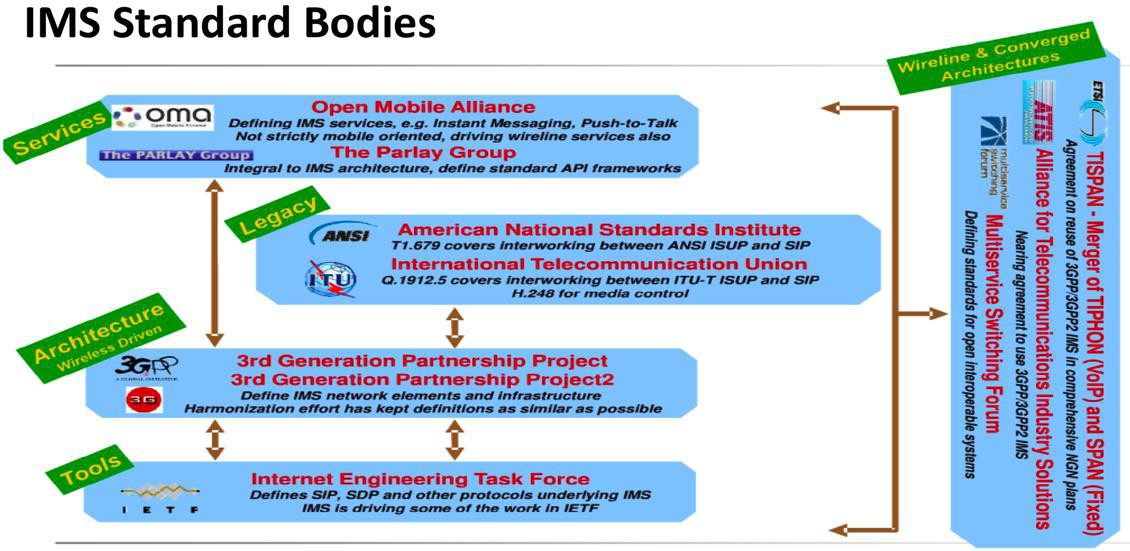

  • 不同协议和组织关系
    • 概述
  • RCS
    • = Rich Communication Services = 富媒体通讯服务
      • 富媒体=Rich Media
        • 对比:传统 普通文本短信
        • 富媒体:多种媒体形式
          • 文本、语音、图片、视频、动画、表情、位置等
    • 目的:实现多媒体消息和相关服务
    • RCS是GSMA组织定义的
      • RCS的版本历史
        • RCS: 1.0~10.0
        • UP: 1.0~2.4
    • 底层主要依赖于:IMS
  • IMS
    • 是3GPP组织定义的
      • 利用了现有的各种协议
        • IETF
          • 资源定位
            • URI
                • RFC 3986
              • 旧:
                • RFC 2396
          • 会话控制
            • SIP
              • RFC 3261
            • SDP
              • RFC 2327
          • 授权和认证
            • Diameter=Diameter Base Protocol
                • RFC 6733
                • RFC 3588
                • RFC 5719
            • HTTP Authentication: Basic and Digest Access Authentication
              • RFC 2617
                • 格式:Authorization: Basic <credentials>
          • 实时数据传输
            • RTP
              • RFC 3550
        • 3GPP
          • TS 23.060
            • GPRS
          • TS 23.228
            • IMS (stage 2)
          • TS 24.228
            • Signalling flows for the IP multimedia call control based on SIP and SDP
          • TS 24.229
            • IP multimedia call control protocol based on Session Initiation Protocol (SIP) and Session Description Protocol (SDP), Stage 3
          • TS 24.279
            • Combining Circuit Switched (CS) and IP Multimedia Subsystem (IMS) services, Stage 3
          • TS 25.301
            • UTRAN
          • TS 29.228
            • IP Multimedia (IM) Subsystem Cx and Dx Interfaces; Signalling flows and message contents
          • TS 29.229
            • UMTS  LTE Cx and Dx interfaces based on the Diameter protocol
        • OMA
          • Instant Messaging using SIMPLE Architecture
          • Instant Messaging Requirements
          • Instant Messaging using SIMPLE
          • Presence SIMPLE Architecture
          • Resource List Server (RLS) XDM Specification
  • 3GPP=3rd Generation Partnership Project=第三代合作伙伴计划
    • 是什么:一个组织机构
    • 目标:统一各方的电信方面的标准
      • 在国际电信联盟的IMT-2000计划范围内制订和实现全球性的(第三代)移动电话系统规范。
      • 致力于GSM到UMTS(W-CDMA)的演化
    • 各方(合作伙伴)包括
      • 日本:ARIB、TTC
      • 欧洲:ETSI
      • 中国:CCSA
      • 韩国:TTA
      • 美国:ATIS
      • 印度:TSDSI
    • 具体制定标准
      • 组织形式
        • TSG=Technical Specification Group=技术规范组
          • WG=Working Group=工作组
      • 现状
        • 目前有3个TSG,每个TSG下面又有多个WG
          • 不过每个TSG中的每个WG负责不同方面的内容
        • 具体关系
          • RAN=Radio Access Network
            • RAN WG1:Radio Layer 1 specification
            • RAN WG2:Radio Layer 2 and Radio Layer 3 RR specification
            • RAN WG3:Iub Iur and Iu specification – UTRAN O&M requirements
            • RAN WG4:Radio performance and protocol aspects (system) – RF parameters and BS conformance
            • RAN WG5:Mobile terminal conformance testing
            • RAN WG6:GERAN radio and protocol
          • SA=Service and System Aspects
            • SA WG1:Services
            • SA WG2:Architecture
            • SA WG3:Security
            • SA WG4:Codec
            • SA WG5:Telecom Management
            • SA WG6:Mission-critical applications
          • CT=Core Network and Terminals
            • CT WG1:MM/CC/SM (lu)
            • CT WG2:closed
            • CT WG3:Interworking with external networks
            • CT WG4:MAP/GTP / BCH/SS
            • CT WG5:OSA (Now transferred to OMA)
            • CT WG6:Smart Card Application Aspects
  • 3GPP2
    • 目标:致力于以IS-95(在北美和韩国应用广泛的CDMA标准,中国电信CDMA与之兼容)向IS-2000过渡
    • 说明
      • 和高通公司关系更加紧密
      • 3GPP和3GPP2两者实际上存在一定竞争关系
  • TISPAN
  • ETSI
  • OMA
相关名词缩写:
  • IETF=Internet Engineering Task Force
  • SIP=Session Initiation Protocol
  • RTP=Real-time Transport Protocol=Realtime Transport Protocol
  • TISPAN=Telecommunications and Internet converged Services and Protocols for Advanced Networking
  • TS=Technical specification
  • UMTS=Universal Mobile Telecommunications System
  • UTRAN=UMTS Terrestrial Radio Access Network
  • GSM=Global System for Mobile Communications
  • ARIB=Association of Radio Industries and Businesses
  • TTC=Telecommunication Technology Committee
  • ATIS=Alliance for Telecommunications Industry Solutions
  • CCSA=China Communications Standards Association
  • ETSI=European Telecommunications Standards Institute
  • ICT=Information and Communication Technologies
  • TSDSI=Telecommunications Standards Development Society
  • TTA=Telecommunications Technology Association
