【已解决】Mac中用Chrome开发者工具分析百度首页的百度热榜内容加载逻辑

加载 crifan 404浏览 0评论
折腾:
【记录】演示如何实现简单爬虫:用Python提取百度首页中百度热榜内容列表
期间,先去用Chrome的开发者工具去分析百度首页中百度热榜中的内容,如何加载出来的基本逻辑。
先去Mac中打开Chrome中的 开发者工具=Developer Tools:
或者直接用快捷键(Mac中是):Option+Command+I
效果是:
先简单了解一下,最常见的 查看元素:

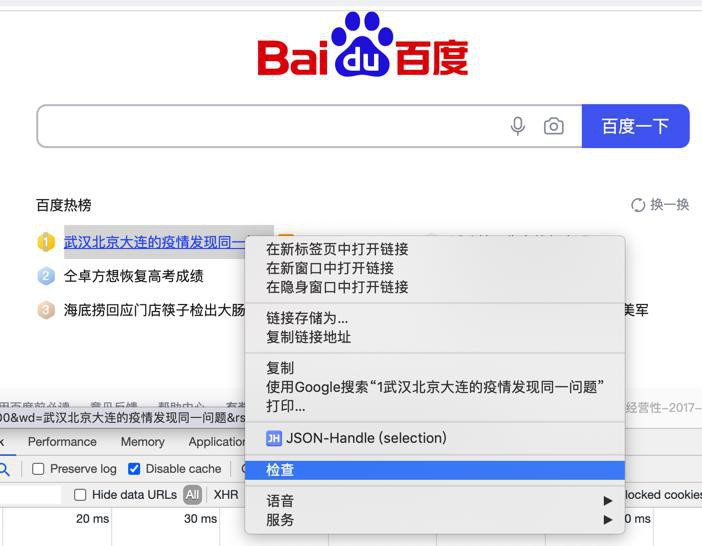

右键-》检查

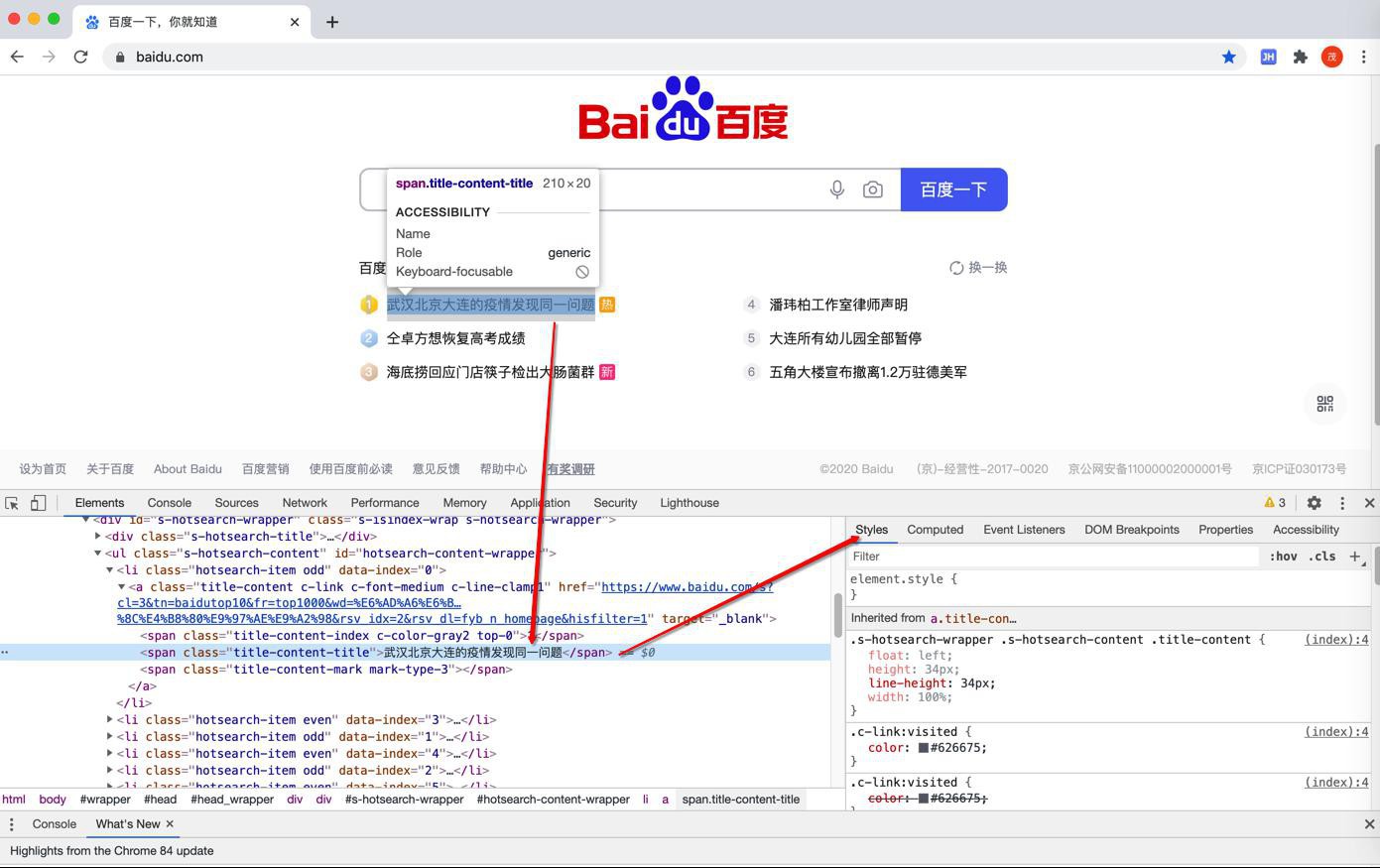

即可看到:
坐标的Elements,表示 显示html网页源码
右边是 css的Styles部分
此处,我们目的是:分析 百度热榜中的内容列表 是如何加载出来的
所以先去根据列表中第一个元素的内容:
武汉北京大连的疫情发现同一问题
去尝试搜索Network部分中的内容(请求或返回的响应中)能否搜索到
步骤:

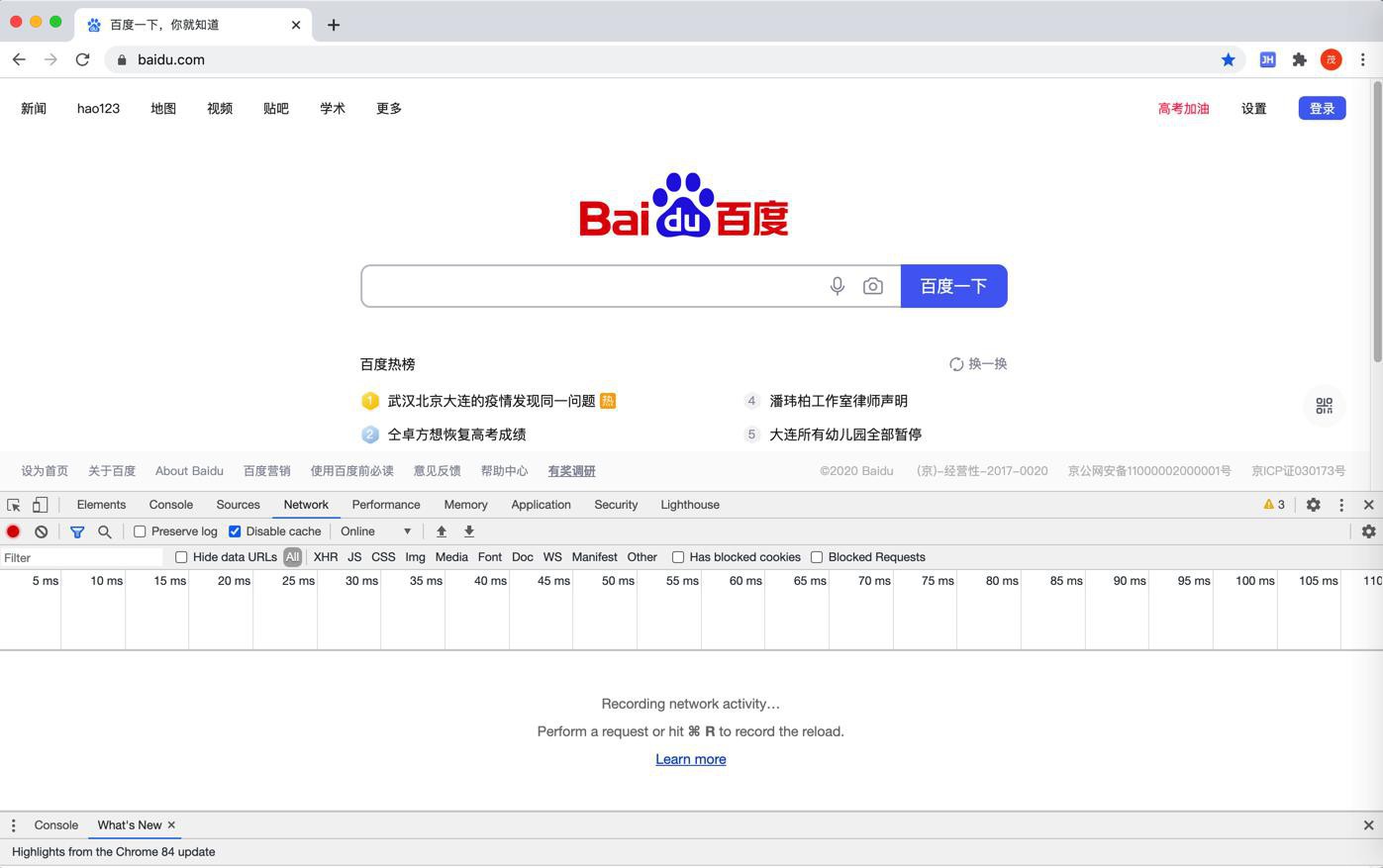

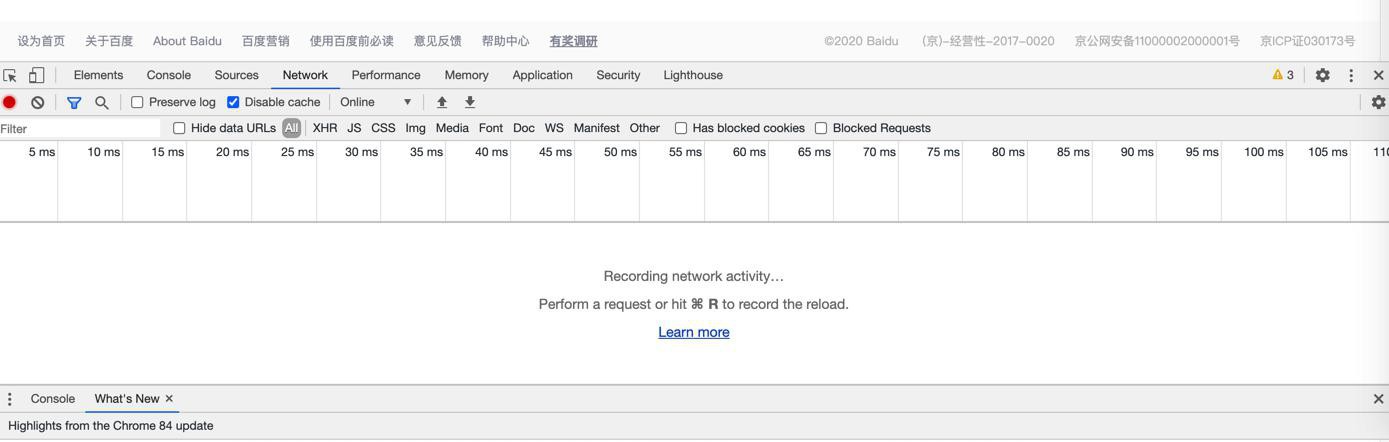

切换到Network一栏:
可见,此处是空的
为了确保能否调试搞清楚页面内容加载逻辑
此处需要让加载逻辑显示出来
办法是:

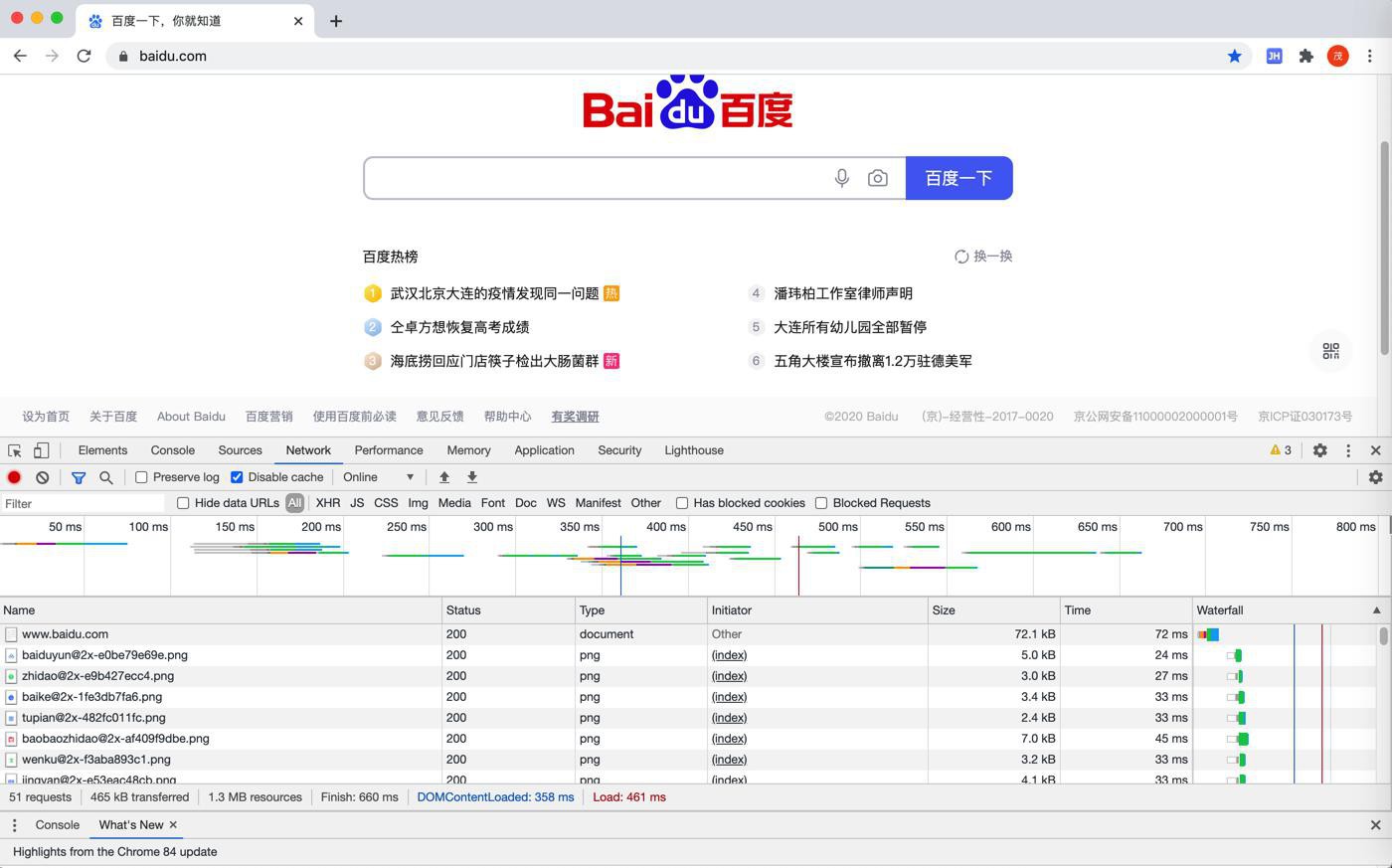

重新刷新页面
快捷键:Command+R
打开搜索:

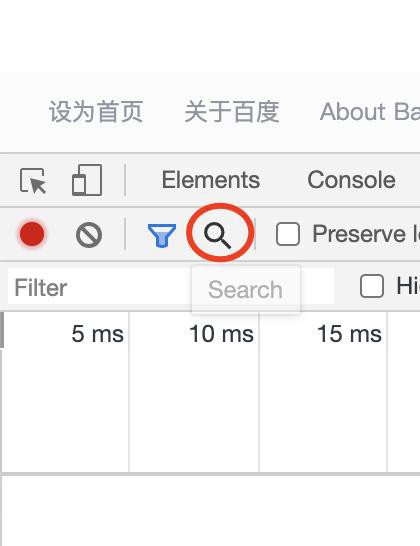

点击搜索:
或:Command+F

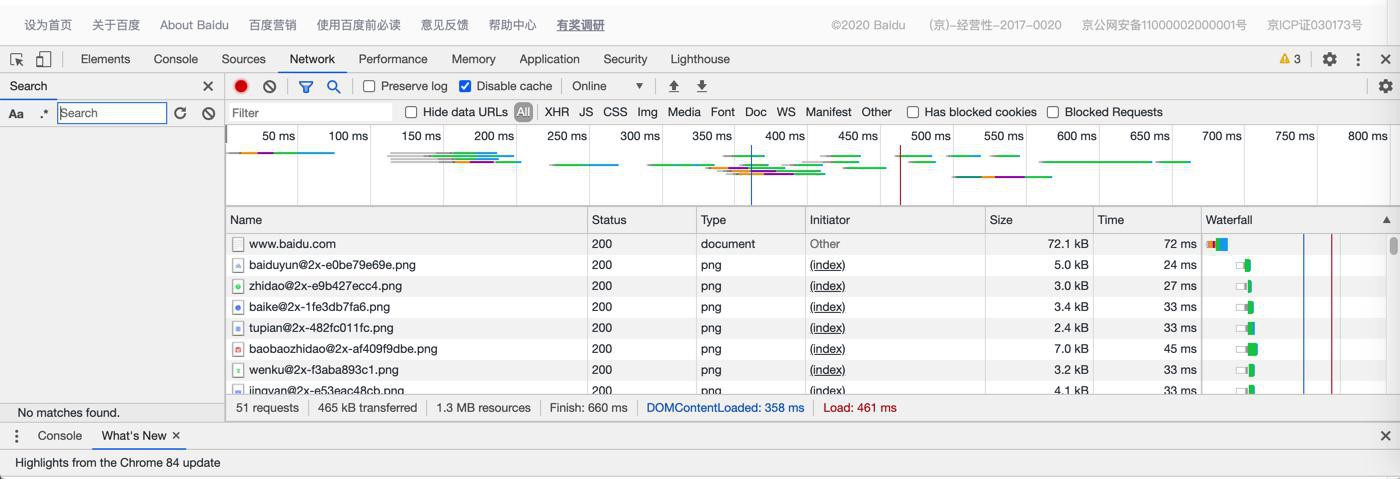

即可打开搜索界面:
输入要搜的内容:
武汉北京大连的疫情发现同一问题
并回车触发搜索

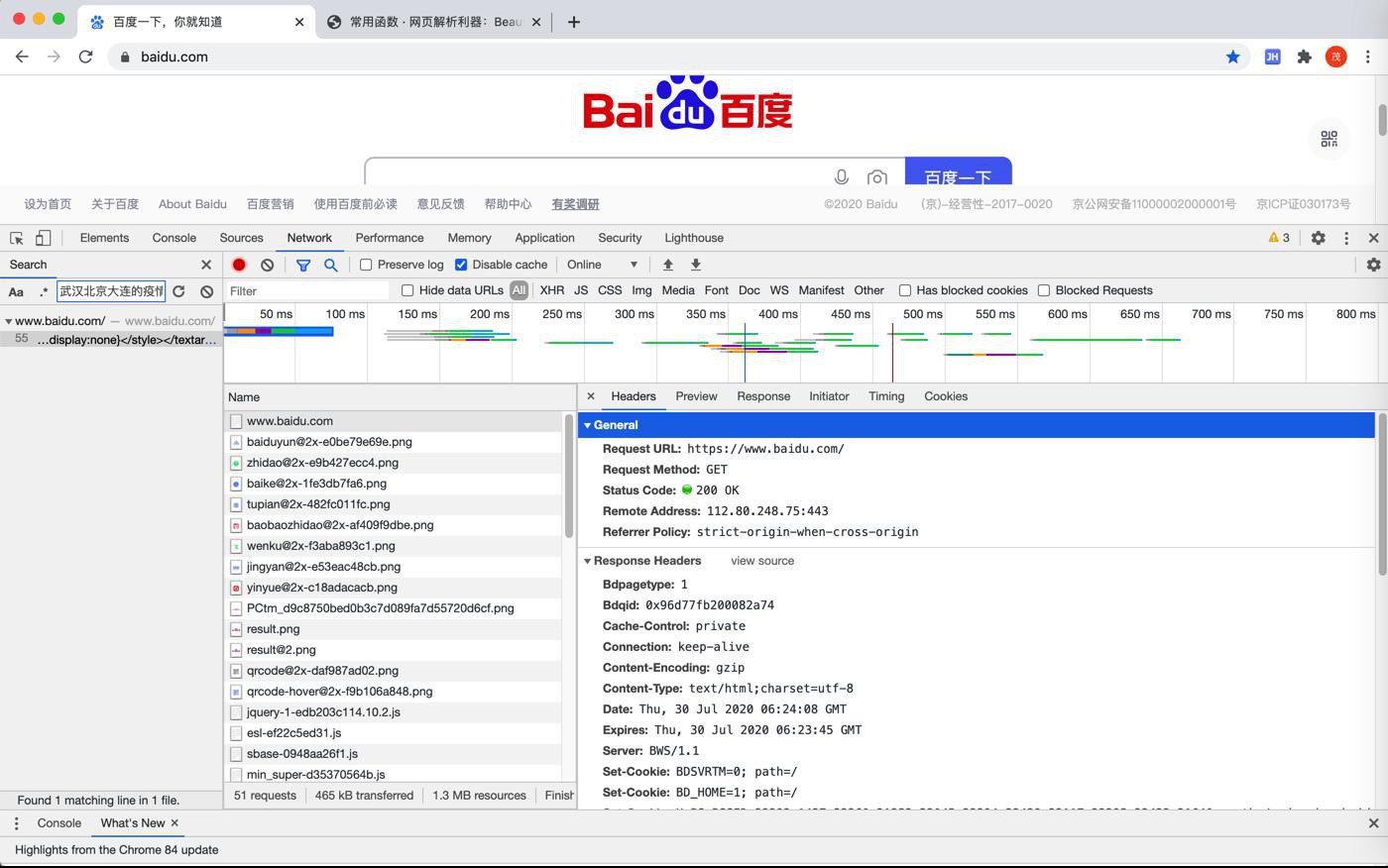

可以搜到一条:

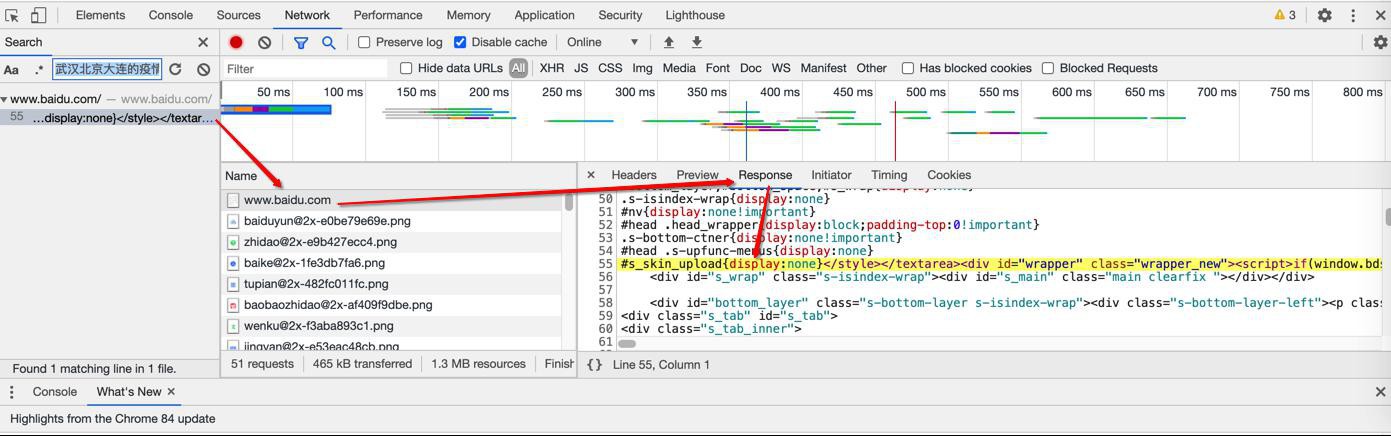

点击会跳转过去:
此处可以看出是:
www.baidu.com
的这条中的Response部分返回的html源码中包含了我们要搜索的内容

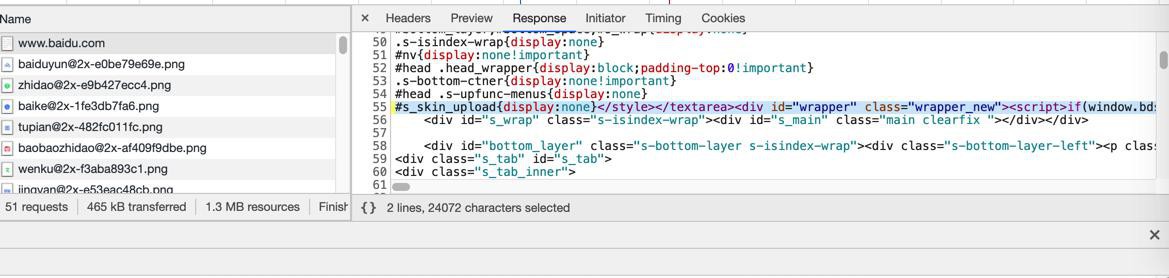

双击选中并复制该行:
粘贴出来,放到编辑器中去研究内容

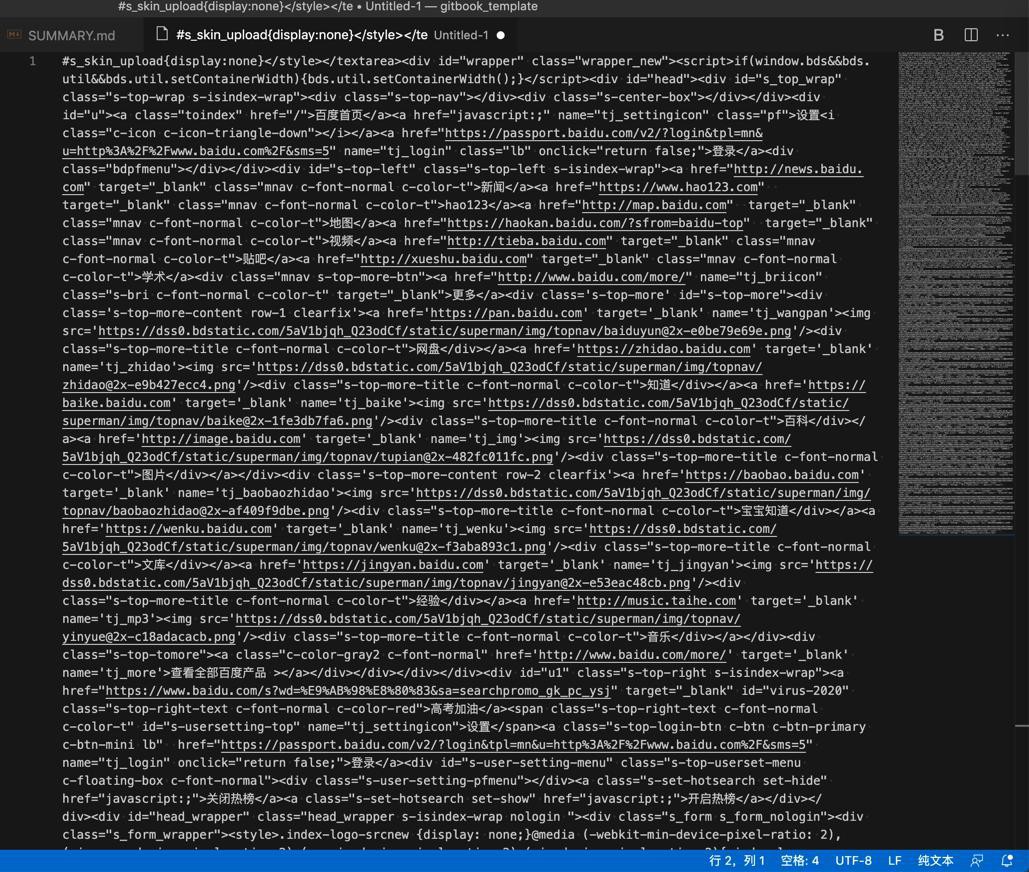

比如放到VSCode中:

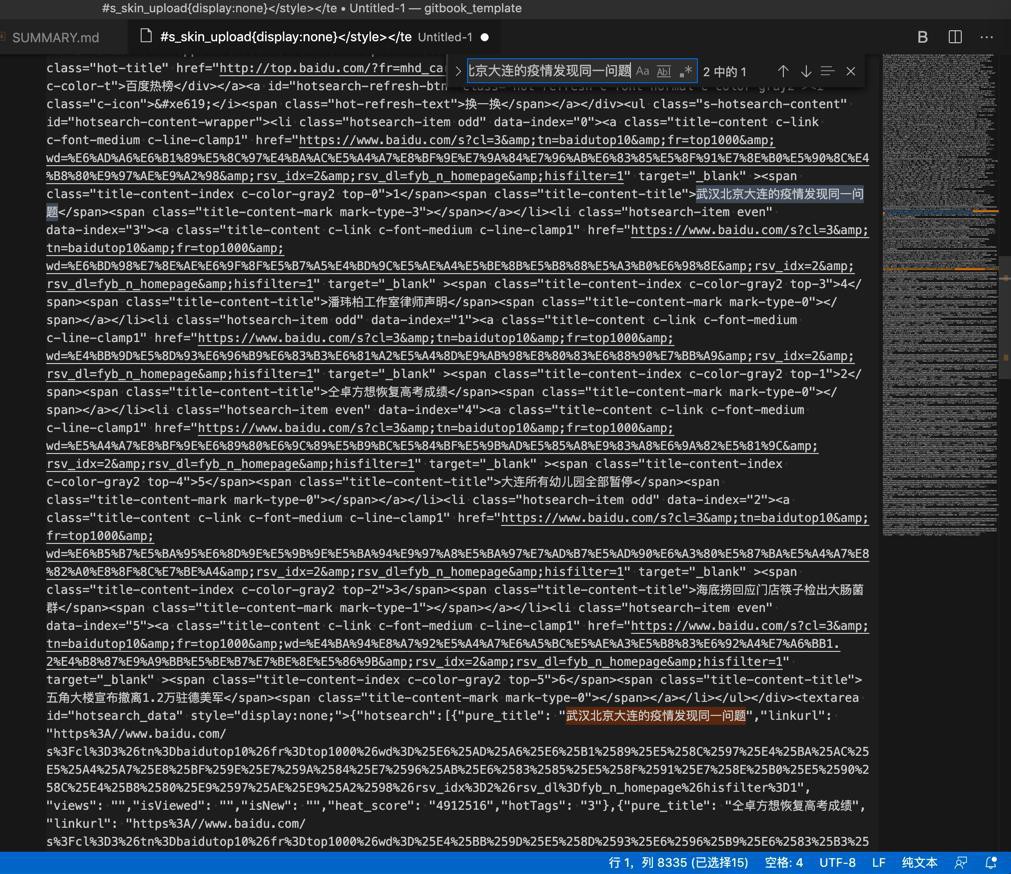

找到对应的内容所在位置:
搜:
武汉北京大连的疫情发现同一问题
找到2处:
从经验来看,对于是要显示的html内容来说,第一条更像是我们要的

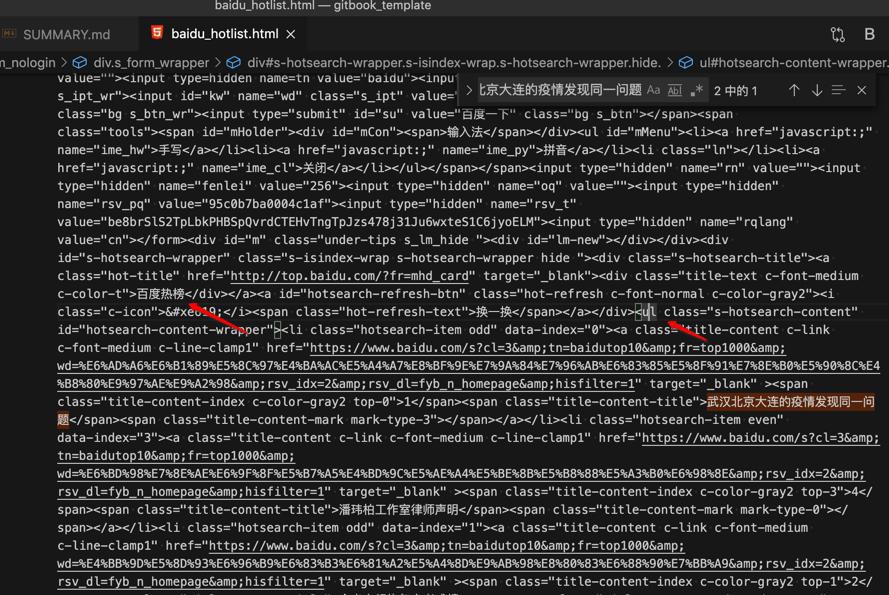

且再仔细看源码发现,前面有 百度热榜 的字样以及前面是ul的列表:
更验证了之前的推断。
把ul这部分html源码拷贝出来:
<ul class="s-hotsearch-content" id="hotsearch-content-wrapper"><li class="hotsearch-item odd" data-index="0"><a class="title-content c-link c-font-medium c-line-clamp1" href="https://www.baidu.com/s?cl=3&tn=baidutop10&fr=top1000&wd=%E6%AD%A6%E6%B1%89%E5%8C%97%E4%BA%AC%E5%A4%A7%E8%BF%9E%E7%9A%84%E7%96%AB%E6%83%85%E5%8F%91%E7%8E%B0%E5%90%8C%E4%B8%80%E9%97%AE%E9%A2%98&rsv_idx=2&rsv_dl=fyb_n_homepage&hisfilter=1" target="_blank" ><span class="title-content-index c-color-gray2 top-0">1</span><span class="title-content-title">武汉北京大连的疫情发现同一问题</span><span class="title-content-mark mark-type-3"></span></a></li><li class="hotsearch-item even" data-index="3"><a class="title-content c-link c-font-medium c-line-clamp1" href="https://www.baidu.com/s?cl=3&tn=baidutop10&fr=top1000&wd=%E6%BD%98%E7%8E%AE%E6%9F%8F%E5%B7%A5%E4%BD%9C%E5%AE%A4%E5%BE%8B%E5%B8%88%E5%A3%B0%E6%98%8E&rsv_idx=2&rsv_dl=fyb_n_homepage&hisfilter=1" target="_blank" ><span class="title-content-index c-color-gray2 top-3">4</span><span class="title-content-title">潘玮柏工作室律师声明</span><span class="title-content-mark mark-type-0"></span></a></li><li class="hotsearch-item odd" data-index="1"><a class="title-content c-link c-font-medium c-line-clamp1" href="https://www.baidu.com/s?cl=3&tn=baidutop10&fr=top1000&wd=%E4%BB%9D%E5%8D%93%E6%96%B9%E6%83%B3%E6%81%A2%E5%A4%8D%E9%AB%98%E8%80%83%E6%88%90%E7%BB%A9&rsv_idx=2&rsv_dl=fyb_n_homepage&hisfilter=1" target="_blank" ><span class="title-content-index c-color-gray2 top-1">2</span><span class="title-content-title">仝卓方想恢复高考成绩</span><span class="title-content-mark mark-type-0"></span></a></li><li class="hotsearch-item even" data-index="4"><a class="title-content c-link c-font-medium c-line-clamp1" href="https://www.baidu.com/s?cl=3&tn=baidutop10&fr=top1000&wd=%E5%A4%A7%E8%BF%9E%E6%89%80%E6%9C%89%E5%B9%BC%E5%84%BF%E5%9B%AD%E5%85%A8%E9%83%A8%E6%9A%82%E5%81%9C&rsv_idx=2&rsv_dl=fyb_n_homepage&hisfilter=1" target="_blank" ><span class="title-content-index c-color-gray2 top-4">5</span><span class="title-content-title">大连所有幼儿园全部暂停</span><span class="title-content-mark mark-type-0"></span></a></li><li class="hotsearch-item odd" data-index="2"><a class="title-content c-link c-font-medium c-line-clamp1" href="https://www.baidu.com/s?cl=3&tn=baidutop10&fr=top1000&wd=%E6%B5%B7%E5%BA%95%E6%8D%9E%E5%9B%9E%E5%BA%94%E9%97%A8%E5%BA%97%E7%AD%B7%E5%AD%90%E6%A3%80%E5%87%BA%E5%A4%A7%E8%82%A0%E8%8F%8C%E7%BE%A4&rsv_idx=2&rsv_dl=fyb_n_homepage&hisfilter=1" target="_blank" ><span class="title-content-index c-color-gray2 top-2">3</span><span class="title-content-title">海底捞回应门店筷子检出大肠菌群</span><span class="title-content-mark mark-type-1"></span></a></li><li class="hotsearch-item even" data-index="5"><a class="title-content c-link c-font-medium c-line-clamp1" href="https://www.baidu.com/s?cl=3&tn=baidutop10&fr=top1000&wd=%E4%BA%94%E8%A7%92%E5%A4%A7%E6%A5%BC%E5%AE%A3%E5%B8%83%E6%92%A4%E7%A6%BB1.2%E4%B8%87%E9%A9%BB%E5%BE%B7%E7%BE%8E%E5%86%9B&rsv_idx=2&rsv_dl=fyb_n_homepage&hisfilter=1" target="_blank" ><span class="title-content-index c-color-gray2 top-5">6</span><span class="title-content-title">五角大楼宣布撤离1.2万驻德美军</span><span class="title-content-mark mark-type-0"></span></a></li></ul>

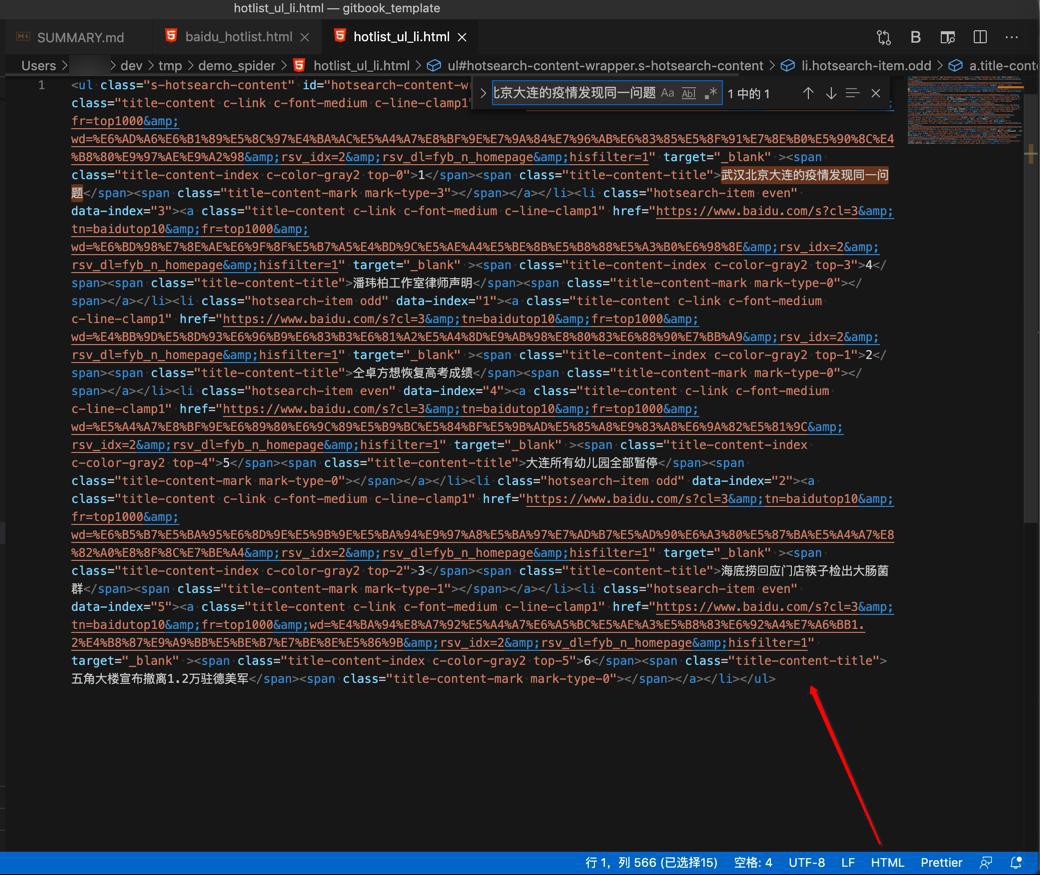

且为了便于研究,再单独存到另外一个文件,且设置为HTML格式,使得语法高亮,便于阅读:
然后去研究代码,稍微懂点html的,即可了解其基本逻辑:
此处第一个li的元素:武汉北京大连的疫情发现同一问题
对应源码就是:
<li class="hotsearch-item odd" data-index="0"><a class="title-content c-link c-font-medium c-line-clamp1" href="https://www.baidu.com/s?cl=3&tn=baidutop10&fr=top1000&wd=%E6%AD%A6%E6%B1%89%E5%8C%97%E4%BA%AC%E5%A4%A7%E8%BF%9E%E7%9A%84%E7%96%AB%E6%83%85%E5%8F%91%E7%8E%B0%E5%90%8C%E4%B8%80%E9%97%AE%E9%A2%98&rsv_idx=2&rsv_dl=fyb_n_homepage&hisfilter=1" target="_blank" ><span class="title-content-index c-color-gray2 top-0">1</span><span class="title-content-title">武汉北京大连的疫情发现同一问题</span><span class="title-content-mark mark-type-3"></span></a></li>
其后,其他几个,大体格式也是类似,只不过是
hotsearch-item是even,data-index=1
等等细节不同:
<li class="hotsearch-item even" data-index="3"><a class="title-content c-link c-font-medium c-line-clamp1" href="https://www.baidu.com/s?cl=3&tn=baidutop10&fr=top1000&wd=%E6%BD%98%E7%8E%AE%E6%9F%8F%E5%B7%A5%E4%BD%9C%E5%AE%A4%E5%BE%8B%E5%B8%88%E5%A3%B0%E6%98%8E&rsv_idx=2&rsv_dl=fyb_n_homepage&hisfilter=1" target="_blank" ><span class="title-content-index c-color-gray2 top-3">4</span><span class="title-content-title">潘玮柏工作室律师声明</span><span class="title-content-mark mark-type-0"></span></a></li>
所以,对于上述内容,此处研究出来的逻辑是:
如果能正常获取到
https://www.baidu.com/
的html源码,且内容已加载完毕的情况下
则直接去使用此简化规则去匹配内容:
<span class="title-content-title">xxx</span>
其中xxx是中文字符串,是此处希望找到的内容的标题。
说明:自己要确保此规则不会和导致误判,多了或少了,即匹配出其他的额外的不想要的内容,或漏了某些想要的内容。
当误判时,就需要加上其他限定条件,比如此处的:
父级节点是:li中 class="hotsearch-item even" 或 "hotsearch-item odd"
对于上述简化规则,再去用代码实现,提取要的内容:
(1)Python中re正则
contentTitleP = '<span\s+class="title-content-title">(?P<contentTitle>[^<>]+)</span>'
(2)Python的用于解析html的第三方库BeautifulSoup
allTitleSoupList = soup.find_all("span", attrs={"class":"title-content-title"})
至此,要抓取的内容的提取规则,已分析完毕。
接下来,就是回头再去确保,可以正常获取到
https://www.baidu.com/
的源码,即可。
对此,往往不太容易一次性就很轻松的获取各个网站的网页源码。
所以一般的逻辑是:直接去写代码,然后出现问题,变调试,变优化代码,直到最终获取到源码

所以先去写代码:
【已解决】用Python代码获取到百度首页源码并提取保存百度热榜内容列表
期间继续调试逻辑:

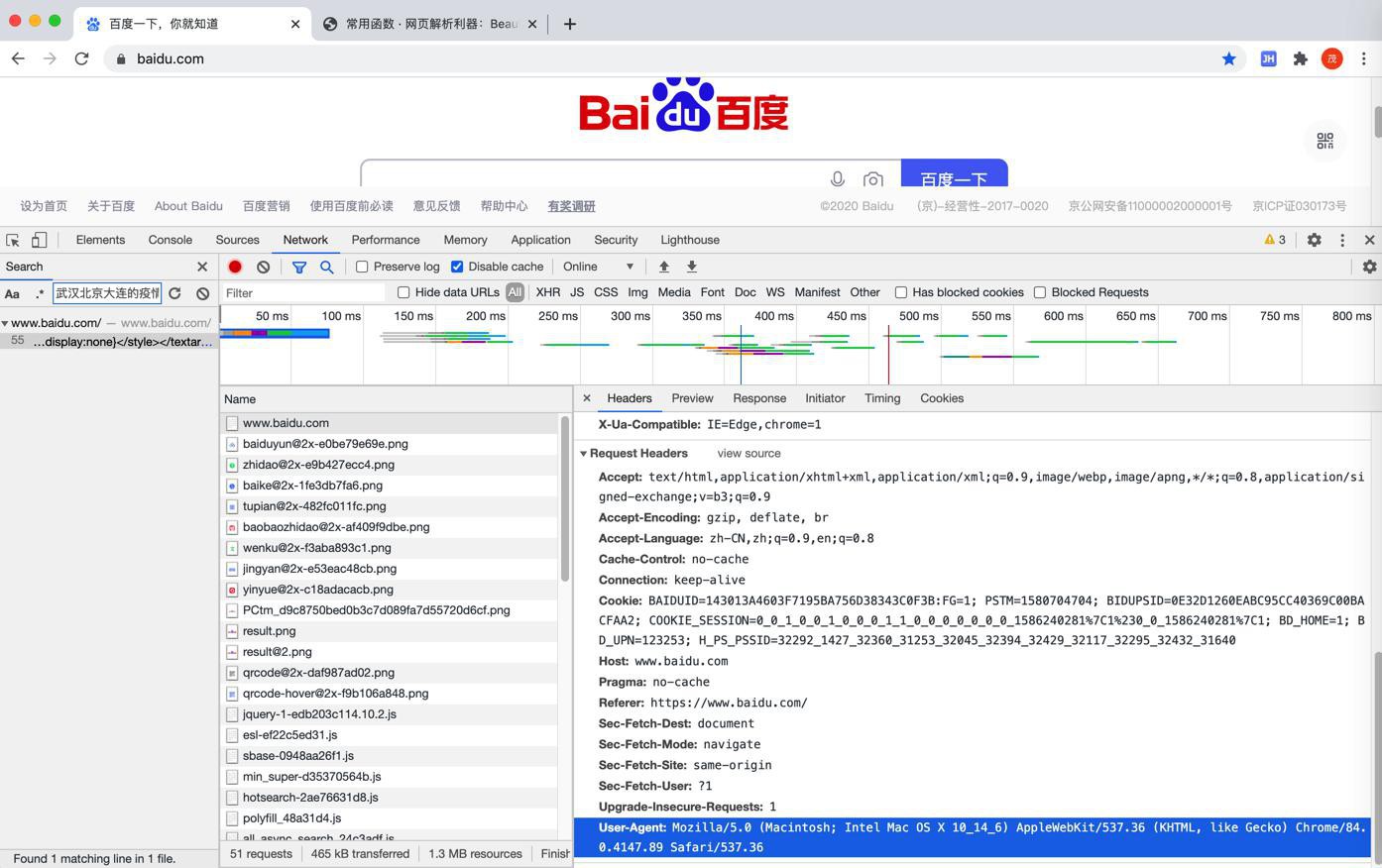

切换到Headers界面:
找到
Request Headers
中的:
User-Agent部分:
拷贝出来是:
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_6) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/84.0.4147.89 Safari/537.36
用于后续代码中使用。
