【记录】研究rcsjta的几个apk的运行现象尝试搞懂rcs的core的service服务相关逻辑

Service crifan 315浏览 0评论
折腾:
【未解决】Android项目rcsjta中如何才能运行到rcs的core的service
期间,去看看几个apk:
研究看看现象。
看看是否,对于rcs的core的service,是否有所启发


刚才试了试,还是可以通过RI中status看到是true的
但是后来发现又不对了:

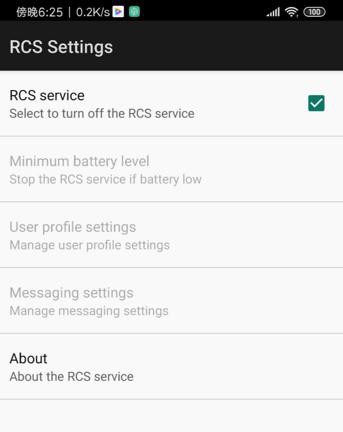

即使settings中显示已启动

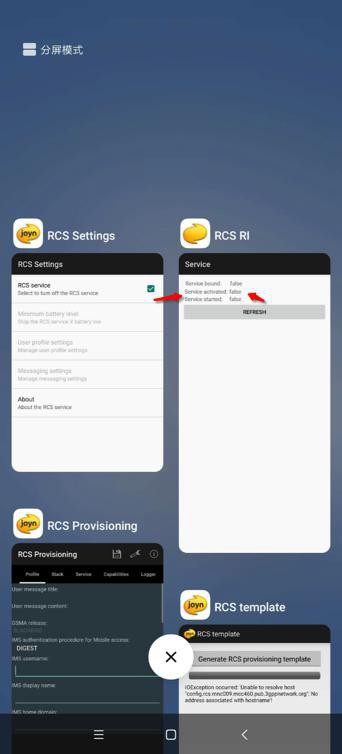

RS的status中是false了:

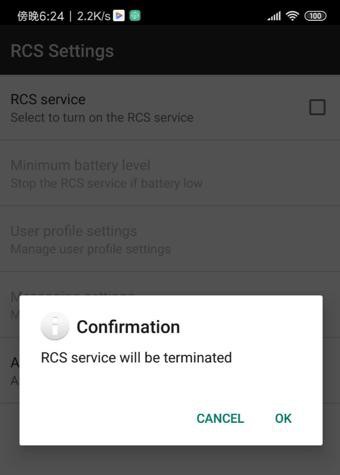

而前后是经过多次启动和关闭:
然后最后服务状态机就无法正常读取了

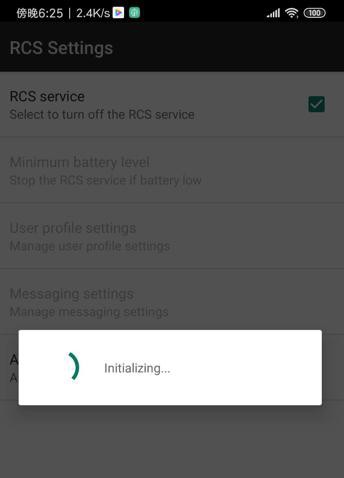

后来又去重新init:
也显示已启动了:

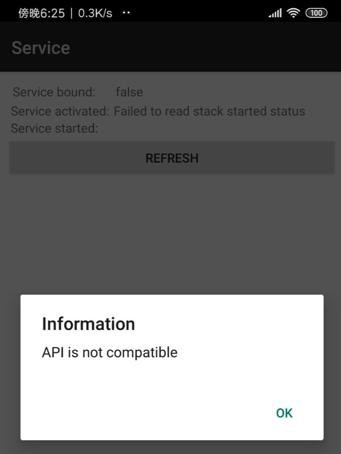

但是RI中显示:
API is not compatible
且注意到:
之前就提示的,现在显示的:
Service activated:Failed to read stack started status
TODO:
搜索代码中的:
  • API is not compatible
  • Service activated:Failed to read stack started status
以及相关何种原因导致的
API is not compatible
res/values/strings.xml
<string name="label_api_not_compatible">API is not compatible</string>
label_api_not_compatible
src/com/gsma/rcs/ri/service/ServiceStatus.java
public class ServiceStatus extends RcsActivity implements RcsServiceListener {


public void onCreate(Bundle savedInstanceState) {


    // Connect API
    try {
        mApi.connect();
    } catch (RcsPermissionDeniedException e) {
        mApi = null;
        showMessageThenExit(R.string.label_api_not_compatible);
    }
}
src/com/gsma/rcs/ri/service/ServiceStatus.java
/**
 * RCS service up event listener
 */
private BroadcastReceiver serviceUpListener = new BroadcastReceiver() {
    @Override
    public void onReceive(Context context, final Intent intent) {
        // Retry a connection to the service
        try {
            mApi.connect();
        } catch (RcsPermissionDeniedException e) {
            mApi = null;
            showMessageThenExit(R.string.label_api_not_compatible);
        }
    }
};
去调试此处的RI看看,是如何运行到这里的

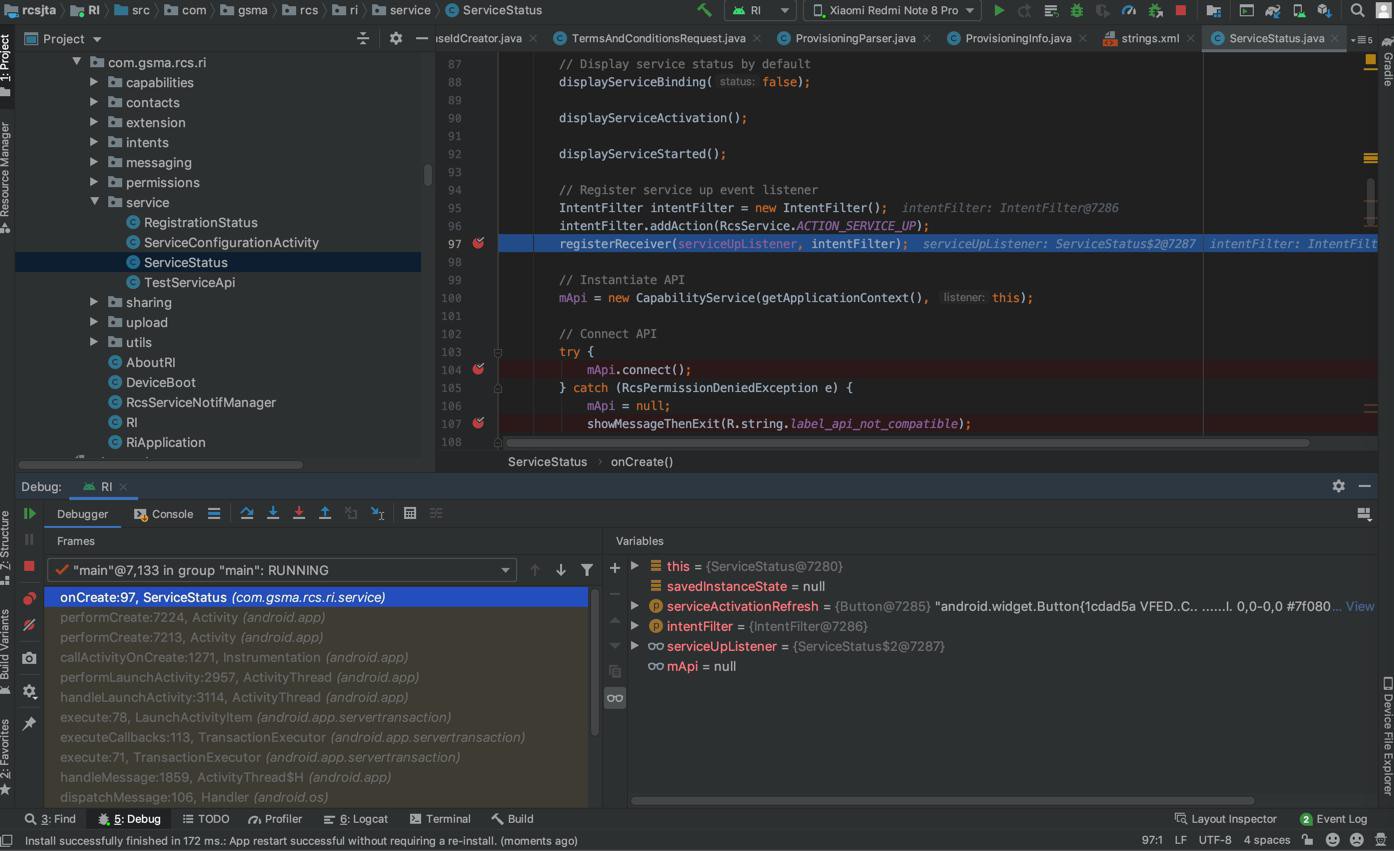

RI 中查看状态,可以进入断点:
继续调试,进入了,看起来最相关的代码:
src/main/java/com/gsma/services/rcs/RcsServiceControl.java
/**
 * Returns true if the client RCS API and core RCS stack are compatible for the given service.
 *
 * @param service the RCS service
 * @return boolean true if the client RCS stack and RCS API are compatible for the given
 *         service.
 * @throws RcsGenericException
 * @hide
 */
public boolean isCompatible(RcsService service) throws RcsGenericException {
    String serviceName = service.getClass().getSimpleName();
    if (sAccurateLog) {
        Log.d(LOG_TAG, "isCompatible: Request(" + serviceName + ")");
    }
    Bundle result = queryRcsStackByIntent(generateIsCompatibeIntent(serviceName));
    boolean compatible = result.getBoolean(Intents.Service.EXTRA_GET_COMPATIBILITY_RESPONSE,
            false);
    if (sAccurateLog) {
        Log.d(LOG_TAG, "isCompatible: Response(" + serviceName + ") -> " + compatible + " (in "
                + result.getLong(TIME_SPENT, -1) + "ms)");
    }
    return compatible;
}
结果最后调试完毕了,还是没太看出来,为何不兼容

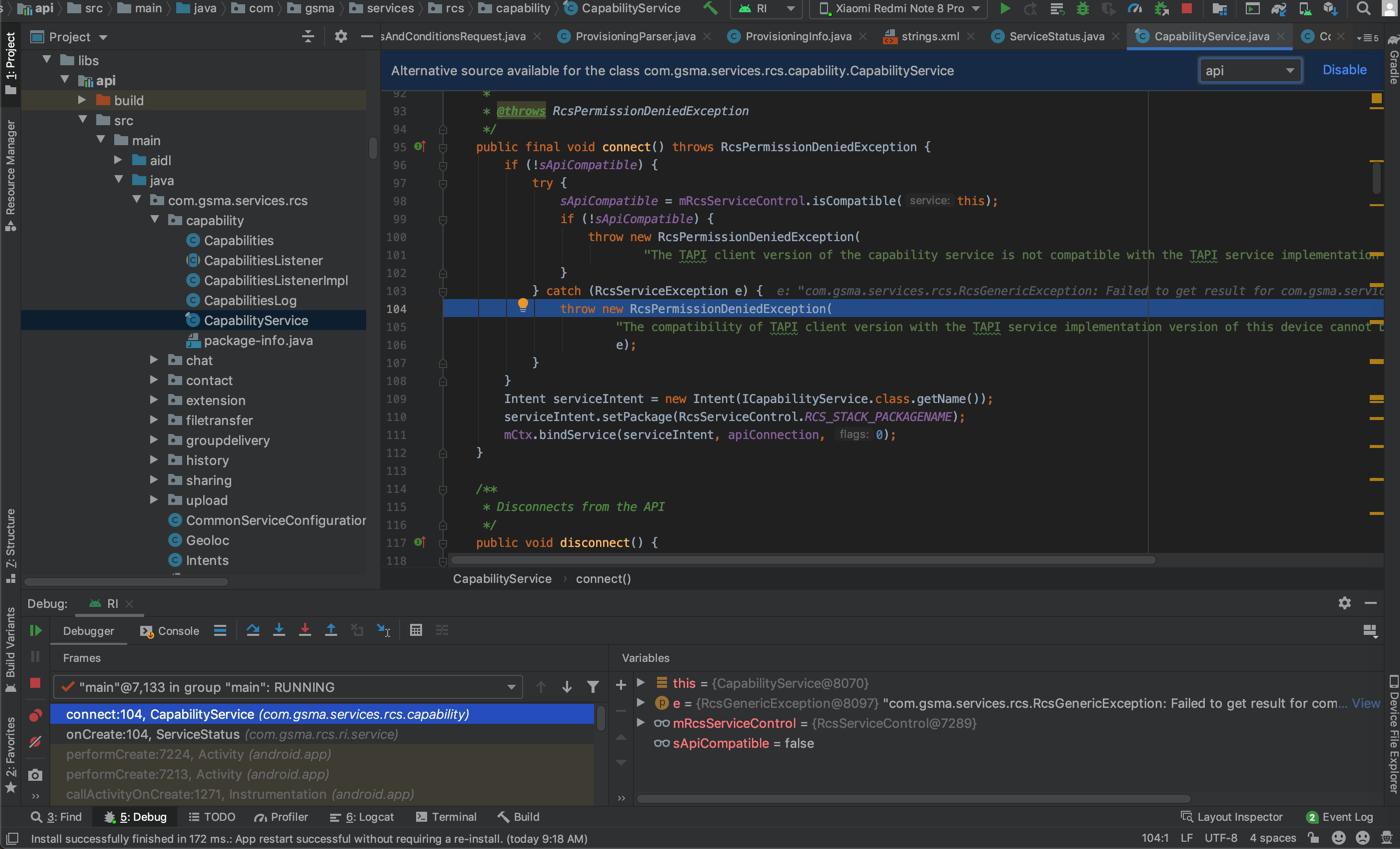

重新调试,好像是:
src/main/java/com/gsma/services/rcs/capability/CapabilityService.java
/**
 * Connects to the API
 *
 * @throws RcsPermissionDeniedException
 */
public final void connect() throws RcsPermissionDeniedException {
    if (!sApiCompatible) {
        try {
            sApiCompatible = mRcsServiceControl.isCompatible(this);
            if (!sApiCompatible) {
                throw new RcsPermissionDeniedException(
                        "The TAPI client version of the capability service is not compatible with the TAPI service implementation version on this device!");
            }
        } catch (RcsServiceException e) {
            throw new RcsPermissionDeniedException(
                    "The compatibility of TAPI client version with the TAPI service implementation version of this device cannot be checked for the capability service!",
                    e);
        }
    }
    Intent serviceIntent = new Intent(ICapabilityService.class.getName());
    serviceIntent.setPackage(RcsServiceControl.RCS_STACK_PACKAGENAME);
    mCtx.bindService(serviceIntent, apiConnection, 0);
}
继续多调试几次看看
是这里:

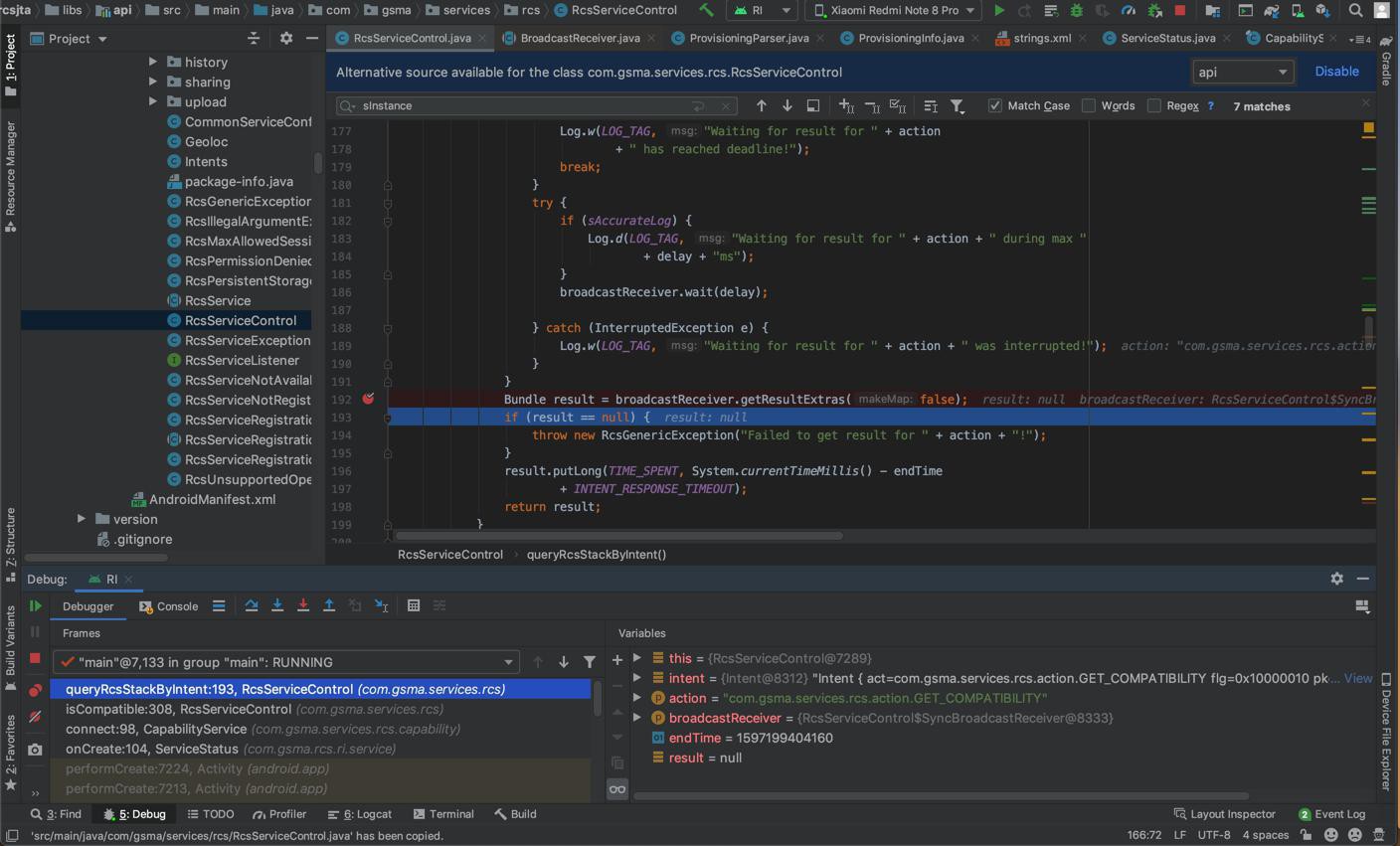

src/main/java/com/gsma/services/rcs/RcsServiceControl.java
/**
 * Query RCS stack by sending broadcast intent.
 *
 * @param intent Intent
 * @return the result extra data bundle or null if no response is received due to timeout
 * @throws RcsGenericException raised if timeout
 */
private Bundle queryRcsStackByIntent(Intent intent) throws RcsGenericException {

Bundle result = broadcastReceiver.getResultExtras(false);
中的:
broadcastReceiver.getResultExtras
报错的。
即:广播intent后,没有返回希望的数据。
所以要再去找:
这个intent具体是谁负责处理的
注意到上面中的action是:
com.gsma.services.rcs.action.GET_COMPATIBILITY
去找找:
GET_COMPATIBILITY
src/main/java/com/gsma/services/rcs/Intents.java
/**
 * Intent to check if RCS stack is compatible with RCS API
 */
public static final String ACTION_GET_COMPATIBILITY = "com.gsma.services.rcs.action.GET_COMPATIBILITY";

搜:
ACTION_GET_COMPATIBILITY
src/com/gsma/rcs/service/RcsServiceControlReceiver.java
private class IntentProcessor extends Thread {


@Override
public void run() {

case Intents.Service.ACTION_GET_COMPATIBILITY:
    String serviceName = mIntent
            .getStringExtra(Intents.Service.EXTRA_GET_COMPATIBILITY_SERVICE);
    String codename = mIntent
            .getStringExtra(Intents.Service.EXTRA_GET_COMPATIBILITY_CODENAME);
    int version = mIntent.getIntExtra(
            Intents.Service.EXTRA_GET_COMPATIBILITY_VERSION, INVALID_EXTRA);
    int increment = mIntent.getIntExtra(
            Intents.Service.EXTRA_GET_COMPATIBILITY_INCREMENT, INVALID_EXTRA);
    boolean compatible = isCompatible(serviceName, codename, version, increment);
    mResult.putBoolean(Intents.Service.EXTRA_GET_COMPATIBILITY_RESPONSE,
            compatible);
    if (sAccurateLog && sLogger.isActivated()) {
        sLogger.debug("isCompatible(" + serviceName + ") -> " + compatible);
    }
    break;
此处代码已加了断点了。
但是没有运行到
说明此处程序没有运行?
此处是core的apk 没有运行?
那么去试试:
【未解决】通过调试core加运行RI去研究rcsjta的服务没运行的原因
